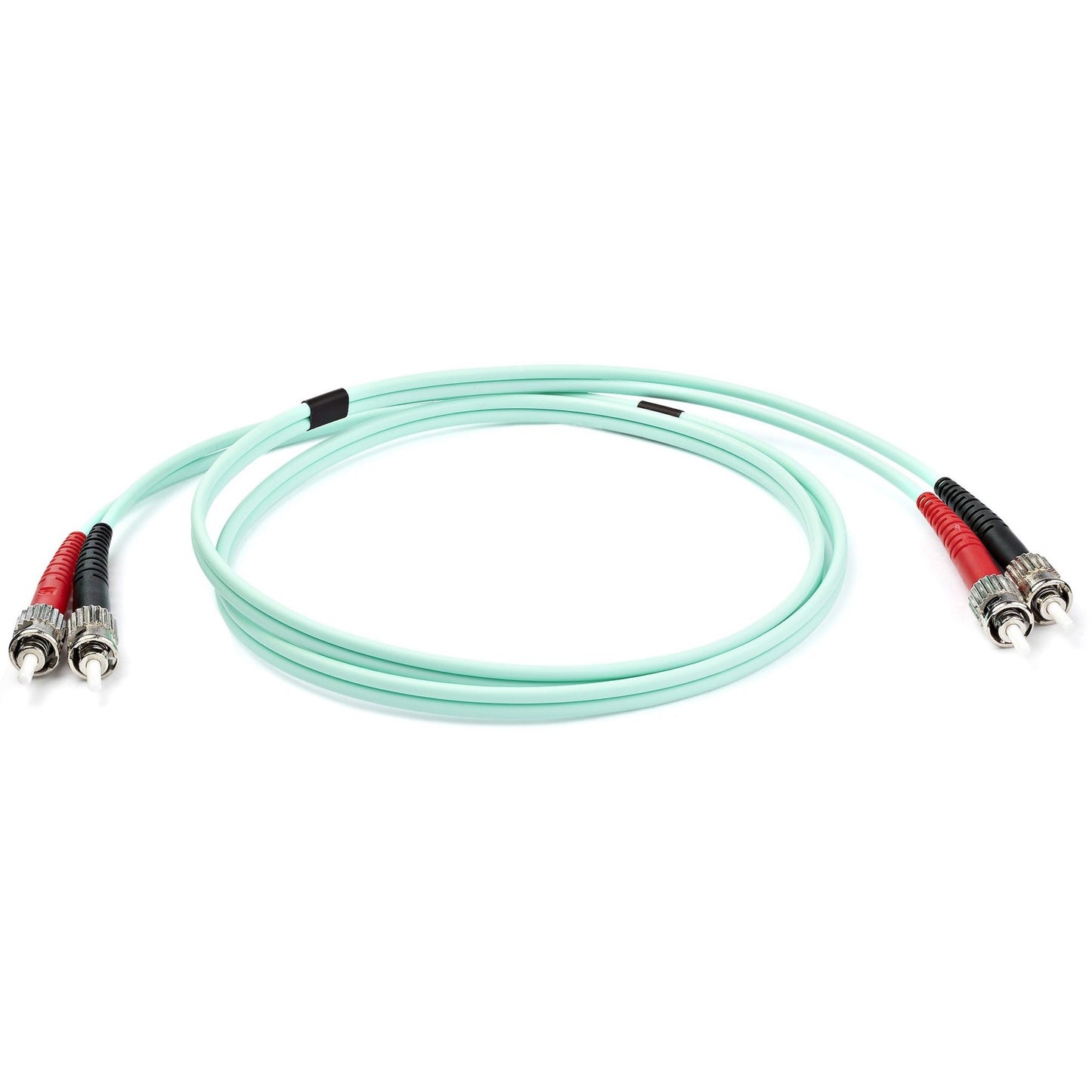

StarTech.com 1m (3ft) ST/UPC to ST/UPC OM3 Multimode Fiber Optic Cable Full Duplex Zipcord Fiber 100Gbps LOMMF LSZH Fiber Patch Cord
StarTech.com 1m (3ft) ST/UPC to ST/UPC OM3 Multimode Fiber Optic Cable Full Duplex Zipcord Fiber 100Gbps LOMMF LSZH Fiber Patch Cord
SKU: 1011209651 MFR: StarTech.com
GTIN: 65030827102
Product Description
StarTech.com 1m (3ft) ST/UPC to ST/UPC OM3 Multimode Fiber Optic Cable Full Duplex Zipcord Fiber 100Gbps LOMMF LSZH Fiber Patch Cord - 1m (3.3ft) OM3 Multimode ST/ST-UPC Fiber Cable; 1/10/40/100 Gbps Full Duplex; 50/125µm Core w/ Aramid Sheath; Bandwidth: 2000MHz ·km at 850nm w/ VCSEL source; Outer Diameter: 2.9mm; Jacket Material: LSZH; Temp Range: -20 to 60°C (-4 to 140°F)
Manufacturer : StarTech.com
Manufacturer Part No : A50FBSTST1
Features
- OM3 FIBER CABLE: OM3 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
- QUALITY CONSTRUCTION: 50/125?m fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; ST/ST connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
- RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes in case of fire; TIA/EIA compliant fiber core; Attenuation value under 2.3dB/km meets or exceeds industry standards
- COMPATIBILITY: OM3 ST/ST multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs data servers SFP+ and QSFP+ connections over 1000BASE-SX 10GBASE-SR 40GBASE-SR4 and 100GBASE-SR10; Backward compatible with OM2
- SPECS: 1m (3.3ft); Color: Aqua (OM3); ST/ST UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ?2000MHz?km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm) Dynamic 2.4in (6cm); Backed for Life
Product Details
Perfect for fiber cable runs between multiple backbone switches hubs and routers as well as higher-end networking equipment this high-speed 10-Gigabit Multimode Duplex Fiber Cable is terminated with ST connectors and is composed of 50/125 micron OM3 aqua fiber to deliver reliable data transfers at blinding speeds. Suited for a broad range of environments fiber optic cable is housed in a flame-retardant LSZH (Low-Smoke Zero-Halogen) cable jacket ensuring minimal smoke toxicity and corrosion in the event of a fire - making it an excellent choice for a wide range of environments including industrial settings central offices and schools as well as residential settings where building codes are a consideration.
Dropship
Update
Couldn't load pickup availability
![StarTech.com 1m (3ft) ST/UPC to ST/UPC OM3 Multimode Fiber Optic Cable Full Duplex Zipcord Fiber 100Gbps LOMMF LSZH Fiber Patch Cord](http://tekmentum.com/cdn/shop/files/1011209651_f6d5288c-dd96-45d0-a874-cac283771f60.jpg?v=1698357669&width=1445)
![StarTech.com 1m (3ft) ST/UPC to ST/UPC OM3 Multimode Fiber Optic Cable Full Duplex Zipcord Fiber 100Gbps LOMMF LSZH Fiber Patch Cord](http://tekmentum.com/cdn/shop/files/1011209651.jpg?v=1698357669&width=1445)
![StarTech.com 1m (3ft) ST/UPC to ST/UPC OM3 Multimode Fiber Optic Cable Full Duplex Zipcord Fiber 100Gbps LOMMF LSZH Fiber Patch Cord](http://tekmentum.com/cdn/shop/files/1011209651_52bc2888-d863-40cc-ba05-4fab35e86847.jpg?v=1698357669&width=1445)
![StarTech.com 1m (3ft) ST/UPC to ST/UPC OM3 Multimode Fiber Optic Cable Full Duplex Zipcord Fiber 100Gbps LOMMF LSZH Fiber Patch Cord](http://tekmentum.com/cdn/shop/files/1011209651_0e0d500c-5d6b-45c6-8a15-1d357830d5a2.jpg?v=1698357669&width=1445)
![StarTech.com 1m (3ft) ST/UPC to ST/UPC OM3 Multimode Fiber Optic Cable Full Duplex Zipcord Fiber 100Gbps LOMMF LSZH Fiber Patch Cord](http://tekmentum.com/cdn/shop/files/1011209651_e42d2945-d92c-4265-9f36-dc53b4e944d3.jpg?v=1698357669&width=1445)
StarTech.com 1m (3ft) ST/UPC to ST/UPC OM3 Multimode Fiber Optic Cable Full Duplex Zipcord Fiber 100Gbps LOMMF LSZH Fiber Patch Cord - 1m (3.3ft) OM3 Multimode ST/ST-UPC Fiber Cable; 1/10/40/100 Gbps Full Duplex; 50/125µm Core w/ Aramid Sheath; Bandwidth: 2000MHz ·km at 850nm w/ VCSEL source; Outer Diameter: 2.9mm; Jacket Material: LSZH; Temp Range: -20 to 60°C (-4 to 140°F)
Manufacturer : StarTech.com
Manufacturer Part No : A50FBSTST1
Features
- OM3 FIBER CABLE: OM3 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
- QUALITY CONSTRUCTION: 50/125?m fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; ST/ST connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
- RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes in case of fire; TIA/EIA compliant fiber core; Attenuation value under 2.3dB/km meets or exceeds industry standards
- COMPATIBILITY: OM3 ST/ST multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs data servers SFP+ and QSFP+ connections over 1000BASE-SX 10GBASE-SR 40GBASE-SR4 and 100GBASE-SR10; Backward compatible with OM2
- SPECS: 1m (3.3ft); Color: Aqua (OM3); ST/ST UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ?2000MHz?km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm) Dynamic 2.4in (6cm); Backed for Life
Product Details
Perfect for fiber cable runs between multiple backbone switches hubs and routers as well as higher-end networking equipment this high-speed 10-Gigabit Multimode Duplex Fiber Cable is terminated with ST connectors and is composed of 50/125 micron OM3 aqua fiber to deliver reliable data transfers at blinding speeds. Suited for a broad range of environments fiber optic cable is housed in a flame-retardant LSZH (Low-Smoke Zero-Halogen) cable jacket ensuring minimal smoke toxicity and corrosion in the event of a fire - making it an excellent choice for a wide range of environments including industrial settings central offices and schools as well as residential settings where building codes are a consideration.
