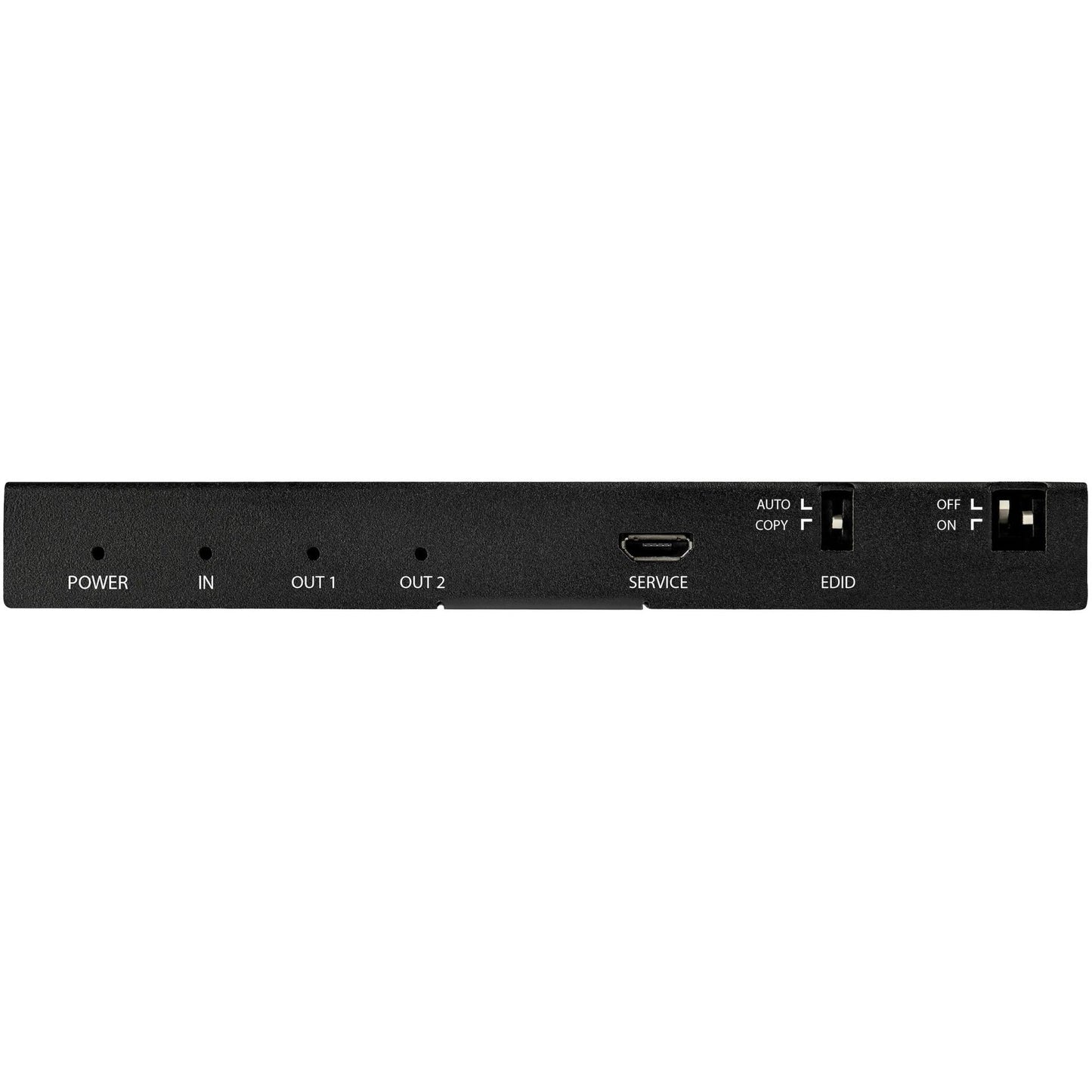

StarTech.com 2-Port HDMI Splitter (1x2) 4K 60Hz UHD HDMI 2.0 Audio Video Splitter w/ Scaler and Audio Extractor EDID Copy TV/Projector

StarTech.com 2-Port HDMI Splitter (1x2) 4K 60Hz UHD HDMI 2.0 Audio Video Splitter w/ Scaler and Audio Extractor EDID Copy TV/Projector

SKU: 1062351559      MFR: StarTech.com

GTIN: 065030883573

Product Description

StarTech.com 2-Port HDMI Splitter (1x2) 4K 60Hz UHD HDMI 2.0 Audio Video Splitter w/ Scaler and Audio Extractor EDID Copy TV/Projector - 2-Port HDMI splitter - Split UHD 4K 60Hz HDMI video signal + 7.1ch audio; HDR; HDCP 2.2 to 1.4 conversion - Built-in scaler to output 2 resolutions (EDID Auto) or the same resolution for both displays (EDID Copy) - HDMI/3.5mm/Optical audio outputs

Manufacturer : StarTech.com

Manufacturer Part No : ST122HD20S

Features

  • 2-PORT HDMI SPLITTER: Displays the same image with sound on 2 screens; Splits an HDMI video signal up to Ultra HD 4K 60Hz & 7.1 CH audio; 4:4:4 chroma subsampling support w/ bandwidth up to 18Gbps (HDMI 2.0b); HDR; HDCP 2.2 to HDCP 1.4 conversion
  • EDID MANAGEMENT SWITCH: 1x2 HDMI splitter is capable of outputting 2 different display resolutions w/ a built-in scaler (EDID Auto) or copy the EDID settings from output port 1 to the other display at the desired resolution (720p & up) (EDID Copy)
  • FLEXIBLE AUDIO SUPPORT: 3 different audio outputs HDMI/3.5mm port/Optical digital port for output to speakers/amplifiers; Audio output is supported on all ports simultaneously; Support Digital to Analog conversion (DAC)
  • LONG REACH: Reach up to 16.4ft (5m) with a passive HDMI cable; For longer distances active HDMI cables or HDMI extenders are available (sold separately) to use with this HDMI splitter for dual TVs/projectors/monitors/displays
  • EASY SETUP: No drivers required for the 1-Input 2-output UHD HDMI 2.0 splitter box; With the EDID switch set to Auto simply connect the cables and power to start using; Wide screen monitor formats supported; HDMI/DVI compatible

Product Details

Product TypeSignal Splitter
Number of HDMI Inputs1
Number of HDMI Outputs2
Brand NameStarTech.com
Environmentally FriendlyYes
Environmental CertificationRoHS
Maximum Video Resolution3840 × 2160
HDMI InYes
HDMI OutYes
Country of OriginChina
Height0.4"
Width2.5"
Length4.7"
ManufacturerStarTech.com
Product Name2-Port HDMI Splitter - 4K 60Hz with Built-In Scaler
Input Voltage120 V AC
Input Voltage230 V AC
Manufacturer Part NumberST122HD20S
Manufacturer Website Addresshttp://www.startech.com
Marketing Information

This 2-port HDMI splitter lets you connect your HDMI video source to two HDMI displays with support for Ultra HD resolutions and HDR (High Dynamic Range) as well as 7.1 surround sound audio.

Supports True 4K at 60Hz

This 2 way HDMI splitter offers full support for your HDMI 2.0b equipment including true 4K resolution at 60Hz. For smoother video and color transitions the splitter offers 4:4:4 chroma subsampling meaning every pixel gets its own unique color.

Widely Compatible

The HDMI 2.0 splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz 1080p and 720p displays. This ensures that it will work with lower resolution displays such as TVs or projectors around your site or in your digital signage application. With the built-in scaling function the HDMI 1 in 2 out splitter can output to two displays at different resolutions simultaneously.

The Choice of IT Pros Since 1985

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.

The ST122HD20 is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Packaged Quantity1
Package Contents
  • 2-Port HDMI Splitter - 4K 60Hz with Built-In Scaler
  • 1 x Universal Power Adapter (NA EU UK ANZ)
  • 1 x Instruction Manual
MaterialMetal
Limited Warranty2 Year
ColorBlack
