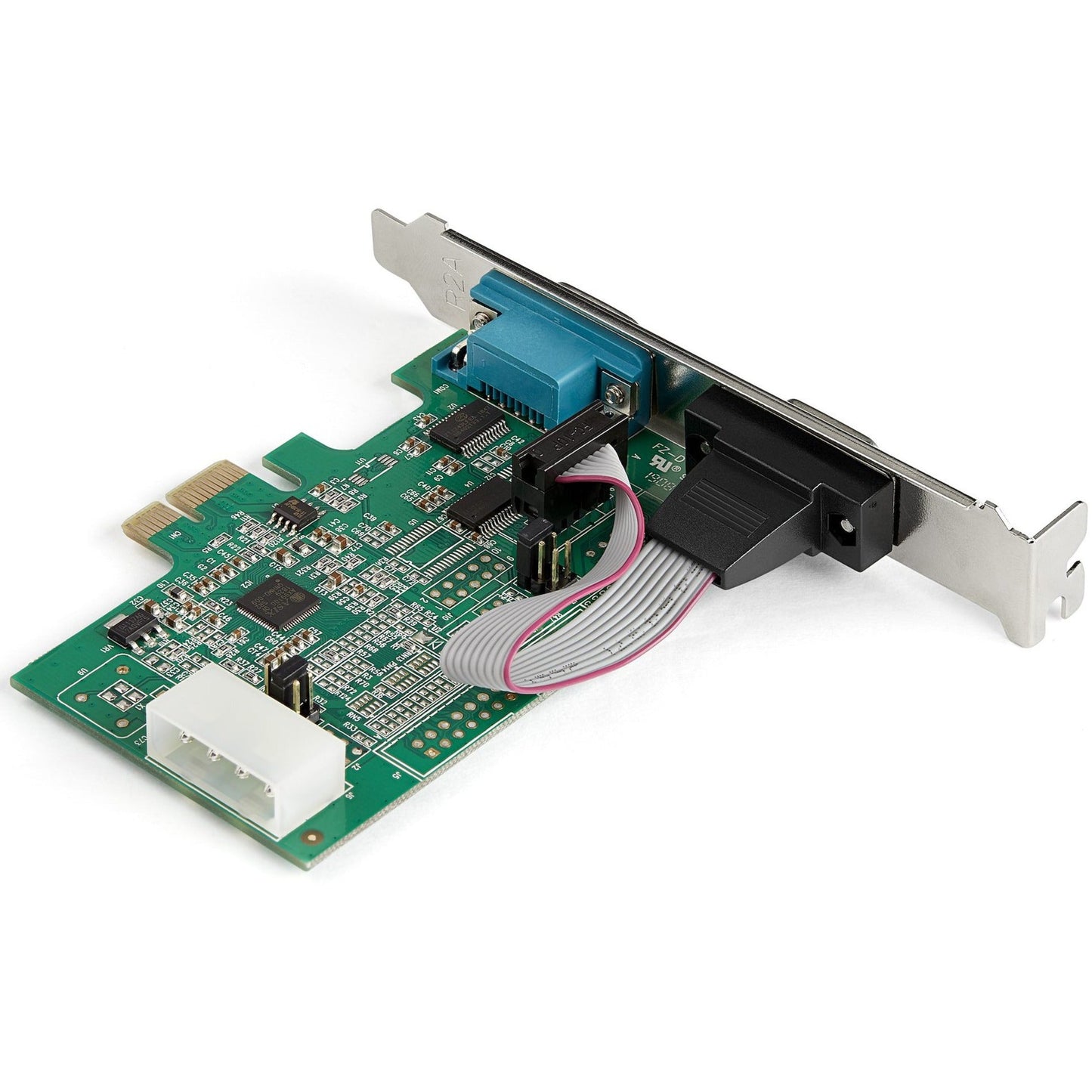

StarTech.com 2-port PCI Express RS232 Serial Adapter Card - PCIe to Dual Serial DB9 RS-232 Controller - 16950 UART - Windows and Linux

StarTech.com 2-port PCI Express RS232 Serial Adapter Card - PCIe to Dual Serial DB9 RS-232 Controller - 16950 UART - Windows and Linux

SKU: 1062450263      MFR: StarTech.com

GTIN: 065030888332

Product Description

StarTech.com 2-port PCI Express RS232 Serial Adapter Card - PCIe to Dual Serial DB9 RS-232 Controller - 16950 UART - Windows and Linux - 2-port PCI Express RS232 serial controller card 16950 UART/ASIX AX99100 - Bi-directional speeds 921.6Kbps/port | 256 byte FIFO | 9th data bit - Pin 9 pwr out 5v/12v/none w/up to 2A total - Expansion card w/ Std bracket (low profile incl) - Win/Linux

Manufacturer : StarTech.com

Manufacturer Part No : PEX2S953

Features

  • 2 PORT SERIAL CARD: Serial controller card w/16950 UART based on ASIX AX99100 allows 2x DB9 ports w/bi-directional RS232 speeds up to 921.6Kbps per port available 256 byte FIFO buffer & 9th data bit
  • OPTIONAL CONFIGURABLE POWER: PCI Express RS232 Serial Adapter Card provides choice of 12v 5v or none through pin 9 w/up to 2A total; Each of the 2 ports are individually configurable
  • STANDARD PROFILE & LOW PROFILE BRACKET: PCIe multiport serial card comes w/ a standard bracket pre-installed & 2x low profile brackets incl for versatile install; supports Windows XP and up & Linux
  • VERSATILE APPLICATIONS: For standard profile desktop/servers with uses in point of sale terminals PLCs control/automation in factories scientific sensors medical equipment scanners oscilloscope
  • STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; PCI-e RS232 Serial expansion card is backed for life by StarTech.com incl. free 24/5 North America based multi-lingual tech support

Product Details

Product TypeSerial Adapter
Environmentally FriendlyYes
Environmental CertificationRoHS
Card HeightLow-profile
Number of Serial Ports (External)2
Country of OriginTaiwan
Brand NameStarTech.com
Form FactorPlug-in Card
ManufacturerStarTech.com
Product Name2-Port PCI Express RS232 Serial Adapter Card - 16950 UART
Manufacturer Part NumberPEX2S953
Manufacturer Website Addresshttp://www.startech.com
Marketing Information

With broad OS support including for Windows and Linux this 2 port PCI E serial card is easy to integrate into mixed environments. The card comes pre-configured with a full-profile bracket and includes optional low-profile brackets so installation is easy regardless of the case form factor. This card is a direct replacement for PEX2S952.

Experience Optimal Technology

This PCIe to serial adapter supports the following features:

  • Industry standard 16950 UART compatible
  • Supports max baud rate of up-to 921.6Kbps
  • Provides 5/12V power output on Pin 9 when external power is connected
  • 256-byte depth FIFO cache per transmitter and receiver
  • Supports 9 8 7 6 5 data bits (one per port)
  • Asix AX99100 chipset
  • Base PCI Express 1.1 compliant
  • Low and full-profile brackets included
The Choice of IT Pros Since 1985

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.

PEX2S953 is backed by a StarTech.com lifetime warranty and free lifetime technical support.

Packaged Quantity1
Platform SupportedPC
Package Contents
  • 2-Port PCI Express RS232 Serial Adapter Card - 16950 UART
  • 1 x Low Profile Bracket
  • 1 x Quick Start Guide
Limited WarrantyLifetime
Host InterfacePCI Express 1.1 x1
