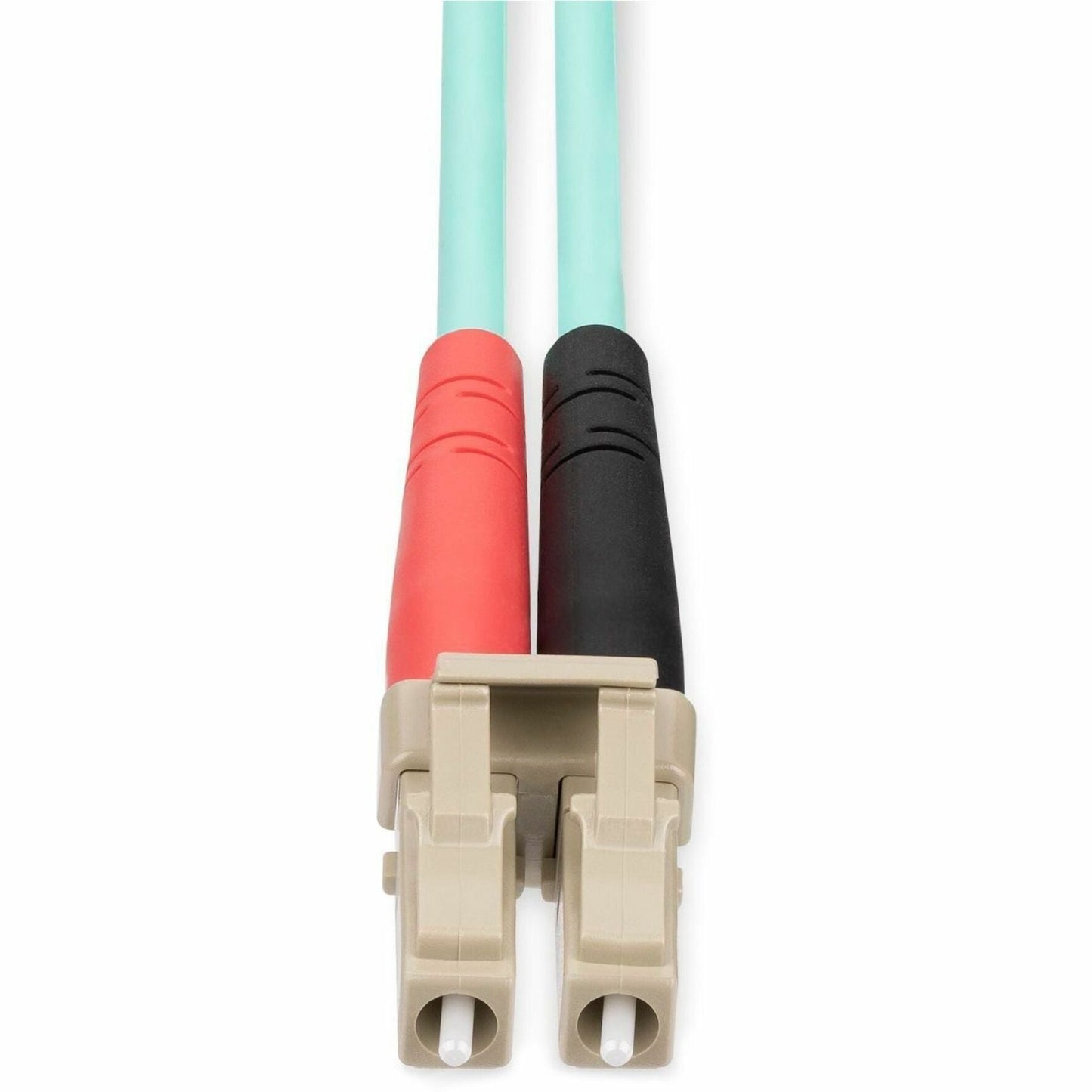

StarTech.com 20m (65ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable 50/125µm LOMMF/VCSEL Zipcord Fiber 100G LSZH Fiber Patch Cord

StarTech.com 20m (65ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable 50/125µm LOMMF/VCSEL Zipcord Fiber 100G LSZH Fiber Patch Cord

SKU: 1078070941      MFR: StarTech.com

GTIN: 65030900690

Product Description

StarTech.com 20m (65ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable 50/125µm LOMMF/VCSEL Zipcord Fiber 100G LSZH Fiber Patch Cord - 20m (65ft) OM4 Multimode LC/LC-UPC Fiber Cable; 1/10/40/100 Gbps Full Duplex; 50/125µm Core w/ Aramid Sheath; Bandwidth: 2000MHz?km at 850nm w/ VCSEL source; Outer Diameter: 2.9mm; Jacket Material: LSZH; Temp Range: -20 to 60°C (-4 to 140°F)

Manufacturer : StarTech.com

Manufacturer Part No : 450FBLCLC20

Features

  • OM4 FIBER CABLE: OM4 Laser-Optimized Multimode Fiber Cable is immune to EMI and supports up to 100Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors enable quick visual identification of polarity and conversion to simplex cabling
  • QUALITY CONSTRUCTION: LC/LC connectors with UPC polished ends significantly improves return loss over PC polish; Robust molded connector strain reliefs minimizes wear from bending; Protective Aramid fiber for increased tensile strength
  • SAFETY AND RELIABILITY: Individually tested for signal integrity; LSZH (low smoke zero halogen) jacket does not emit toxic fumes if combusted; Safe for enclosed/poorly ventilated spaces; Attenuation value under 2.3dB/km meets or exceeds industry standards
  • WIDE COMPATIBILITY: OM4 LC/LC multimode cable supports 1/10/40/100 Gbps networks; Backward compatible with OM3; For high-density network applications such as SANs data servers fiber switches SFP+ QSFP+ and QSFP28 transceivers
  • SPECS: 20m (65ft); Color: Aqua (OM4); LC/LC UPC; 50/125µm Core/Cladding; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: 2000MHzkm at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm) Dynamic 2.4in (6cm); Backed for Life

Product Details

Environmental CertificationRoHS
Cable TypeFiber Optic
Connector Type on First EndLC/UPC Network - Male
Environmentally FriendlyYes
Cable CharacteristicPatch Cable
Core/Cladding Diameter50/125 µm
Fiber Optic ModeMulti-mode
Connector Type on Second EndLC/UPC Network - Male
Product ColorAqua
Fiber TypeDuplex
Connector Gender on Second EndMale
Fiber CategoryOM4
Connector Gender on First EndMale
Connector on First End Details2 x LC/UPC Network - Male
Connector on Second End Details2 x LC/UPC Network - Male
Product TypeNetwork Cable
Marketing Information

The LC to LC Multimode Duplex Fiber Optic Patch cable facilitates reliable connectivity across 40 and 100 Gigabit networks.

Engineered for Optimal Performance

With laser-optimized multimode fiber (LOMMF) the OM4 fiber patch cable is ideal for 850 nm and 1350 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. Precision-manufactured ceramic ferrules ensure correct fiber alignment to prevent connectivity issues and minimize insertion loss. Designed for reliability in high-density network applications the LC to LC UPC polished fiber ends greatly improves return loss characteristics over older PC polishing techniques which may negatively affect performance.

Wide Compatibility

This multimode 50/125µm fiber optic patch cord is backward compatible with OM3 and 1/10/40 Gbps networks ensuring a reliable connection with legacy fiber environments.

Flame Resistant

Housed in a LSZH (Low-Smoke Zero-Halogen) flame-retardant jacket this OM4 fiber cable emits low smoke and toxic fumes when exposed to high heat or in the event of a fire. It enables safer cable installations in areas with poor ventilation including some industrial settings self-contained environments such as trains and aircraft as well as residential settings where building codes are a consideration.

Each OM4 fiber cable is also individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.
Packaged Quantity1
Limited WarrantyLifetime
Jacket TypeLSZH
Manufacturer Part Number450FBLCLC20
Data Transfer Rate100 Gbit/s
Device SupportedNetwork Device
Manufacturer Website Addresshttp://www.startech.com
ManufacturerStarTech.com
FeaturesZip Cord
Product NameFiber Optic Duplex Patch Network Cable
Brand NameStarTech.com
Cable Length65.62 ft
View full details
$71.99 USD
$71.99
Sale Sold out

In Stock - 257 (Available by Wed, Dec 11 - Sun, Dec 15)
