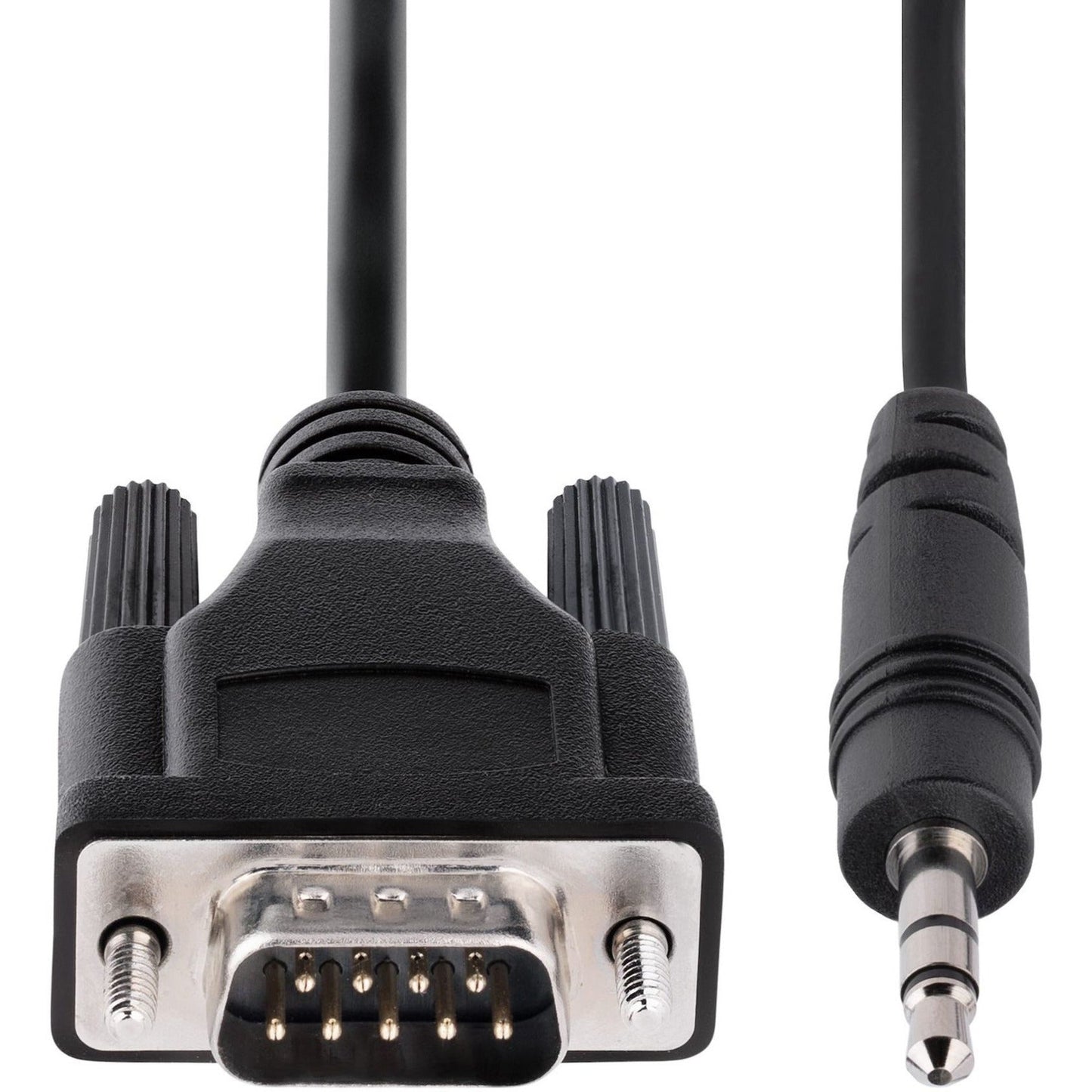

StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration RS232 DB9 Male to 3.5mm for Calibrating via Audio Jack
StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration RS232 DB9 Male to 3.5mm for Calibrating via Audio Jack
SKU: 1076079165 MFR: StarTech.com
GTIN: 65030893565
Product Description
StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration RS232 DB9 Male to 3.5mm for Calibrating via Audio Jack - 3ft/1m male DB9 to 3.5 mm serial control cable configure serial devices with a 3.5mm audio jack; High quality 28 AWG copper wires with Al-Mylar cable shielding; Works with computers that are equipped with a DB9 9pin serial ports to configure displays
Manufacturer : StarTech.com
Manufacturer Part No : 9M351M-RS232-CABLE
Features
- DB9 TO 3.5 MM SERIAL CABLE: 3ft (1m) RS232 serial control cable enables configuration or calibration of a 3.5mm RS-232 serial devices - Use with TVs projectors digital signage displays requiring 3-conductor RS-232 serial control through 3.5mm audio jack
- QUALITY CONSTRUCTION: High quality 28 AWG copper wires with Al-Mylar cable shielding and shielded metal shell connectors prevent EMI interference - Molded PVC connectors with strain reliefs and PVC jacket prevent damage due to bends or rough usage
- COMPATIBILITY: The DB9 to 3.5mm cable works with USB-A and USB-C to DB9 serial adapters (1P3FP-USB-SERIAL / ICUSB232C) for computers that do not have a built-in serial port Note: DB9 gender changer may be required such as our GC9SF (not included)
- SPECIFICATIONS: Length: 3.3ft (1m) - DB9 Male to 3.5 mm Male Serial Cable - Color: Black - 28 AWG - OD:3.5mm - Jacket: PVC - DB9 Pin 3 to 3.5mm Tip - DB9 Pin 2 to 3.5mm Ring - DB9 Pin 5 to 3.5mm Sleeve
- THE IT PRO'S CHOICE: Designed and built for IT Professionals this product is backed for life including free lifetime 24/5 multi-lingual technical assistance
Product Details
High Quality Construction
The aluminum-mylar cable shielding and metal shell connectors mitigate EMI. The molded PVC connectors with strain reliefs and PVC cable jacket prevent damage caused by strain and/or abrasion.
Secure the DB-9 connector by tightening the integrated thumbscrews. These connector screw locks prevent accidental disconnection which could lead to data loss/corruption
DB9 Serial to 3.5mm Pinout
DB9 Pin 3 to 3.5mm Tip
DB9 Pin 2 to 3.5mm Ring
DB9 Pin 5 to 3.5mm Sleeve
This product is backed for life including free lifetime 24/5 multi-lingual technical assistance.
Dropship
Update
Couldn't load pickup availability
![StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration RS232 DB9 Male to 3.5mm for Calibrating via Audio Jack](http://tekmentum.com/cdn/shop/files/1076079165.jpg?v=1696635976&width=1445)
![StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration RS232 DB9 Male to 3.5mm for Calibrating via Audio Jack](http://tekmentum.com/cdn/shop/files/1076079165_241b8d1d-d4fd-469c-93d5-2cf71d50914c.jpg?v=1698608991&width=1445)
![StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration RS232 DB9 Male to 3.5mm for Calibrating via Audio Jack](http://tekmentum.com/cdn/shop/files/1076079165_4b961481-b8a6-48a7-84df-4d7fdc8c75c9.jpg?v=1698608995&width=1445)
![StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration RS232 DB9 Male to 3.5mm for Calibrating via Audio Jack](http://tekmentum.com/cdn/shop/files/1076079165_bfda1752-d2cf-4292-8b2e-20a5962e181c.jpg?v=1698608998&width=1445)
![StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration RS232 DB9 Male to 3.5mm for Calibrating via Audio Jack](http://tekmentum.com/cdn/shop/files/1076079165_07e52f81-c86b-4731-bdd2-cfa53010dfe3.jpg?v=1698609077&width=1445)
StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration RS232 DB9 Male to 3.5mm for Calibrating via Audio Jack - 3ft/1m male DB9 to 3.5 mm serial control cable configure serial devices with a 3.5mm audio jack; High quality 28 AWG copper wires with Al-Mylar cable shielding; Works with computers that are equipped with a DB9 9pin serial ports to configure displays
Manufacturer : StarTech.com
Manufacturer Part No : 9M351M-RS232-CABLE
Features
- DB9 TO 3.5 MM SERIAL CABLE: 3ft (1m) RS232 serial control cable enables configuration or calibration of a 3.5mm RS-232 serial devices - Use with TVs projectors digital signage displays requiring 3-conductor RS-232 serial control through 3.5mm audio jack
- QUALITY CONSTRUCTION: High quality 28 AWG copper wires with Al-Mylar cable shielding and shielded metal shell connectors prevent EMI interference - Molded PVC connectors with strain reliefs and PVC jacket prevent damage due to bends or rough usage
- COMPATIBILITY: The DB9 to 3.5mm cable works with USB-A and USB-C to DB9 serial adapters (1P3FP-USB-SERIAL / ICUSB232C) for computers that do not have a built-in serial port Note: DB9 gender changer may be required such as our GC9SF (not included)
- SPECIFICATIONS: Length: 3.3ft (1m) - DB9 Male to 3.5 mm Male Serial Cable - Color: Black - 28 AWG - OD:3.5mm - Jacket: PVC - DB9 Pin 3 to 3.5mm Tip - DB9 Pin 2 to 3.5mm Ring - DB9 Pin 5 to 3.5mm Sleeve
- THE IT PRO'S CHOICE: Designed and built for IT Professionals this product is backed for life including free lifetime 24/5 multi-lingual technical assistance
Product Details
High Quality Construction
The aluminum-mylar cable shielding and metal shell connectors mitigate EMI. The molded PVC connectors with strain reliefs and PVC cable jacket prevent damage caused by strain and/or abrasion.
Secure the DB-9 connector by tightening the integrated thumbscrews. These connector screw locks prevent accidental disconnection which could lead to data loss/corruption
DB9 Serial to 3.5mm Pinout
DB9 Pin 3 to 3.5mm Tip
DB9 Pin 2 to 3.5mm Ring
DB9 Pin 5 to 3.5mm Sleeve
This product is backed for life including free lifetime 24/5 multi-lingual technical assistance.
