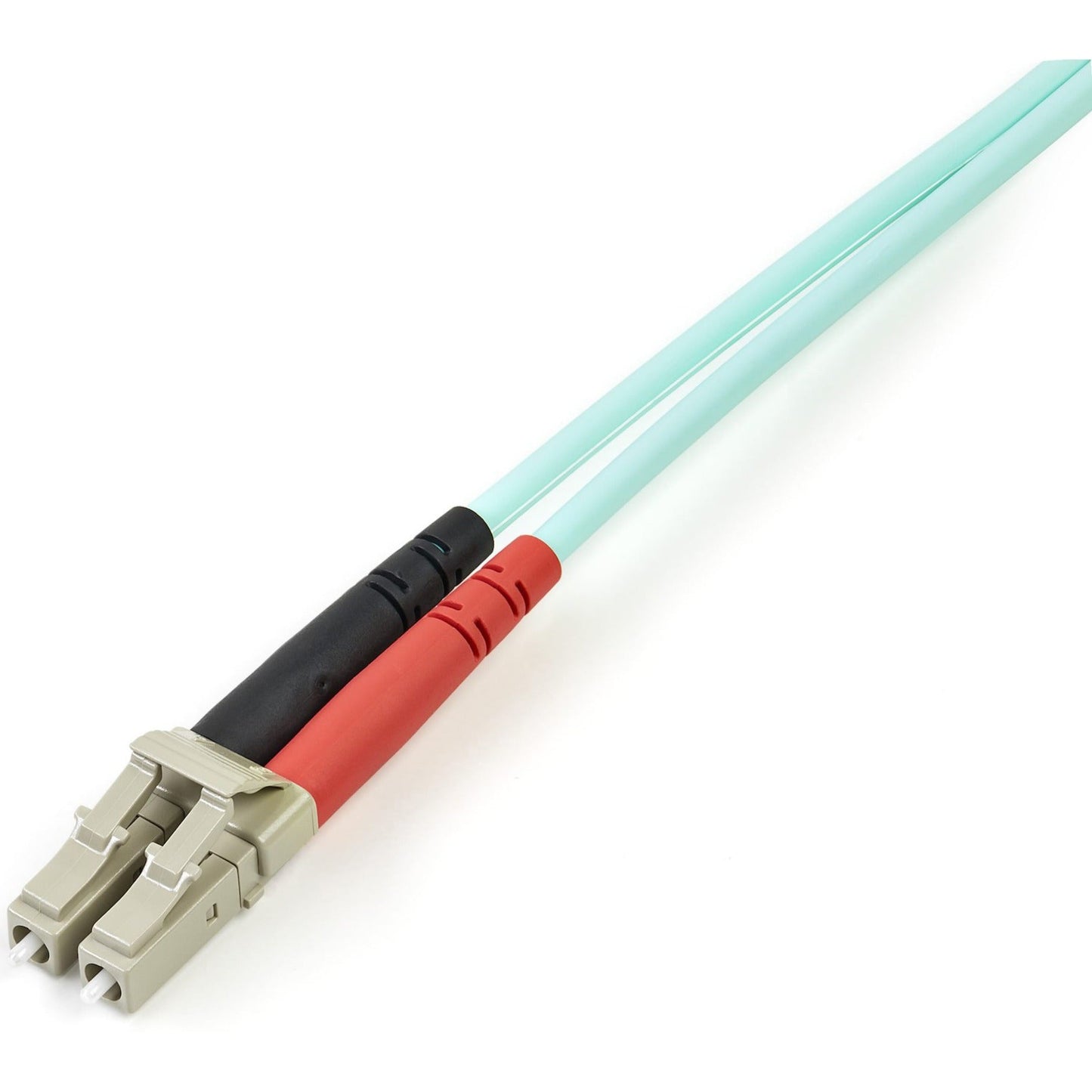

StarTech.com 3m (10ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable 50/125µm LOMMF/VCSEL Zipcord Fiber 100G LSZH Fiber Patch Cord

StarTech.com 3m (10ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable 50/125µm LOMMF/VCSEL Zipcord Fiber 100G LSZH Fiber Patch Cord

SKU: 1040209495      MFR: StarTech.com

GTIN: 65030870825

Product Description

StarTech.com 3m (10ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable 50/125µm LOMMF/VCSEL Zipcord Fiber 100G LSZH Fiber Patch Cord - 3m (9.8ft) OM4 Multimode LC/LC-UPC Fiber Cable; 1/10/40/100 Gbps Full Duplex; 50/125µm Core w/ Aramid Sheath; Bandwidth: 2000MHz ·km at 850nm w/ VCSEL source; Outer Diameter: 2.9mm; Jacket Material: LSZH; Temp Range: -20 to 60°C (-4 to 140°F)

Manufacturer : StarTech.com

Manufacturer Part No : 450FBLCLC3

Features

  • OM4 FIBER CABLE: OM4 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
  • QUALITY CONSTRUCTION: 50/125?m fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
  • RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes if combusted; Attenuation value under 2.3dB/km meets or exceeds industry standards
  • COMPATIBILITY: OM4 LC/LC multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs data servers SFP+ and QSFP+ connections over 1000BASE-SX 10GBASE-SR 40GBASE-SR4 and 100GBASE-SR10
  • SPECS: 3m (9.8ft); Color: Aqua (OM4); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ?2000MHz?km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm) Dynamic 2.4in (6cm); Backed for Life~

Product Details

Product TypeNetwork Cable
Cable CharacteristicPatch Cable
Cable TypeFiber Optic
Connector Type on First EndLC Network - Male
Connector Type on Second EndLC Network - Male
Fiber Optic ModeMulti-mode
Product ColorAqua
Brand NameStarTech.com
Cable Length9.84 ft
Core/Cladding Diameter50/125 µm
Connector on First End Details2 x LC Network - Male
Connector on Second End Details2 x LC Network - Male
Connector Gender on First EndMale
Connector Gender on Second EndMale
Country of OriginChina
FeaturesHalogen Free
ManufacturerStarTech.com
Product NameFiber Optic Duplex Patch Network Cable
Data Transfer Rate100 Gbit/s
Device SupportedNetwork Device
Jacket TypeLSZH
Manufacturer Part Number450FBLCLC3
Manufacturer Website Addresshttp://www.startech.com
Marketing InformationThis fiber optic cable lets you connect 40GBase-SR4 100GBase-SR10 SFP plus and QSFP plus transceivers in 40 and 100 Gigabit networks. The OM4 Duplex Multimode Fiber Optic Cable with LC connectors supports Vertical Cavity Surface Emitting Laser (VCSEL) and LED light sources. It is backward-compatible with your existing 50/125 equipment. Fiber cable is housed in a LSZH (Low-Smoke Zero-Halogen) flame-retardant jacket to ensure minimal smoke toxicity and corrosion when exposed to high sources of heat in the event of a fire. Compatible with 850nm VCSEL source the network cable is ideal for use in industrial settings central offices and schools as well as residential settings where building codes are a consideration. Laser-optimized multimode fiber is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and reliability.

More from the Manufacturer
Limited WarrantyLifetime
Weight (Approximate)0.11 lb
