StarTech.com 4-Port DisplayPort 1.2 Splitter DisplayPort to 4x DP Multi-Monitor Adapter Quad 1080p 60Hz Computer MST Hub Windows Only
StarTech.com 4-Port DisplayPort 1.2 Splitter DisplayPort to 4x DP Multi-Monitor Adapter Quad 1080p 60Hz Computer MST Hub Windows Only
SKU: 1030319482 MFR: StarTech.com
GTIN: 65030860581
Product Description
StarTech.com 4-Port DisplayPort 1.2 Splitter DisplayPort to 4x DP Multi-Monitor Adapter Quad 1080p 60Hz Computer MST Hub Windows Only - 4-port DisplayPort multi-monitor adapter drives 4x 1080p 60Hz DP displays to extend or mirror your desktop; DP 1.2/HBR2/MST; MST Hub/video splitter w/latching DP connector; Universal Power Adapter included; No Drivers / Windows only
Manufacturer : StarTech.com
Manufacturer Part No : MSTDP124DP
Features
- MULTI MONITOR ADAPTER FOR WINDOWS: 4-port DisplayPort MST hub drives up to four DP displays in extended or duplicate mode using a DP port on Windows desktop PCs or laptops | Not compatible with macOS
- DISPLAY RESOLUTION: Quad monitor DisplayPort MST hub supports HD resolutions up to 1080p 60Hz on all four monitors
- COMPATIBILITY: 4-Port DisplayPort MST video splitter works with laptops computers or desktop graphics cards |Requires host system with DP 1.2/HBR2/MST or later from HP Dell & Lenovo and AMD Nvidia & Intel video cards
- INCREASE PRODUCTIVITY: Increase productivity by extending your desktop at your workstation in the office/home office | MST technology uses your GPU/video card performance to deliver uncompressed video and use minimal system resources
- EASY TO USE: Quad monitor adapter natively supports 4x DP monitors; Works w/Windows only and provides an easy driverless setup | Latching DisplayPort connector ensures a reliable connection and prevents accidental disconnection
- CONVENIENCE: MST (multi-stream transport) hub is equipped with a built-in 7.5" (19cm) cable for video (DisplayPort) and an AC power adapter | Supports LPCM digital audio
- GPU CAPABILITIES: Please check your system's GPU capabilities to determine max number of displays supported; Some GPU chips (such as Intel HD Graphics) are not capable of supporting four displays
Product Details
This MST hub lets you connect four monitors to your DisplayPort™ (DP) 1.2 equipped Windows® laptop or desktop.
Increase productivity with multiple screens
The newest generations of computers are more portable than ever which often means that you're left with fewer video outputs and smaller integrated screens. ThisMST hubsolves both of these problems by letting you connect four additional displays to your computer which makes multitasking much easier.
Connect to any display
With the MST hub you can use DisplayPort video adapters and cable adapters that enable you to connect HDMI VGA or DVI displays. This ensures your MST hub will be compatible with virtually any television monitor or projector. This MST hub is VESA and DisplayPort certified to support DP 1.2 enabled systems for seamless integration with your existing video equipment.
Configure your displays for any environment
Using the MST hub you can extend your desktop onto additional monitors and stream independent content to each display giving you the freedom to multitask and increase your productivity. You can also mirror the same image onto multiple displaysfor remote viewing applications such as digital signage.
Enjoy amazing video quality without draining system resources
MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design gaming and medical imaging.
Note: When using a DisplayPort 1.1 video card the MST hub will act as a splitter automatically mirroring your video source across all displays. Resolution limitations apply.
The MSTDP124DP supports plug-and-play installation for a hassle-free setup and is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: MST shares 21.6Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports please see our guideline below for determining an ideal resolution for your setup.Certain graphics adapters have limited MST support and will only output to three displays in total. If more than three monitors are attached the fourth will be disabled.
Average resolution bandwidth allocation:
1920x1080 (High-definition 1080p) @60hz - 22% 1920x1200 @60hz - 30% 2560x1440 @60hz - 35% 2560x1600 @60hz - 38% 3840 x 2160 (Ultra HD 4K) @30hz - 38%
Note: Exceeding 100% will reduce functionality.

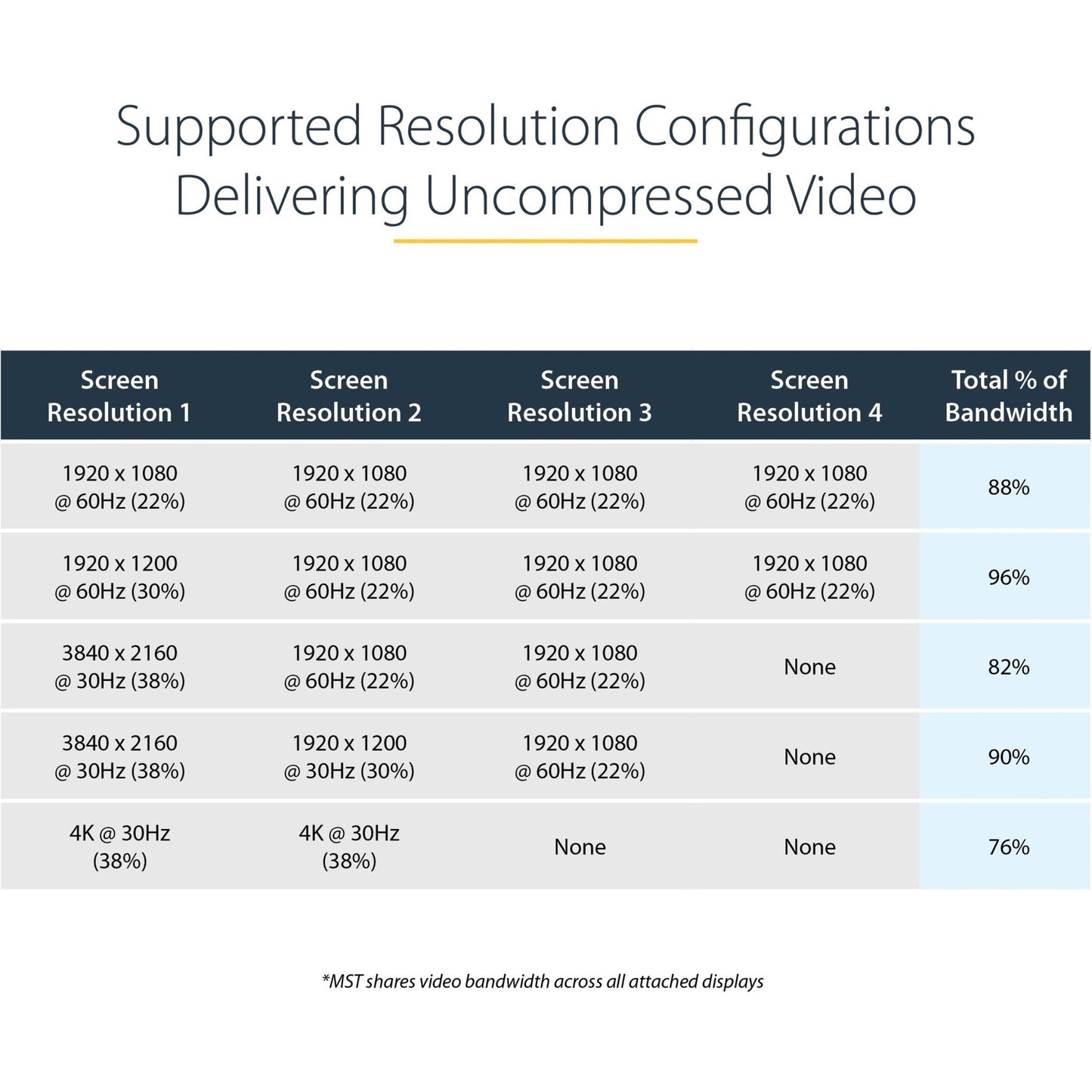

Examples of supported resolution configurations:
Screen 1 Resolution
Screen 2 Resolution
Screen 3 Resolution
Screen 4 Resolution
Total % of Bandwidth
1920x1080 @60hz (22%) 1920x1080 @60hz (22%) 1920x1080 @60hz (22%) 1920x1080 @60hz (22%) 88% 1920x1200 @60hz (30%) 1920x1080 @60hz (22%) 1920x1080 @60hz (22%) 1920x1080 @60hz (22%) 96% 3840x2160 @30hz (38%) 1920x1080 @60hz (22%) 1920x1080 @60hz (22%) off 82% 3840x2160 @30hz (38%) 1920x1200 @30hz (30%) 1920x1080 @60hz (22%) off 90% Examples of unsupported resolution configurations Screen 1 Resolution Screen 2 Resolution Screen 3 Resolution Screen 4 Resolution Total % of Bandwidth 2560x1600 @60hz (38%) 2560x1600 @60hz (38%) 1920x1200 @60hz (30%) 1920x1200 @60hz (30%) 136% 3840x2160 @30hz (38%) 2560x1600 @60hz (38%) 1920x1200 @60hz (30%) 1920x1200 @60hz (30%) 136% 3840x2160 @30hz (38%) 2560x1600 @60hz (38%) 2560x1440 @60hz (35%) 1920x1200 @60hz (30%) 141% 3840x2160 @30hz (38%) 3840x2160 @30hz (38%) 3840x2160 @30hz (38%) off 114%
- MST hub - DisplayPort to 4x DisplayPort
- 1 x Universal Power Adapter (NA/EU/UK/AUS)
- 1 x Quick Install Guide
- Audio Yes
- Chipset ID STDP4320
- Converter Type MST Hub
- Output Signal DisplayPort
- Ports 4
- Maximum Digital Resolutions 3840 x 2160 @30hz
- Supported Resolutions 1024x768
- 1280x720 (High-definition 720p)
- 1920x1080 (High-definition 1080p)
- 1920x1200
- 2560x1440
- 2560x1600
- 3840 x 2160 (Ultra HD 4K) @30hz
- Wide Screen Supported Yes
- Operating Temperature 0°C to 45°C (32°F to 113°F)
- Storage Temperature -20°C to 70°C (-4°F to 158°F)
This MST hub lets you connect four monitors to your DisplayPort™ (DP) 1.2 equipped Windows® laptop or desktop.
Increase productivity with multiple screens
The newest generations of computers are more portable than ever which often means that you're left with fewer video outputs and smaller integrated screens. ThisMST hubsolves both of these problems by letting you connect four additional displays to your computer which makes multitasking much easier.
Connect to any display
With the MST hub you can use DisplayPort video adapters and cable adapters that enable you to connect HDMI VGA or DVI displays. This ensures your MST hub will be compatible with virtually any television monitor or projector. This MST hub is VESA and DisplayPort certified to support DP 1.2 enabled systems for seamless integration with your existing video equipment.
Configure your displays for any environment
Using the MST hub you can extend your desktop onto additional monitors and stream independent content to each display giving you the freedom to multitask and increase your productivity. You can also mirror the same image onto multiple displaysfor remote viewing applications such as digital signage.
Enjoy amazing video quality without draining system resources
MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design gaming and medical imaging.
Note: When using a DisplayPort 1.1 video card the MST hub will act as a splitter automatically mirroring your video source across all displays. Resolution limitations apply.
The MSTDP124DP supports plug-and-play installation for a hassle-free setup and is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: MST shares 21.6Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports please see our guideline below for determining an ideal resolution for your setup.Certain graphics adapters have limited MST support and will only output to three displays in total. If more than three monitors are attached the fourth will be disabled.
Average resolution bandwidth allocation:
1920x1080 (High-definition 1080p) @60hz - 22% 1920x1200 @60hz - 30% 2560x1440 @60hz - 35% 2560x1600 @60hz - 38% 3840 x 2160 (Ultra HD 4K) @30hz - 38%
Note: Exceeding 100% will reduce functionality.
Examples of supported resolution configurations:
Screen 1 Resolution
Screen 2 Resolution
Screen 3 Resolution
Screen 4 Resolution
Total % of Bandwidth
1920x1080 @60hz (22%) 1920x1080 @60hz (22%) 1920x1080 @60hz (22%) 1920x1080 @60hz (22%) 88% 1920x1200 @60hz (30%) 1920x1080 @60hz (22%) 1920x1080 @60hz (22%) 1920x1080 @60hz (22%) 96% 3840x2160 @30hz (38%) 1920x1080 @60hz (22%) 1920x1080 @60hz (22%) off 82% 3840x2160 @30hz (38%) 1920x1200 @30hz (30%) 1920x1080 @60hz (22%) off 90% Examples of unsupported resolution configurations Screen 1 Resolution Screen 2 Resolution Screen 3 Resolution Screen 4 Resolution Total % of Bandwidth 2560x1600 @60hz (38%) 2560x1600 @60hz (38%) 1920x1200 @60hz (30%) 1920x1200 @60hz (30%) 136% 3840x2160 @30hz (38%) 2560x1600 @60hz (38%) 1920x1200 @60hz (30%) 1920x1200 @60hz (30%) 136% 3840x2160 @30hz (38%) 2560x1600 @60hz (38%) 2560x1440 @60hz (35%) 1920x1200 @60hz (30%) 141% 3840x2160 @30hz (38%) 3840x2160 @30hz (38%) 3840x2160 @30hz (38%) off 114%
Dropship
Update
Couldn't load pickup availability
StarTech.com 4-Port DisplayPort 1.2 Splitter DisplayPort to 4x DP Multi-Monitor Adapter Quad 1080p 60Hz Computer MST Hub Windows Only - 4-port DisplayPort multi-monitor adapter drives 4x 1080p 60Hz DP displays to extend or mirror your desktop; DP 1.2/HBR2/MST; MST Hub/video splitter w/latching DP connector; Universal Power Adapter included; No Drivers / Windows only
Manufacturer : StarTech.com
Manufacturer Part No : MSTDP124DP
Features
- MULTI MONITOR ADAPTER FOR WINDOWS: 4-port DisplayPort MST hub drives up to four DP displays in extended or duplicate mode using a DP port on Windows desktop PCs or laptops | Not compatible with macOS
- DISPLAY RESOLUTION: Quad monitor DisplayPort MST hub supports HD resolutions up to 1080p 60Hz on all four monitors
- COMPATIBILITY: 4-Port DisplayPort MST video splitter works with laptops computers or desktop graphics cards |Requires host system with DP 1.2/HBR2/MST or later from HP Dell & Lenovo and AMD Nvidia & Intel video cards
- INCREASE PRODUCTIVITY: Increase productivity by extending your desktop at your workstation in the office/home office | MST technology uses your GPU/video card performance to deliver uncompressed video and use minimal system resources
- EASY TO USE: Quad monitor adapter natively supports 4x DP monitors; Works w/Windows only and provides an easy driverless setup | Latching DisplayPort connector ensures a reliable connection and prevents accidental disconnection
- CONVENIENCE: MST (multi-stream transport) hub is equipped with a built-in 7.5" (19cm) cable for video (DisplayPort) and an AC power adapter | Supports LPCM digital audio
- GPU CAPABILITIES: Please check your system's GPU capabilities to determine max number of displays supported; Some GPU chips (such as Intel HD Graphics) are not capable of supporting four displays
Product Details
This MST hub lets you connect four monitors to your DisplayPort™ (DP) 1.2 equipped Windows® laptop or desktop.
Increase productivity with multiple screens
The newest generations of computers are more portable than ever which often means that you're left with fewer video outputs and smaller integrated screens. ThisMST hubsolves both of these problems by letting you connect four additional displays to your computer which makes multitasking much easier.
Connect to any display
With the MST hub you can use DisplayPort video adapters and cable adapters that enable you to connect HDMI VGA or DVI displays. This ensures your MST hub will be compatible with virtually any television monitor or projector. This MST hub is VESA and DisplayPort certified to support DP 1.2 enabled systems for seamless integration with your existing video equipment.
Configure your displays for any environment
Using the MST hub you can extend your desktop onto additional monitors and stream independent content to each display giving you the freedom to multitask and increase your productivity. You can also mirror the same image onto multiple displaysfor remote viewing applications such as digital signage.
Enjoy amazing video quality without draining system resources
MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design gaming and medical imaging.
Note: When using a DisplayPort 1.1 video card the MST hub will act as a splitter automatically mirroring your video source across all displays. Resolution limitations apply.
The MSTDP124DP supports plug-and-play installation for a hassle-free setup and is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: MST shares 21.6Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports please see our guideline below for determining an ideal resolution for your setup.Certain graphics adapters have limited MST support and will only output to three displays in total. If more than three monitors are attached the fourth will be disabled.
Average resolution bandwidth allocation:
1920x1080 (High-definition 1080p) @60hz - 22% 1920x1200 @60hz - 30% 2560x1440 @60hz - 35% 2560x1600 @60hz - 38% 3840 x 2160 (Ultra HD 4K) @30hz - 38%
Note: Exceeding 100% will reduce functionality.
Examples of supported resolution configurations:
Screen 1 Resolution
Screen 2 Resolution
Screen 3 Resolution
Screen 4 Resolution
Total % of Bandwidth
1920x1080 @60hz (22%) 1920x1080 @60hz (22%) 1920x1080 @60hz (22%) 1920x1080 @60hz (22%) 88% 1920x1200 @60hz (30%) 1920x1080 @60hz (22%) 1920x1080 @60hz (22%) 1920x1080 @60hz (22%) 96% 3840x2160 @30hz (38%) 1920x1080 @60hz (22%) 1920x1080 @60hz (22%) off 82% 3840x2160 @30hz (38%) 1920x1200 @30hz (30%) 1920x1080 @60hz (22%) off 90% Examples of unsupported resolution configurations Screen 1 Resolution Screen 2 Resolution Screen 3 Resolution Screen 4 Resolution Total % of Bandwidth 2560x1600 @60hz (38%) 2560x1600 @60hz (38%) 1920x1200 @60hz (30%) 1920x1200 @60hz (30%) 136% 3840x2160 @30hz (38%) 2560x1600 @60hz (38%) 1920x1200 @60hz (30%) 1920x1200 @60hz (30%) 136% 3840x2160 @30hz (38%) 2560x1600 @60hz (38%) 2560x1440 @60hz (35%) 1920x1200 @60hz (30%) 141% 3840x2160 @30hz (38%) 3840x2160 @30hz (38%) 3840x2160 @30hz (38%) off 114%
- MST hub - DisplayPort to 4x DisplayPort
- 1 x Universal Power Adapter (NA/EU/UK/AUS)
- 1 x Quick Install Guide
- Audio Yes
- Chipset ID STDP4320
- Converter Type MST Hub
- Output Signal DisplayPort
- Ports 4
- Maximum Digital Resolutions 3840 x 2160 @30hz
- Supported Resolutions 1024x768
- 1280x720 (High-definition 720p)
- 1920x1080 (High-definition 1080p)
- 1920x1200
- 2560x1440
- 2560x1600
- 3840 x 2160 (Ultra HD 4K) @30hz
- Wide Screen Supported Yes
- Operating Temperature 0°C to 45°C (32°F to 113°F)
- Storage Temperature -20°C to 70°C (-4°F to 158°F)
This MST hub lets you connect four monitors to your DisplayPort™ (DP) 1.2 equipped Windows® laptop or desktop.
Increase productivity with multiple screens
The newest generations of computers are more portable than ever which often means that you're left with fewer video outputs and smaller integrated screens. ThisMST hubsolves both of these problems by letting you connect four additional displays to your computer which makes multitasking much easier.
Connect to any display
With the MST hub you can use DisplayPort video adapters and cable adapters that enable you to connect HDMI VGA or DVI displays. This ensures your MST hub will be compatible with virtually any television monitor or projector. This MST hub is VESA and DisplayPort certified to support DP 1.2 enabled systems for seamless integration with your existing video equipment.
Configure your displays for any environment
Using the MST hub you can extend your desktop onto additional monitors and stream independent content to each display giving you the freedom to multitask and increase your productivity. You can also mirror the same image onto multiple displaysfor remote viewing applications such as digital signage.
Enjoy amazing video quality without draining system resources
MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design gaming and medical imaging.
Note: When using a DisplayPort 1.1 video card the MST hub will act as a splitter automatically mirroring your video source across all displays. Resolution limitations apply.
The MSTDP124DP supports plug-and-play installation for a hassle-free setup and is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: MST shares 21.6Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports please see our guideline below for determining an ideal resolution for your setup.Certain graphics adapters have limited MST support and will only output to three displays in total. If more than three monitors are attached the fourth will be disabled.
Average resolution bandwidth allocation:
1920x1080 (High-definition 1080p) @60hz - 22% 1920x1200 @60hz - 30% 2560x1440 @60hz - 35% 2560x1600 @60hz - 38% 3840 x 2160 (Ultra HD 4K) @30hz - 38%
Note: Exceeding 100% will reduce functionality.
Examples of supported resolution configurations:
Screen 1 Resolution
Screen 2 Resolution
Screen 3 Resolution
Screen 4 Resolution
Total % of Bandwidth
1920x1080 @60hz (22%) 1920x1080 @60hz (22%) 1920x1080 @60hz (22%) 1920x1080 @60hz (22%) 88% 1920x1200 @60hz (30%) 1920x1080 @60hz (22%) 1920x1080 @60hz (22%) 1920x1080 @60hz (22%) 96% 3840x2160 @30hz (38%) 1920x1080 @60hz (22%) 1920x1080 @60hz (22%) off 82% 3840x2160 @30hz (38%) 1920x1200 @30hz (30%) 1920x1080 @60hz (22%) off 90% Examples of unsupported resolution configurations Screen 1 Resolution Screen 2 Resolution Screen 3 Resolution Screen 4 Resolution Total % of Bandwidth 2560x1600 @60hz (38%) 2560x1600 @60hz (38%) 1920x1200 @60hz (30%) 1920x1200 @60hz (30%) 136% 3840x2160 @30hz (38%) 2560x1600 @60hz (38%) 1920x1200 @60hz (30%) 1920x1200 @60hz (30%) 136% 3840x2160 @30hz (38%) 2560x1600 @60hz (38%) 2560x1440 @60hz (35%) 1920x1200 @60hz (30%) 141% 3840x2160 @30hz (38%) 3840x2160 @30hz (38%) 3840x2160 @30hz (38%) off 114%
