SKU: 1075900673      MFR: StarTech.com

GTIN: 65030894630

Product Description

StarTech.com 4-Slot PCIe Expansion Chassis External PCIe Slots for PC PCIe 2.0 w/10Gbps Throughput PCI Express Expansion Box/Adapter - 4-Slot PCIe Expansion Chassis | External PCIe Slots for Desktop/Server | Host Card PCI-e 2.0 x2 10Gbps included 6ft (1.8m) USB-C locking cable | For USB Ethernet/fiber or Serial/I-O cards | SECC steel enclosure withstands temps up to 140°F

Manufacturer : StarTech.com

Manufacturer Part No : 4PCIE-PCIE-ENCLOSURE

Features

  • EXPANSION CHASSIS FOR PCIE CARDS: Increase the PCI-e slot count of a desktop computer or server; Add four external PCIe x1 slots; PCI Express 2.0 x2 proprietary USB-C Host Card with locking port; 5.9ft (1.8m) USB-C locking cable included
  • RUGGED CONSTRUCTION: PCI Express expansion box is built with SECC steel to withstand harsh conditions and up to 140°F (60°C); Vented chassis for cooling; Quiet operation; Power adapter (12V 3A) included terminal block port (12-24 VDC) available
  • HASSLE FREE UPGRADES: Connect add-on cards (e.g. USB Ethernet SFP Serial and I/O Cards) to a host system with limited expansion slots; Implement fast deployments and reduce the cost and downtime required to configure an existing or new host system
  • COMPATIBILITY: This PCIe expansion chassis is OS independent and requires no additional software; Windows macOS and Linux are supported; Installed add-on card may require additional drivers and specific supported OS; Not meant to be used with GPUs
  • THE IT PRO'S CHOICE: Designed and built for IT Professionals this external PCIe expansion chassis for desktop is backed for two years including free lifetime 24/5 multi-lingual technical assistance

Product Details

Product TypeExpansion Chassis
Environmentally FriendlyYes
Product ColorBlack
Product MaterialSteel
Country of OriginTaiwan
Height5.6"
Width16.2"
Brand NameStarTech.com
Length5.4"
ManufacturerStarTech.com
Product NamePCIe to PCIe Expansion Chassis
Application/UsageDesktop
Manufacturer Part Number4PCIE-PCIE-ENCLOSURE
Manufacturer Website Addresshttp://www.startech.com

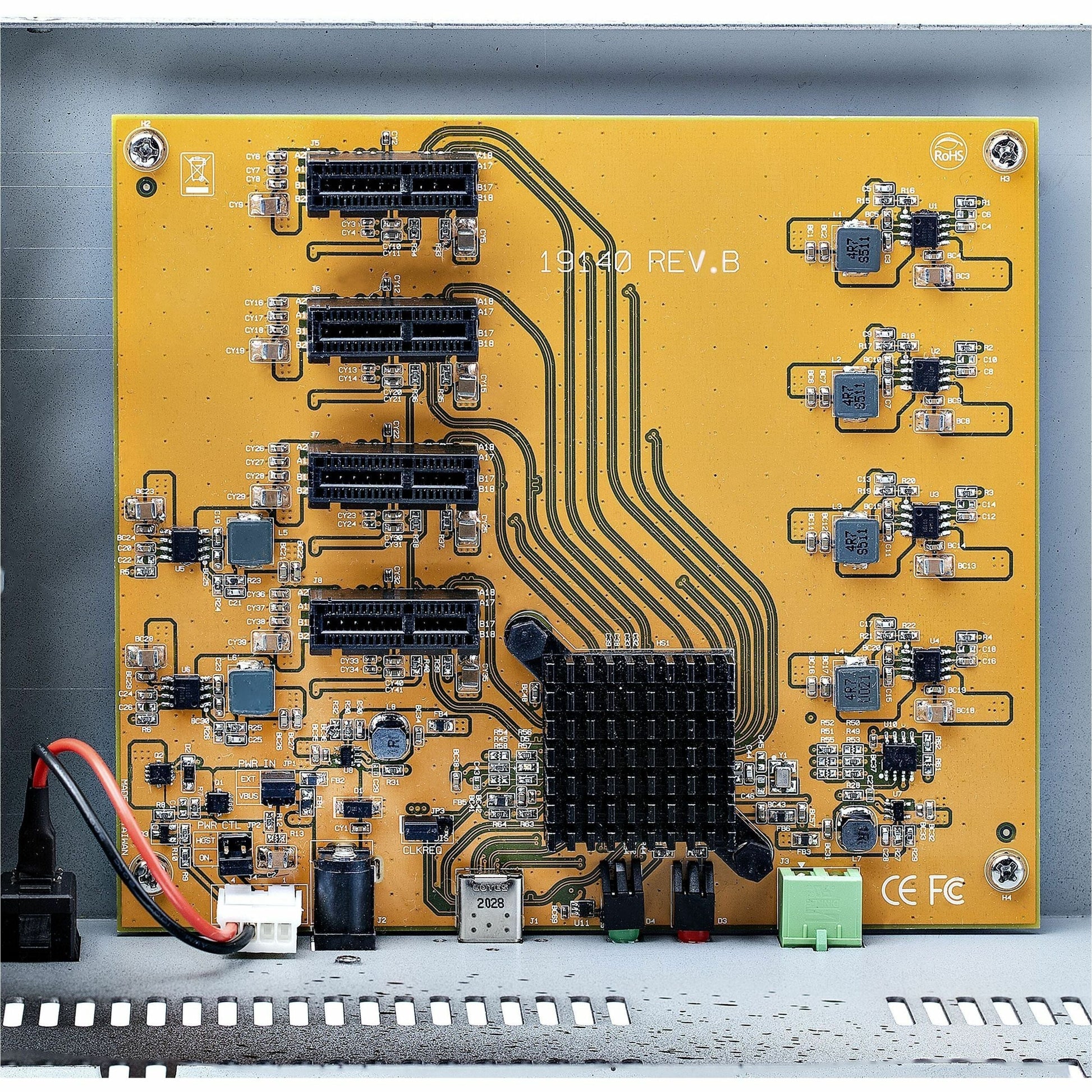

Marketing InformationThe robust expansion chassis supports up to 4 PCIe x1 add-on cards and features up to 10Gbps of total bandwidth. The expansion chassis connects to the host using a proprietary USB-C PCIe x2 adapter card and a locking USB Type-C cable.

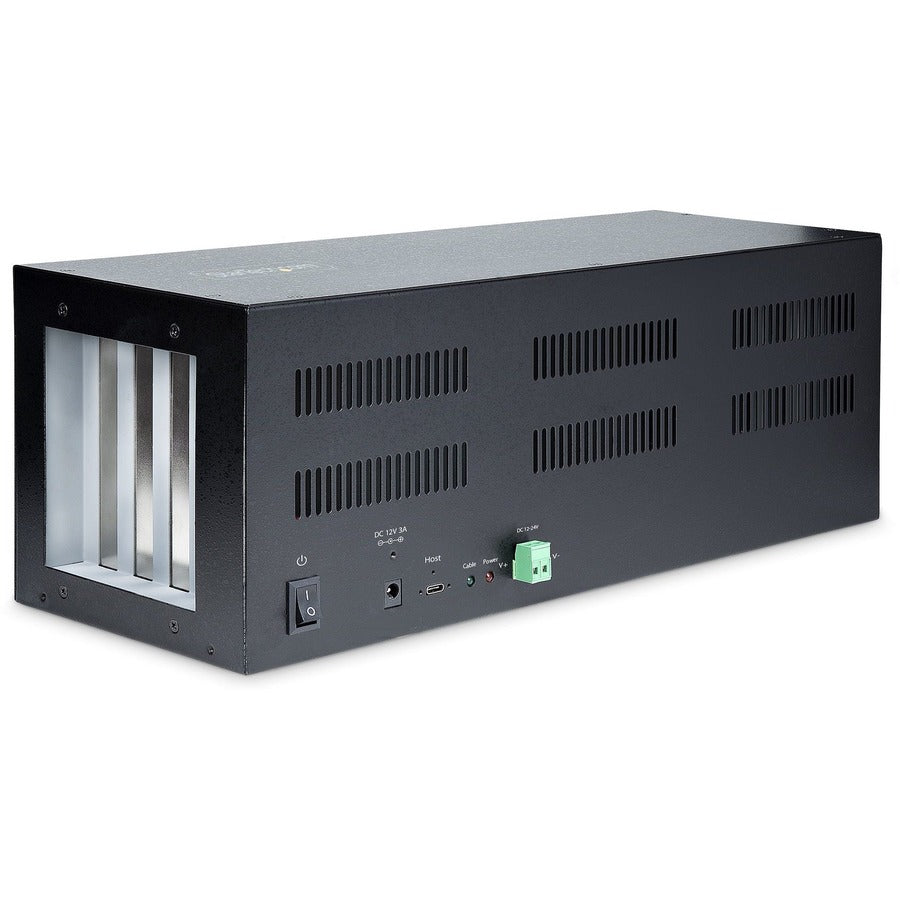

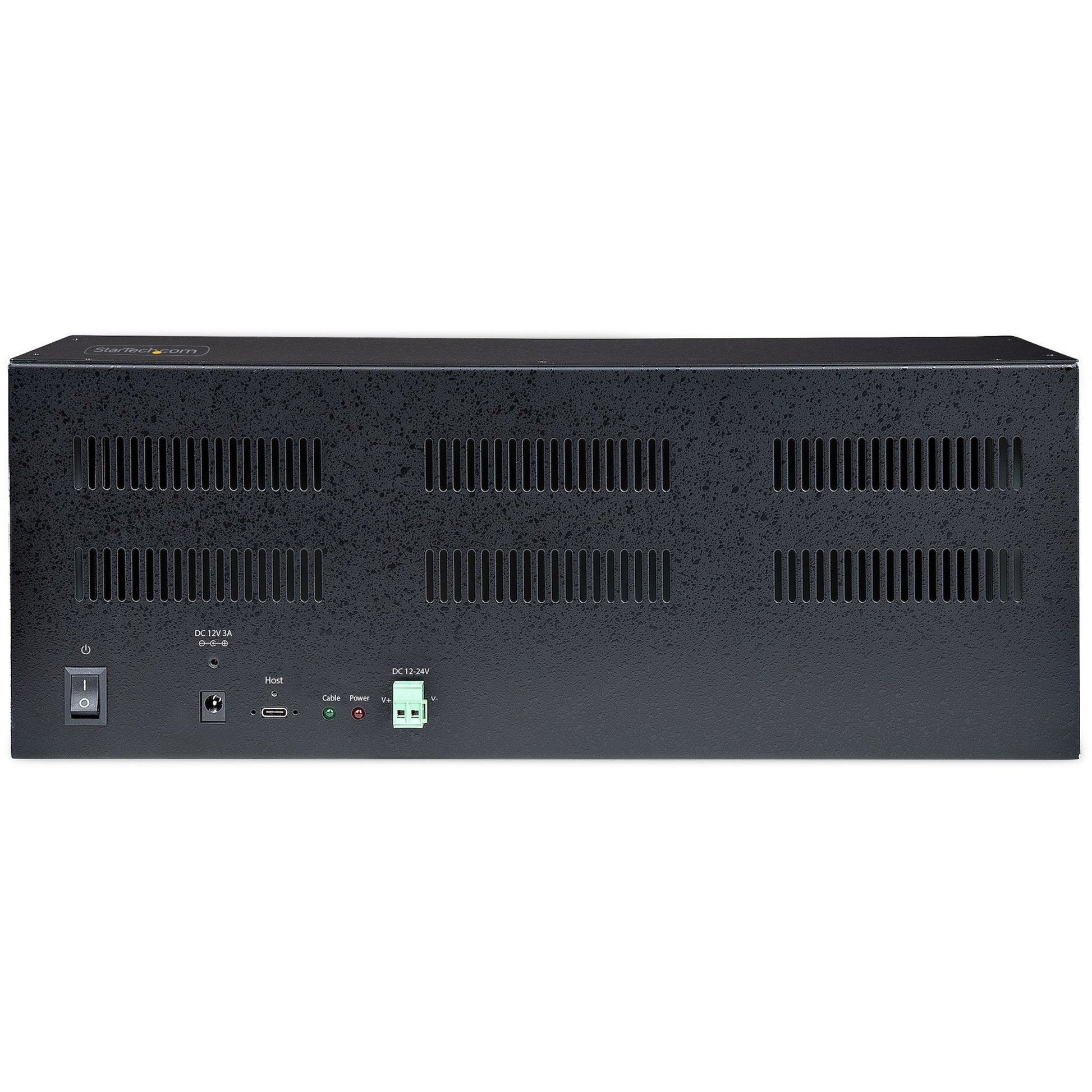

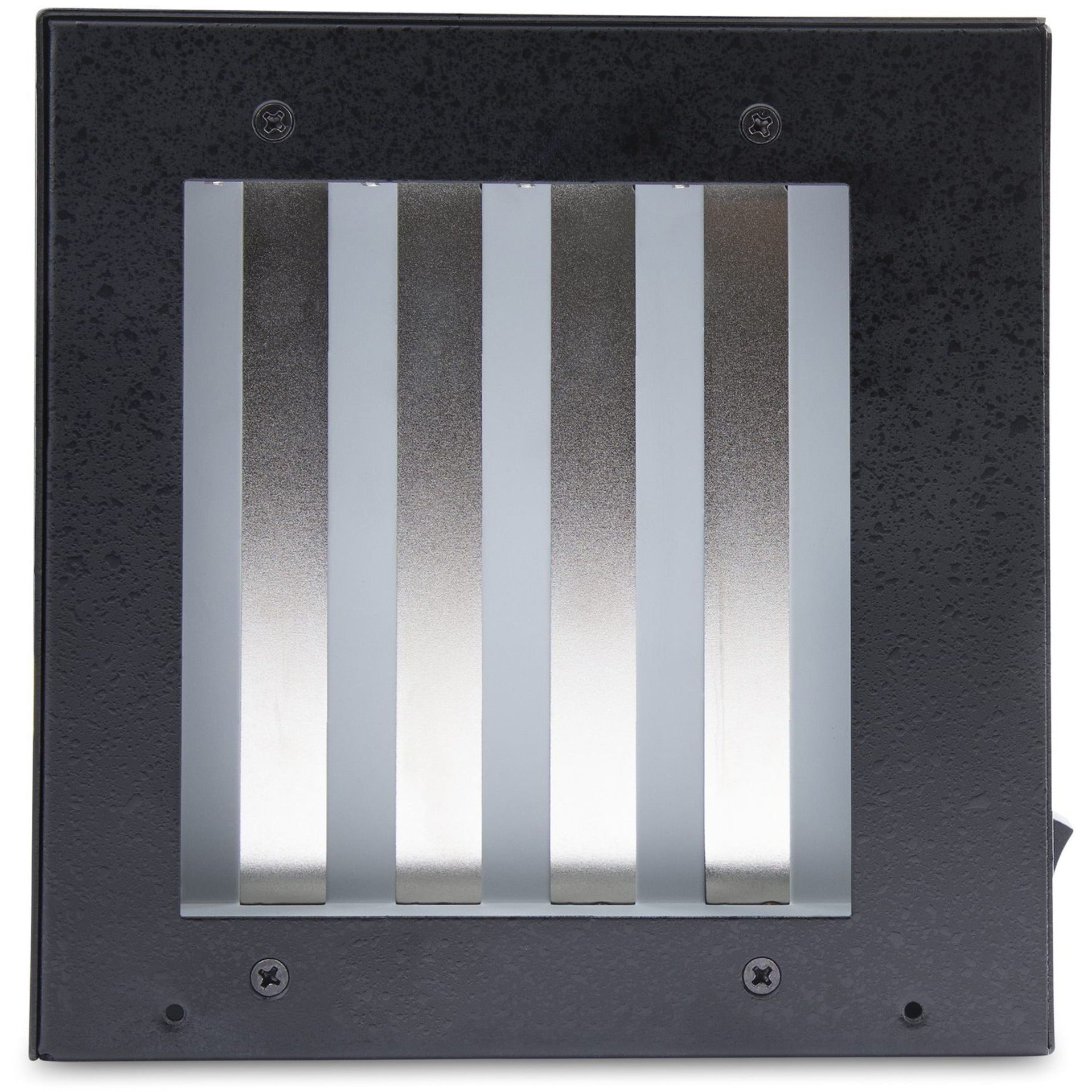

External PCIe Expansion Box

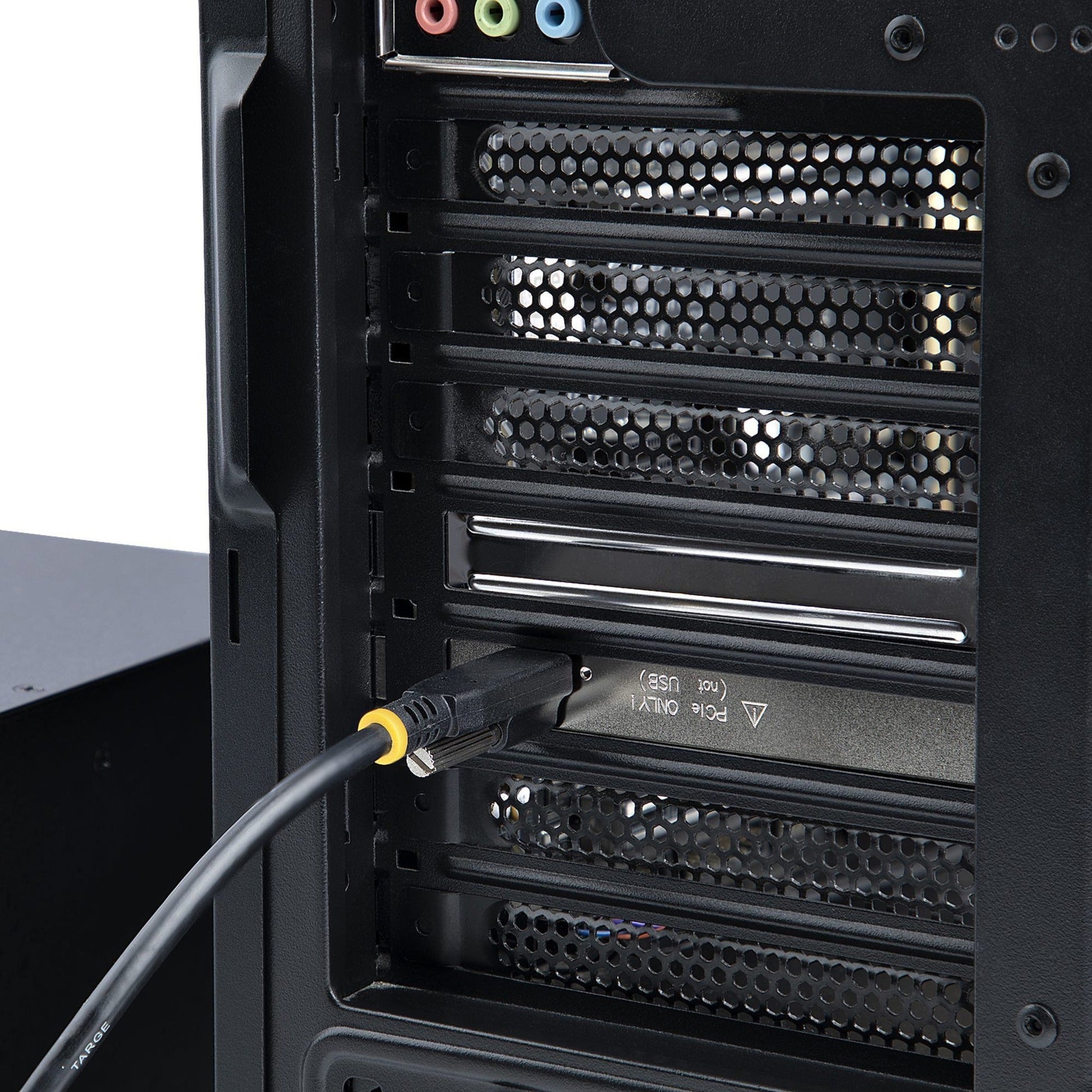

The chassis communicates with the desktop computer or server using a host card (PCIe 2.0 x2) in combination with the 5.9ft (1.8m) USB Type-C (USB-C) cable with screw-locks. The included low-profile bracket widens the compatibility as you can install the host card in small form factor (SFF) systems. Features support for PCI-E Advanced Error Reporting (AER) and EndPoint Cyclic Redundancy Check (ECRC). Both of these PCIe features to aid in establishing and maintaining PCIe connections between devices.

The PCI express expansion box does not require drivers to be installed. It's operating system independent; meaning it can be used in Windows Linux or macOS. Note: the expansion cards installed in the chassis may require drivers.

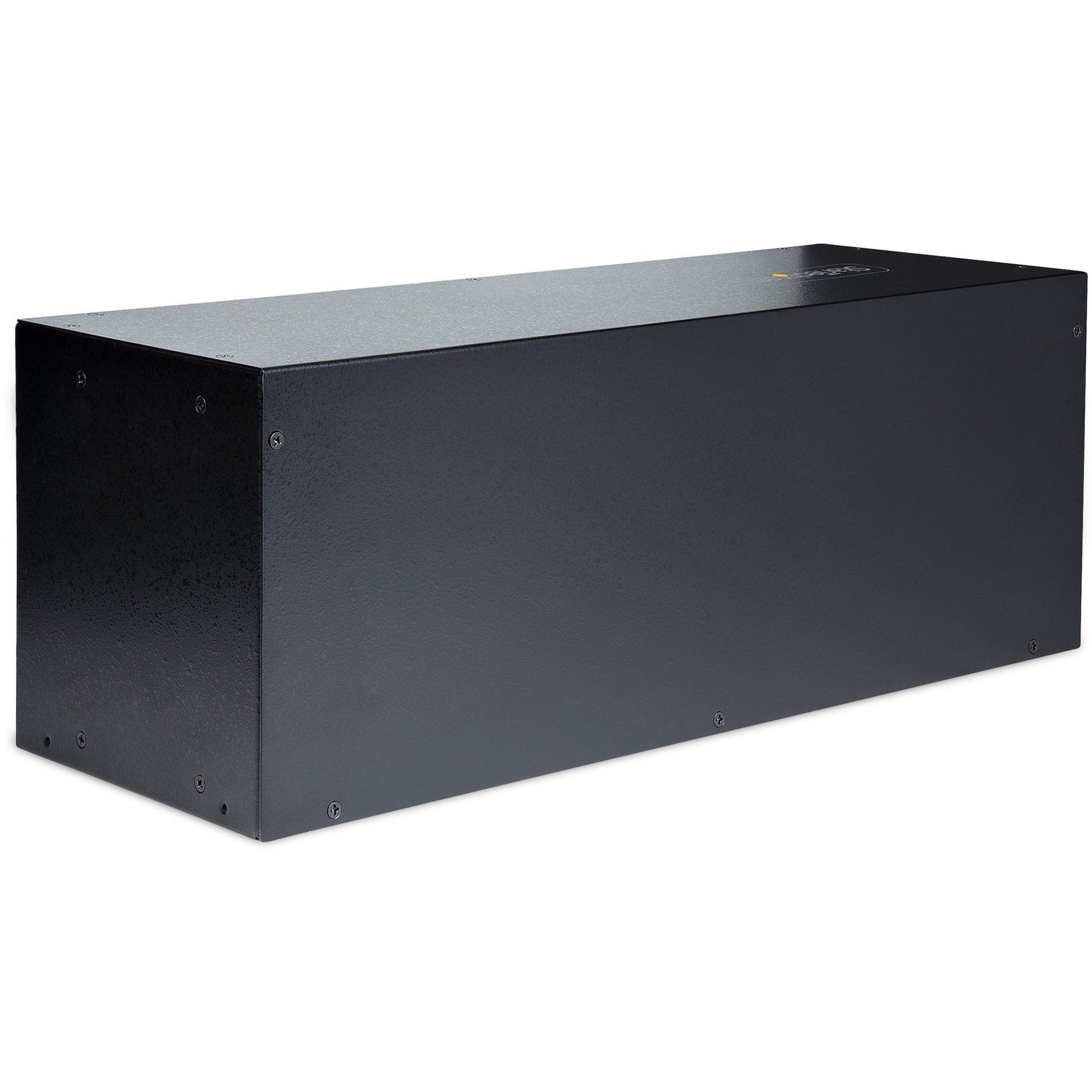

Robust Construction

The expansion chassis is built with SECC galvanized steel enabling it to operate in harsh environments. It features an operating temperature range of 32° to 140°F (0° to 60°C). The vented design of the chassis allows for passive cooling and quiet operation. Secure the enclosure to the desired location using the mounting brackets and included hardware.

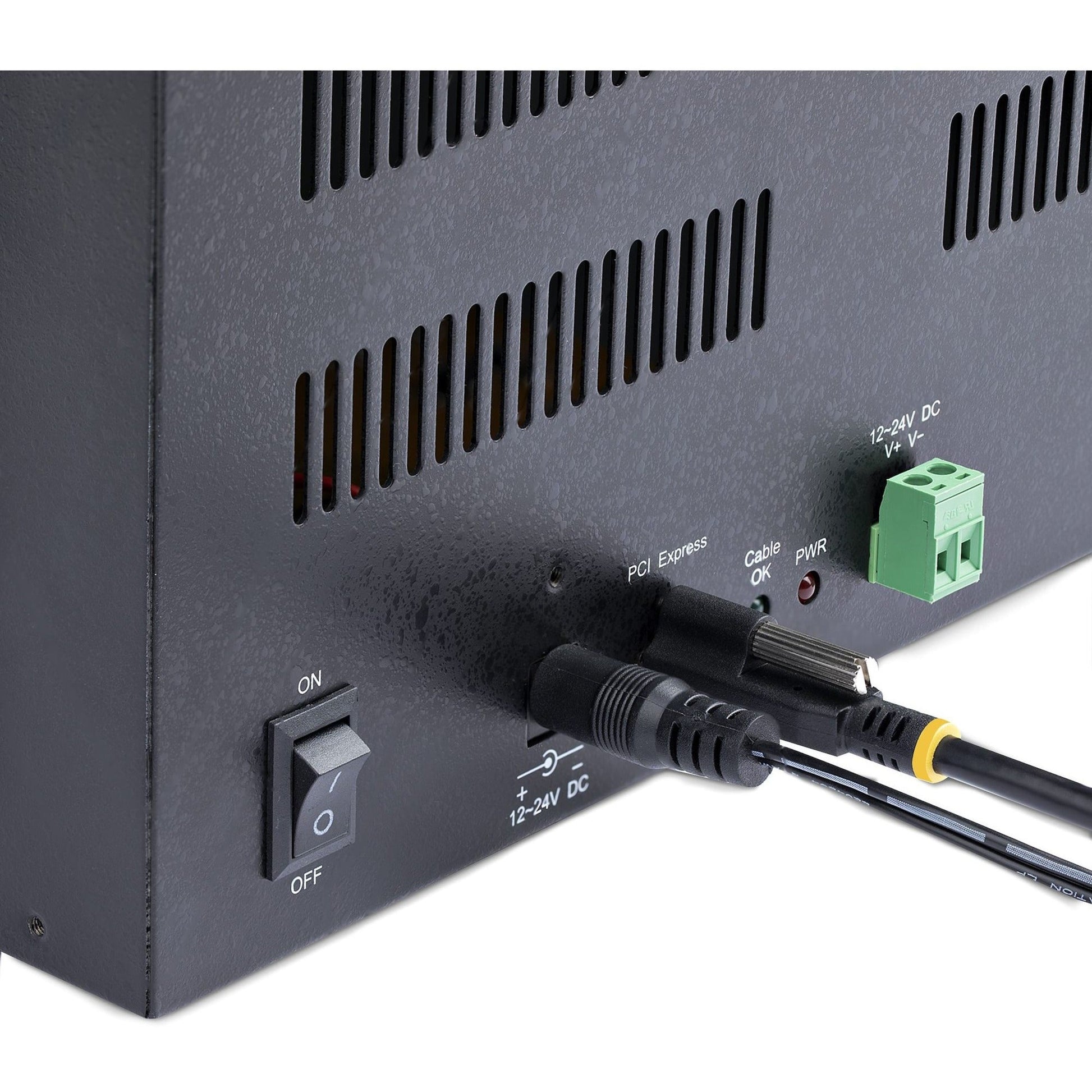

Power Options

Power the expansion chassis using the included 12V 3A power adapter or the terminal block port that supports 12 to 24V and 3A.

Applications

There are multiple application scenarios:

  • Upgrade or swap cards with ease.
  • Test hardware between multiple computers operating systems or with different devices/peripherals.
  • Maximize the I/O capabilities of the host system by installing Ethernet or fiber USB serial or parallel PCIe cards.

Avoid costly computer/server upgrades when more expansion slots are unavailable.

The external PCIe slots for desktop is backed for two years including free lifetime 24/5 multi-lingual technical assistance.
Packaged Quantity1
Package Contents
  • PCIe to PCIe Expansion Chassis
  • 1 x PCIe Host Adapter Card
  • 1 x 6ft (1.8m) USB Type-C to C Male to Male Cable
  • 1 x LowxProfile Bracket
  • 1 x Power Adapter
  • 1 x Terminal Block Connector
  • 2 x Mounting Brackets
  • 4 x Mounting Brackets Screws
  • 1 x Quick-Start Guide
Limited Warranty2 Year
Weight (Approximate)5.10 lb
Power Plug TypeType M
Power Source TypePower Adapter
Additional Information
  • Power Source: AC Adapter Included and TerminalBlock
  • Input Voltage: 100 - 240 AC
  • Input Current: 1A
  • Output Voltage: 12V DC
  • Output Current: 3A
  • Center Tip Polarity: Positive
  • Plug Type: M
  • Power Consumption (In Watts): 36W
View full details
$562.99 USD
$562.99
Sale Sold out

In Stock - 68 (Available by Wed, Jun 24 - Mon, Jun 29)


Update


Shipping calculated at checkout.
