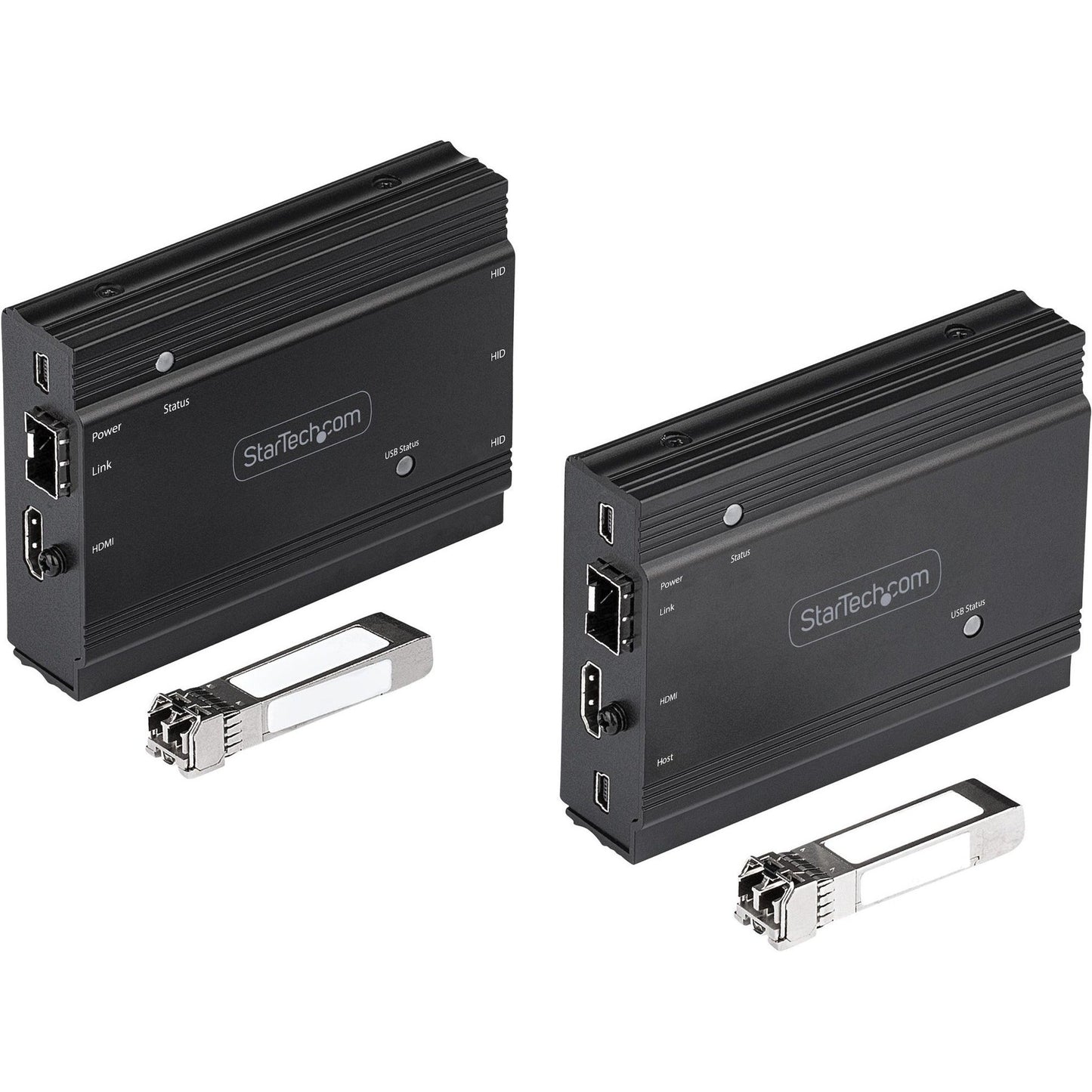

StarTech.com 4K HDMI KVM Extender over Fiber HDMI Video & USB over Fiber up to 984ft/300m (MultiMode) 10G MMF SFP+ Modules

StarTech.com 4K HDMI KVM Extender over Fiber HDMI Video & USB over Fiber up to 984ft/300m (MultiMode) 10G MMF SFP+ Modules

SKU: 1069608662      MFR: StarTech.com

GTIN: 65030887694

Product Description

StarTech.com 4K HDMI KVM Extender over Fiber HDMI Video & USB over Fiber up to 984ft/300m (MultiMode) 10G MMF SFP+ Modules - HDMI and USB KVM extender kit controls a KVM switch/console or PC using fiber optic cable up to 984ft (multimode) or 1640ft (single mode) - 4K 60Hz UHD/3x USB 2.0 HID/EDID Passthrough/HDCP 2.2/Digital 7.1 Audio/Open SFP+ Slots/2x 10G MM SFP+/LC

Manufacturer : StarTech.com

Manufacturer Part No : SV565FXHD4KU

Features

  • REMOTE ACCESS: USB & 4K HDMI KVM extender over fiber controls a KVM switch/console or PC using a fiber optic cable at distances up to 984'/300m (multimode cable) or 1640'/500m (single mode cable); open SFP+ slots for use w/ MSA compliant 10G SFP+ modules
  • 4K 60Hz VIDEO: HDMI transmitter and receiver extender kit achieves UHD resolutions up to 3840 x 2160 @ 60Hz supporting 4:4:4 image sampling for accurate color & image for applications requiring high resolution video like digital signage & security
  • DIGITAL AUDIO & HDMI 2.0 VIDEO: Keyboard Video Mouse Extender with EDID passthrough transfers display capabilities to the video source maximizing compatibility between devices; Digital 7.1 surround audio over HDMI for high quality sound; HDCP 2.2 support
  • SPECS: HDMI 2.0 Fiber Optic KVM Extender | 3x USB 2.0 HID | OS Independent | EDID Passthrough | Supports MM or SM SFP+ | 2x 10G Multimode SFP+ modules inc. | LC Connectors | 300m/984 ft (MM) or 500m/1640 ft (SM) max extension range | 2 year Warranty
  • EASY TO DEPLOY: Straightforward point-to-point setup using standard fiber optic cable makes configuration easy using the incl. SFP+ modules; there's no proprietary software and network settings to configure; StarTech.com's tech advisors are available 24/5

Product Details

Product TypeKVM Extender
Maximum Video Resolution3840 x 2160
Graphic Mode4K
Maximum Operating Distance984 ft
USBYes
HDMIYes
Number of HDMI Ports6
Number of USB Ports6
Number of Computers Supported1
Number of Local Users Supported1
Transmitter Height1.10"
Transmitter Width2.95"
Receiver Height1.10"
Receiver Width2.95"
Transmitter Weight (Approximate)15.87 oz
Receiver Weight (Approximate)15.87 oz
Device TypeKVM Extender
Country of OriginTaiwan
ColorBlack
Connectivity TechnologyWired
Brand NameStarTech.com
Input Voltage Range100V AC to 240V AC
ManufacturerStarTech.com
Product NameKVM Extender
Power Consumption10 W
Input Voltage120 V AC
Input Voltage240 V AC
Manufacturer Part NumberSV565FXHD4KU
Manufacturer Website Addresshttp://www.startech.com
Marketing Information

This HDMI KVM extender kit lets you use a keyboard mouse and monitor to remotely control any computer over a point-to-point fiber connection. When combined with a KVM switch the KVM console extender can be used with multiple computers. The extender features three USB HID ports that enable you to connect HID devices like your keyboard and mouse.

Supports UHD 4K 60Hz

The HDMI KVM extender delivers up to 4K 60Hz UHD picture quality to your remote display with support for 4:4:4 chroma sampling.

Hassle-Free Installation

The extender supports EDID pass-through ensuring your computer can automatically configure optimal settings for your display using 10G LC multi mode fiber cabling

SV565FXHD4KU is backed by a 2-year warranty and free lifetime technical support.
Package Contents
  • Transmitter for Host Computer
  • Receiver for Remote Console
  • 10G Multimode 10G SFP+ Module (Pre-Installed)
  • Universal Power Adapter
  • USB-A to Mini USB-B Cables
  • Quick-Start Guide
Limited Warranty2 Year
Receiver Length3.90"
Transmitter Length3.94"
View full details
