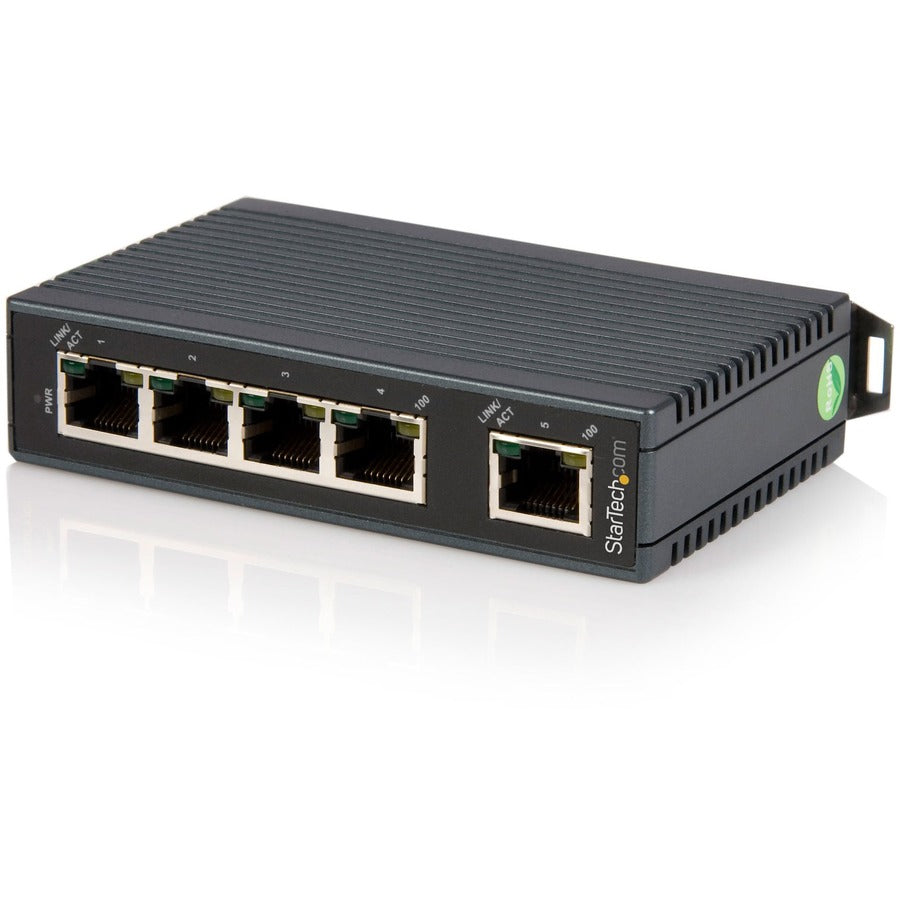

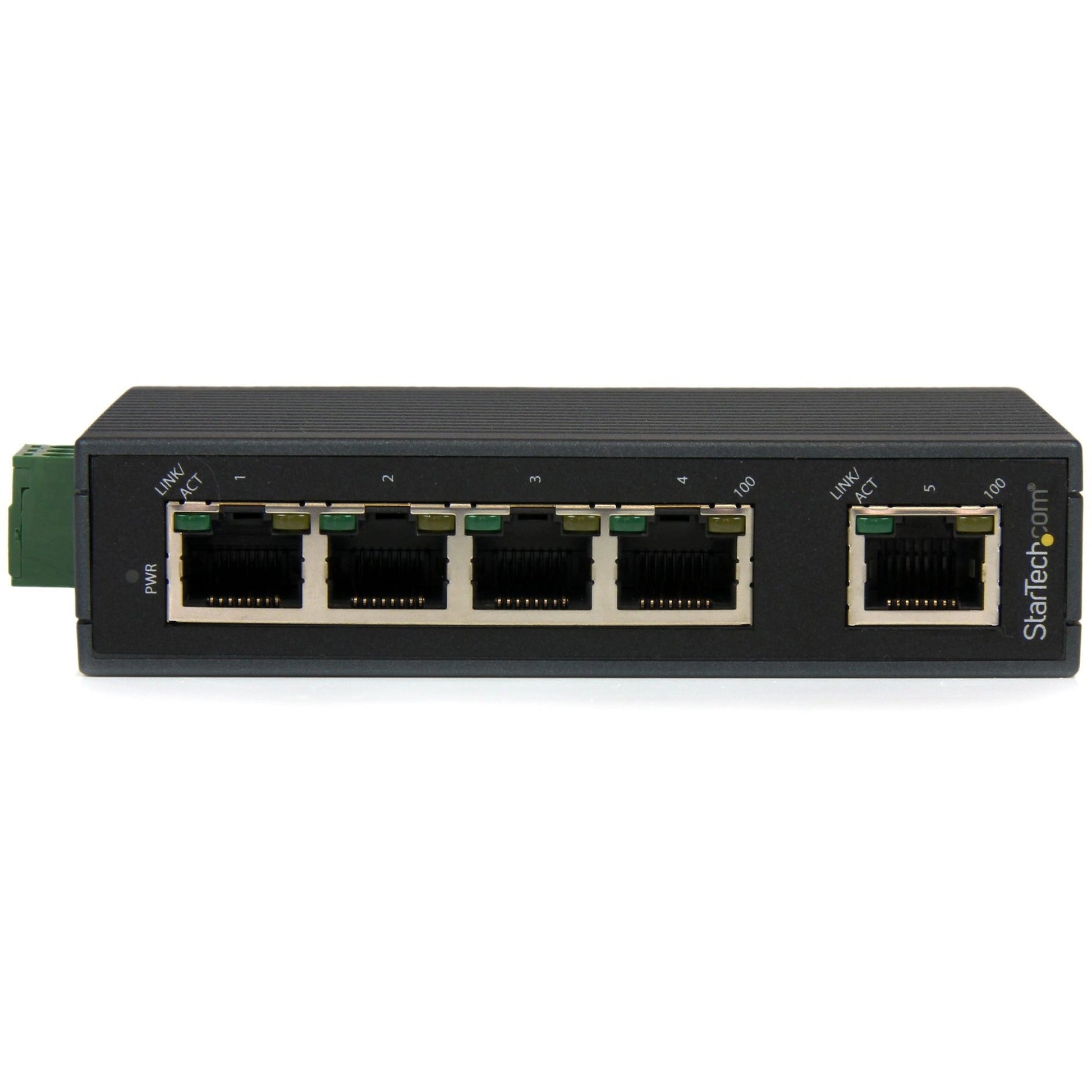

StarTech.com 5 Port Industrial Ethernet Switch - DIN Rail Mountable

StarTech.com 5 Port Industrial Ethernet Switch - DIN Rail Mountable

SKU: 1029752756      MFR: StarTech.com

GTIN: 065030859745

Product Description

StarTech.com 5 Port Industrial Ethernet Switch - DIN Rail Mountable - Expand your network connectivity with this rugged unmanaged network switch - Fast 10/100Mbps Switch - DIN rail mountable w/ built-in bracket - IP30-rated - Wide range 12-48V DC terminal block - Energy-Efficient Ethernet - Wider operating temperature

Manufacturer : StarTech.com

Manufacturer Part No : IES5102

Features

  • Network up to 5 Ethernet devices even in industrial settings with a robust IP30-rated switch

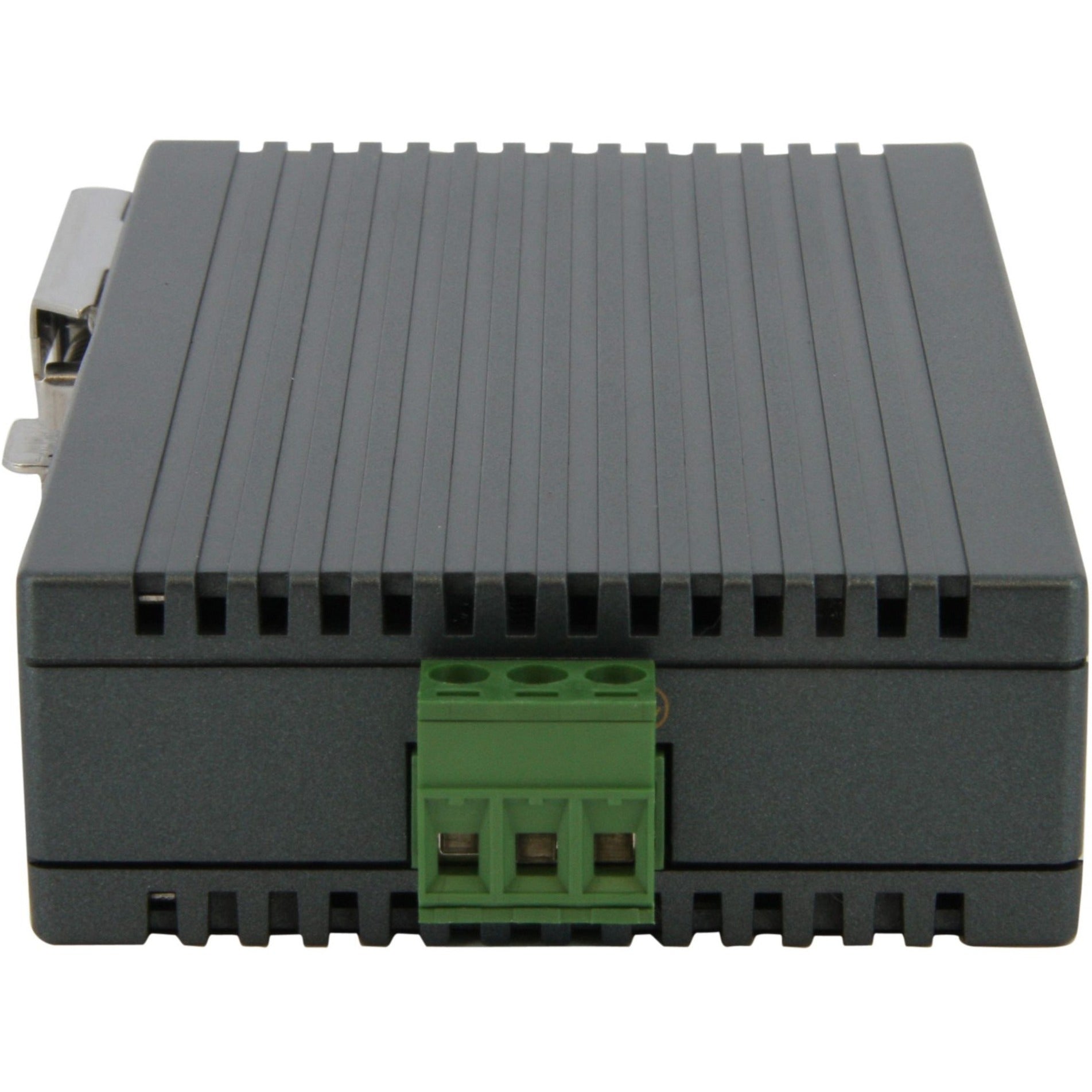

  • Wide-range 12-48V DC terminal block input
  • Easy installation with an integrated DIN rail bracket
  • Wider range of operating temperatures ideal for industrial environments
  • IEEE 802.3az Energy-Efficient Ethernet
  • Supports 10BaseT/100BaseTX and Full-Duplex/Half-Duplex Auto-negotiation
  • Supports IEEE 802.3x flow control and back pressure
  • Store-and-forward switching mechanism

Product Details

Product TypeEthernet Switch
ManageableNo
Environmentally FriendlyYes
Environmental CertificationRoHS
Token Ring PortNo
LRE PortNo
Ethernet TechnologyFast Ethernet
USBNo
Number of Network (RJ-45) Ports5
Network (RJ-45)Yes
ModularNo
Management PortNo
Stack PortNo
Media Type SupportedTwisted Pair
BypassNo
Total Number of Network Ports5
PoE (RJ-45) PortNo
Port/Expansion Slot Details5 x Fast Ethernet Network
TAA CompliantYes
Country of OriginTaiwan
Height4.3"
Width1"
ColorBlack
Certifications & Standards
  • CE
  • FCC

Industry Sandards:

  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3az
  • IEEE 802.1P
Regulatory Approvals:
  • EN61000-6-2
  • EN61000-6-4
  • EN61000-4-3 (Radiated RFI Standards)
  • EN61000-4-4 (Burst Standards)
  • EN61000-4-6 (Induced RFI Standards)
  • EN61000-4-8 (Magnetic Field Standards)
  • IEC60068-2-6 Fc (Vibration)
  • IEC60068-2-27 Ea (Shock)
Brand NameStarTech.com
Form FactorRail-mountable
Length2.8"
MTBF1179133 Hour
ManufacturerStarTech.com
Product Name5-Port Industrial Ethernet Switch - DIN Rail Mountable
Network Technology10/100Base-TX
Power Consumption2.12 W
Input Voltage48 V DC
Manufacturer Part NumberIES5102
Manufacturer Website Addresshttp://www.startech.com
Marketing InformationThis compact 5-port industrial Ethernet switch is engineered to deliver fast reliable network connectivity and durability in the most demanding industrial environments. It provides top performance in a wider range of operating temperatures than conventional network switches making it ideal for factories and warehouses.

Conquer the tough demands of industrial environments

Designed with a rugged IP30-rated housing the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required based on your own power input source while its wide operating temperature range keeps your network running smoothly.

Get up and running in no time

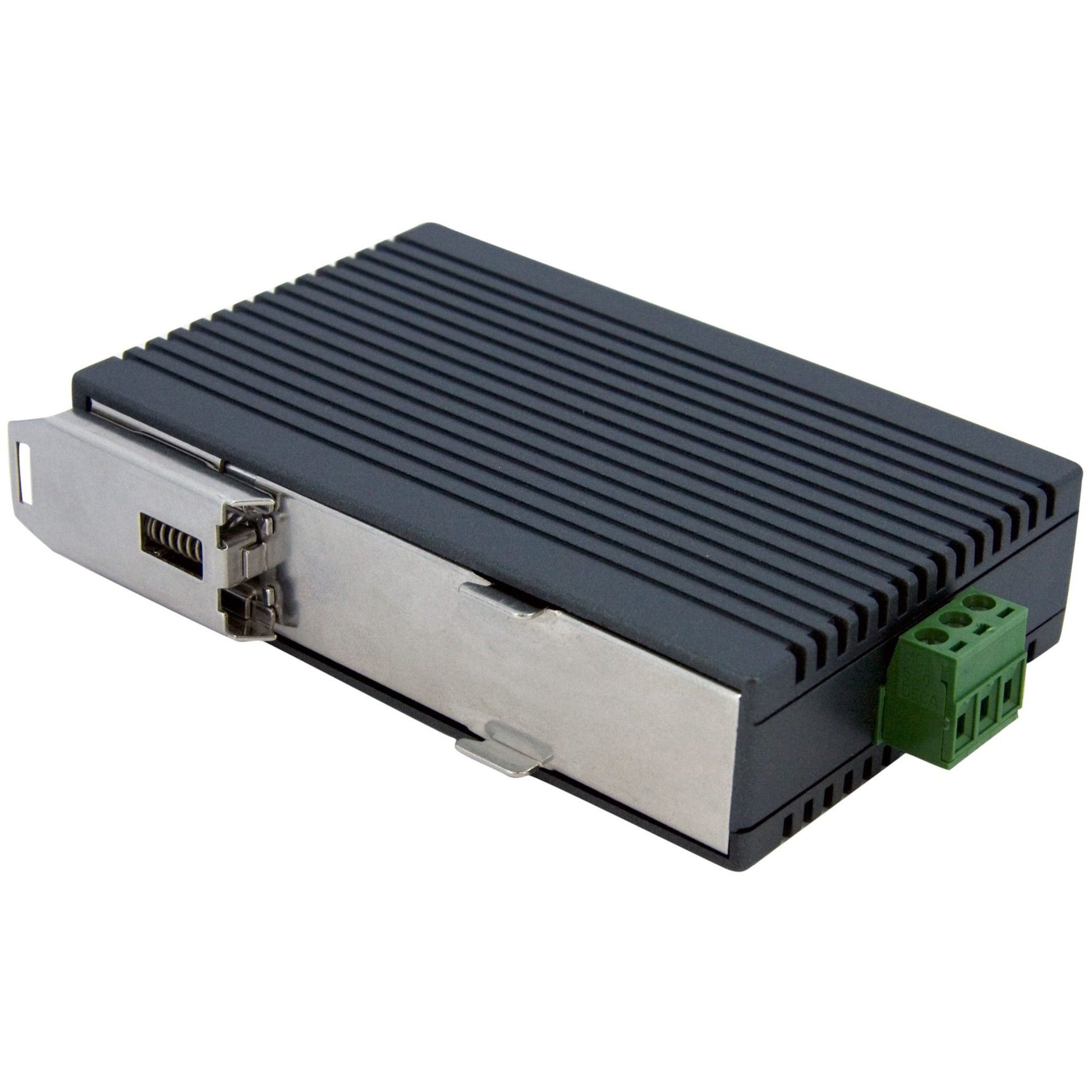

This industrial Ethernet switch is easy to install with an attached metal bracket for DIN rail mounting on equipment racks and cabinets.

Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation enabling you to connect your network devices quickly and easily with little to no configuration required.

Reduce your energy costs with Energy-Efficient Ethernet

With lower overall power consumption the Ethernet switch enhances your energy efficiency in turn helping you reduce monthly costs.

The IES5102 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer
Packaged Quantity1
Package Contents
  • 5-Port Industrial Ethernet Switch - DIN Rail Mountable
  • 1 x Terminal Block
  • 1 x Instruction Manual CD
MaterialPlastic
Limited Warranty2 Year
Layer Supported2
Weight (Approximate)5.30 oz
Marketing InformationThis compact 5-port industrial Ethernet switch is engineered to deliver fast reliable network connectivity and durability in the most demanding industrial environments. It provides top performance in a wider range of operating temperatures than conventional network switches making it ideal for factories and warehouses.

Conquer the tough demands of industrial environments

Designed with a rugged IP30-rated housing the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required based on your own power input source while its wide operating temperature range keeps your network running smoothly.

Get up and running in no time

This industrial Ethernet switch is easy to install with an attached metal bracket for DIN rail mounting on equipment racks and cabinets.

Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation enabling you to connect your network devices quickly and easily with little to no configuration required.

Reduce your energy costs with Energy-Efficient Ethernet

With lower overall power consumption the Ethernet switch enhances your energy efficiency in turn helping you reduce monthly costs.

The IES5102 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer
View full details
$110.99 USD
$110.99
Sale Sold out

In Stock - 258 (Available by Wed, Jun 10 - Mon, Jun 15)
