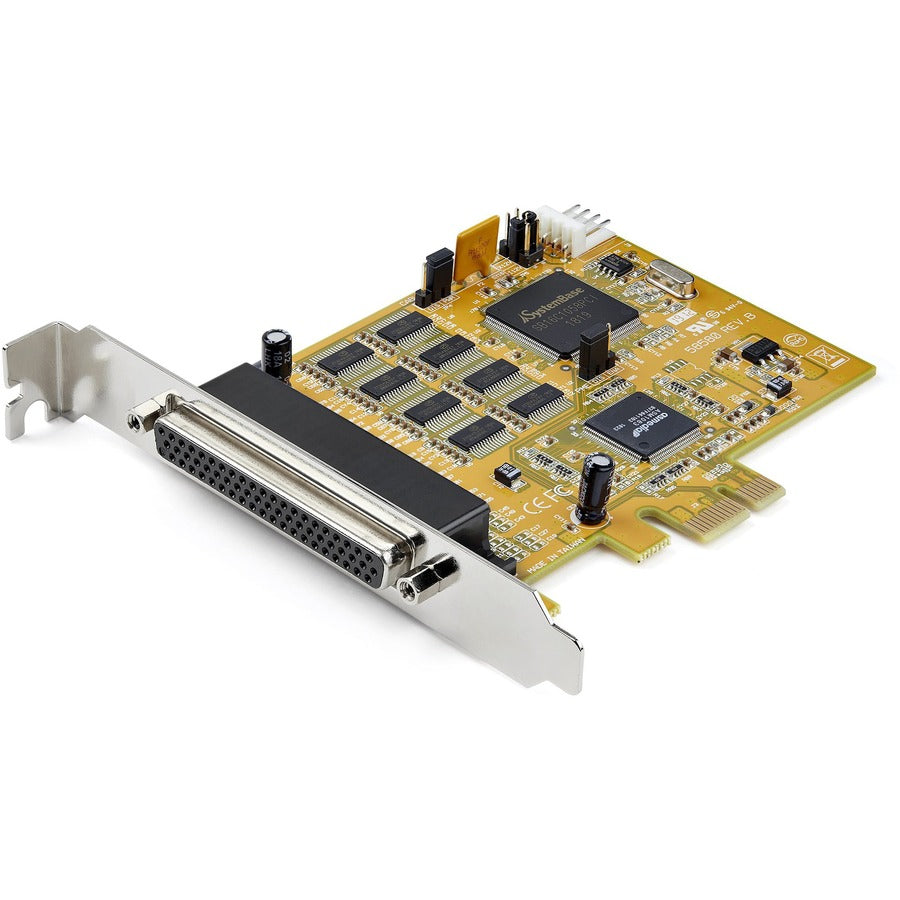

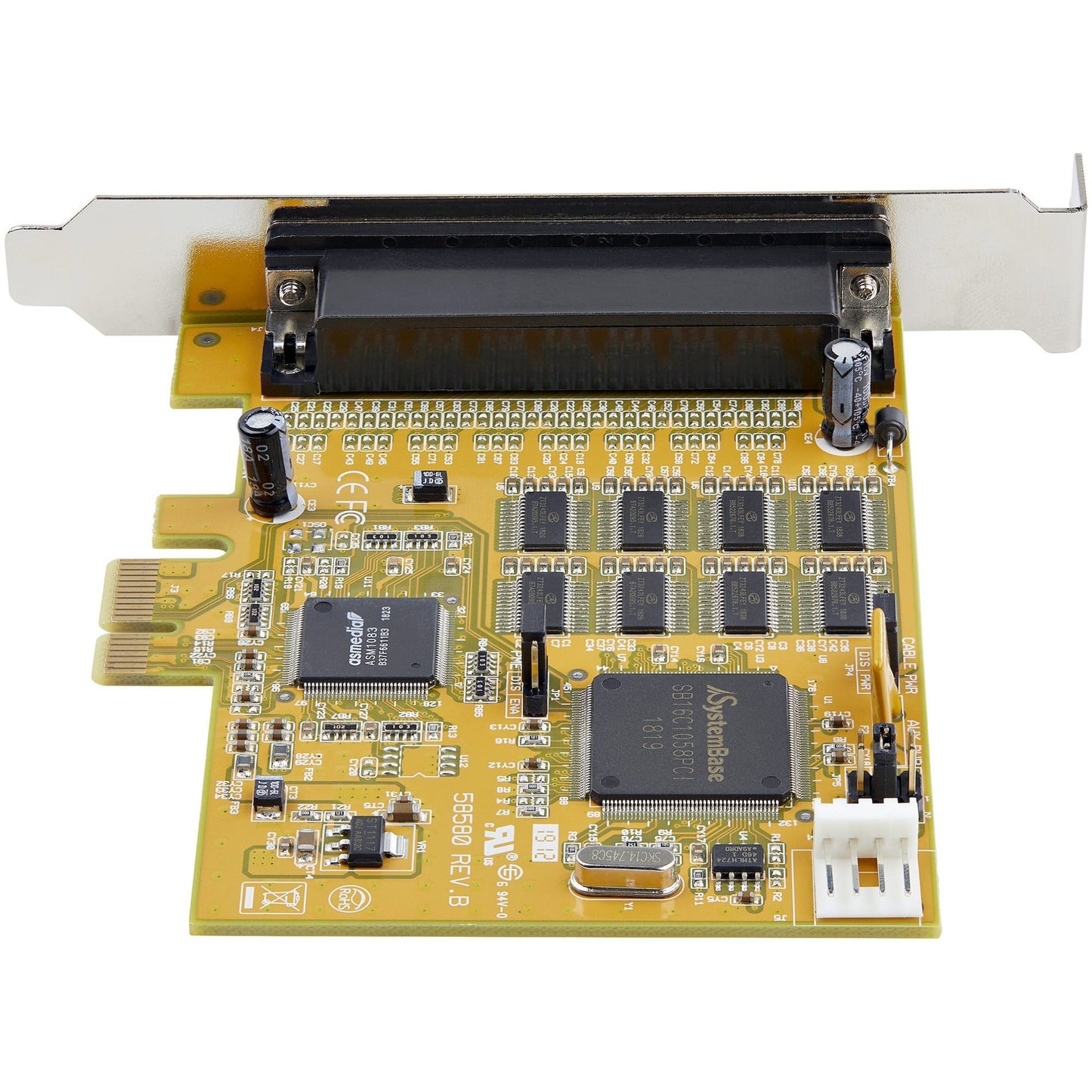

StarTech.com 8-Port PCI Express RS232 Serial Adapter Card - PCIe to Serial DB9 RS232 Controller Card - 16C1050 UART - 15kV ESD - Win/Linux

StarTech.com 8-Port PCI Express RS232 Serial Adapter Card - PCIe to Serial DB9 RS232 Controller Card - 16C1050 UART - 15kV ESD - Win/Linux

SKU: 1065233208      MFR: StarTech.com

GTIN: 065030888295

Product Description

StarTech.com 8-Port PCI Express RS232 Serial Adapter Card - PCIe to Serial DB9 RS232 Controller Card - 16C1050 UART - 15kV ESD - Win/Linux - 8-port PCI Express RS232 serial adapter card 16C1050 UART 15kV ESD/Systembase SB16C1058PCI - Bi-directional speed 921.6Kbps/port | 256 byte FIFO - Expansion controller card w/pin 9 power 5v/12v/none w/3A max - DB62 to DB9 cable w/Hex nuts - Win/Linux

Manufacturer : StarTech.com

Manufacturer Part No : PEX8S1050

Features

  • 8 PORT SERIAL CARD: Serial controller card w/ 16C1050 UART based on the Systembase SB16C1058PCI w/15kV ESD 8x DB9 ports bi-directional RS232 speeds up to 921.6Kbps per port & 256 byte FIFO buffer; Upgraded version of our popular card PEX8S952
  • OPTIONAL CONFIGURABLE POWER: Multiport serial card provides 12v/5v or none on pin 9 w/up to 3A total shared; 18"/48cm DB62 to 8x DB9 breakout cable incl; Hex nuts incl for opt screw/nut DB9 interface
  • COMPATABILITY: Full profile PCI-e 1x card and fully compliant w/ PCI Express Base Specifications Revision 1.0a/1.1; Supports Windows (incl. XP and up) and Linux; For standard profile desktop/servers
  • VERSATILE APPLICATIONS: PCI Express RS232 serial adapter card for within point of sale terminals PLCs control/automation in factories scientific sensors medical equipment scanners oscilloscope
  • STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; PCIe RS232 Serial expansion card is backed for life by StarTech.com incl. free 24/5 North America based multi-lingual tech support

Product Details

Product TypeMultiport Serial Adapter
Environmentally FriendlyYes
Environmental CertificationRoHS
Maximum Data Transfer Rate921.40 kbit/s
Number of Serial Ports1
Country of OriginTaiwan
Height4.7"
Width0.6"
ColorYellow
Brand NameStarTech.com
Form FactorPlug-in Card
ManufacturerStarTech.com
Product NamePCIe Serial Card
Manufacturer Part NumberPEX8S1050
Manufacturer Website Addresshttp://www.startech.com
Marketing Information

Add eight RS-232 DB9 serial ports to your desktop computer through a PCIe expansion card slots. This PCI express serial card with 8-port breakout cable provides you with multiple ports to connect a wide variety of serial peripherals at speeds of up to 921.4Kbps.

Connect your Peripherals with 8 Serial Ports

The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers scanners credit/debit card readers PIN pads and modems industrial controls and more. The 8 port PCIe serial card includes a breakout cable - with 8 DB9 connectors.

Maximum Compatibility

With broad OS support including for Windows and Linux this PCI Express card is easy to integrate into mixed environments.

PEX8S1050 is backed by a StarTech.com lifetime warranty and free lifetime technical support.
Platform SupportedLinux
Ports Expandability8 x DB-9 RS-232 - Serial Via Cable
Package Contents
  • PCIe Serial Card

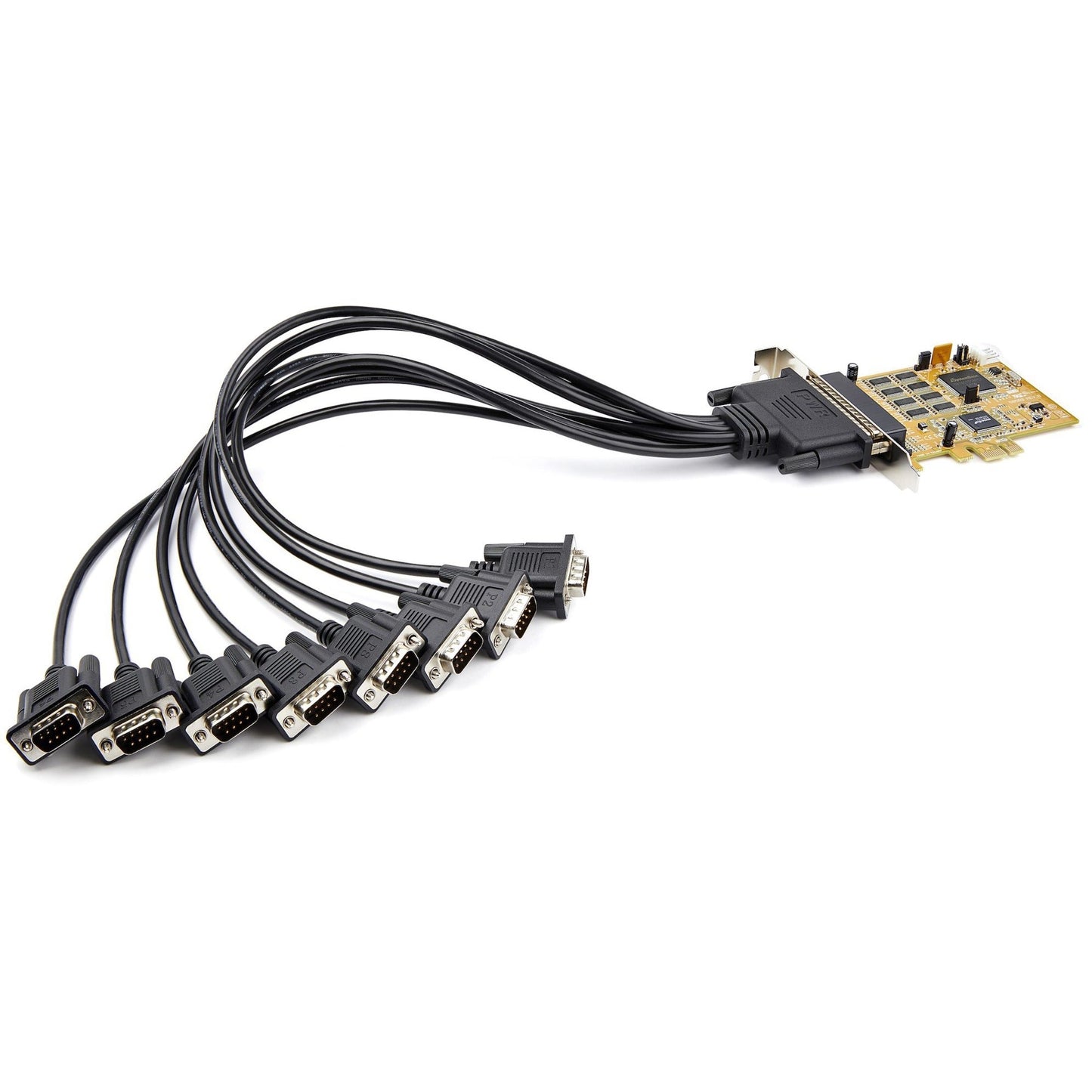

  • 1 x DB62 to 8 Port DB9
  • Breakout Cable
  • 1 x Quick Start Guide
  • 8 x Optional DB9 Connector Hex Nut Pairs
Limited WarrantyLifetime
Host InterfacePCI Express 1.0a x1
UART Type16C1050
Weight (Approximate)2.60 oz
Number of Ports8
View full details
$258.99 USD
$258.99
Sale Sold out

Dropship


Update


Shipping calculated at checkout.

StarTech.com 8-Port PCI Express RS232 Serial Adapter Card - PCIe to Serial DB9 RS232 Controller Card - 16C1050 UART - 15kV ESD - Win/Linux - 8-port PCI Express RS232 serial adapter card 16C1050 UART 15kV ESD/Systembase SB16C1058PCI - Bi-directional speed 921.6Kbps/port | 256 byte FIFO - Expansion controller card w/pin 9 power 5v/12v/none w/3A max - DB62 to DB9 cable w/Hex nuts - Win/Linux

Manufacturer : StarTech.com

Manufacturer Part No : PEX8S1050

Features

  • 8 PORT SERIAL CARD: Serial controller card w/ 16C1050 UART based on the Systembase SB16C1058PCI w/15kV ESD 8x DB9 ports bi-directional RS232 speeds up to 921.6Kbps per port & 256 byte FIFO buffer; Upgraded version of our popular card PEX8S952
  • OPTIONAL CONFIGURABLE POWER: Multiport serial card provides 12v/5v or none on pin 9 w/up to 3A total shared; 18"/48cm DB62 to 8x DB9 breakout cable incl; Hex nuts incl for opt screw/nut DB9 interface
  • COMPATABILITY: Full profile PCI-e 1x card and fully compliant w/ PCI Express Base Specifications Revision 1.0a/1.1; Supports Windows (incl. XP and up) and Linux; For standard profile desktop/servers
  • VERSATILE APPLICATIONS: PCI Express RS232 serial adapter card for within point of sale terminals PLCs control/automation in factories scientific sensors medical equipment scanners oscilloscope
  • STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; PCIe RS232 Serial expansion card is backed for life by StarTech.com incl. free 24/5 North America based multi-lingual tech support

Product Details

Product TypeMultiport Serial Adapter
Environmentally FriendlyYes
Environmental CertificationRoHS
Maximum Data Transfer Rate921.40 kbit/s
Number of Serial Ports1
Country of OriginTaiwan
Height4.7"
Width0.6"
ColorYellow
Brand NameStarTech.com
Form FactorPlug-in Card
ManufacturerStarTech.com
Product NamePCIe Serial Card
Manufacturer Part NumberPEX8S1050
Manufacturer Website Addresshttp://www.startech.com
Marketing Information

Add eight RS-232 DB9 serial ports to your desktop computer through a PCIe expansion card slots. This PCI express serial card with 8-port breakout cable provides you with multiple ports to connect a wide variety of serial peripherals at speeds of up to 921.4Kbps.

Connect your Peripherals with 8 Serial Ports

The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers scanners credit/debit card readers PIN pads and modems industrial controls and more. The 8 port PCIe serial card includes a breakout cable - with 8 DB9 connectors.

Maximum Compatibility

With broad OS support including for Windows and Linux this PCI Express card is easy to integrate into mixed environments.

PEX8S1050 is backed by a StarTech.com lifetime warranty and free lifetime technical support.
Platform SupportedLinux
Ports Expandability8 x DB-9 RS-232 - Serial Via Cable
Package Contents
  • PCIe Serial Card
  • 1 x DB62 to 8 Port DB9
  • Breakout Cable
  • 1 x Quick Start Guide
  • 8 x Optional DB9 Connector Hex Nut Pairs
Limited WarrantyLifetime
Host InterfacePCI Express 1.0a x1
UART Type16C1050
Weight (Approximate)2.60 oz
Number of Ports8
