StarTech.com Dual M.2 PCIe SSD Adapter Card - x8 / x16 Dual NVMe or AHCI M.2 SSD to PCI Express 3.0 - M.2 NGFF PCIe (m-key) Compatible

StarTech.com Dual M.2 PCIe SSD Adapter Card - x8 / x16 Dual NVMe or AHCI M.2 SSD to PCI Express 3.0 - M.2 NGFF PCIe (m-key) Compatible

SKU: 1061482317      MFR: StarTech.com

GTIN: 065030886390

Product Description

StarTech.com Dual M.2 PCIe SSD Adapter Card - x8 / x16 Dual NVMe or AHCI M.2 SSD to PCI Express 3.0 - M.2 NGFF PCIe (m-key) Compatible - Dual M.2 PCIe SSD adapter to install 2 PCI Express M-Key SSD (NVMe/AHCI) in computer - Use M.2 NGFF SSDs individually or w/ software RAID 0 1 SPAN JBOD. Compatible w/ Samsung 970 Evo / 950 Pro / SM951. Windows Linux macOS. Full & low-profile bracket.

Manufacturer : StarTech.com

Manufacturer Part No : PEX8M2E2

Features

  • HIGH PERFORMANCE: Install 2 PCIe 3.0 M.2 SSDs (NVMe or AHCI) into your workstation or server for read/write speeds up to 3GB/s and 2.8GB/s for single-drives or 2.4GB/s and 1.42GB/s (per drive) for 2
  • WIDE COMPATIBILITY: Dual M.2 PCIe SSD adapter card was extensively tested to ensure compatibility w/ Samsung 970 evo 950 Pro SM951 & other 2242 2260 2280mm PCIe M-Key M.2 NGFF SSDs (NVMe or AHCI)
  • BACKWARD COMPATIBILITY: Compatible w/ PCIe 1.0 & 2.0 and x8 or x16 slots PCIe bifurcation is not required. Works with all workstation and server OS's such as Windows Linux and macOS incl. legacy.
  • RAID FUNCTIONALITY: M.2 PCI Express adapter lets you use SSDs individually or in a storage pool using OS or 3rd party RAID software (RAID 0 1 SPAN JBOD) for tiered/hybrid storage

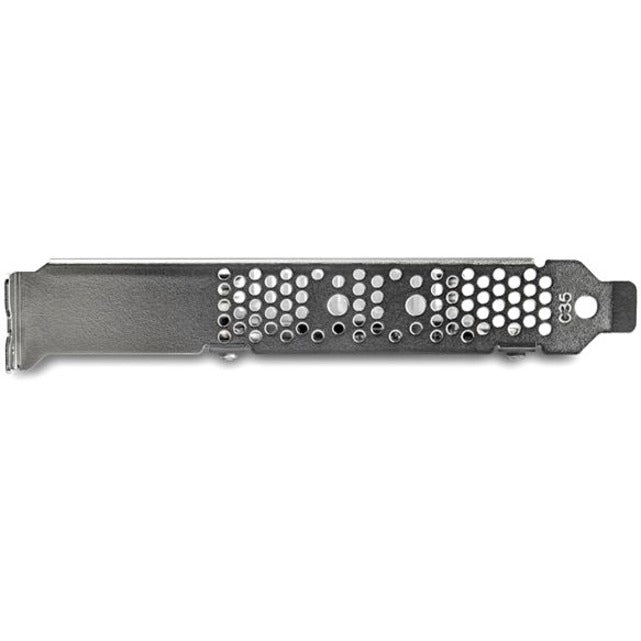

  • VENTED DUAL-PROFILE BRACKETS: Pre-installed full profile bracket with low-profile (half-height) bracket in box & vented design for better cooling avoiding drive throttling and improving reliability.

Product Details

Brand NameStarTech.com
ManufacturerStarTech.com
Product Namex8 Dual M.2 PCIe SSD Adapter - PCIe 3.0
Manufacturer Part NumberPEX8M2E2
Manufacturer Website Addresshttp://www.startech.com
Marketing InformationUpgrade your system speed and performance with this Dual M.2 PCIe SSD Adapter. It lets you add two high performance enterprise-class PCIe 3.0 M.2 SSDs (NVMe and AHCI) into the PCIe 8-lane or larger slot of your desktop workstation or server. Boost System Performance

The expansion card lets you take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives. With the M.2 PCIe based drives in place the adapter increases your storage capacity and gives your computer a significant speed boost enhancing data transfer rates.

Access two M.2 PCIe SSDs simultaneously

The dual M.2 to PCIe expansion card employs a high-speed ASM2824 switch allowing you to access two drives at the same time. Since the adapter card does not rely on PCIe bifurcation it can easily be integrated into all systems new and legacy.

The M.2 PCI express adapter also gives you the flexibility to access your M.2 PCIe SSDs individually. Or you can utilize software RAID to build a RAID array to add redundancy or enhance system performance.

Wide System Compatibility

The adapter connects directly to your computer motherboard to support two PCIe M.2 SSDs through a x8 PCIe expansion slot. The adapter is compatible with PCIe 3.0 motherboards and is backward compatible with PCIe 2.0 and PCIe 1.0.

Supports a Wide Range of PCIe M.2 SSDs

The PCIe M.2 NGFF (M Key) adapter supports PCIe 3.0 NVMe and PCIe-AHCI M.2 SSDs including 2242 2260 and 2280 drives supporting the most common drive sizes: 42 60 and 80 mm lengths.

Easy to Install

The expansion card comes with a full-profile bracket pre-installed and includes a half-height / low-profile bracket for installation in small form-factor computers.

Vented Brackets

Vented brackets on the PCIe M.2 NGFF SSD adapter card increases air flow to assist in heat dissipation.

The TAA compliant PEX8M2E2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Package Contents
  • x8 Dual M.2 PCIe SSD Adapter - PCIe 3.0
  • 1 x Low-Profile Bracket
  • 1 x Full-Profile Bracket (Pre-installed)
  • 2 x SSD Standoff and Installation Screws
  • 1 x Quick-Start Guide
Limited Warranty2 Year
Product TypeM.2 to PCI Express Adapter
TAA CompliantYes
ColorRed
Environmentally FriendlyYes
Environmental CertificationREACH
Shipping Height1.77"
Shipping Width8.46"
Shipping Depth6.10"
Country of OriginTaiwan
Certifications & Standards
  • CE
  • FCC
Shipping Weight (Approximate)6.88 oz
Additional Information

Hardware:

Bus Type: PCI Express

Chipset ID: ASMedia - ASM2824

Compatible Drive Types:

  • M.2 (PCIe AHCI M-Key NGFF)
  • M.2 (PCIe NVMe M-Key NGFF)

Drive Installation: Fixed

Drive Size: 22m - M.2 NGFF

Interface: PCI Express x8

Number of Drives: 2

Supported Drive Height(s):

  • 2242
  • 2260
  • 2280

Connector(s):

Drive Connectors: 2 - M.2 (PCIe M-Key AHCI/NVMe NGFF)

Host Connectors: 1 - PCI Express x8 Male

Other Interface(s): 2 - IDC (2 pin Motherboard Header)
View full details
$226.99 USD
$226.99
Sale Sold out

In Stock - 157 (Available by Fri, Jan 16 - Wed, Jan 21)


Update


Shipping calculated at checkout.

StarTech.com Dual M.2 PCIe SSD Adapter Card - x8 / x16 Dual NVMe or AHCI M.2 SSD to PCI Express 3.0 - M.2 NGFF PCIe (m-key) Compatible - Dual M.2 PCIe SSD adapter to install 2 PCI Express M-Key SSD (NVMe/AHCI) in computer - Use M.2 NGFF SSDs individually or w/ software RAID 0 1 SPAN JBOD. Compatible w/ Samsung 970 Evo / 950 Pro / SM951. Windows Linux macOS. Full & low-profile bracket.

Manufacturer : StarTech.com

Manufacturer Part No : PEX8M2E2

Features

  • HIGH PERFORMANCE: Install 2 PCIe 3.0 M.2 SSDs (NVMe or AHCI) into your workstation or server for read/write speeds up to 3GB/s and 2.8GB/s for single-drives or 2.4GB/s and 1.42GB/s (per drive) for 2
  • WIDE COMPATIBILITY: Dual M.2 PCIe SSD adapter card was extensively tested to ensure compatibility w/ Samsung 970 evo 950 Pro SM951 & other 2242 2260 2280mm PCIe M-Key M.2 NGFF SSDs (NVMe or AHCI)
  • BACKWARD COMPATIBILITY: Compatible w/ PCIe 1.0 & 2.0 and x8 or x16 slots PCIe bifurcation is not required. Works with all workstation and server OS's such as Windows Linux and macOS incl. legacy.
  • RAID FUNCTIONALITY: M.2 PCI Express adapter lets you use SSDs individually or in a storage pool using OS or 3rd party RAID software (RAID 0 1 SPAN JBOD) for tiered/hybrid storage
  • VENTED DUAL-PROFILE BRACKETS: Pre-installed full profile bracket with low-profile (half-height) bracket in box & vented design for better cooling avoiding drive throttling and improving reliability.

Product Details

Brand NameStarTech.com
ManufacturerStarTech.com
Product Namex8 Dual M.2 PCIe SSD Adapter - PCIe 3.0
Manufacturer Part NumberPEX8M2E2
Manufacturer Website Addresshttp://www.startech.com
Marketing InformationUpgrade your system speed and performance with this Dual M.2 PCIe SSD Adapter. It lets you add two high performance enterprise-class PCIe 3.0 M.2 SSDs (NVMe and AHCI) into the PCIe 8-lane or larger slot of your desktop workstation or server. Boost System Performance

The expansion card lets you take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives. With the M.2 PCIe based drives in place the adapter increases your storage capacity and gives your computer a significant speed boost enhancing data transfer rates.

Access two M.2 PCIe SSDs simultaneously

The dual M.2 to PCIe expansion card employs a high-speed ASM2824 switch allowing you to access two drives at the same time. Since the adapter card does not rely on PCIe bifurcation it can easily be integrated into all systems new and legacy.

The M.2 PCI express adapter also gives you the flexibility to access your M.2 PCIe SSDs individually. Or you can utilize software RAID to build a RAID array to add redundancy or enhance system performance.

Wide System Compatibility

The adapter connects directly to your computer motherboard to support two PCIe M.2 SSDs through a x8 PCIe expansion slot. The adapter is compatible with PCIe 3.0 motherboards and is backward compatible with PCIe 2.0 and PCIe 1.0.

Supports a Wide Range of PCIe M.2 SSDs

The PCIe M.2 NGFF (M Key) adapter supports PCIe 3.0 NVMe and PCIe-AHCI M.2 SSDs including 2242 2260 and 2280 drives supporting the most common drive sizes: 42 60 and 80 mm lengths.

Easy to Install

The expansion card comes with a full-profile bracket pre-installed and includes a half-height / low-profile bracket for installation in small form-factor computers.

Vented Brackets

Vented brackets on the PCIe M.2 NGFF SSD adapter card increases air flow to assist in heat dissipation.

The TAA compliant PEX8M2E2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Package Contents
  • x8 Dual M.2 PCIe SSD Adapter - PCIe 3.0
  • 1 x Low-Profile Bracket
  • 1 x Full-Profile Bracket (Pre-installed)
  • 2 x SSD Standoff and Installation Screws
  • 1 x Quick-Start Guide
Limited Warranty2 Year
Product TypeM.2 to PCI Express Adapter
TAA CompliantYes
ColorRed
Environmentally FriendlyYes
Environmental CertificationREACH
Shipping Height1.77"
Shipping Width8.46"
Shipping Depth6.10"
Country of OriginTaiwan
Certifications & Standards
  • CE
  • FCC
Shipping Weight (Approximate)6.88 oz
Additional Information

Hardware:

Bus Type: PCI Express

Chipset ID: ASMedia - ASM2824

Compatible Drive Types:

  • M.2 (PCIe AHCI M-Key NGFF)
  • M.2 (PCIe NVMe M-Key NGFF)

Drive Installation: Fixed

Drive Size: 22m - M.2 NGFF

Interface: PCI Express x8

Number of Drives: 2

Supported Drive Height(s):

  • 2242
  • 2260
  • 2280

Connector(s):

Drive Connectors: 2 - M.2 (PCIe M-Key AHCI/NVMe NGFF)

Host Connectors: 1 - PCI Express x8 Male

Other Interface(s): 2 - IDC (2 pin Motherboard Header)
