This HDMI® over IP kit lets you extend an HDMI signal as well as four USB peripheral device connections over your network. You can use additional receivers (sold separately) to distribute the HDMI and USB signals to multiple locations and combine your remote displays to create a videowallwhile using the USB connection to extend a touch screen to create an interactive digital signage presentation.

Versatile configuration options

In a point-to-multipoint setup you can connect the HDMI over IP kit through an unmanaged or managed Gigabit LAN portal. You can also connect one or several sources (transmitters) to multiple displays (receivers) over your network usinga managed Gigabit Ethernet switch with IGMP. For further scalability you can combine up to 16 different extender kits.

For smaller-scale applications you can use the extender kit as a point-to-point video extender by connecting the transmitter and receiver units directly over Cat5 or Cat6 cabling for a one-to-one HDMI extension up to 330 feet (100 meters).

Manage your video distribution from your mobile device

This HDMI distribution kit features an easy-to-use video control software app that helps you manage your IP video distribution. The app is simple to set up with automatic hardware detection and it lets you switch video sources for each remote display. You can also create and manage a video wall for an impressive digital signage presentation that's sure to catch your audience's attention.

The software is available on iOS for your iPhone or iPad Android™ for your smartphone or tablet and Google Chrome™browser.

Professional cost-effectivesimpleinstallation

The HDMI over IP extender kit can be powered using Power over Ethernet to conveniently connect both data and power using an 802.3af PoE switch or injector avoiding the hassle of external power adapters.

The kit includes optional mounting hardware for a tidy installation. Ideal for high-definition applications the extender supports 1080p video resolutions and digital stereo audio. Plus because the extender uses standard non-proprietary Cat5e or Cat6 Ethernet cable with RJ45 connectors it eliminates both the expense and hassle of running specialized cables.

The extender also features an EDID copy function which ensures native resolution and maximum compatibility with your display or projector for a convenient plug-and-play installation.

Download the StarTech.com Video Control software to manage your IP video distribution.

Note: For best performance a managed network switch with IGMP is recommended if you are using more than one transmitter or more than four receivers Non-managed network switches may also limit the performance of other devices connected to the same network.

The ST12MHDLANU is TAA compliant and backed by a StarTech.com 2-year warranty with free lifetime technical support.

More from the Manufacturer

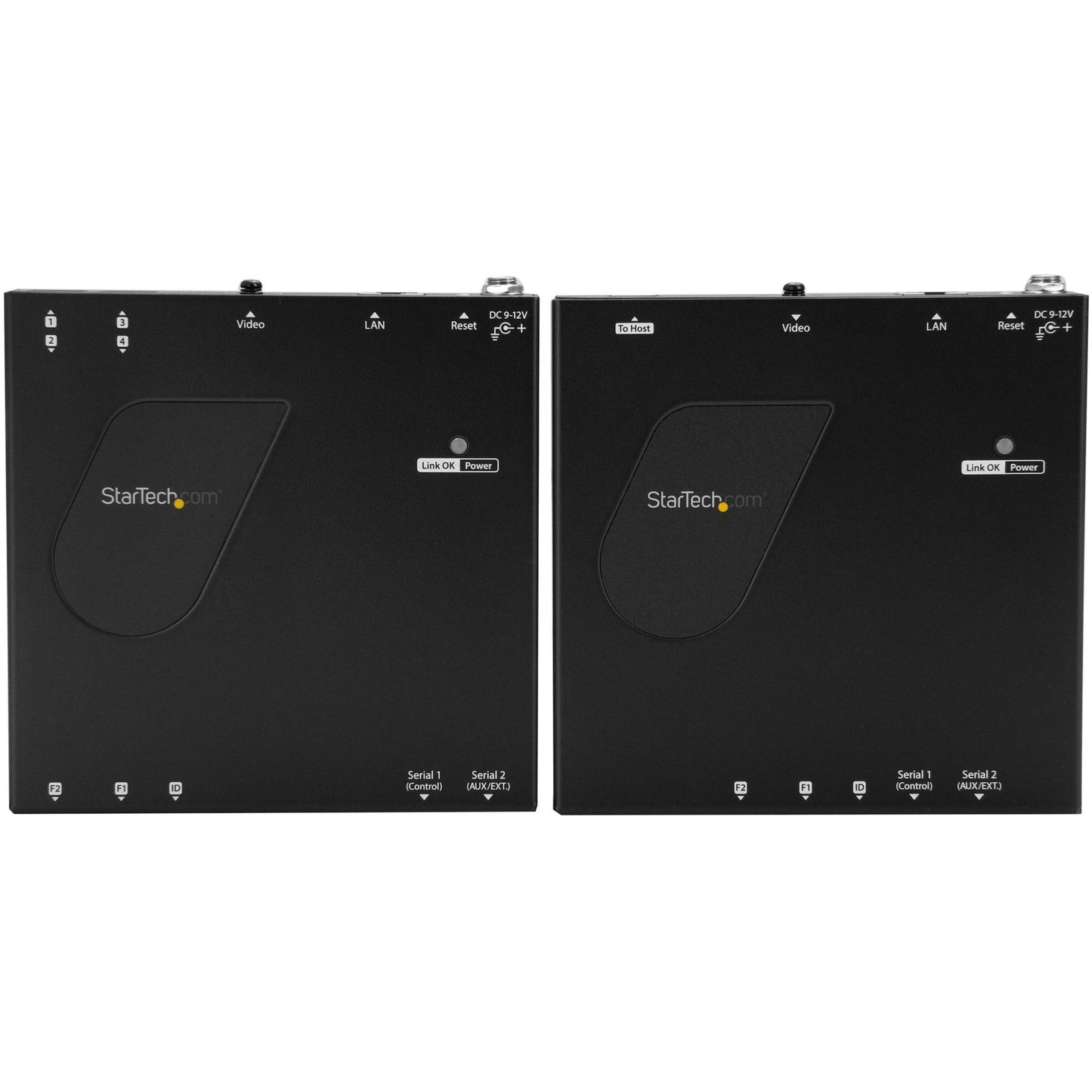

• 1 x HDMI over IP Transmitter
• 1 x HDMI over IP Receiver
• 2 x Power Adapters
• 2 x Screws
• 1 x Screw Driver
• 2 x CAT5 Cables
• 2 x Mounting Brackets
• 1 x Quick Install Guide

This HDMI® over IP kit lets you extend an HDMI signal as well as four USB peripheral device connections over your network. You can use additional receivers (sold separately) to distribute the HDMI and USB signals to multiple locations and combine your remote displays to create a videowallwhile using the USB connection to extend a touch screen to create an interactive digital signage presentation.

Versatile configuration options

In a point-to-multipoint setup you can connect the HDMI over IP kit through an unmanaged or managed Gigabit LAN portal. You can also connect one or several sources (transmitters) to multiple displays (receivers) over your network usinga managed Gigabit Ethernet switch with IGMP. For further scalability you can combine up to 16 different extender kits.

For smaller-scale applications you can use the extender kit as a point-to-point video extender by connecting the transmitter and receiver units directly over Cat5 or Cat6 cabling for a one-to-one HDMI extension up to 330 feet (100 meters).

Manage your video distribution from your mobile device

This HDMI distribution kit features an easy-to-use video control software app that helps you manage your IP video distribution. The app is simple to set up with automatic hardware detection and it lets you switch video sources for each remote display. You can also create and manage a video wall for an impressive digital signage presentation that's sure to catch your audience's attention.

The software is available on iOS for your iPhone or iPad Android™ for your smartphone or tablet and Google Chrome™browser.

Professional cost-effectivesimpleinstallation

The HDMI over IP extender kit can be powered using Power over Ethernet to conveniently connect both data and power using an 802.3af PoE switch or injector avoiding the hassle of external power adapters.

The kit includes optional mounting hardware for a tidy installation. Ideal for high-definition applications the extender supports 1080p video resolutions and digital stereo audio. Plus because the extender uses standard non-proprietary Cat5e or Cat6 Ethernet cable with RJ45 connectors it eliminates both the expense and hassle of running specialized cables.

The extender also features an EDID copy function which ensures native resolution and maximum compatibility with your display or projector for a convenient plug-and-play installation.

Download the StarTech.com Video Control software to manage your IP video distribution.

Note: For best performance a managed network switch with IGMP is recommended if you are using more than one transmitter or more than four receivers Non-managed network switches may also limit the performance of other devices connected to the same network.

The ST12MHDLANU is TAA compliant and backed by a StarTech.com 2-year warranty with free lifetime technical support.
