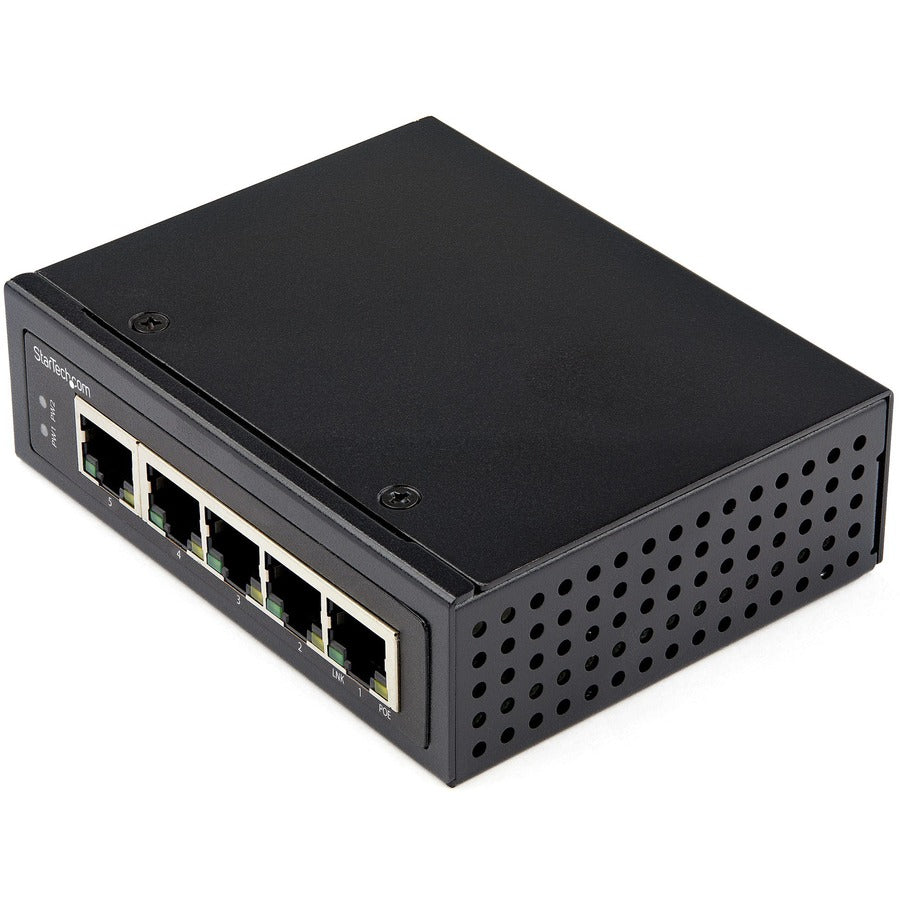

StarTech.com Industrial 5 Port Gigabit PoE Switch 30W - Power Over Ethernet Switch - GbE POE+ Network Switch - Unmanaged - IP-30

StarTech.com Industrial 5 Port Gigabit PoE Switch 30W - Power Over Ethernet Switch - GbE POE+ Network Switch - Unmanaged - IP-30

SKU: 1065620649      MFR: StarTech.com

GTIN: 65030889629

Product Description

StarTech.com Industrial 5 Port Gigabit PoE Switch 30W - Power Over Ethernet Switch - GbE POE+ Network Switch - Unmanaged - IP-30 - 5 Port Gigabit PoE switch 30W PSE power per port to devices w/GbE on Cat5e/6 - Power over Ethernet Network IEEE 802.3af/at |10/100/1000 Mbps |Unmanaged |Alarm Relay |DIN/Wall Mount |Redundant Power Input IP-30 /Industrial Hardened -40C to 75C temp

Manufacturer : StarTech.com

Manufacturer Part No : IESC1G50UP

Features

  • POWER OVER ETHERNET: Gigabit PoE Switch provides up to 30W of PSE power per PoE port to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+) | Use with devices like cameras & access points using Cat 5e/6

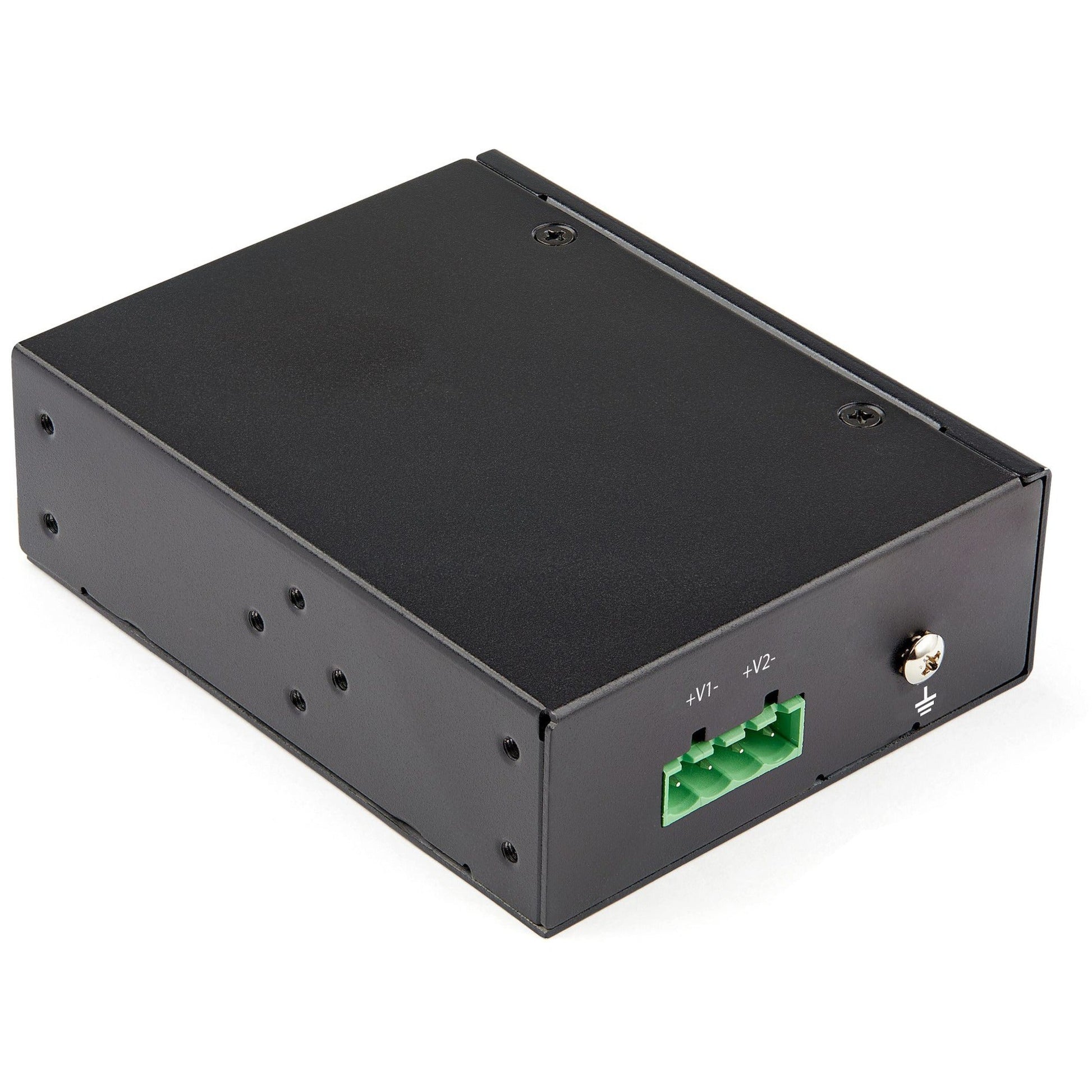

  • FLEXIBLE POWER INPUT: Power over Ethernet network switch can be hardwired using terminal block (48-56VDC) power or powered using a standard (48-56VDC) Type-N barrel wall adapter (not included)
  • ROBUST DESIGN: Industrial Network Switch w/MTBF 500000+hrs @ 50C | Vibration shock & free fall rated | Rugged industrial IP-30 aluminum housing | -40C to 75C hardened operating temp | DIN/Wall Mount
  • TECH SPECS: 5 Port GbE Switch | 4 PoE ports | IEEE 802.3af / IEEE 802.3at | 10/100/1000 Mbps | Unmanaged | Redundant Power Input | Terminal Block Power | Total power budget: 120W
  • STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years | This Gigabit PoE switch is backed for 2-years by StarTech.com including free 24/5 North America based multi-lingual tech support

Product Details

Product TypeEthernet Switch
ManageableNo
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyGigabit Ethernet
Network (RJ-45)Yes
Media Type SupportedTwisted Pair
Total Number of Network Ports5
PoE (RJ-45) PortYes
Port/Expansion Slot Details4 x Gigabit Ethernet PoE+
PoE Budget120 W
Networking StandardsIEEE 802.3
Country of OriginTaiwan
Height1.3"
Width3.2"
Brand NameStarTech.com
Plug/Connector TypeTerminal Block
Form FactorWall Mountable
Length4.1"
ManufacturerStarTech.com
Product NameEthernet Switch
Network Technology10/100/1000Base-T
Power Consumption126 W
Manufacturer Part NumberIESC1G50UP
Manufacturer Website Addresshttp://www.startech.com
Marketing Information

This industrial 5 port gigabit PoE switch ( 4-port PoE) features 30W of power and is designed to be installed in harsh environments and supports up to a total of 120W power outputs.

For Demanding Environments Where No Fiber Connections Are Required

Using Cat 5e (or higher rated) Ethernet cabling this Ethernet switch Provides up to 30W of PSE power per PoE port (PSE) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like:

  • Cameras
  • Sensors
  • Wi-Fi Access Points

High total power budget with high PoE port count at a maximum of 30 watts per port up to 120 watts max. Power provided in order of device connection; max four 802.3at (30W) devices (120W total) at any time.

Truly Industrial for Devices That Must Function Under Harsh Conditions

Industrial features include:

  • Operating Temperature Range: -40 C to 75 C
  • IP-30 rated housing
  • Vibration shock and free-fall standard testing

This Ethernet switch supports additional features such as redundant power inputs 2kV surge protection on RJ45 ports and an MTBF of 600000+ hrs (Telcordia/Bellcore ) at 50°C for long-term reliability.

A Flexible & Easy-to-Deploy Solution

Includes hardware for DIN rail or wall mounting right out of the box. The unique barrel power adapter allows for standard wall adapters to be used instead of being hardwired and the alarm relay can be integrated into any solution.
Power SourcePoE+
Package Contents
  • Ethernet Switch
  • Mounting Hardware Kit
  • Quick-Start Guide
  • Terminal Block
MaterialSteel
Limited Warranty2 Year
Layer Supported2
Weight (Approximate)5.30 oz
