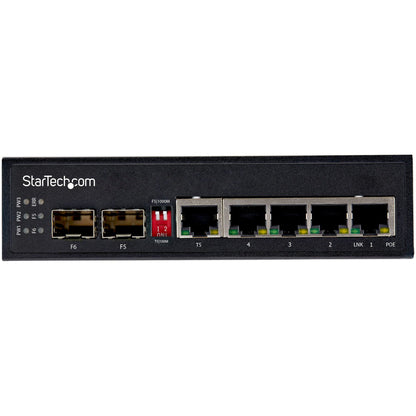

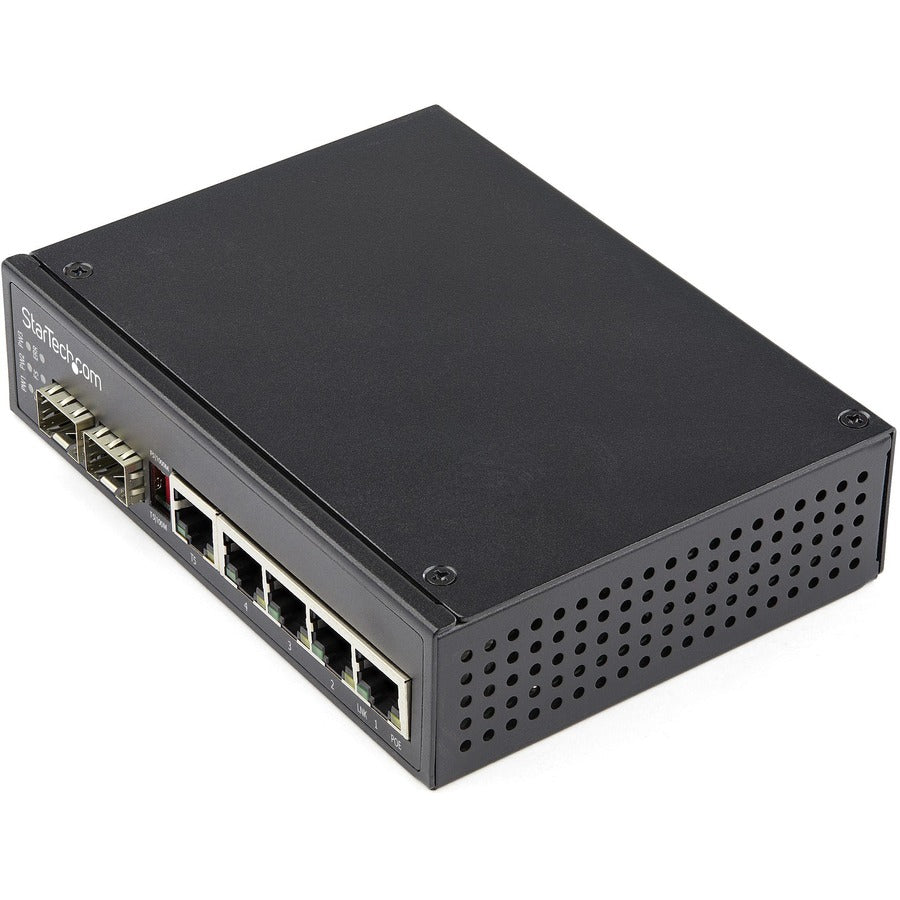

StarTech.com Industrial 6 Port Gigabit Ethernet Switch 4 PoE RJ45 +2 SFP Slots 30W PoE+ 48VDC 10/100/1000 Mbps -40C to 75C w/DIN Connector

StarTech.com Industrial 6 Port Gigabit Ethernet Switch 4 PoE RJ45 +2 SFP Slots 30W PoE+ 48VDC 10/100/1000 Mbps -40C to 75C w/DIN Connector

SKU: 1065620648      MFR: StarTech.com

GTIN: 65030889582

Product Description

StarTech.com Industrial 6 Port Gigabit Ethernet Switch 4 PoE RJ45 +2 SFP Slots 30W PoE+ 48VDC 10/100/1000 Mbps -40C to 75C w/DIN Connector - Industrial 6 Port Gigabit Ethernet Switch - Up to 30W per 4 PoE ports - 75C to -40C hardened 5 RJ-45 ports (4 PoE) + 2 SFP slots MSA IP-30 housing MTBF 500k + hrs Vibration/shock/free fall rated Unmanaged DIN mountable/DIN connector included 2yr warr

Manufacturer : StarTech.com

Manufacturer Part No : IES1G52UPDIN

Features

  • FIBER & PoE: Industrial 6 Port Gigabit Ethernet Switch IEEE 802.3af (PoE) or 802.3at (PoE+) 30W max per 4 x PoE ports PSE + 2 x open SFP slots | Use with devices like cameras sensors wi-fi APs
  • FLEXIBLE POWER INPUT: Use a DIN power connector or hardwire using terminal block power or use dual power sources for redundancy | Input voltage range is 48-56V DC
  • ROBUST DESIGN: Industrial Network Switch w/MTBF 500000+hrs @ 50C | Vibration shock & free fall rated | Rugged industrial IP-30 aluminum housing | -40C to 75C hardened operating temp | DIN/Wall Mount
  • TECH SPECS: 10/100/1000 Mbps Auto-Negotiation | Unmanaged | 6 Total Mixed Fiber/Copper Connections: 4 PoE ports + 1 SFP + 1 Flexible Copper or SFP port (MSA Compliant) | Total power budget: 120W
  • STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years | This Gigabit PoE switch is backed for 2-years by StarTech.com including free 24/5 North America based multi-lingual tech support

Product Details

Product TypeEthernet Switch
ManageableNo
Ethernet TechnologyGigabit Ethernet
Number of Total Expansion Slots2
Media Type SupportedOptical Fiber
Total Number of Network Ports5
PoE (RJ-45) PortYes
Redundant Power Supply SupportedYes
Expansion Slot TypeSFP (mini-GBIC)
Brand NameStarTech.com
Plug/Connector Type4-pin Power DIN Connector Female
Form FactorWall Mountable
Power Consumption126 W
Power SourcePoE+
Layer Supported2
Network (RJ-45)Yes
Number of SFP Slots2
ModularYes
Uplink PortYes
Shared SFP SlotYes
Port/Expansion Slot Details4 x Gigabit Ethernet PoE+
PoE Budget120 W
Networking StandardsIEEE 802.3
Country of OriginTaiwan
Height1.4"
Width4.1"
Length5.6"
ManufacturerStarTech.com
Product NameEthernet Switch
Network Technology1000Base-T
Manufacturer Part NumberIES1G52UPDIN
Manufacturer Website Addresshttp://www.startech.com
Marketing Information

Easily deploy or scale your network with this Gigabit Ethernet switch features four dedicated PoE+ enabled ports and one dedicated open SFP slot plus the flexibility of a switchable RJ-45/Open SFP port for use as an uplink or for non-PoE devices. It features an IP-30 housing compact design and is wall and DIN rail mountable.

Power Over Ethernet & 48V Voltage

With a total power budget of 120W this PSE Ethernet switch provides up to 30W of power per PoE port to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:

  • Cameras
  • Sensors
  • Wi-Fi access points

Uses Cat 5e (or higher rated) Ethernet cabling.

Designed for Harsh Environments

Industrial features include -40 C to 75 C operating temperature IP-30 rated housing vibration shock and free-fall standard testing.

  • Vibration: EN 60068-2-6
  • Shock: EN 60068-2-27
  • Free-Fall: EN 60068-2-32

500000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.

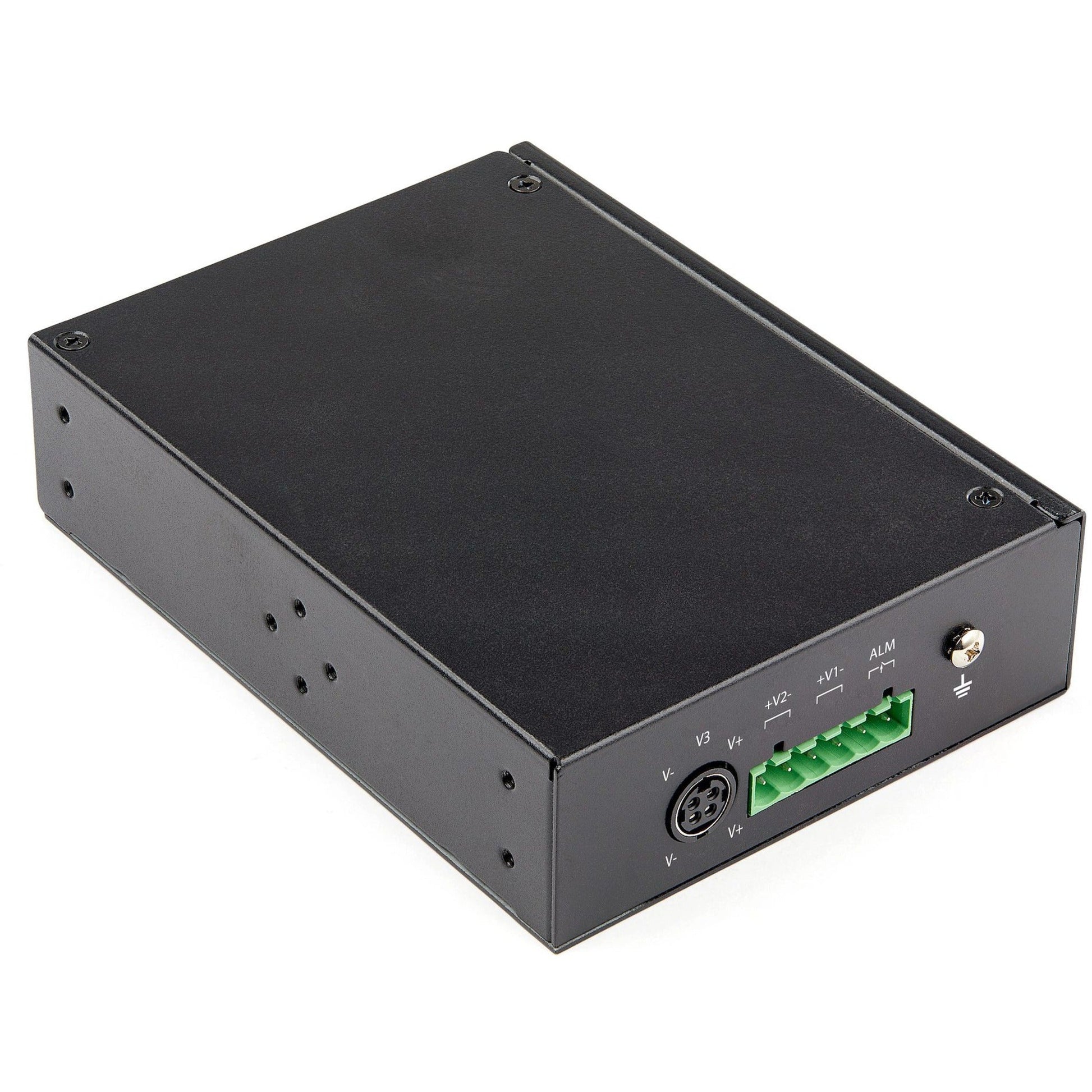

Dual Power Inputs

Dual power inputs provide redundancy. Accepts terminal block power or DIN power connectors for additional power supply flexibility allowing the product to be hardwired or powered using an external power supply (not included) which does not require professional installation.

The IES1G52UPDIN is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Package Contents
  • Ethernet Switch
  • Mounting Hardware Kit
  • Quick-Start Guide
  • Terminal Block
MaterialSteel
Limited Warranty2 Year
Weight (Approximate)1.09 lb
Environmentally FriendlyYes
Environmental CertificationRoHS
