StarTech.com Industrial 8 Port Gigabit PoE Switch 30W - Power Over Ethernet Switch - GbE POE+ Network Switch - Unmanaged - IP-30

StarTech.com Industrial 8 Port Gigabit PoE Switch 30W - Power Over Ethernet Switch - GbE POE+ Network Switch - Unmanaged - IP-30

SKU: 1065620650      MFR: StarTech.com

GTIN: 65030889605

Product Description

StarTech.com Industrial 8 Port Gigabit PoE Switch 30W - Power Over Ethernet Switch - GbE POE+ Network Switch - Unmanaged - IP-30 - 8 Port Gigabit PoE switch 30W PSE power per port to devices w/GbE on Cat5e/6 - Power over Ethernet Network IEEE 802.3af/at |10/100/1000 Mbps |Unmanaged |Alarm Relay |DIN/Wall Mount |Redundant Power Input IP-30 /Industrial Hardened -40C to 75C temp

Manufacturer : StarTech.com

Manufacturer Part No : IESC1G80UP

Features

  • POWER OVER ETHERNET: Gigabit PoE Switch provides up to 30W of PSE power per PoE port to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+) | Use with devices like cameras & access points using Cat 5e/6
  • TECH SPECS: 8 port GbE PoE switch | 8 PoE ports | IEEE 802.3af / IEEE 802.3at | 10/100/1000 Mbps | Unmanaged | Error Alarm Relay | Redundant Power Input | Terminal Block Power | 200W power budget
  • ROBUST DESIGN: Industrial Network Switch w/MTBF 500000+hrs @ 50C | Vibration shock & free fall rated | Rugged industrial IP-30 aluminum housing | -40C to 75C hardened operating temp | DIN/Wall Mount

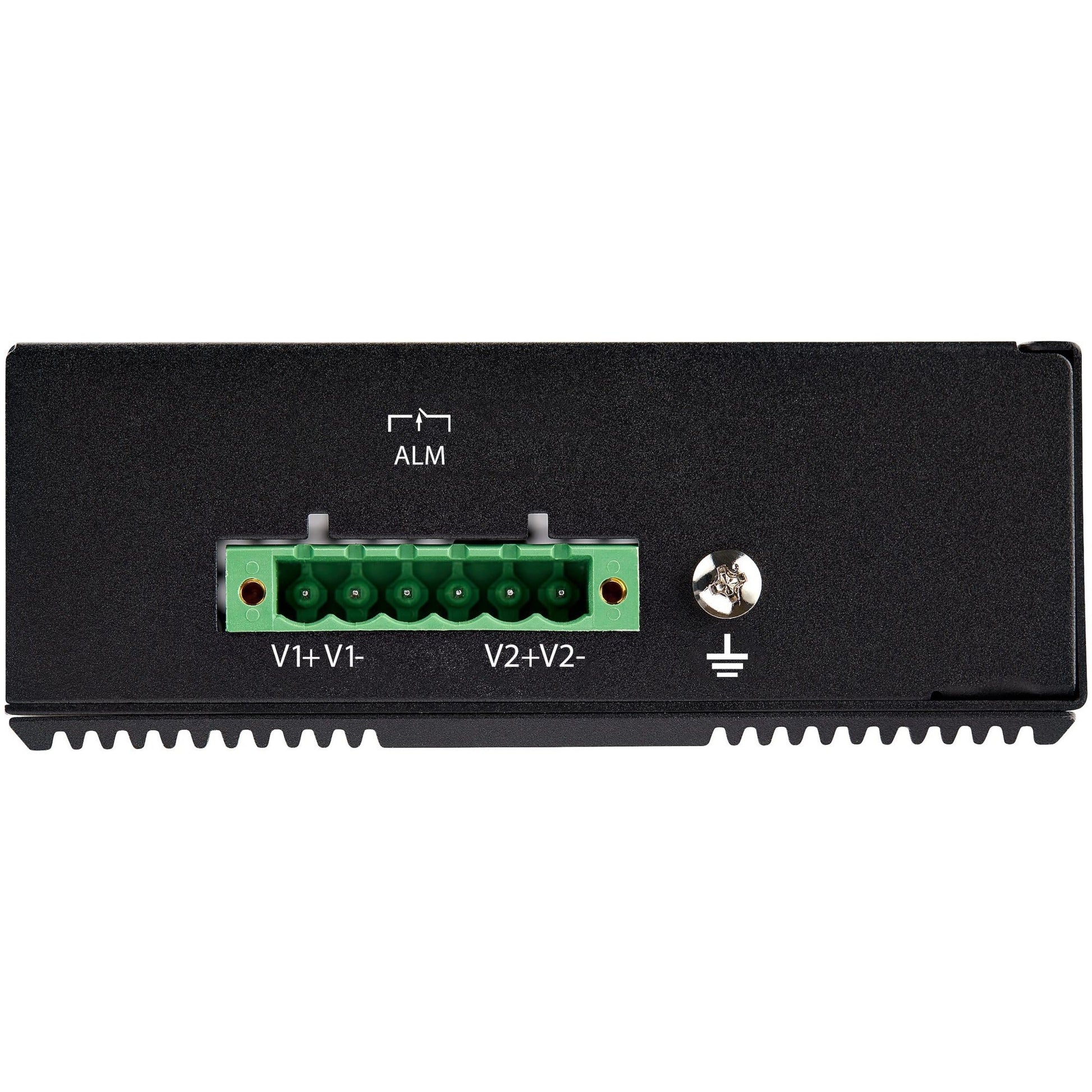

  • REDUNDANT POWER: Dual terminal block power inputs (48-56VDC) provide redundancy for high-availability applications
  • STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years | This Gigabit PoE switch is backed for 2-years by StarTech.com including free 24/5 North America based multi-lingual tech support

Product Details

Product TypeEthernet Switch
ManageableNo
Ethernet TechnologyGigabit Ethernet
Media Type SupportedTwisted Pair
Total Number of Network Ports8
PoE (RJ-45) PortYes
Brand NameStarTech.com
Plug/Connector TypeTerminal Block
Form FactorDIN Rail Mountable
Power Consumption206 W
Power SourcePoE+
Layer Supported2
Environmentally FriendlyYes
Environmental CertificationRoHS
Network (RJ-45)Yes
Port/Expansion Slot Details8 x Gigabit Ethernet PoE+
PoE Budget200 W
Networking StandardsIEEE 802.3x
Country of OriginTaiwan
Height1.6"
Width4.1"
Length5.6"
ManufacturerStarTech.com
Product NameEthernet Switch
Network Technology10/100/1000Base-T
Manufacturer Part NumberIESC1G80UP
Manufacturer Website Addresshttp://www.startech.com
Marketing Information

This industrial 8 port gigabit PoE switch features 30W of power and is designed to be installed in harsh environments and supports up to a total of 200W power outputs. Includes hardware for DIN rail or wall mounting.

For Demanding Environments Where No Fiber Connections Are Required

Using Cat 5e (or higher rated) Ethernet cabling this Ethernet switch Provides up to 30W of PSE power per PoE port (PSE) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like:

  • Cameras
  • Sensors
  • Wi-Fi Access Points

High total power budget with high PoE port count at a maximum of 30 watts per port up to 200 watts max. Power provided in order of device connection; max 6 802.3at (30W) devices (180W total) at any time.

Truly Industrial for Devices That Must Function Under Harsh Conditions

Industrial features include:

  • Operating Temperature Range: -40 C to 75 C
  • IP-30 rated housing
  • Vibration shock and free-fall standard testing

This Ethernet switch supports additional features such as redundant power inputs 2kV surge protection on RJ45 ports and an MTBF of 500000+ hrs (Telcordia/Bellcore) at 50°C for long-term reliability.
Package Contents
  • Ethernet Switch
  • Mounting Hardware Kit
  • Quick-Start Guide
  • Terminal Block
MaterialSteel
Limited Warranty2 Year
Weight (Approximate)1.18 lb
