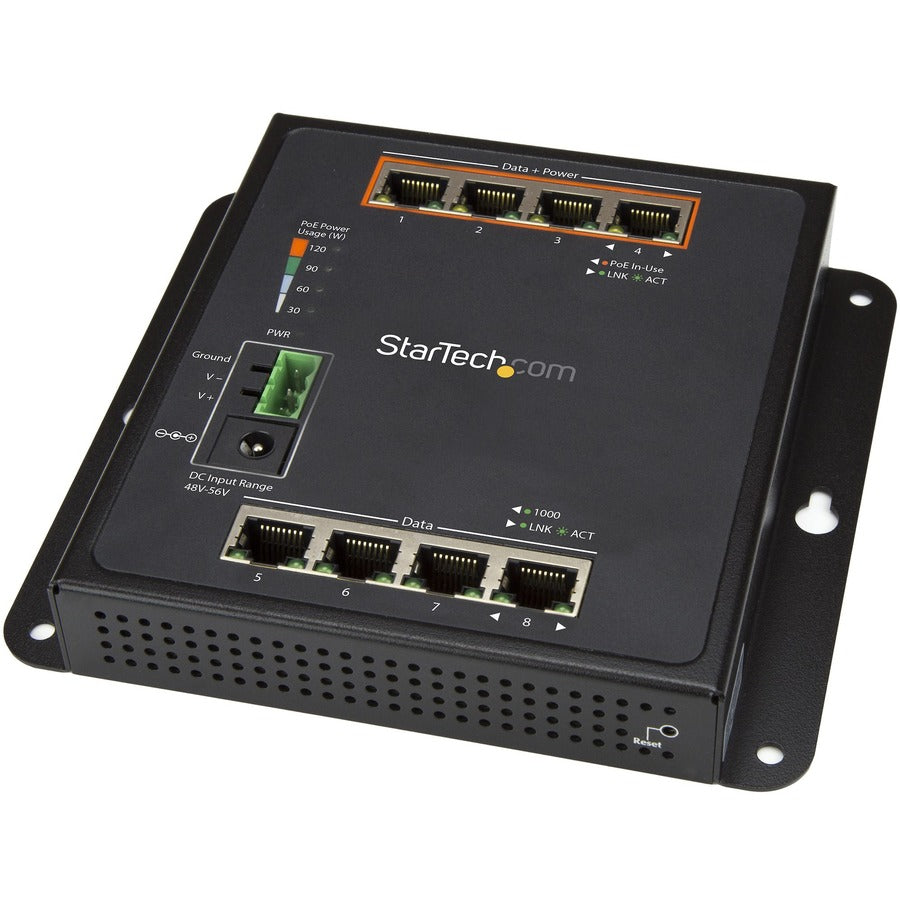

• StarTech.com Industrial 8 Port Gigabit PoE Switch - 4 x PoE+ 30W - Power Over Ethernet GbE Layer/L2 Managed Network Switch -40C to +75C
    StarTech.com Industrial 8 Port Gigabit PoE Switch - 4 x PoE+ 30W - Power Over Ethernet GbE Layer/L2 Managed Network Switch -40C to +75C
1 1

StarTech.com Industrial 8 Port Gigabit PoE Switch - 4 x PoE+ 30W - Power Over Ethernet GbE Layer/L2 Managed Network Switch -40C to +75C

StarTech.com Industrial 8 Port Gigabit PoE Switch - 4 x PoE+ 30W - Power Over Ethernet GbE Layer/L2 Managed Network Switch -40C to +75C

SKU: 1039314458      MFR: StarTech.com

GTIN: 65030871112

Product Description

StarTech.com Industrial 8 Port Gigabit PoE Switch - 4 x PoE+ 30W - Power Over Ethernet GbE Layer/L2 Managed Network Switch -40C to +75C - Industrial 8 port Gigabit PoE switch Up to 30W per 4 Power over Ethernet ports +75C to -40C temp 10/100/1000 Mbps network auto IP-30 housing MTBF 500000+hrs - Vibration/shock/free fall rated - 6kV ESD Full layer/L2 managed DIN/wall mounting 2 yr warr

Manufacturer : StarTech.com

Manufacturer Part No : IES81GPOEW

Features

  • POWER OVER ETHERNET: Industrial gigabit PoE switch up to 30W/4 PoE ports (PSE) to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+) for cameras sensors wi-fi APs w/Cat5e or higher cable Total power budget 120W
  • FLAT DESIGN: Compact IP-30 steel housing w/6kV ESD/Vibration/shock/free fall rating allows for front access w/easy install; DIN rail/wall mounting options w/hardware incl; -40C to 75C operating temps
  • FLEXIBLE POWER: Rugged/hardened GbE network switch can be hardwired using terminal block (48-56VDC) power or by Type-M barrel plug (12-48v); terminal block kit included
  • TECH SPECS: 8 port Gigabit switch | 4 PoE+ ports | 10/100/1000 Mbps auto negotiation | Managed Layer/L2 | VLAN | MTBF 100000+ hrs @ 25?C | Web GUI/SSH/Telnet |Link Aggregation/SNMP/QoS/Spanning Tree
  • STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This 8 port Gigabit switch is backed for 2-years by StarTech.com including free 24/5 North America based multi-lingual tech support

Product Details

Product TypeEthernet Switch
ManageableYes
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyGigabit Ethernet
Network (RJ-45)Yes
Media Type SupportedTwisted Pair
Total Number of Network Ports8
PoE (RJ-45) PortYes
Port/Expansion Slot Details4 x Gigabit Ethernet PoE+
TAA CompliantYes
Networking StandardsIEEE 802.3ad
Country of OriginTaiwan
Height1"
Width5.8"
Brand NameStarTech.com
Form FactorWall Mountable
Length5.3"
ManufacturerStarTech.com
Product Name8-Port (4 PoE+) Gigabit Ethernet Switch - Managed - Wall Mount with Front Access
Network Technology10/100/1000Base-T
Input Voltage56 V DC
Manufacturer Part NumberIES81GPOEW
Manufacturer Website Addresshttp://www.startech.com
Marketing InformationEasily deploy or scale your network with this Gigabit Ethernet switch by adding eight copper Gigabit Ethernet (GbE) connections including four PoE+ ports. This IP30 industrial network switch provides intelligent Layer 2 management. Its rugged compact design and wall-mount option with front access make it ideal for demanding applications even where space is limited.Expand your network

This Gigabit Ethernet switch lets you expand your network by connecting up to eight RJ45 devices (four PoE+). The 8-port switch enables up to eight users to share files and devices such as printers and scanners over a LAN connection by enhancing your existing network capacity with additional ports.

Supports PoE+ for flexible use

The switch gives you the freedom to place your equipment in locations where power outlets are not available with support for Power over Ethernet Plus. The network switch provides abundant PoE power with up to 30 watts for each PoE port (120W budget).

Wall-mountable with front access

With its compact design you can wall-mount the Gigabit switch to provide convenient front access to ports and indicators. It's ideal for a wide range of applications including tight installation areas with significant electromagnetic interference such as control cabinets and panels. The network switch is also DIN-rail mountable.

Efficient Layer 2 management

The switch delivers efficient and stable performance with Layer 2 management capabilities. This lets you control packet traffic on a busy network and customize your settings to achieve optimal network performance offering improved efficiency and reliability.

Rugged industrial design

This rugged network switch features an IP30-rated metal housing and extended operating temperature range of -40°C to 75°C which makes it ideal for a wide range of conditions. The sturdy metal enclosure offers durability even in harsh industrial environments.

Reliable connection for seamless network performance

With support for 10/100/1000Mbps transfer speeds this managed switch supports full/half-duplex auto-negotiation jumbo frames and auto MDI/MDIX operation. This lets you connect your network devices quickly and easily with little to no configuration required.

To help prevent any unnecessary downtime the switch features redundant 12-58V DC terminal block power inputs which ensures seamless operation in the event of power dips or failures.

The IES81GPOEW is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Packaged Quantity1
Package Contents
  • 8-Port (4 PoE+) Gigabit Ethernet Switch - Managed - Wall Mount with Front Access
  • 1 x Terminal block Connector
  • 4 x Screw Anchors
  • 4 x Screws
  • 4 x Attaching Pins
  • 4 x Locking Pins
  • 4 x Washers
  • 4 x Magnets
  • 1 x DIN Rail
  • 3 x DIN Rail Screws
  • 8 x RJ45 Dust Caps
  • 1 x Quick Start Guide
MaterialSteel
Limited Warranty2 Year
Layer Supported2
Weight (Approximate)1.43 lb
View full details
$367.99 USD
$367.99
Sale Sold out

In Stock - 209 (Available by Sat, Jun 20 - Thu, Jun 25)
