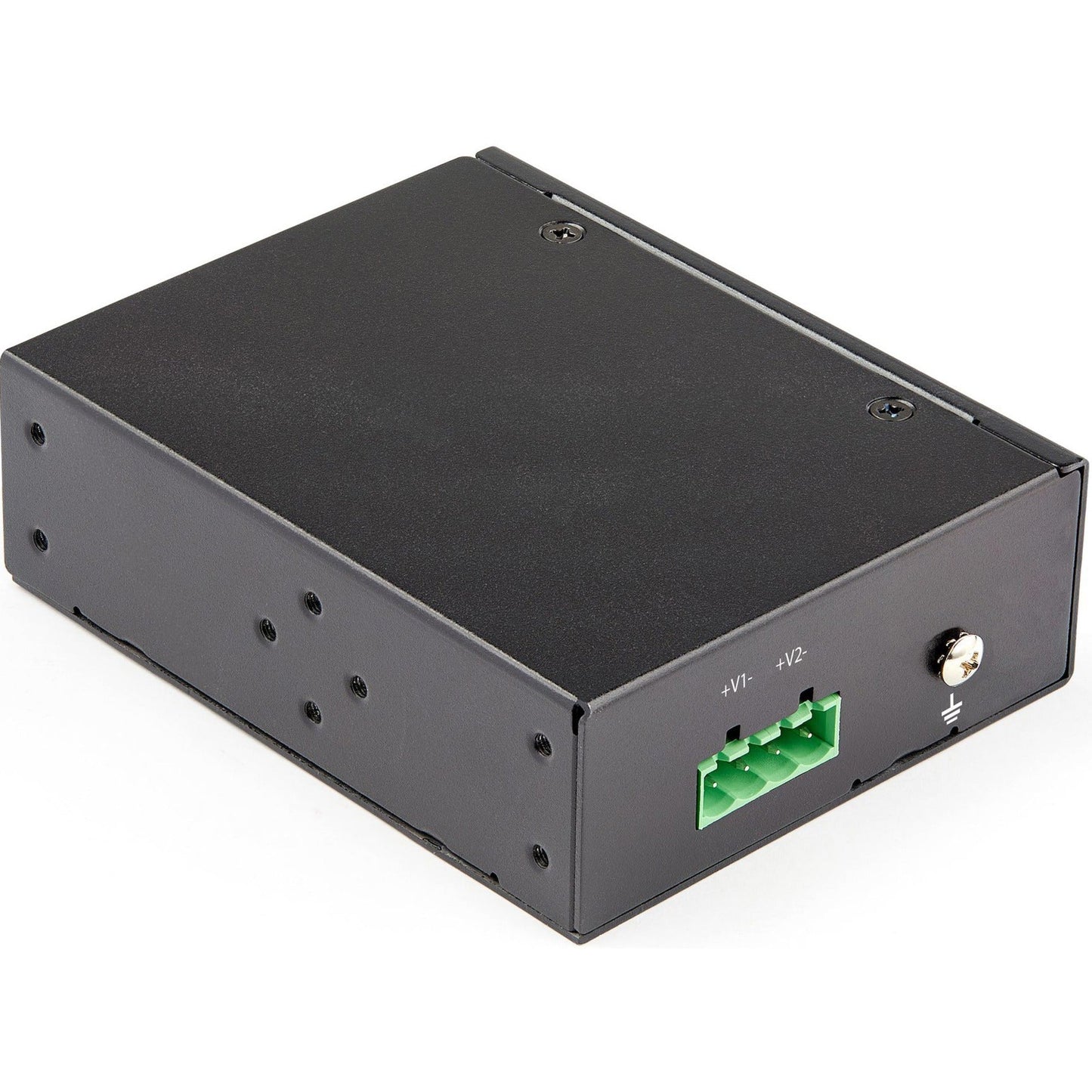

StarTech.com Industrial Gigabit Ethernet PoE Injector 30W 802.3at PoE+ Midspan 48V-56VDC Power Over Ethernet Injector Adapter -40C to +75C

StarTech.com Industrial Gigabit Ethernet PoE Injector 30W 802.3at PoE+ Midspan 48V-56VDC Power Over Ethernet Injector Adapter -40C to +75C

SKU: 1065620657      MFR: StarTech.com

GTIN: 65030891363

Product Description

StarTech.com Industrial Gigabit Ethernet PoE Injector 30W 802.3at PoE+ Midspan 48V-56VDC Power Over Ethernet Injector Adapter -40C to +75C - Industrial Gigabit Ethernet PoE Injector - Power over Ethernet Injector - Up to 30W of pwr (midspan) to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+) MTBF 600k+hrs IP-30 housing -40C to 75C temp DIN/Wall mount 48V-56VDC input w/terminal block pwr 2yr warr

Manufacturer : StarTech.com

Manufacturer Part No : POEINJ30W

Features

  • 30 WATT GIGABIT ETHERNET PoE INJECTOR: Provides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like cameras sensors and wi-fi access points
  • TECH SPECS: 1 Gbps
  • 48V-56VDC input
  • IEEE 802.3af / IEEE 802.3at (30W)
  • 10/100/1000 Mbps auto negotiation
  • Link fault passthrough (LFP)

Product Details

Product TypePoE Injector
ColorBlack
Brand NameStarTech.com
Output Ports1 x PoE+
Environmentally FriendlyYes
Environmental CertificationWEEE
Certifications & Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEC 61000-4-2
  • IEC 61000-4-4
  • IEC 61000-4-5
  • EN 60068-2-6
  • EN 60068-2-32
  • MET (UL) 60950-1
  • EN60950-1
Input Ports1 Fast Ethernet
Output Ports1 PoE+
Form FactorDIN Rail/Wall Mountable
ManufacturerStarTech.com
Product ModelPOEINJ30W
Product NamePOEINJ30W PoE Injector
Protection TypeOverload Protection
Input Voltage56 V DC
Manufacturer Part NumberPOEINJ30W
Manufacturer Website Addresshttp://www.startech.com
Marketing Information

This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.

30 Watt Power Budget

Provides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:

  • Cameras
  • Sensors
  • Wi-fi access points

Uses Cat 5e (or higher rated) Ethernet cabling.

Designed for Harsh Environments

Industrial features include -40 C to 75 C operating temperature IP-30 rated housing vibration shock and free-fall standard testing.

  • Vibration: EN 60068-2-6
  • Shock: EN 60068-2-27
  • Free-fall: EN 60068-2-32

600000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.

Dual Power Inputs

Dual power inputs provide redundancy. Accepts terminal block power or coaxial power connectors with the barrel plug adapter allowing the product to be hardwired or powered using an external power supply (not included) which does not require professional installation.

The POEINJ30W is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Package Contents
  • POEINJ30W PoE Injector
  • Mounting Hardware Kit
  • Quick-Start Guide
  • Terminal Block to Barrel Power Connector Adapter
  • Terminal Block
Limited Warranty2 Year
Shipping Height2.52"
Shipping Width8.31"
Shipping Depth6.38"
Country of OriginTaiwan
Input Ports1 x Fast Ethernet
