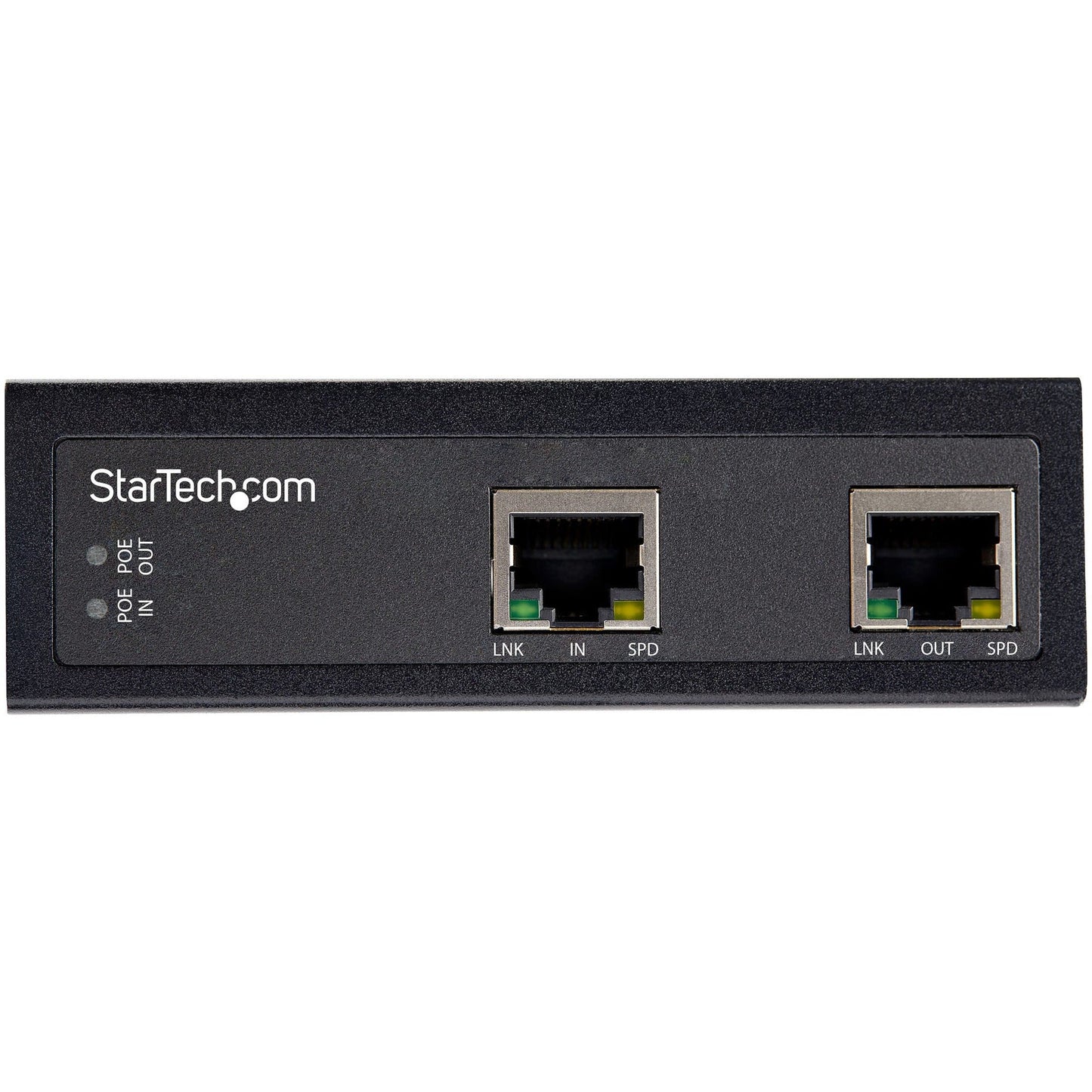

StarTech.com Industrial Gigabit PoE Extender - 60W 802.3bt PoE++ 100m/330ft - Power Over Ethernet Network Range Extender - IP-30 Hardened

StarTech.com Industrial Gigabit PoE Extender - 60W 802.3bt PoE++ 100m/330ft - Power Over Ethernet Network Range Extender - IP-30 Hardened

SKU: 1065620655      MFR: StarTech.com

GTIN: 65030889650

Product Description

StarTech.com Industrial Gigabit PoE Extender - 60W 802.3bt PoE++ 100m/330ft - Power Over Ethernet Network Range Extender - IP-30 Hardened - Gigabit PoE Extender extends a power source by 100m to PD devices; Cascade 4 Power over Ethernet/PoE+ network extenders to extend range by 400m - 15W/30W/60W power output auto-selected - 802.3bt - IP-30 industrial hardened/ -40C to 75C temp

Manufacturer : StarTech.com

Manufacturer Part No : POEEXT1G60W

Features

  • 100M EXTENSION: Extend a PSE source (up to 95W) by 100m using this Gigabit PoE Extender; power PoE devices like cameras & access points; 4 extenders can be cascaded to extend up to 400m using CAT 5e/6
  • 60W PoE IEEE 802.3bt: Powered by the PSE source this Power over Ethernet range extender provides up to 15W/30W/60W of auto-negotiated power output to target PD device
  • Low 2.7W power consumption
  • TECH SPECS: 1 Gbps
  • 1 x RJ45 PD In
  • 1 x RJ45 PSE Out

Product Details

Product TypePoE Extender
Environmentally FriendlyYes
Environmental CertificationRoHS
Maximum Output Power60 W
Height1.3"
Width3.2"
ColorBlack
Certifications & Standards
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt
  • EN 60068-2-6
  • EN 60068-2-27
  • EN 60068-2-32
  • IEC 61000-4-2
  • IEC 61000-4-4
  • IEC 61000-4-5
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.3z
Brand NameStarTech.com
Input Ports1 Ethernet
Output Ports1 PoE+
Form FactorDIN Rail/Wall Mountable
Length4.1"
ManufacturerStarTech.com
Product ModelPOEEXT1G60W
Product NamePOEEXT1G60W PoE Extender
Protection TypeSurge Protection
Manufacturer Part NumberPOEEXT1G60W
Manufacturer Website Addresshttp://www.startech.com
Marketing InformationExtend the Reach of PoE Links up to 328 Feet

Extends the reach of PoE links up to 328' (100 m) to power powered devices (PD) over long distances; up to 4 extenders can be cascaded to extend the range of a PoE source (PSE) device up to an additional 400m for a total range of 500m from the original PSE source to the target device.

Using Cat 5e (or higher rated) Ethernet cabling it supports IEEE 802.3af (PoE / Type 1) IEEE 802.3at (PoE+ / Type 2) and IEEE 802.3bt (PoE++ / Type 3) to support PD devices like pan and tilt cameras lighting sensors and wi-fi access points.

Designed for Harsh Environments

This PoE extender features IP-30 housing and an MTBF is 500000+ hrs (Telcordia/Bellcore) at 50C for long-term reliability and durability. Operating temp of -40C to 75C permits use in a wide range of indoor and outdoor applications that are not temperature controlled.

Rated to various vibration shock and free-fall standards:

  • Vibration: EN 60068-2-6
  • Shock: EN 60068-2-27
  • Free-Fall: EN 60068-2-32

PoE Extender also includes hardware for mounting to the DIN rail or wall.

Flexible Power Outputs

Accepts inputs up to 95W from a PSE source and can provide 15W 30W or 60W of power output to a target PD device. Low 2.7W power consumption provides more power for devices especially when multiple extenders are used for a single extension.

Features ESD EFT and surge protection at the following standards:

  • ESD: IEC 61000-4-2: Contact: 6KV; Air: 8KV
  • EFT: IEC 61000-4-4: Power: 2KV; Signal: 2KV
  • Surge: IEC 61000-4-5: Power: 2KV; Signal: 2KV

POEEXT1G60W is backed by a StarTech.com two-year warranty and free lifetime technical support.
Package Contents
  • POEEXT1G60W PoE Extender
  • Mounting Hardware Kit
  • Quick-Start Guide
Limited Warranty2 Year
Weight (Approximate)5.22 oz
Output Ports1 x PoE+
Shipping Height2.52"
Shipping Width8.31"
Shipping Depth6.38"
Country of OriginTaiwan
Input Ports1 x Ethernet
