• StarTech.com Industrial Gigabit PoE Injector - High Speed 90W 802.3bt PoE++ 52V-56VDC Ultra Power Over Ethernet/UPoE Injector -40C to +75C
  • StarTech.com Industrial Gigabit PoE Injector - High Speed 90W 802.3bt PoE++ 52V-56VDC Ultra Power Over Ethernet/UPoE Injector -40C to +75C
  • StarTech.com Industrial Gigabit PoE Injector - High Speed 90W 802.3bt PoE++ 52V-56VDC Ultra Power Over Ethernet/UPoE Injector -40C to +75C
1 3

StarTech.com Industrial Gigabit PoE Injector - High Speed 90W 802.3bt PoE++ 52V-56VDC Ultra Power Over Ethernet/UPoE Injector -40C to +75C

StarTech.com Industrial Gigabit PoE Injector - High Speed 90W 802.3bt PoE++ 52V-56VDC Ultra Power Over Ethernet/UPoE Injector -40C to +75C

SKU: 1065620656      MFR: StarTech.com

GTIN: 65030889568

Product Description

StarTech.com Industrial Gigabit PoE Injector - High Speed 90W 802.3bt PoE++ 52V-56VDC Ultra Power Over Ethernet/UPoE Injector -40C to +75C - High power industrial gigabit PoE injector 90W 1 Gbps Up to 90W max w/IEEE 802.3bt Type 3/4 PoH (HDBase-T) uPoE/Ultra power over Ethernet MTBF 500k+hrs IP-30 housing -40C to 75C - DIN/Wall mountable 52V-56VDC w/redundant pwr inputs - 2yr warranty

Manufacturer : StarTech.com

Manufacturer Part No : POEINJ1G90W

Features

  • WIDE STANDARD COMPATIBILITY: High speed Industrial Gigabit PoE Injector compatible w/ IEEE 802.3bt (PoE++) & previous 90W proprietary POE standards including PoH (HDBase-T) Cisco uPoE Bosch & AXIS
  • 90W POWER BUDGET: Provides up to 90W of auto-negotiated power output for Type 3 and Type 4 PoE/Ultra/UPoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points
  • TECH SPECS: 1 Gbps
  • 48V-56VDC Power Input
  • IEEE 802.3af
  • IEEE 802.3at

Product Details

Product TypePoE Injector
Environmentally FriendlyYes
Product ColorBlack
Country of OriginTaiwan
Height4.1"
Width1.3"
Certifications & Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3at
  • IEEE 802.3af
  • IEEE 802.3bt
  • IEC 61000-4-2
  • IEC 61000-4-4
  • IEC 61000-4-5
  • EN60950-1
  • IP-30
  • EN 60068-2-6
  • EN 60068-2-27
  • EN 60068-2-32
Brand NameStarTech.com
Input Ports1 x Gigabit Ethernet
Output Ports1 x PoE+
Form FactorDIN Rail/Wall Mountable
Length3.2"
ManufacturerStarTech.com
Product ModelPOEINJ1G90W
Product NamePOEINJ1G90W PoE Injector
Protection TypeSurge Protection
Input Voltage56 V DC
Manufacturer Part NumberPOEINJ1G90W
Manufacturer Website Addresshttp://www.startech.com
Marketing Information

This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.

Flexible Configurations for a Variety of Applications

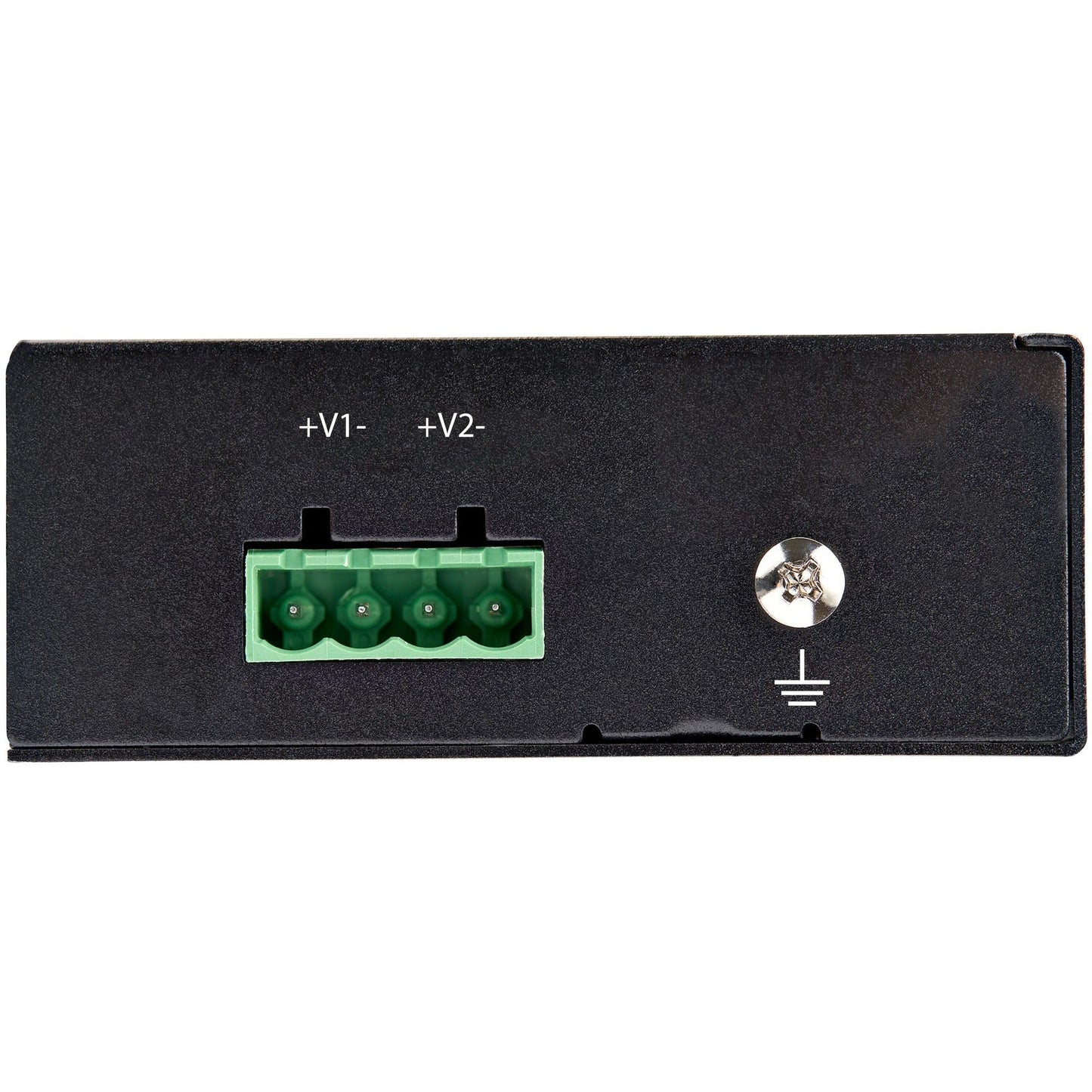

Compatible with IEEE 802.3bt and most previous 90W proprietary PoE (Ethernet) standards including PoH (HDBaseT) Cisco uPoE Bosch and AXIS. One product can cover multiple use requirements to improve standardization and deployment and dual power terminal block inputs provide redundancy for critical applications.

90 Watt Power Budget

As many typical PoE-enabled switches max out at 30W a high 90W power budget is perfect for demanding Type 3 and Type 4 PoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points.

Designed for Harsh Environments

Industrial features include -40 C to 75 C operating temperature IP-30 rated housing vibration shock and free-fall standard testing.

  • Vibration: EN 60068-2-6
  • Shock: EN 60068-2-27
  • Free-fall: EN 60068-2-32

500000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.

The POEINJ1G90W is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer
Package Contents
  • POEINJ1G90W PoE Injector
  • Mounting Hardware Kit
  • Quick-Start Guide
  • Terminal Block
Limited Warranty2 Year
Weight (Approximate)6.14 oz
Marketing Information

This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.

Flexible Configurations for a Variety of Applications

Compatible with IEEE 802.3bt and most previous 90W proprietary PoE (Ethernet) standards including PoH (HDBaseT) Cisco uPoE Bosch and AXIS. One product can cover multiple use requirements to improve standardization and deployment and dual power terminal block inputs provide redundancy for critical applications.

90 Watt Power Budget

As many typical PoE-enabled switches max out at 30W a high 90W power budget is perfect for demanding Type 3 and Type 4 PoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points.

Designed for Harsh Environments

Industrial features include -40 C to 75 C operating temperature IP-30 rated housing vibration shock and free-fall standard testing.

  • Vibration: EN 60068-2-6
  • Shock: EN 60068-2-27
  • Free-fall: EN 60068-2-32

500000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.

The POEINJ1G90W is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer
View full details
$284.99 USD
$284.99
Sale Sold out

In Stock - 151 (Available by Sat, Jan 04 - Wed, Jan 08)


Update


Shipping calculated at checkout.

StarTech.com Industrial Gigabit PoE Injector - High Speed 90W 802.3bt PoE++ 52V-56VDC Ultra Power Over Ethernet/UPoE Injector -40C to +75C - High power industrial gigabit PoE injector 90W 1 Gbps Up to 90W max w/IEEE 802.3bt Type 3/4 PoH (HDBase-T) uPoE/Ultra power over Ethernet MTBF 500k+hrs IP-30 housing -40C to 75C - DIN/Wall mountable 52V-56VDC w/redundant pwr inputs - 2yr warranty

Manufacturer : StarTech.com

Manufacturer Part No : POEINJ1G90W

Features

  • WIDE STANDARD COMPATIBILITY: High speed Industrial Gigabit PoE Injector compatible w/ IEEE 802.3bt (PoE++) & previous 90W proprietary POE standards including PoH (HDBase-T) Cisco uPoE Bosch & AXIS
  • 90W POWER BUDGET: Provides up to 90W of auto-negotiated power output for Type 3 and Type 4 PoE/Ultra/UPoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points
  • TECH SPECS: 1 Gbps
  • 48V-56VDC Power Input
  • IEEE 802.3af
  • IEEE 802.3at

Product Details

Product TypePoE Injector
Environmentally FriendlyYes
Product ColorBlack
Country of OriginTaiwan
Height4.1"
Width1.3"
Certifications & Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3at
  • IEEE 802.3af
  • IEEE 802.3bt
  • IEC 61000-4-2
  • IEC 61000-4-4
  • IEC 61000-4-5
  • EN60950-1
  • IP-30
  • EN 60068-2-6
  • EN 60068-2-27
  • EN 60068-2-32
Brand NameStarTech.com
Input Ports1 x Gigabit Ethernet
Output Ports1 x PoE+
Form FactorDIN Rail/Wall Mountable
Length3.2"
ManufacturerStarTech.com
Product ModelPOEINJ1G90W
Product NamePOEINJ1G90W PoE Injector
Protection TypeSurge Protection
Input Voltage56 V DC
Manufacturer Part NumberPOEINJ1G90W
Manufacturer Website Addresshttp://www.startech.com
Marketing Information

This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.

Flexible Configurations for a Variety of Applications

Compatible with IEEE 802.3bt and most previous 90W proprietary PoE (Ethernet) standards including PoH (HDBaseT) Cisco uPoE Bosch and AXIS. One product can cover multiple use requirements to improve standardization and deployment and dual power terminal block inputs provide redundancy for critical applications.

90 Watt Power Budget

As many typical PoE-enabled switches max out at 30W a high 90W power budget is perfect for demanding Type 3 and Type 4 PoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points.

Designed for Harsh Environments

Industrial features include -40 C to 75 C operating temperature IP-30 rated housing vibration shock and free-fall standard testing.

  • Vibration: EN 60068-2-6
  • Shock: EN 60068-2-27
  • Free-fall: EN 60068-2-32

500000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.

The POEINJ1G90W is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer
Package Contents
  • POEINJ1G90W PoE Injector
  • Mounting Hardware Kit
  • Quick-Start Guide
  • Terminal Block
Limited Warranty2 Year
Weight (Approximate)6.14 oz
Marketing Information

This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.

Flexible Configurations for a Variety of Applications

Compatible with IEEE 802.3bt and most previous 90W proprietary PoE (Ethernet) standards including PoH (HDBaseT) Cisco uPoE Bosch and AXIS. One product can cover multiple use requirements to improve standardization and deployment and dual power terminal block inputs provide redundancy for critical applications.

90 Watt Power Budget

As many typical PoE-enabled switches max out at 30W a high 90W power budget is perfect for demanding Type 3 and Type 4 PoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points.

Designed for Harsh Environments

Industrial features include -40 C to 75 C operating temperature IP-30 rated housing vibration shock and free-fall standard testing.

  • Vibration: EN 60068-2-6
  • Shock: EN 60068-2-27
  • Free-fall: EN 60068-2-32

500000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.

The POEINJ1G90W is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer
