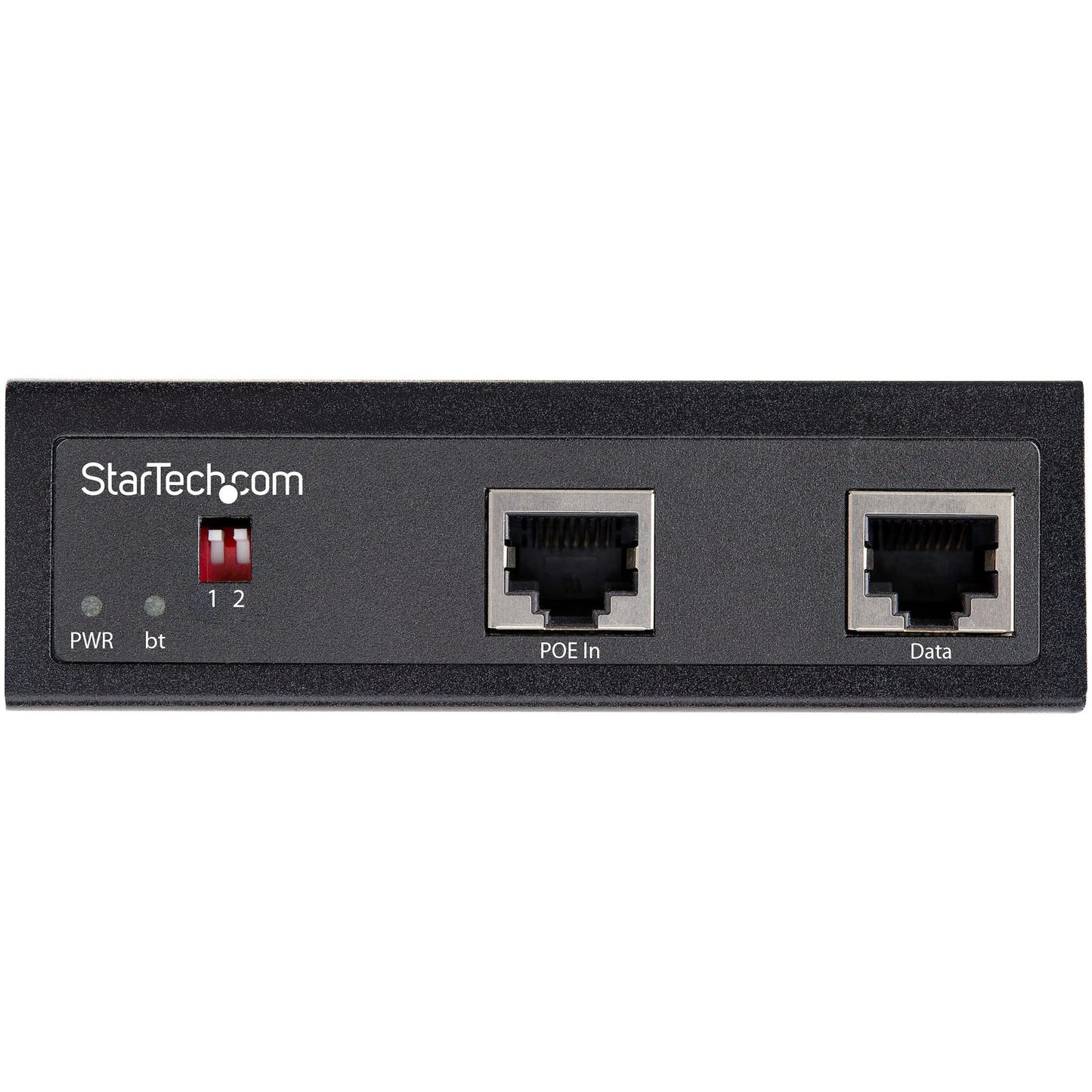

StarTech.com Industrial Gigabit PoE Splitter - 90W Power over Ethernet PoE++ Splitter - 12-48V DC Splitter 802.3bt Ultra PoE -40C to +75C

StarTech.com Industrial Gigabit PoE Splitter - 90W Power over Ethernet PoE++ Splitter - 12-48V DC Splitter 802.3bt Ultra PoE -40C to +75C

SKU: 1065620658      MFR: StarTech.com

GTIN: 65030889735

Product Description

StarTech.com Industrial Gigabit PoE Splitter - 90W Power over Ethernet PoE++ Splitter - 12-48V DC Splitter 802.3bt Ultra PoE -40C to +75C - Industrial gigabit PoE Splitter Power over Ethernet splitter up to 90W power with IEEE 802.3af/at/bt for PoE/PoE+/PoE++ MTBF 600k +hrs IP-30 housing -40C to +75C DIN/Wall mountable 12/16/24/48V DC (1.5A) termnial block power out 2-year warranty

Manufacturer : StarTech.com

Manufacturer Part No : POESLT1G48V

Features

  • HIGH POWER GIGABIT PoE SPLITTER: Power non-PoE devices using network infrastructure where power isn't available
  • Splits PoE connection (max 90W) into RJ45 data & DC power (terminal block)
  • 90W POE IEEE802.3bt: Supports IEEE 802.3af (PoE / Type 1) IEEE 802.3at (PoE+ / Type 2) IEEE 802.3bt (PoE++ / Type 3); power out configured w/ DIP switch for 12/16/24/48V DC (1.5A) via terminal block
  • TECH SPECS: High Speed 1 Gbps
  • 1 x RJ45 PoE In
  • 1 x RJ45 Data Out

Product Details

Limited Warranty2 Year
Weight (Approximate)5.29 oz
Product TypePoE Splitter
Environmentally FriendlyYes
Environmental CertificationWEEE
Minimum Output Voltage12 V DC
Maximum Output Voltage48 V DC
Height1.3"
Width3.2"
Certifications & Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3at
  • IEEE 802.3af
  • IEC 61000-4-2
  • IEC 61000-4-4
  • IEC 61000-4-5
  • EN 60068-2-6
  • EN 60068-2-27
  • EN 60068-2-32
  • EN60950-1
Brand NameStarTech.com
Input Ports1 PoE+
Output Ports1 Ethernet
Form FactorDIN Rail/Wall Mountable
Length4.1"
ManufacturerStarTech.com
Product ModelPOESLT1G48V
Product NamePOESLT1G48V PoE Splitter
Manufacturer Part NumberPOESLT1G48V
Manufacturer Website Addresshttp://www.startech.com
Marketing Information

Splits a PoE connection (max 90W) into separate data (RJ45) and DC power (terminal block) that can power any device that uses DC power between 12V-48VDC (1.5A). Power non-PoE devices using network infrastructure where power is not available.

Power Non-PoE Devices

Perfect for using PoE to power older devices while also providing network access for monitoring and control applications. Applications include:

  • Security (card swipe or proximity boxes)
  • Environmental monitoring (temperature/moisture sensors)
  • Telco (analog interface systems/conversion)

Straightforward Deployment

Supports IEEE 802.3af (PoE / Type 1) IEEE 802.3at (PoE+ / Type 2) and IEEE 802.3bt (PoE++ / Type 3) PoE inputs up to 90W and splits data and power. Power output via terminal block can be configured for 12/16/24/48V DC (1.5A).

The configuration is completed by DIP switches and the product can be wall or DIN rail mounted using the included hardware.

Designed for Harsh Environments

Industrial features include -40 C to 75 C operating temperature IP-30 rated housing vibration shock and free-fall standard testing.

Vibration: EN 60068-2-6
Shock: EN 60068-2-27
Free-Fall: EN 60068-2-32

600000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.

The POESLT1G48V is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Package Contents
  • POESLT1G48V PoE Splitter
  • Quick-Start Guide
  • Hardware Mounting Kit
  • Terminal Block
Shipping Height2.52"
Shipping Width8.31"
Shipping Depth6.38"
Country of OriginTaiwan
Input Ports1 x PoE+
Output Ports1 x Ethernet
