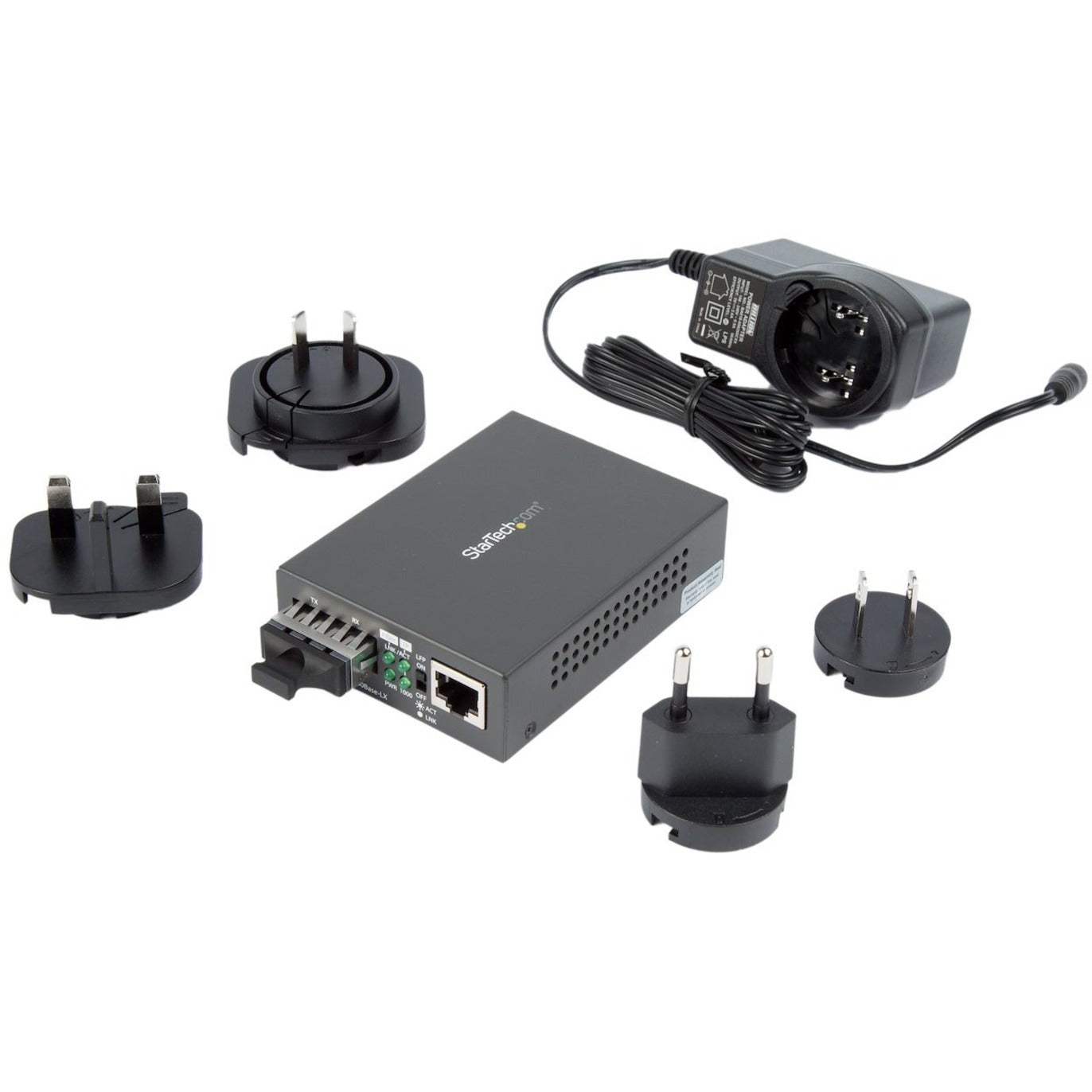

StarTech.com Multimode SC Fiber Ethernet Media Converter - 1000BASE-SX Gigabit Fiber Optic to Copper Bridge - 10/100/1000 Network - 550m

StarTech.com Multimode SC Fiber Ethernet Media Converter - 1000BASE-SX Gigabit Fiber Optic to Copper Bridge - 10/100/1000 Network - 550m

SKU: 1046309442      MFR: StarTech.com

GTIN: 065030878227

Product Description

StarTech.com Multimode SC Fiber Ethernet Media Converter - 1000BASE-SX Gigabit Fiber Optic to Copper Bridge - 10/100/1000 Network - 550m - Multimode fiber Ethernet media converter extends & bridges copper networks - 10/100/1000 (Gigabit) 1000BASE-SX 850nm 550m (1084 ft) Unmanaged MMF SC RJ45 Mounting Brackets LFP VLAN ESD Surge + Contact & Air Protection 2 Yr Warranty

Manufacturer : StarTech.com

Manufacturer Part No : MCMGBSCMM055

Features

  • Converts and extends a Gigabit Ethernet fiber (1000Mbps) network over multimode fiber on 1000BASE-SX networks
  • Provides a cost-effective Ethernet to fiber/copper to fiber link
  • Supports a maximum distance of 550 m over multimode fiber-optic cable (SC connection)
  • Compact design and wall mountable
  • Non-blocking full wire-speed forwarding rate
  • Provides DIP switch supporting Link Fault Pass-through function
  • LED Indicators for simple Ethernet/fiber network link monitoring
  • 850 nm wavelength
  • Supports IEEE 802.1q Tag VLAN pass-through

Product Details

Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyGigabit Ethernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of SC Ports1
Media Type SupportedTwisted Pair
Fiber Mode SupportedMulti-mode
Total Number of Ports2
SC Port TypeDuplex
Fiber Optic Wavelength850 nm
TAA CompliantYes
Country of OriginTaiwan
Height1"
Width3.8"
Depth2.8"
Brand NameStarTech.com
Plug/Connector TypeType N
Form FactorWall Mountable
ManufacturerStarTech.com
Product NameGigabit Ethernet to SC Fiber Media Converter - 1000Base-SX - Multimode 550 m
Network Technology1000Base-T
Power Consumption10 W
Manufacturer Part NumberMCMGBSCMM055
Manufacturer Website Addresshttp://www.startech.com
Marketing InformationThis fiber media converter extends a Gigabit Ethernet (1000Mbps) network up to 550 mover multimode fiber on 1000BASE-SXnetworks.

Extend your GbE network cost-effectively

The fiber media converter offers a cost-effective way to transparently convert copper to fiber or fiber to copper for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports it integrates easily into a wide range of Gigabit Ethernetnetwork infrastructures.The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.

Reliable and scalable network connectivity

Supporting a maximum multimode fiber-optic cable distance of 550 meters (0.34 miles) the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations over multimode fiber while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes for instance connecting two buildings on the same campus or facility. The media converter also offers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.

The MCMGBSCMM055 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Maximum Distance Supported1804.46 ft
Packaged Quantity1
Power SourceAC Adapter
Package Contents
  • Gigabit Ethernet to SC Fiber Media Converter - 1000Base-SX - Multimode 550 m
  • 1 x Universal power adapter (NA/JP UK EU ANZ)
  • 1 x Quick-start guide
Limited Warranty2 Year
Weight (Approximate)7.10 oz
