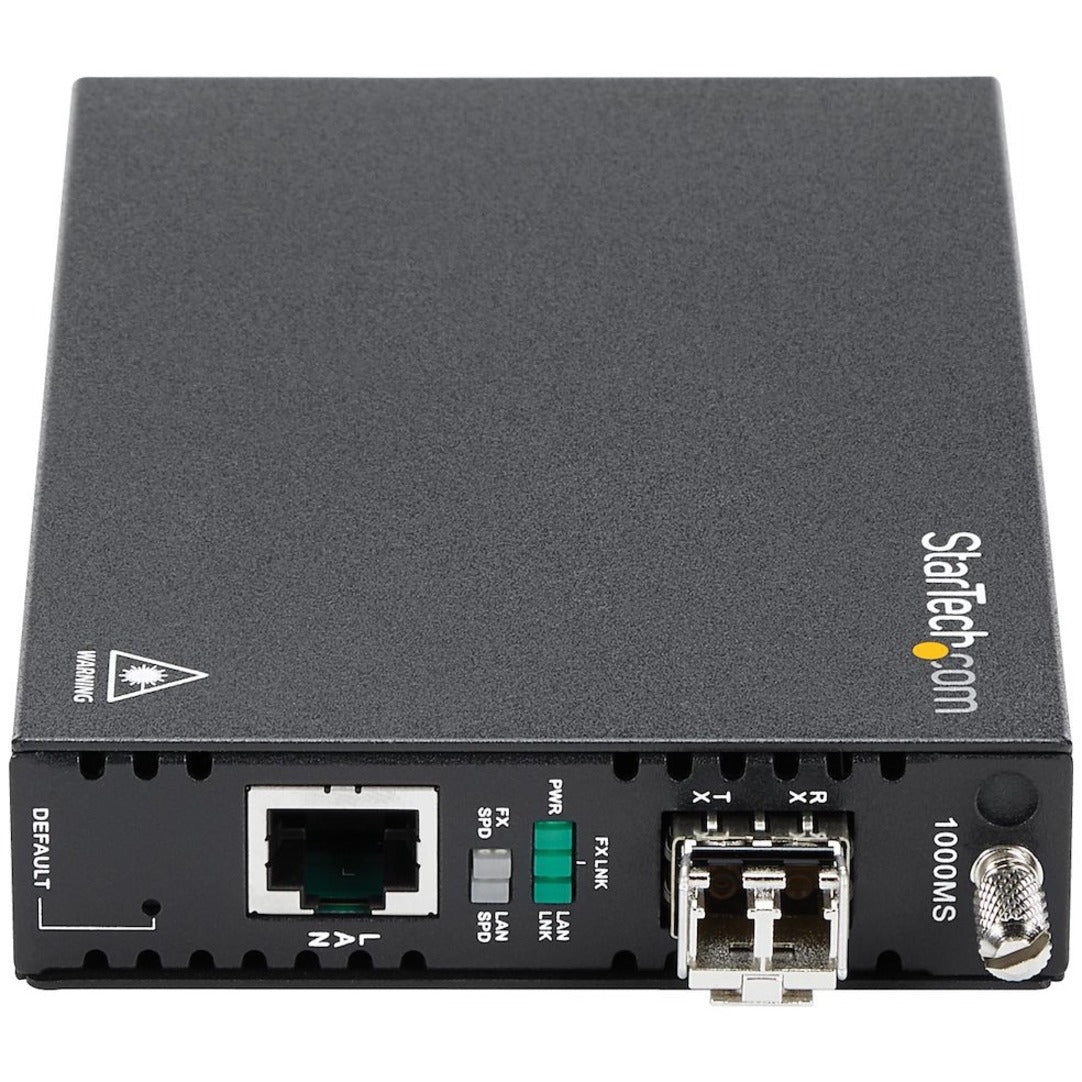

StarTech.com OAM Managed Gigabit Ethernet Fiber Media Converter - Multi Mode LC 550m - 802.3ah Compliant

StarTech.com OAM Managed Gigabit Ethernet Fiber Media Converter - Multi Mode LC 550m - 802.3ah Compliant

SKU: 1026703428      MFR: StarTech.com

GTIN: 065030854566

Product Description

StarTech.com OAM Managed Gigabit Ethernet Fiber Media Converter - Multi Mode LC 550m - 802.3ah Compliant - Convert and extend a Gigabit Ethernet connection over Multimode LC fiber with remote management capabilities - Ethernet Fiber Optic Media Converter - Gigabit Fibre Converter - In-Band OAM Managed Fiber Converter - 802.3ah - Multi Mode LC 550m

Manufacturer : StarTech.com

Manufacturer Part No : ET91000LCOAM

Features

  • Supports standalone operation or installation into the ETCHS2U Rackmount Chassis
  • Supports 802.3ah OAM In-band management for monitoring connection status
  • Gigabit Multi Mode LC SFP installed (up to 550m)
  • SFP can be removed from the unit for replacement or swapping to a different specification
  • 9k Jumbo Frame Support
  • Per-port bandwidth control
  • Supports full or half-duplex operation
  • Supports Auto Laser Shutdown (ALS)

Product Details

Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyGigabit Ethernet
USBNo
DVINo
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Parallel PortNo
Management PortNo
Digital AudioNo
Number of LC Ports1
Media Type SupportedTwisted Pair
Fiber Mode SupportedMulti-mode
Digital Audio/VideoNo
Total Number of Ports2
LC Port TypeDuplex
Fiber Optic Wavelength850 nm
TAA CompliantYes
Country of OriginTaiwan
Height0.9"
Width3.4"
Depth6.4"
ColorBlack
Certifications & Standards
  • CE
  • FCC
IEEE Standards:
  • 802.3
  • 802.3ab
  • 802.3ah
  • 802.3u
  • 802.3z
Brand NameStarTech.com
Plug/Connector TypeType M
CompatibilityStarTech 2U Rackmount Chassis (ETCHS2U)
Form FactorExternal
ManufacturerStarTech.com
Product NameOAM Managed Gigabit Ethernet Fiber Media Converter
Network Technology10/100/1000Base-T
Power Consumption12 W
Input Voltage12 V DC
Manufacturer Part NumberET91000LCOAM
Manufacturer Website Addresshttp://www.startech.com
Marketing Information

The ET91000LCOAM Managed Fiber Media Converter lets you extend a Gigabit Ethernet connection over Multimode LC fiber with the added benefit of remote management capabilities.

Compliant with 802.3ah OAM (Operations Administration & Management) this managed media converter incorporates an easy-to-use web interface for operation administration and maintenance enabling you to quickly determine the location of failing links and the fault conditions without sending service personnel to the physical location of the device.

An effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone the Ethernet to fiber converter supports full Gigabit speeds at distances of up to 550m (1804ft) through the installed Multi-Mode LC SFP. The converter also features an all-steel chassis for durability in harsh environments.

For added versatility this fiber media converter supports standalone operation or installation into the 20 Slot 2U Rackmount Chassis(ETCHS2U) as well as a replaceable MSA-compliant SFP slot.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer
Maximum Distance Supported1804.46 ft
Packaged Quantity1
Power SourceAC Adapter
Package Contents
  • OAM Managed Gigabit Ethernet Fiber Media Converter
  • 1 x Grounding Screw
  • 1 x Universal Power Adapter (NA/EU/UK/AU)
  • 1 x Instruction Manual
Limited Warranty2 Year
Weight (Approximate)14.50 oz
Marketing Information

The ET91000LCOAM Managed Fiber Media Converter lets you extend a Gigabit Ethernet connection over Multimode LC fiber with the added benefit of remote management capabilities.

Compliant with 802.3ah OAM (Operations Administration & Management) this managed media converter incorporates an easy-to-use web interface for operation administration and maintenance enabling you to quickly determine the location of failing links and the fault conditions without sending service personnel to the physical location of the device.

An effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone the Ethernet to fiber converter supports full Gigabit speeds at distances of up to 550m (1804ft) through the installed Multi-Mode LC SFP. The converter also features an all-steel chassis for durability in harsh environments.

For added versatility this fiber media converter supports standalone operation or installation into the 20 Slot 2U Rackmount Chassis(ETCHS2U) as well as a replaceable MSA-compliant SFP slot.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer
View full details
$291.99 USD
$291.99
Sale Sold out

Dropship

Get it by Sat, Feb 08 - Thu, Feb 13


Update


Shipping calculated at checkout.

StarTech.com OAM Managed Gigabit Ethernet Fiber Media Converter - Multi Mode LC 550m - 802.3ah Compliant - Convert and extend a Gigabit Ethernet connection over Multimode LC fiber with remote management capabilities - Ethernet Fiber Optic Media Converter - Gigabit Fibre Converter - In-Band OAM Managed Fiber Converter - 802.3ah - Multi Mode LC 550m

Manufacturer : StarTech.com

Manufacturer Part No : ET91000LCOAM

Features

  • Supports standalone operation or installation into the ETCHS2U Rackmount Chassis
  • Supports 802.3ah OAM In-band management for monitoring connection status
  • Gigabit Multi Mode LC SFP installed (up to 550m)
  • SFP can be removed from the unit for replacement or swapping to a different specification
  • 9k Jumbo Frame Support
  • Per-port bandwidth control
  • Supports full or half-duplex operation
  • Supports Auto Laser Shutdown (ALS)

Product Details

Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyGigabit Ethernet
USBNo
DVINo
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Parallel PortNo
Management PortNo
Digital AudioNo
Number of LC Ports1
Media Type SupportedTwisted Pair
Fiber Mode SupportedMulti-mode
Digital Audio/VideoNo
Total Number of Ports2
LC Port TypeDuplex
Fiber Optic Wavelength850 nm
TAA CompliantYes
Country of OriginTaiwan
Height0.9"
Width3.4"
Depth6.4"
ColorBlack
Certifications & Standards
  • CE
  • FCC
IEEE Standards:
  • 802.3
  • 802.3ab
  • 802.3ah
  • 802.3u
  • 802.3z
Brand NameStarTech.com
Plug/Connector TypeType M
CompatibilityStarTech 2U Rackmount Chassis (ETCHS2U)
Form FactorExternal
ManufacturerStarTech.com
Product NameOAM Managed Gigabit Ethernet Fiber Media Converter
Network Technology10/100/1000Base-T
Power Consumption12 W
Input Voltage12 V DC
Manufacturer Part NumberET91000LCOAM
Manufacturer Website Addresshttp://www.startech.com
Marketing Information

The ET91000LCOAM Managed Fiber Media Converter lets you extend a Gigabit Ethernet connection over Multimode LC fiber with the added benefit of remote management capabilities.

Compliant with 802.3ah OAM (Operations Administration & Management) this managed media converter incorporates an easy-to-use web interface for operation administration and maintenance enabling you to quickly determine the location of failing links and the fault conditions without sending service personnel to the physical location of the device.

An effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone the Ethernet to fiber converter supports full Gigabit speeds at distances of up to 550m (1804ft) through the installed Multi-Mode LC SFP. The converter also features an all-steel chassis for durability in harsh environments.

For added versatility this fiber media converter supports standalone operation or installation into the 20 Slot 2U Rackmount Chassis(ETCHS2U) as well as a replaceable MSA-compliant SFP slot.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer
Maximum Distance Supported1804.46 ft
Packaged Quantity1
Power SourceAC Adapter
Package Contents
  • OAM Managed Gigabit Ethernet Fiber Media Converter
  • 1 x Grounding Screw
  • 1 x Universal Power Adapter (NA/EU/UK/AU)
  • 1 x Instruction Manual
Limited Warranty2 Year
Weight (Approximate)14.50 oz
Marketing Information

The ET91000LCOAM Managed Fiber Media Converter lets you extend a Gigabit Ethernet connection over Multimode LC fiber with the added benefit of remote management capabilities.

Compliant with 802.3ah OAM (Operations Administration & Management) this managed media converter incorporates an easy-to-use web interface for operation administration and maintenance enabling you to quickly determine the location of failing links and the fault conditions without sending service personnel to the physical location of the device.

An effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone the Ethernet to fiber converter supports full Gigabit speeds at distances of up to 550m (1804ft) through the installed Multi-Mode LC SFP. The converter also features an all-steel chassis for durability in harsh environments.

For added versatility this fiber media converter supports standalone operation or installation into the 20 Slot 2U Rackmount Chassis(ETCHS2U) as well as a replaceable MSA-compliant SFP slot.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer
