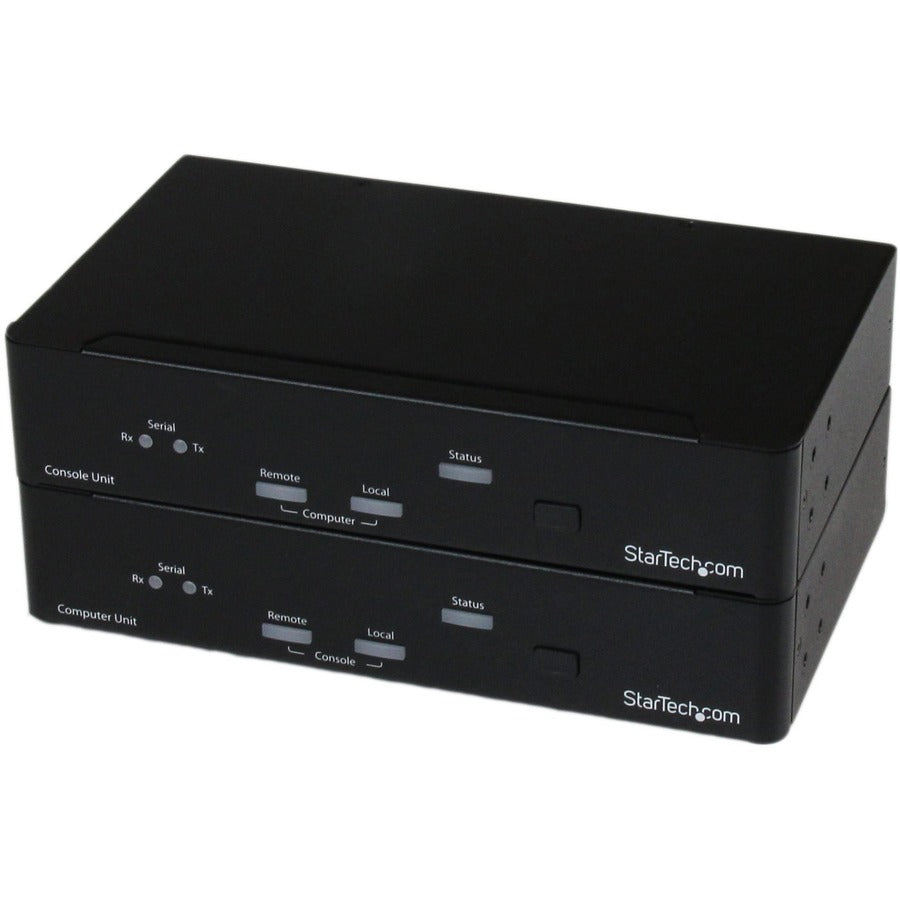

StarTech.com USB DVI KVM Extender Over Fiber 2km - Serial/Audio

StarTech.com USB DVI KVM Extender Over Fiber 2km - Serial/Audio

SKU: 1016633522      MFR: StarTech.com

GTIN: 065030839426

Product Description

StarTech.com USB DVI KVM Extender Over Fiber 2km - Serial/Audio - Extend DVI-D (or HDMI) video USB audio and Serial signals up to 2km (6562ft) over fiber - kvm extender - fiber kvm extender - fiber dvi extender

Manufacturer : StarTech.com

Manufacturer Part No : SV565FXDUSA

Features

  • Maximum supported distance of 2000m (6562 ft)
  • Fully compatible with DVI-D and HDMI standards by DDWG
  • Extends multiple signals: USB keyboard and mouse RS232 serial digital video (DVI/HDMI) and audio
  • High definition resolution support up to 1920 x 1200 (and HD 1080p)
  • 30m (98ft) Multimode fiber cable included
  • Completely free of Electromagnetic interference (EMI)
  • Digital video transmission allows for zero signal loss and 100% true picture at destination even over long distance
  • Optional rack mount bracket (sold separately) allows the extenders to be mounted into any standard 19in rack
  • Hot-key and push-button controls
  • HDCP compliant

Product Details

Product TypeKVM Console/Extender
Maximum Video Resolution1920 x 1200
Maximum Operating Distance6561.68 ft
USBYes
DVIYes
Number of Computers Supported2
TAA CompliantYes
ColorBlack
Connectivity TechnologyWired
Brand NameStarTech.com
Input Voltage Range110V AC to 240V AC
Form FactorRack-mountable
Environmentally FriendlyYes
Environmental CertificationRoHS
Graphic ModeWUXGA
Number of USB Ports6
Number of DVI Ports4
Transmitter Height1.70"
Transmitter Width8.70"
Transmitter Depth5.30"
Receiver Height1.70"
Receiver Width8.70"
Receiver Depth5.30"
Transmitter Weight (Approximate)2.20 lb
Receiver Weight (Approximate)2.20 lb
Country of OriginTaiwan
ManufacturerStarTech.com
Product NameUSB DVI KVM Console Extender w/ Serial & Audio Over MM Fiber - 2km
Power Consumption18 W
Input Voltage120 V AC
Input Voltage240 V AC
Manufacturer Part NumberSV565FXDUSA
Manufacturer Website Addresshttp://www.startech.com
Marketing Information

The SV565FXDUSA USB DVI KVM Console Extender w/ Serial & Audio Over MM Fiber (2km) lets you control a server computer or multiple computers (connected through KVM Switch) over a multi-mode fiber link at distances of up to 2000m (6562 ft) away.

By transmitting the digital DVI video (or HDMI with a DVI to HDMI adapter) over a multi-mode optical fiber link there is no loss of signal quality so the video is as sharp and vivid as if the monitor was connected directly to the PC.

For added convenience the Console/KVM extender supports USB computer connections and is compatible with any brand of USB KVM Switch.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

More from the Manufacturer
Package Contents
  • 1 x Local Extender Unit
  • 1 x Remote Extender Unit
  • 4 x Rackmount Brackets
  • 1 x 30m (98ft) MM Fiber Cable
  • 2 x Sets of DVI USB and Audio Cables
  • 1 x Rubber Feet
  • 2 x Universal Power Adapter (US/UK/EU)
  • 1 x Manual
Limited Warranty3 Year
