StarTech.com VESA TV Wall Mount Adjustable Full Motion TV Wall Mount For 23"-55" Displays Extendable/Tilting/Swivel TV Wall Mount

StarTech.com VESA TV Wall Mount Adjustable Full Motion TV Wall Mount For 23"-55" Displays Extendable/Tilting/Swivel TV Wall Mount

SKU: 1076183880      MFR: StarTech.com

GTIN: 65030895149

Product Description

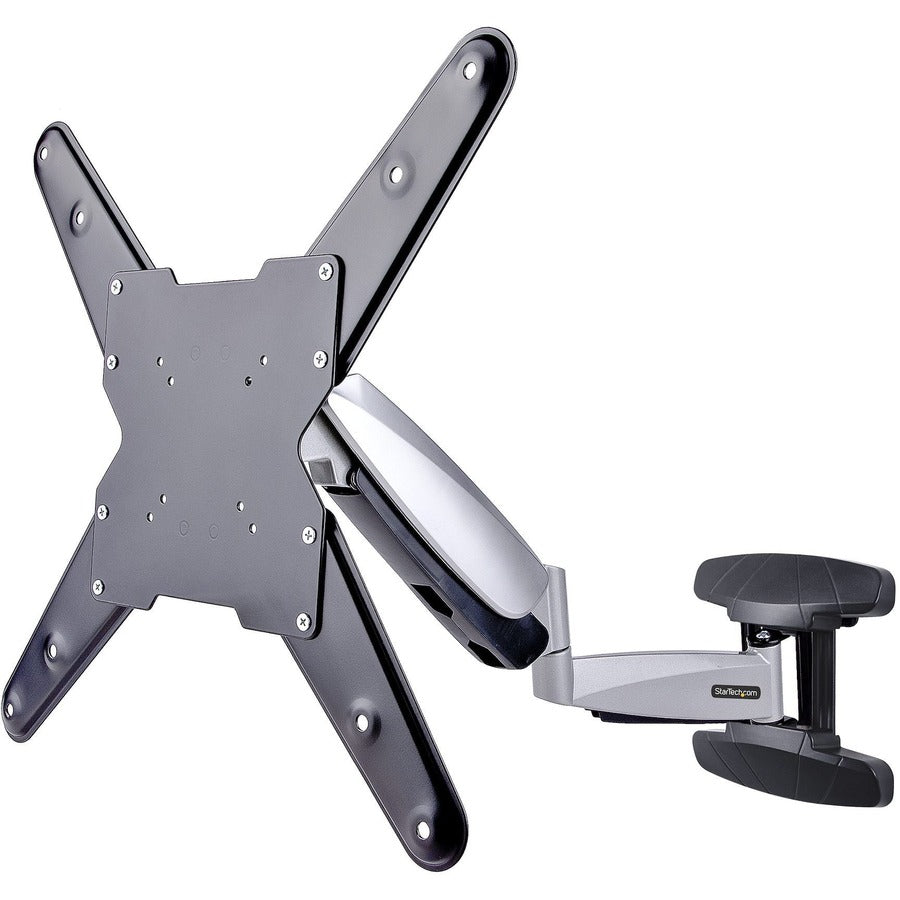

StarTech.com VESA TV Wall Mount Adjustable Full Motion TV Wall Mount For 23"-55" Displays Extendable/Tilting/Swivel TV Wall Mount - Spring-assisted height adjustable TV wall mount range 12.6in/32cm; Extendable arm range 23.4in/59.5cm - Tilting/swivel/full motion for 23-55in TVs; 75x75 to 400x400 VESA TV wall mount patterns; 66lb/30kg capacity - TV mounting bracket ships assembled

Manufacturer : StarTech.com

Manufacturer Part No : FHA-TV-WALL-MOUNT

Features

  • HEIGHT ADJUSTABLE TV WALL MOUNT: Spring-assisted height adjustable range 12.6in (32cm); Articulating wall mount TV bracket supports TVs up to 55in; Max weight 66lb (30kg); Single-stud design made from powder-coated diecast aluminum for maximum durability
  • ONE-TOUCH MOTION: Full-motion TV wall mount features a spring mechanism for effortless viewing angle and height adjustments; VESA plate features +/-90? swivel +8/-15? tilt and +/-3? rotation; Toolless adjustment w/ built-in cable management
  • RANGE OF MOTION: Low profile VESA TV wall mount with jointed arm assembly supports +/-90? swivel and folds to just 2.2in (5.8cm) from the wall; Max arm extension 23.4in (59.5cm); Lateral range of 3.9ft (1.19m) ideal for corner mounting maximizing space
  • COMPATIBILITY: TV mounting bracket supports TVs up to 55" from LG Samsung Sony Hisense Sharp and other TVs; Compatible VESA patterns: 75x75 100x100 200x100 200x200 300x300 400x200 and 400x400; Spacers and various M5/M6/M8 screws included
  • QUICK AND CLEAN INSTALLATION: Swivel TV wall mount ships pre-assembled for quick deployment; Wall plate with mounting holes facilitate simplified installation; Includes installation template bubble level wood studs and concrete wall mounting hardware

Product Details

Product TypeWall Mount
Minimum Screen Size Supported23"
Maximum Screen Size Supported55"
VESA Mount CompatibleYes
Mounting Pattern75 x 75
Mounting Pattern100 x 100
Mounting Pattern200 x 100
Mounting Pattern200 x 200
Mounting Pattern400 x 200
Mounting Pattern400 x 400
Mounting Pattern300 x 300
Product ColorBlack
Country of OriginChina
Maximum Load Capacity66.14 lb
Brand NameStarTech.com
Device SupportedTV
Number of Displays Supported1
Mount ProfileLow Profile
Product MaterialSteel
Minimum Load Capacity17.64 lb
Height AdjustableYes
Height17.7"
Width17.7"
Features+/- 90° Swivel
Length23.4"
ManufacturerStarTech.com
Product NameWall Mount
Application/UsageWall
FinishingSilver
Manufacturer Part NumberFHA-TV-WALL-MOUNT
Manufacturer Website Addresshttp://www.startech.com
Marketing Information"The steel and aluminum construction of this VESA TV Wall Mount supports TVs from 23"" to 55"" and up to 66lb (30kg). The arm assembly provides smooth one-touch height adjustment thanks to its spring-loaded mechanism that acts as a counterbalance. The VESA plate supports mounting patterns of 75x75 to 400x400.

Versatile TV Mounting

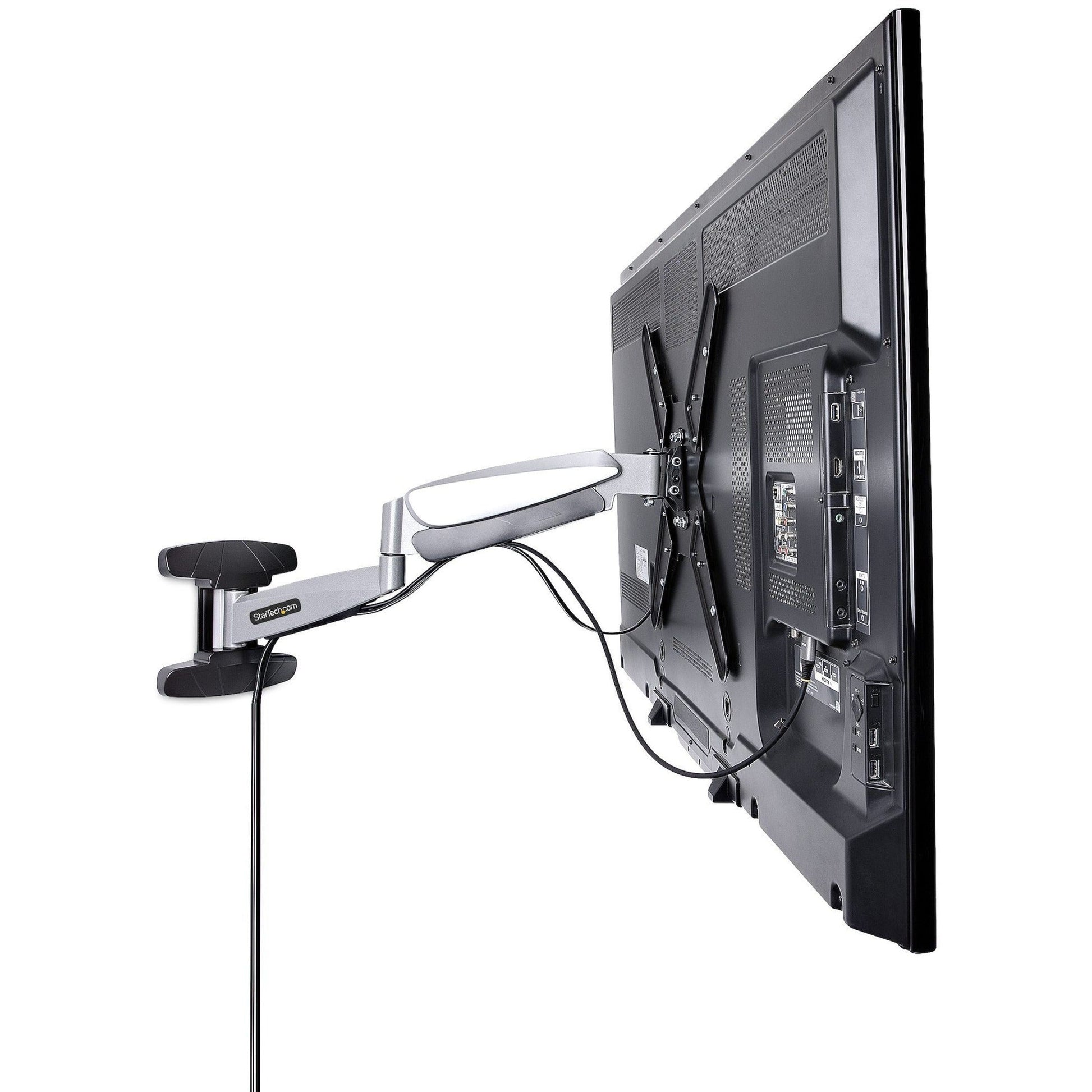

Securely mount a flat or curved-screen TV or digital signage in a convenient location for viewing by visitors clients and employees. This TV wall mount is ideal for lobbies boardrooms and manufacturing facilities. The lateral range of 3.54 ft (1.08m) is ideal for corner mounting. The jointed arm folds on itself and creates a slim profile from the wall of just 2.2in (5.8cm) for limited space installations. The minimum TV weight is 17.6lb (8kg). M5/M6/M8 Screws of various lengths and an assortment of washers and spacers enhance TV mounting compatibility. Mount into wood-stud or concrete walls using the included hardware.

Supported VESA mounting patterns: 75x75100x100 200x100 200x200 300x300 400x200 and 400x400.

Full-Motion Adjustment

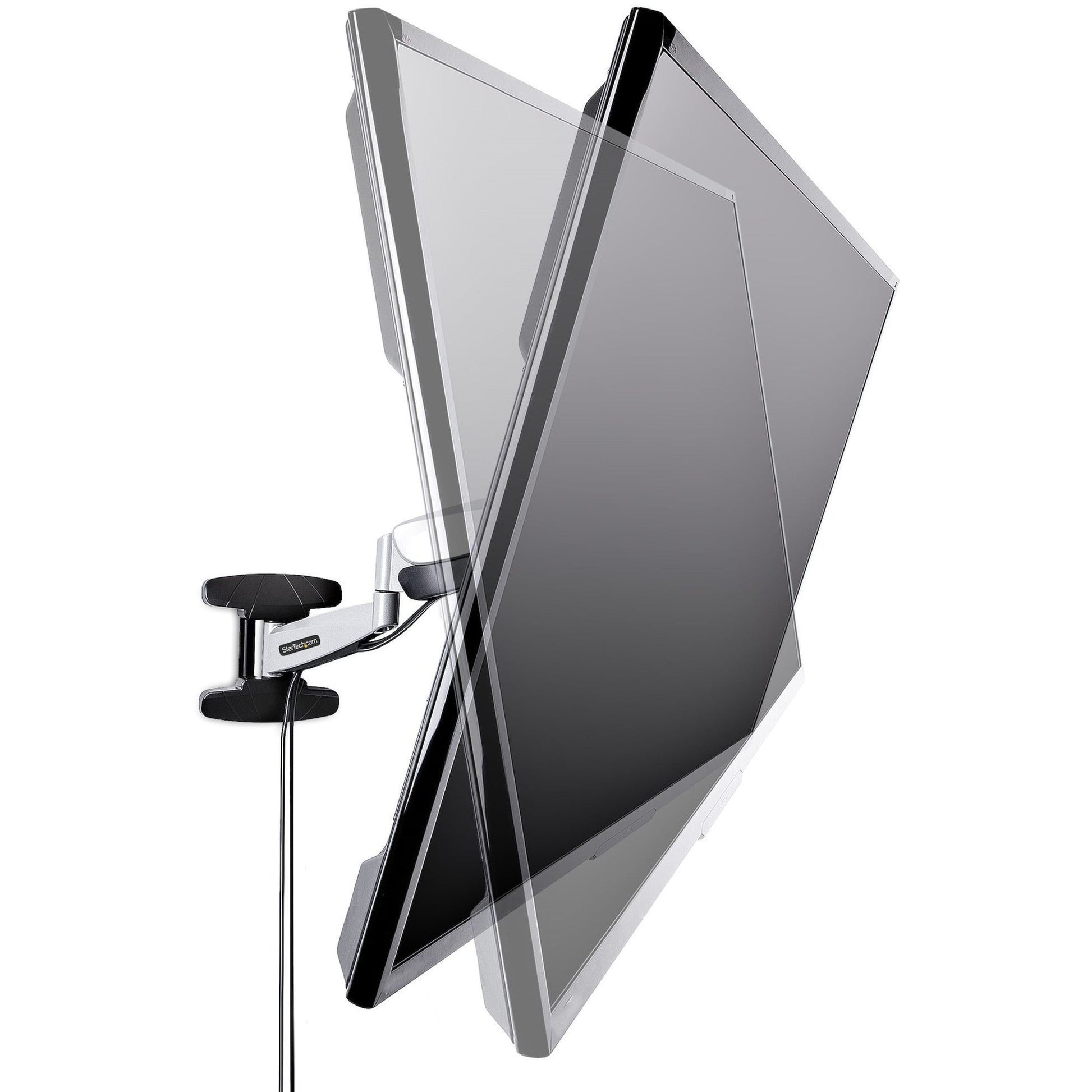

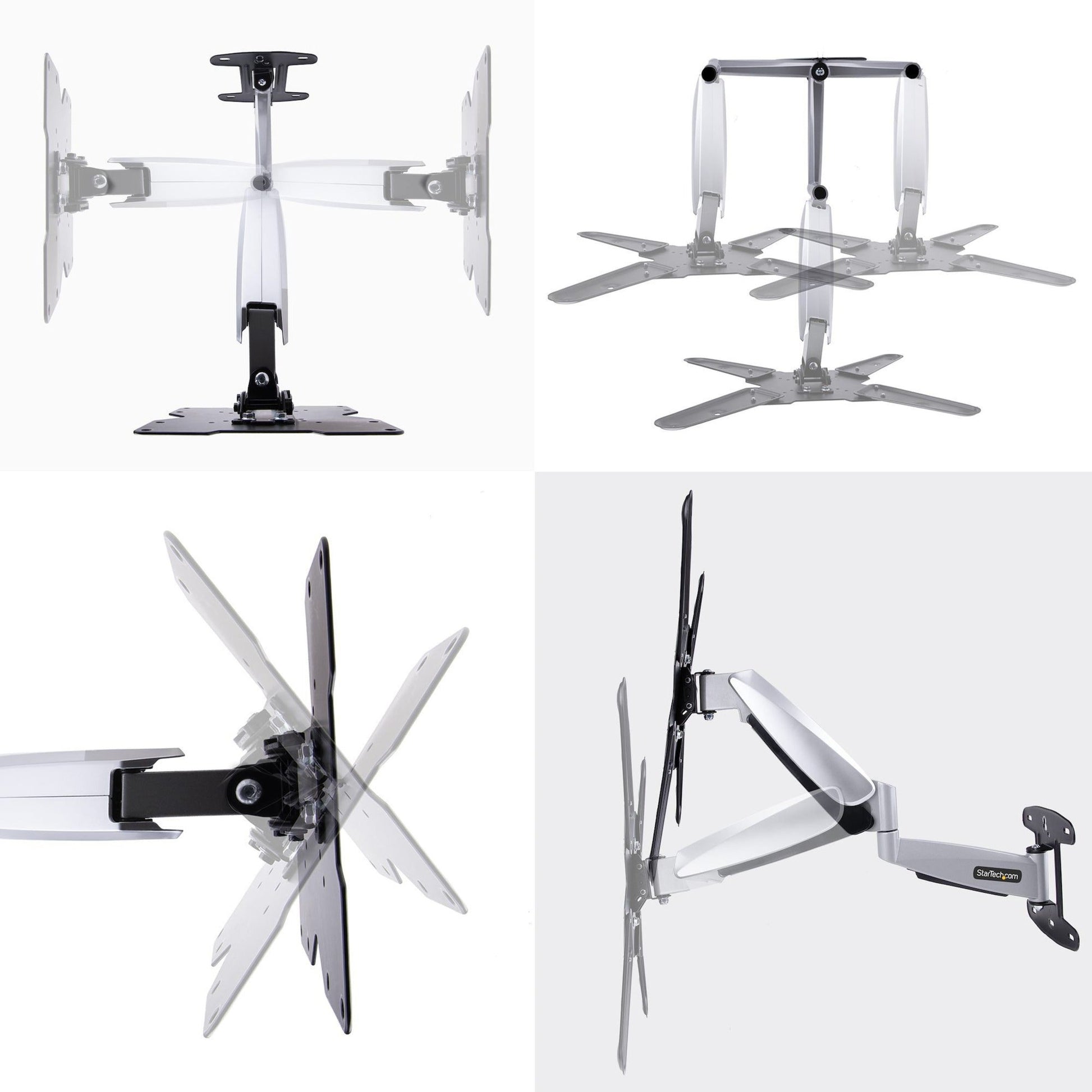

The VESA plate swivels +90 / -90 degrees tilts +8 / -15 degrees and rotates +3 / -3 degrees. Customize the viewing experience and comfort with these full-motion capabilities. The one-touch spring-assisted mechanism facilitates effortless height adjustments with a range of up to 12.6in (32cm).

The arm assembly extends up to 23.4 in (59.5 cm) from the wall to accommodate different viewing positions.

Durable Construction

The robust steel and aluminum design safely and securely supports the TV. The arm assembly features built-in cable management and a wall mount cover for a an organized and visually appealing installation.

The height adjustable TV wall mount is backed for two years including free lifetime 24/5 multi-lingual technical assistance."
Packaged Quantity1
Package Contents
  • 1 x Arm Assembly
  • 2 x Decorative Covers
  • 2 x VESA Extension Plates LH
  • 2 x VESA Extension Plates RH
  • 8 x VESA Extension Plate Screws
  • 1 x Wrench
  • 1 x 4mm Hex Key
  • 1 x 6mm Hex Key
  • 1 x Bubble Level
  • 4 x M5x14mm Screws
  • 4 x M6x14mm Screws
  • 4 x M6x30mm Screws
  • 4 x M8x30mm Screws
  • 4 x M8x50mm Screws
  • 4 x Display Washers Small
  • 4 x DiapLay Washers Large
  • 8 x Short Spacers
  • 8 x Tall Spacers
  • 5 x Wall Mounting Screws
  • 5 x Concrete Anchors
  • 5 x Wall Mounting Washers
  • 1 x Manual
Limited Warranty2 Year
Weight (Approximate)13.20 lb
View full details
$175.99 USD
$175.99
Sale Sold out

In Stock - 833 (Available by Wed, Jun 24 - Mon, Jun 29)
