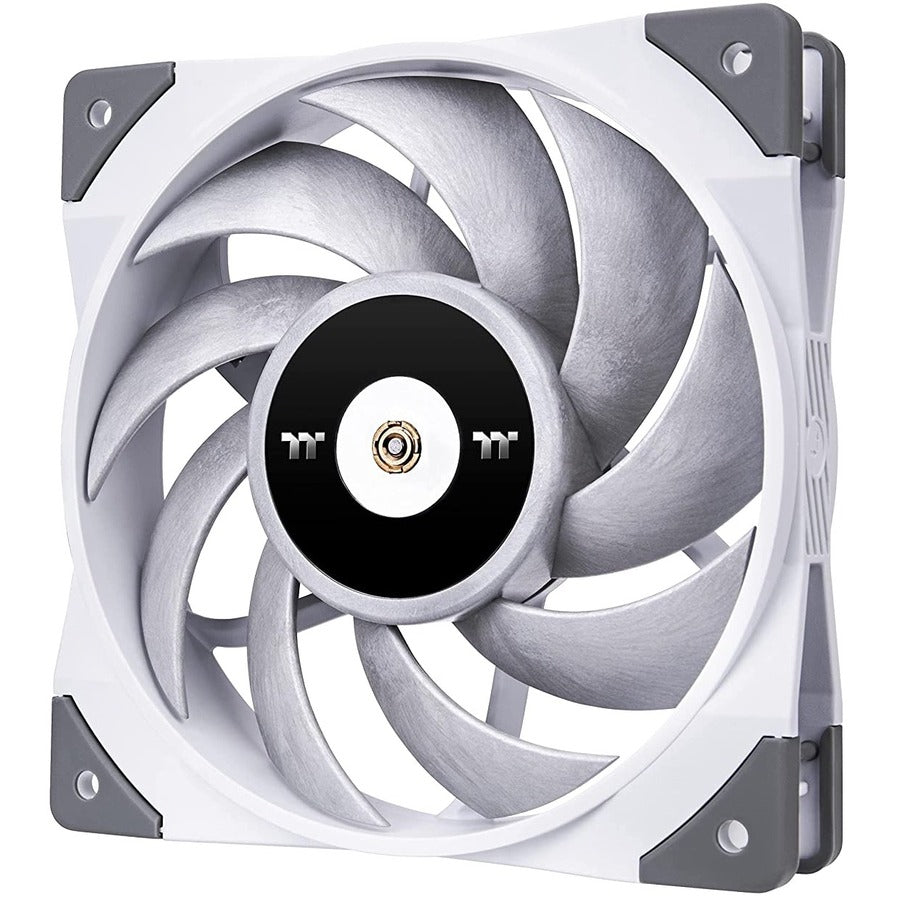

Thermaltake TOUGHFAN 12 Cooling Fan - 1 Pack

Thermaltake TOUGHFAN 12 Cooling Fan - 1 Pack

SKU: 1073121197      MFR: Thermaltake Technology Co. Ltd

GTIN: 841163080412

Product Description

Thermaltake TOUGHFAN 12 Cooling Fan - 1 Pack - 4.72" Maximum Fan Diameter - 1 x Fan(s) - 436.5 gal/min Maximum Airflow - 2000 rpm - Hydraulic Bearing - 4 PIN PWM - White - 1 pc(s) - Case - 4.6 Year Life

Manufacturer : Thermaltake Technology Co. Ltd

Manufacturer Part No : CL-F117-PL12WT-A

Features

  • Up to 2000 rpm fan speed and heavy-duty shroud ensure safe and effective cooling
  • Features hydraulic bearing to improve longevity silence and stability
  • Cooling Fan fan(s) helps the compatible cases by maintaining a great balance of performance and efficiency

Product Details

Product TypeCooling Fan
Number of Fans1
Maximum Air Pressure2.41mmH2O
Fan Height4.72"
Fan Width4.72"
Fan Depth0.98"
Product ColorWhite
Rated Current120 mA
Maximum Airflow436.5 gal/min
Fan Speed (Min)500 rpm
Fan Speed (Max)2000 rpm
Maximum Fan Diameter4.72"
Noise Levels (A-Weighted)22.3 dB(A)
Country of OriginChina
Fan Bearing TypeHydraulic Bearing
Brand NameThermaltake
Fan Life4.6 Year
Connectors4 PIN PWM
ManufacturerThermaltake Technology Co. Ltd
Product NameTOUGHFAN 12 Cooling Fan
Product LineTOUGHFAN 12
Application/UsageCase
Manufacturer Part NumberCL-F117-PL12WT-A
Manufacturer Website Addresshttp://www.thermaltakeusa.com
Marketing Information

Thermaltake TOUGHFAN 12 White PWM-controlled high static pressure fan features an optimized structure to maximize high-end cooling needs and fulfill users' wishes to add the color white to the series.

Powerful and Noiseless

TOUGHFAN 12 White high static pressure fan can perform at a maximum operating speed of up to 2000 RPM producing a consistent airflow of 58.35 CFM with 2.41 mm-H2O static pressure and maintaining a low audio noise level of 22.3 dB-A.

Exceptional Blade Design

Featuring high tensile strength and low thermal expansion coefficient materials the fan blade is built with special liquid crystal polymer (LCP) a compound which minimizes vibration when the fan is operating at full speed.

Metal-Reinforced Motor Hub

The TOUGHFAN's center is constructed with a full steel motor hub providing enhanced stability and durability.

The 2nd Generation Hydraulic Bearing

The 2nd generation hydraulic bearing incorporates a new shaft design with inside etches allowing preservation of lubricant on both sides whilst reducing noise during operation. Lowering audible levels and extending lifespan.

Anti-Vibration Mounting System

The in-mold injection anti-vibration rubber pads dampen the vibration of the fan allowing the fan to spin at higher levels without compromising noise levels. The fan is designed with 80% coverage for all corners maintaining low noise levels when in operation.

Packaged Quantity1
Limited Warranty2 Year
Weight (Approximate)7.50 oz
Product FamilyTOUGHFAN 12
Material Details

Metal-Reinforced Motor Hub

View full details
Regular price $31.99 USD
Regular price Sale price $31.99
Sale Sold out

Dropship

Get it by Wed, Jan 08 - Mon, Jan 13


Update



Shipping calculated at checkout.

Thermaltake TOUGHFAN 12 Cooling Fan - 1 Pack - 4.72" Maximum Fan Diameter - 1 x Fan(s) - 436.5 gal/min Maximum Airflow - 2000 rpm - Hydraulic Bearing - 4 PIN PWM - White - 1 pc(s) - Case - 4.6 Year Life

Manufacturer : Thermaltake Technology Co. Ltd

Manufacturer Part No : CL-F117-PL12WT-A

Features

  • Up to 2000 rpm fan speed and heavy-duty shroud ensure safe and effective cooling
  • Features hydraulic bearing to improve longevity silence and stability
  • Cooling Fan fan(s) helps the compatible cases by maintaining a great balance of performance and efficiency

Product Details

Product TypeCooling Fan
Number of Fans1
Maximum Air Pressure2.41mmH2O
Fan Height4.72"
Fan Width4.72"
Fan Depth0.98"
Product ColorWhite
Rated Current120 mA
Maximum Airflow436.5 gal/min
Fan Speed (Min)500 rpm
Fan Speed (Max)2000 rpm
Maximum Fan Diameter4.72"
Noise Levels (A-Weighted)22.3 dB(A)
Country of OriginChina
Fan Bearing TypeHydraulic Bearing
Brand NameThermaltake
Fan Life4.6 Year
Connectors4 PIN PWM
ManufacturerThermaltake Technology Co. Ltd
Product NameTOUGHFAN 12 Cooling Fan
Product LineTOUGHFAN 12
Application/UsageCase
Manufacturer Part NumberCL-F117-PL12WT-A
Manufacturer Website Addresshttp://www.thermaltakeusa.com
Marketing Information

Thermaltake TOUGHFAN 12 White PWM-controlled high static pressure fan features an optimized structure to maximize high-end cooling needs and fulfill users' wishes to add the color white to the series.

Powerful and Noiseless

TOUGHFAN 12 White high static pressure fan can perform at a maximum operating speed of up to 2000 RPM producing a consistent airflow of 58.35 CFM with 2.41 mm-H2O static pressure and maintaining a low audio noise level of 22.3 dB-A.

Exceptional Blade Design

Featuring high tensile strength and low thermal expansion coefficient materials the fan blade is built with special liquid crystal polymer (LCP) a compound which minimizes vibration when the fan is operating at full speed.

Metal-Reinforced Motor Hub

The TOUGHFAN's center is constructed with a full steel motor hub providing enhanced stability and durability.

The 2nd Generation Hydraulic Bearing

The 2nd generation hydraulic bearing incorporates a new shaft design with inside etches allowing preservation of lubricant on both sides whilst reducing noise during operation. Lowering audible levels and extending lifespan.

Anti-Vibration Mounting System

The in-mold injection anti-vibration rubber pads dampen the vibration of the fan allowing the fan to spin at higher levels without compromising noise levels. The fan is designed with 80% coverage for all corners maintaining low noise levels when in operation.

Packaged Quantity1
Limited Warranty2 Year
Weight (Approximate)7.50 oz
Product FamilyTOUGHFAN 12
Material Details

Metal-Reinforced Motor Hub
