• JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet

Convenient Gigabit Switch for a Complete Omada Network

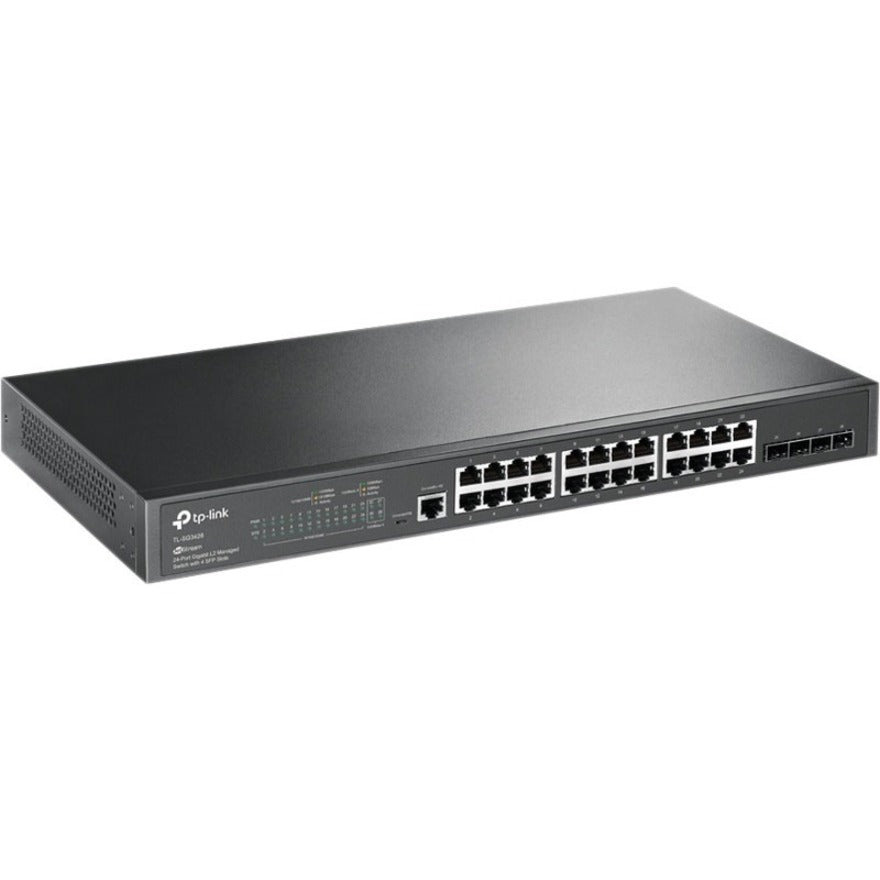

JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots

TL-SG3428

Reliable Gigabit Connections

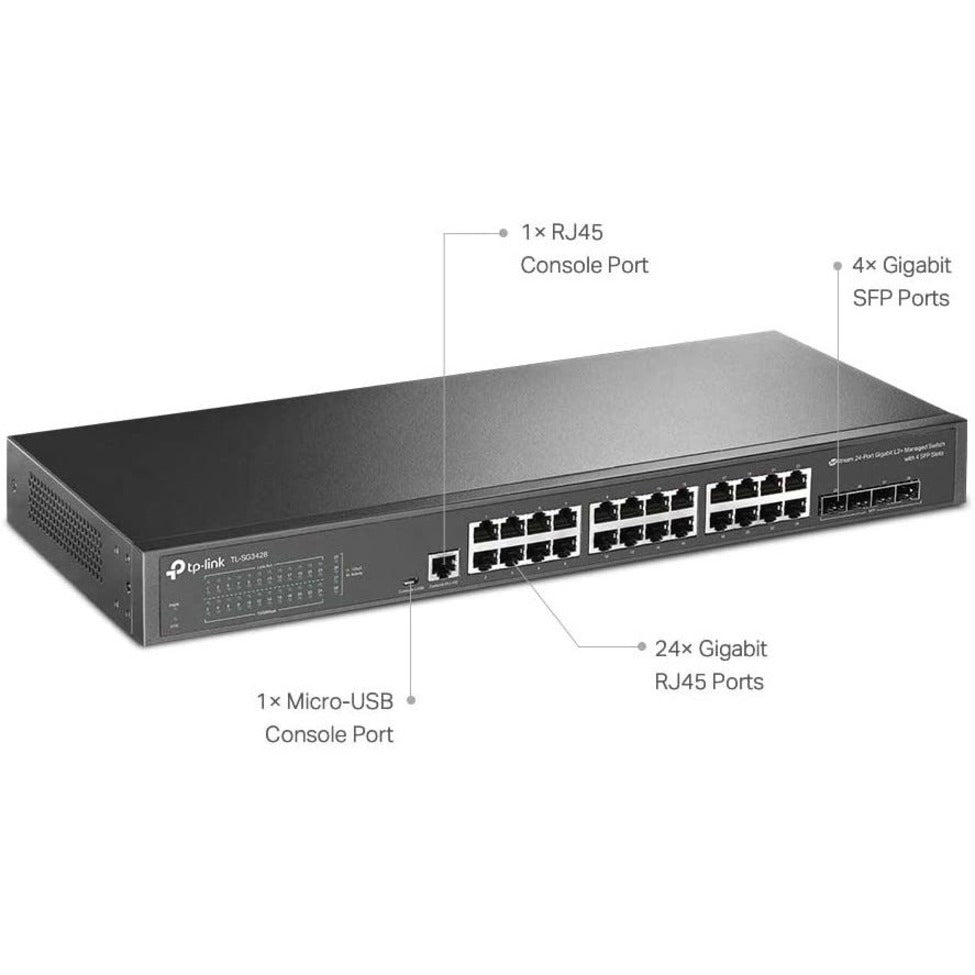

24× Gigabit RJ45 Ports and 4× Gigabit SFP Ports

Advanced L2+ Features

L2/L3/L4 QoS ACL Static Routing and More

Abundant Secure Strategies

LAN Area Investment Protection

Centralized Cloud Management

SDN Solutions Integration for a Highly Efficient Network

Software Defined Networking (SDN) with Cloud Access

Omada's Software Defined Networking (SDN) platform integrates network devices including access points switches and gateways providing 100% centralized cloud management. Omada creates a highly scalable network-all controlled from a single interface. Seamless wireless and wired connections are provided ideal for use in hospitality education retail offices and more.

Secure Networking

Security features include IP-MAC-Port-VID Binding Port Security Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available making it easier than ever to prevent them. In addition the Access Control Lists (ACL L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address IP address TCP/UDP ports or VLAN ID. Users' network access can be controlled via 802.1X authentication which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.

Advanced QoS

Voice and video traffic can be prioritized based on IP address MAC address TCP port number UDP port number and more. With QoS (Quality of Service) voice and video services remain smooth even when bandwidth is in short supply.

Abundant L2 and L2+ Features

A complete lineup of L2 features are supported including 802.1Q VLAN Port Mirroring STP/RSTP/MSTP Link Aggregation Control Protocol and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers cutting out unnecessary traffic while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.

ISP Features

sFlow QinQ L2PT PPPoE ID Insertion and IGMP authentication features are provided developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.

IPv6 Support

IPv6 functions such as Dual IPv4/IPv6 Stack MLD Snooping IPv6 ACL DHCPv6 Snooping IPv6 Interface Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.

Enterprise Level Management Features

Easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enables the switch to be polled for valuable status information and to send traps on abnormal events.
