• RS232 DB-9 TO 1300NM MMF SC 2KM
    RS232 DB-9 TO 1300NM MMF SC 2KM
1 1

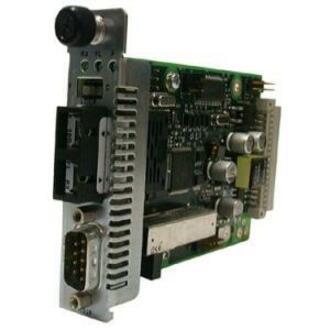

Transition Networks Point System RS232 Copper to Fiber Media Converter

Transition Networks Point System RS232 Copper to Fiber Media Converter

SKU: 10181266      MFR: Transition Networks Inc

GTIN: 648177011650

Product Description

Transition Networks Point System RS232 Copper to Fiber Media Converter - 1 x DB-9 1 x SC Duplex

Manufacturer : Transition Networks Inc

Manufacturer Part No : CRS2F3113-100

Features

  • Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
  • With Optical Fiber cable get the desired data transfer rate up to a required distance
  • Takes minimal energy and effort to get installed internally

Product Details

Product TypeTransceiver/Media Converter
Product FamilyPoint System
Number of SC Ports1
Media Type SupportedOptical Fiber
Fiber Mode SupportedMulti-mode
Total Number of Ports2
SC Port TypeDuplex
Brand NameTransition Networks
Form FactorInternal
Maximum Distance Supported1.24 Mile
Number of Serial Ports1
Country of OriginUnited States
Height3.4"
Width3.4"
Depth5"
Certifications & Standards
  • EIA/TIA-574
  • EIA/TIA RS-232E

Compliance:

  • CISPR22/EN55022 Class A + EN55024
  • EN60950 Class A
  • FCC Class A
  • CE Mark
Compatibility

Pointy System Chassis
ManufacturerTransition Networks Inc
Product ModelCRS2F3113-100
Product NamePoint System RS232 Copper to Fiber Media Converter
Power Consumption5 W
Product LinePoint System
Manufacturer Part NumberCRS2F3113-100
Manufacturer Website Addresshttp://www.transition.com
Marketing Information

Transition Networks' serial RS232 to Fiber Media Converter allows you to extend the distance between serial connections with the use of fiber optic cable. This full-featured converter transmits the full complement of RS232 flow control/handshaking signals optically and supports full or half-duplex asynchronous data transmission at speeds up to 115Kb/s.

The diagnostic features included on this converter make installation easy and intuitive. A DTE/DCE switch eliminates the frustration over selecting the appropriate cable. A loop-back switch allows for complete diagnostic testing prior to system turn-up or during troubleshooting. Unit and Port LEDs allow for quick status information of the converter.
Limited WarrantyLifetime
Additional Information

Switches:

  • DTE/DCE
  • Loop-back
  • Loopback (Local or Remote on copper and fiber)

Supports the following flow control signaling:

  • DCD - Data Carrier Detect
  • RXD - Receive Data
  • TXD - Transmit Data
  • DTR - Data Terminal Ready
  • SG - Signal Ground
  • DSR - Data Set Ready
  • RTS - Request To Send
  • CTS - Clear To Send
View full details
$315.99 USD
$315.99
Sale Sold out

Dropship

Get it by Sun, Jan 05 - Fri, Jan 10


Update


Shipping calculated at checkout.

Transition Networks Point System RS232 Copper to Fiber Media Converter - 1 x DB-9 1 x SC Duplex

Manufacturer : Transition Networks Inc

Manufacturer Part No : CRS2F3113-100

Features

  • Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
  • With Optical Fiber cable get the desired data transfer rate up to a required distance
  • Takes minimal energy and effort to get installed internally

Product Details

Product TypeTransceiver/Media Converter
Product FamilyPoint System
Number of SC Ports1
Media Type SupportedOptical Fiber
Fiber Mode SupportedMulti-mode
Total Number of Ports2
SC Port TypeDuplex
Brand NameTransition Networks
Form FactorInternal
Maximum Distance Supported1.24 Mile
Number of Serial Ports1
Country of OriginUnited States
Height3.4"
Width3.4"
Depth5"
Certifications & Standards
  • EIA/TIA-574
  • EIA/TIA RS-232E

Compliance:

  • CISPR22/EN55022 Class A + EN55024
  • EN60950 Class A
  • FCC Class A
  • CE Mark
Compatibility

Pointy System Chassis
ManufacturerTransition Networks Inc
Product ModelCRS2F3113-100
Product NamePoint System RS232 Copper to Fiber Media Converter
Power Consumption5 W
Product LinePoint System
Manufacturer Part NumberCRS2F3113-100
Manufacturer Website Addresshttp://www.transition.com
Marketing Information

Transition Networks' serial RS232 to Fiber Media Converter allows you to extend the distance between serial connections with the use of fiber optic cable. This full-featured converter transmits the full complement of RS232 flow control/handshaking signals optically and supports full or half-duplex asynchronous data transmission at speeds up to 115Kb/s.

The diagnostic features included on this converter make installation easy and intuitive. A DTE/DCE switch eliminates the frustration over selecting the appropriate cable. A loop-back switch allows for complete diagnostic testing prior to system turn-up or during troubleshooting. Unit and Port LEDs allow for quick status information of the converter.
Limited WarrantyLifetime
Additional Information

Switches:

  • DTE/DCE
  • Loop-back
  • Loopback (Local or Remote on copper and fiber)

Supports the following flow control signaling:

  • DCD - Data Carrier Detect
  • RXD - Receive Data
  • TXD - Transmit Data
  • DTR - Data Terminal Ready
  • SG - Signal Ground
  • DSR - Data Set Ready
  • RTS - Request To Send
  • CTS - Clear To Send
