• 8 x Gigabit PoE+ ports
• 2 x Gigabit SFP slots
• 240W PoE power budget
• 20Gbps switching capacity
• Forwarding rate: 14.88Mpps (64-byte packet size)
• Supports jumbo frames up to 10KB
• Hardened IP30 rated metal housing
• Includes DIN-Rail Bracket and magnetic wall mount kit
• Operating temperature range of -40° - 75° C (-40° - 167° F)
• Redundant power inputs with overload current protection
• Alarm relay triggered by power failure
• Power supply sold separately (models: TI-S24048 TI-S48048 and 48VDC3000)
• Lifetime Warranty

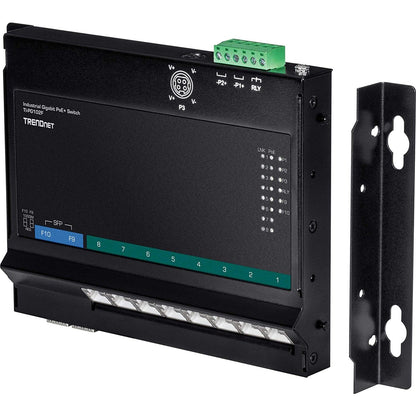

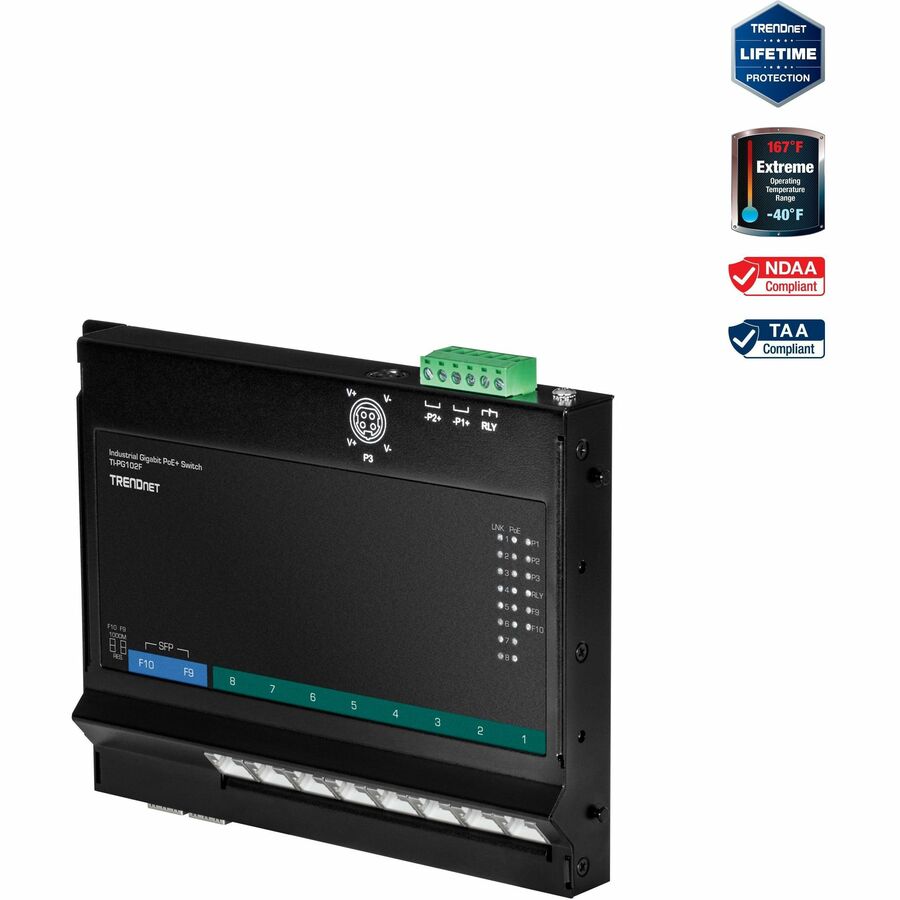

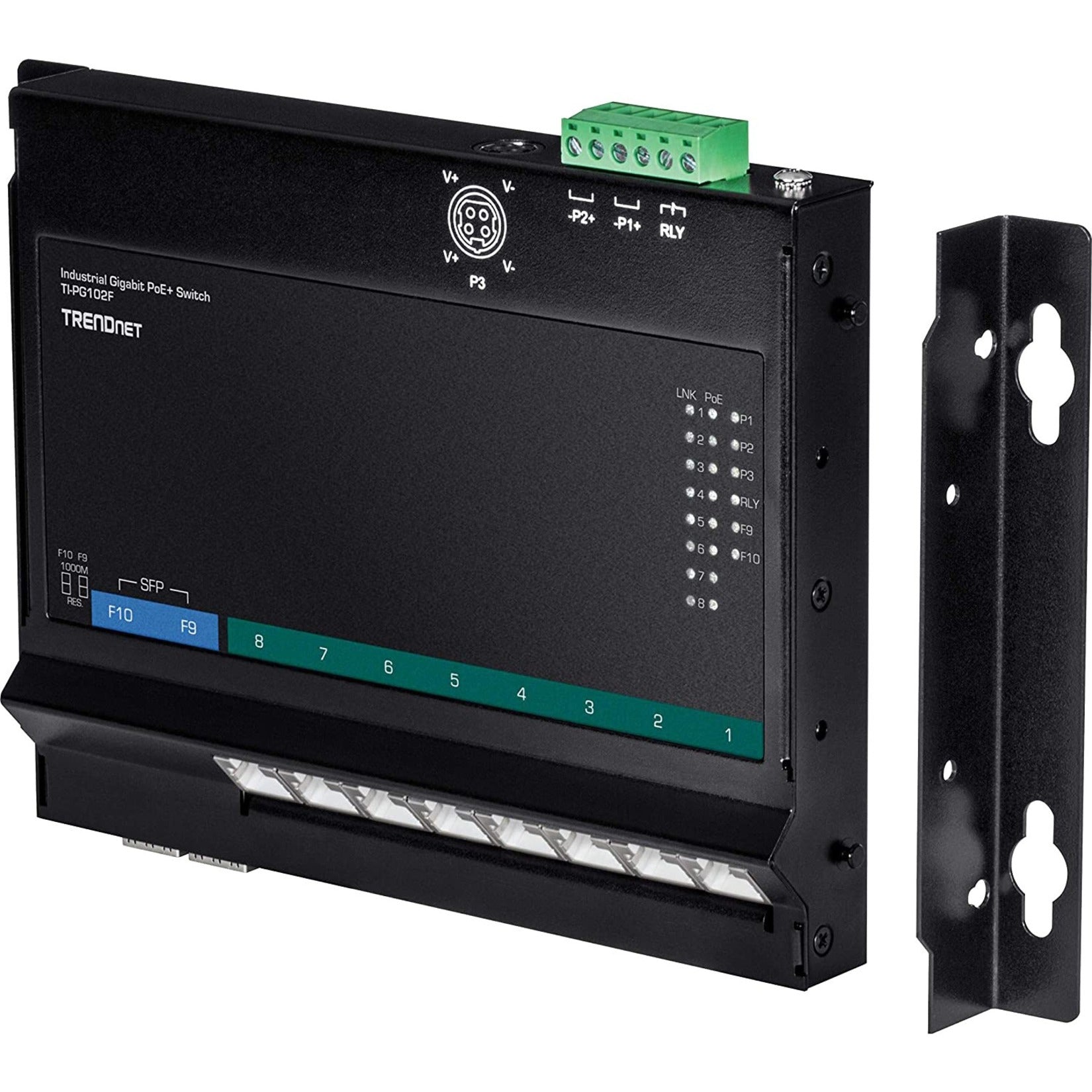

TRENDnet's Industrial Gigabit PoE+ Wall-Mounted Front Access Switch Series is well suited for IP surveillance IoT and automation networks for homes and businesses. These hardened industrial gigabit flat switches provide front access to ports and power interfaces for easier installation. The flat and compact size make them ideal for cabinet installations where space is limited. Each hardened industrial front access switch features gigabit PoE+ ports for connecting devices such as wireless access points IP cameras and IoT appliances. These hardened front access switches come equipped with an IP30 rated metal enclosure designed to withstand a high degree of vibration and shock while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments.
Wall-Mounted Front Access Switch
The wall mountable flat switch provides front access to ports and power interfaces for easier installation. It's flat and compact size make it ideal for cabinet installations where space is limited.
PoE+ Power
A 240W PoE power budget supplies PoE power from the hardened industrial front access switch to up to eight Power over Ethernet devices.
Hardened Industrial Design
Equipped with an IP30 rated metal enclosure this front access switch is designed to withstand a high degree of vibration and shock while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments.
PACKAGE CONTENTS
TI-PG102F
Quick Installation Guide
Removable terminal block

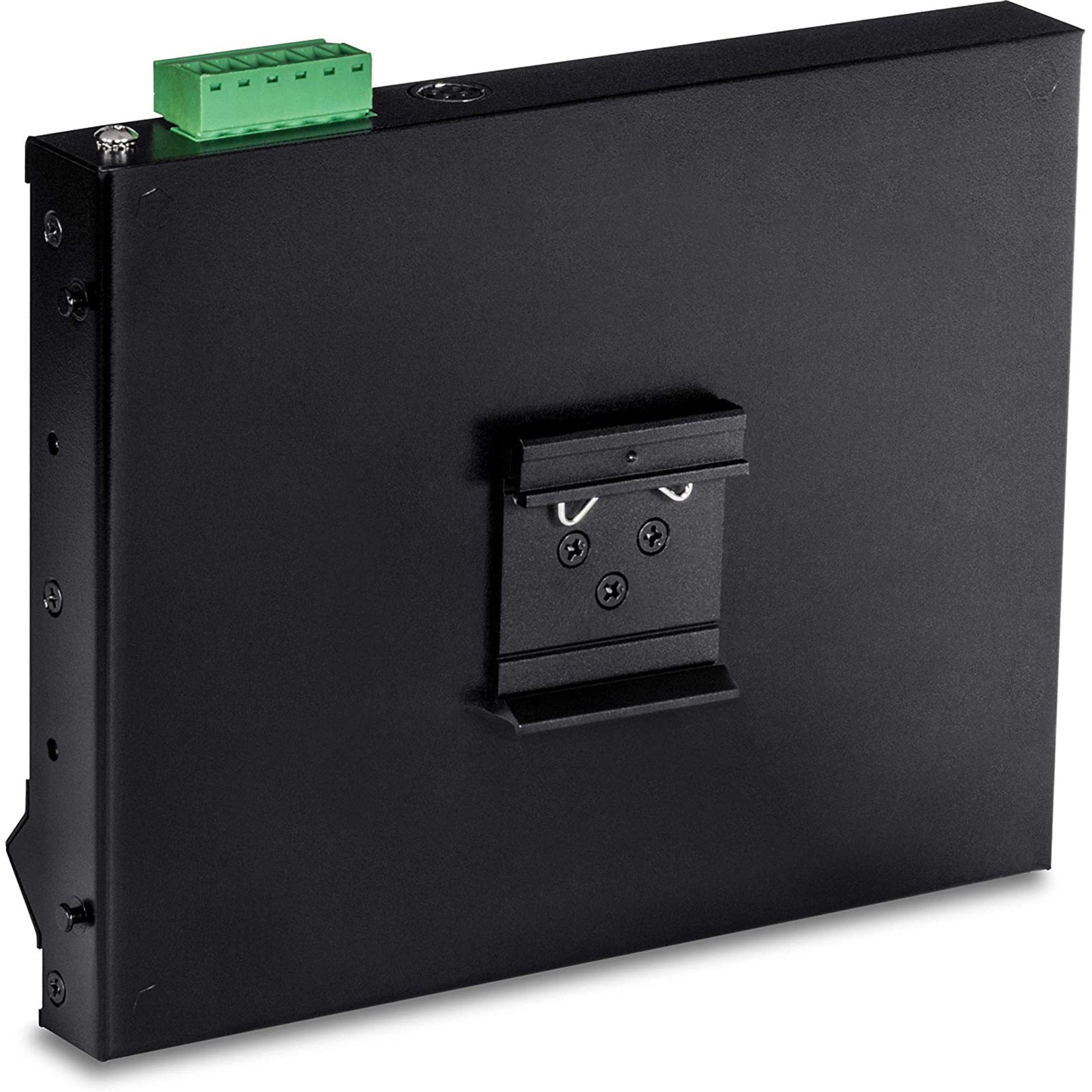

DIN-Rail and magnetic wall mount kits
