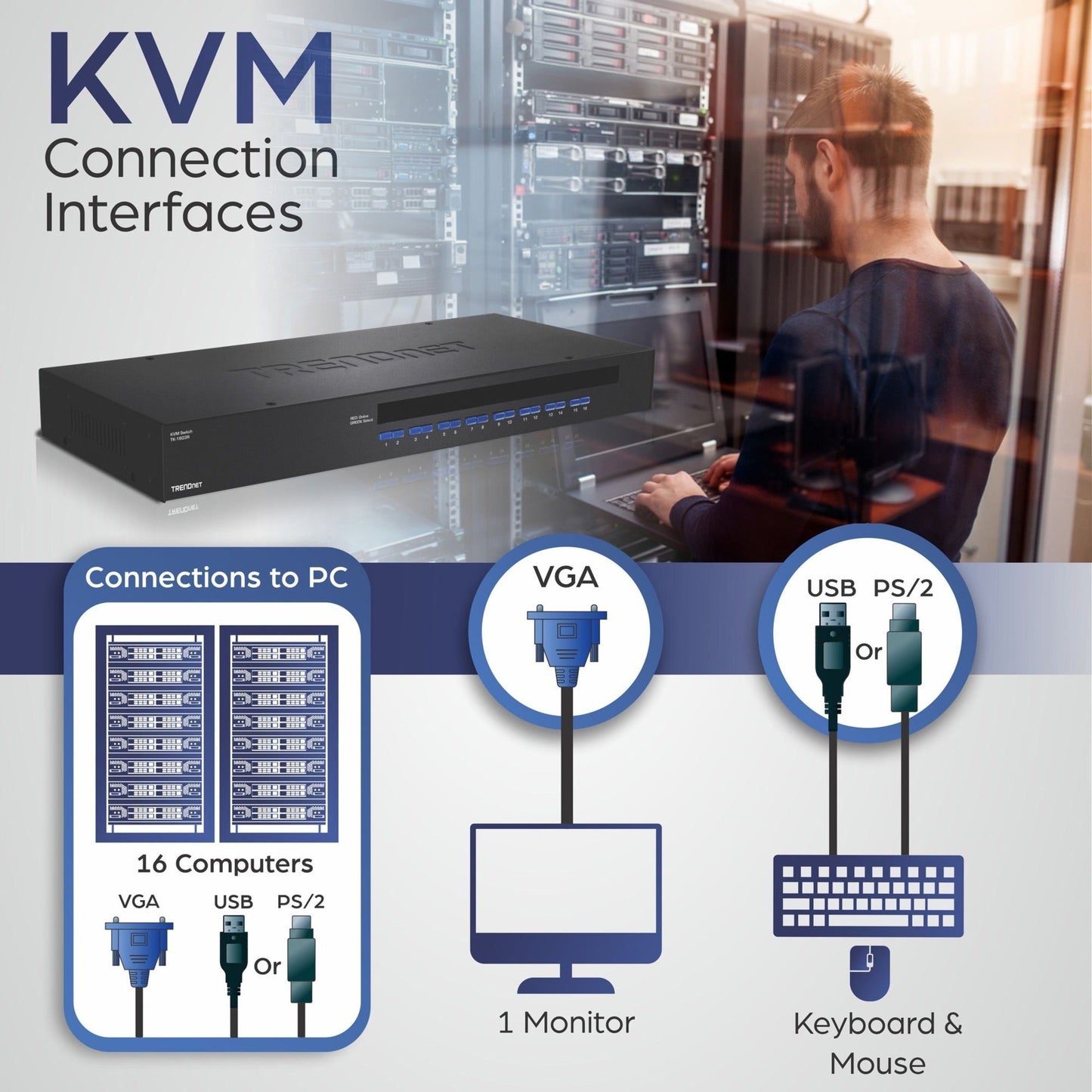

• PC & CONSOLE PORT INTERFACE: PC: 16 x VGA HDB 15-pin (female); Console: 1 x USB (Type A) / PS/2 (6-pin mini-DIN) Mouse; 1 x USB (Type A) / PS/2 (6-pin mini-DIN) Keyboard; 1 x VGA HDB 15-pin (female)
• MANAGE MULTIPLE PC'S: This 16-Port KVM Switch enables you to control and manage up to 16 computers or servers with just one set made up of a keyboard monitor and mouse.
• SUPPORTED OS: The KVM switch supports Windows Linux Unix and Mac OS
• VIDEO QUALITY: The 16 Port Switch delivers high video quality up to 2048 x 1536 VGA resolution
• CABLES SOLD SEPARATELY: Compatible cables for use TK-CU06 (6ft) TK-CU10 (10ft) TK-CU15 (15ft)
• USB & PS/2 INTERFACE: This rack mount device supports USB and PS/2 interface on the console side and USB only on the PC side.
• FLEXIBLE MANAGEMENT: Provides the ability to switch between PCs using hot-key or push button for flexible management
• RACKMOUNT DESIGN: The rack mount KVM switch has a standard 19" (1U) rack mount design

The 16-Port USB KVM Switch lets you manage multiple computers with just one set of keyboard monitor and mouse. This rack mount device supports USB and PS/2 interface on the console side and USB only on the PC side. Popular hardware platforms such as PC Linux and Mac are supported. Users can switch between PCs using hot-key or push button for flexible management. Users can also hot-plug PCs on the fly to avoid downtime. The 16-Port USB KVM Switch is the perfect choice for managing multiple PC's.
Controls up to 16 computers or servers
Supports both USB and PS/2 Interface for console port
Supports Windows Linux Mac and more
High video quality- up to 2048 x 1536 VGA resolution
Firmware upgradeable via PC port
Auto-Scan and LED display for monitored PCs
Keyboard status restored when switching between PCs
LEDs display for easy status monitoring
Beeping sound for port switching confirmation
Hotkey or push button switching
Plug & Play and hot-pluggable
Standard 19" (1U) rack mount design
2-year limited warranty
PACKAGE CONTENTS
TK-1603R
Quick Installation Guide
Power Adapter (9 V DC 1 A)
Rack Mount Kit

• 16-Port Rack Mount USB KVM Switch
• Quick Installation Guide
• Power Adapter (9 V DC 1 A)
• Rack Mount Kit
