• 4 x Gigabit PoE+ ports 1 x Gigabit port120W PoE power budget10Gbps switching capacity
• Power supply sold separately (models: TI-S12048 TI-S24048 and 48VDC3000)
• Supports jumbo frames up to 9KB
• Hardened IP30 rated metal housing Includes wall mounting and DIN-Rail brackets
• Operating temperature range of -40° - 75° C (-40° - 167° F)
• Dual redundant power inputs with overload current protection
• Alarm relay triggered by power failure
• Lifetime TRENDnet Manufacturer's Warranty

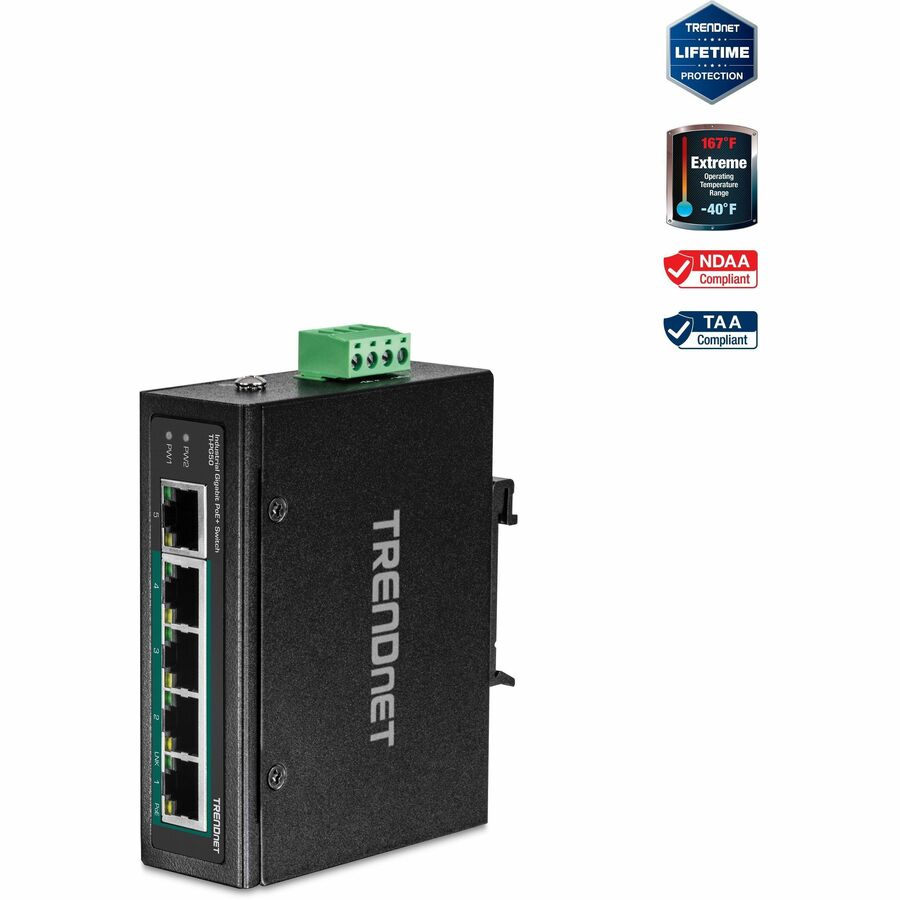

TRENDnet's 5-Port Industrial Gigabit PoE+ DIN-Rail Switch model TI-PG50 has four gigabit PoE+ ports with a 120W PoE power budget. Users are able to connect four PoE+ devices to this industrial switch while simultaneously providing a non-PoE gigabit port for connectivity to the network. The TI-PG50 industrial switch is equipped with an IP30 rated metal enclosure designed to withstand a high degree of vibration and shock while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments

PoE Power
A 120W PoE+ power budget for up to four Power over Ethernet devices with PoE+ power.

Fault Tolerance
The industrial switch features redundant power inputs with overload current protection.

Industrial Design
Equipped with a rugged IP30 rated housing designed to withstand a high degree of vibration and shock and operate within a wide temperature range of -40° - 75° C (-40° - 167° F).

Network Ports
4 x Gigabit PoE+ ports and 1 x Gigabit port

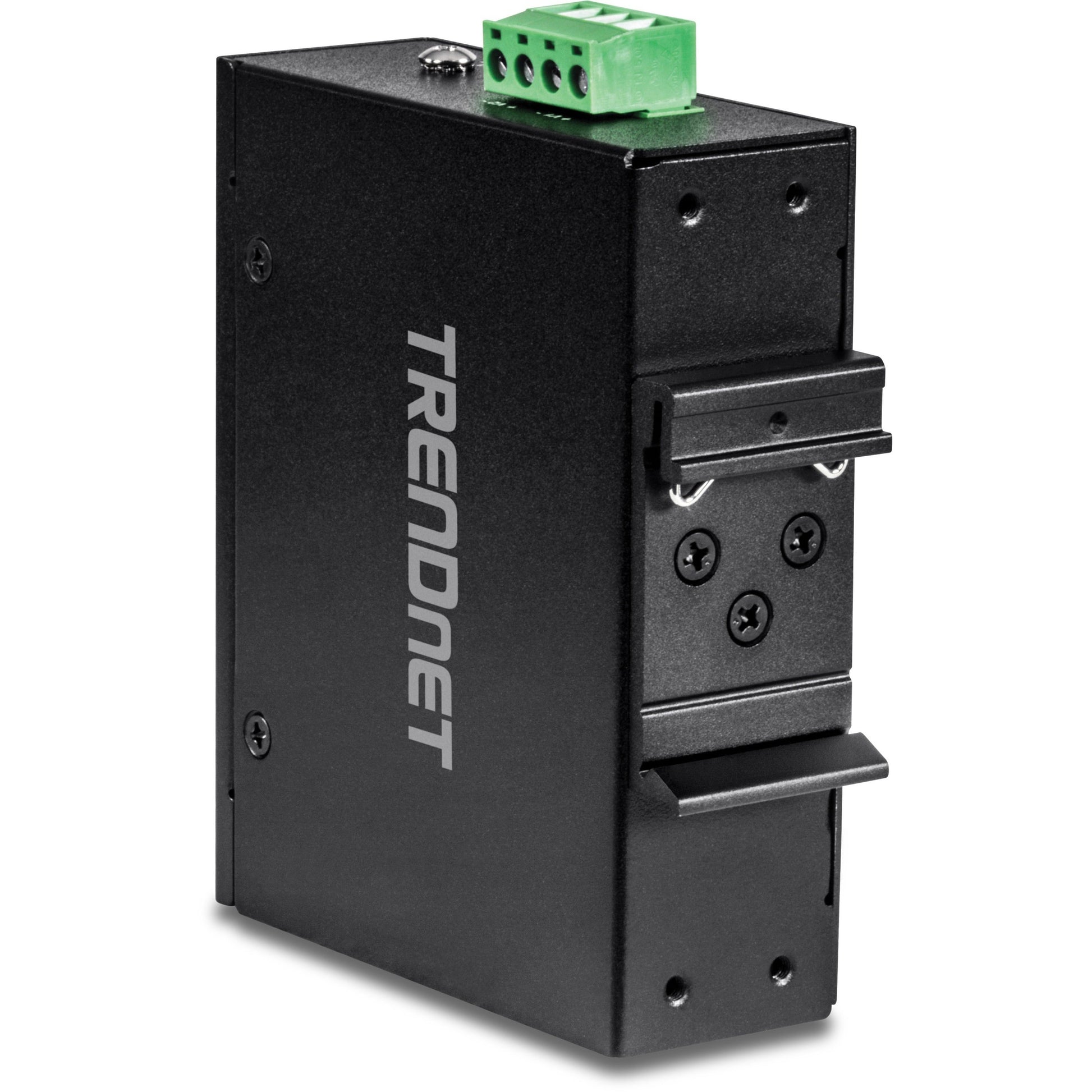

DIN-Rail/Wall Mounts
IP30 rated metal enclosure with included DIN-Rail and wall mount hardware

Jumbo Frame
Sends larger packets or Jumbo Frames (up to 9KB) for increased performance

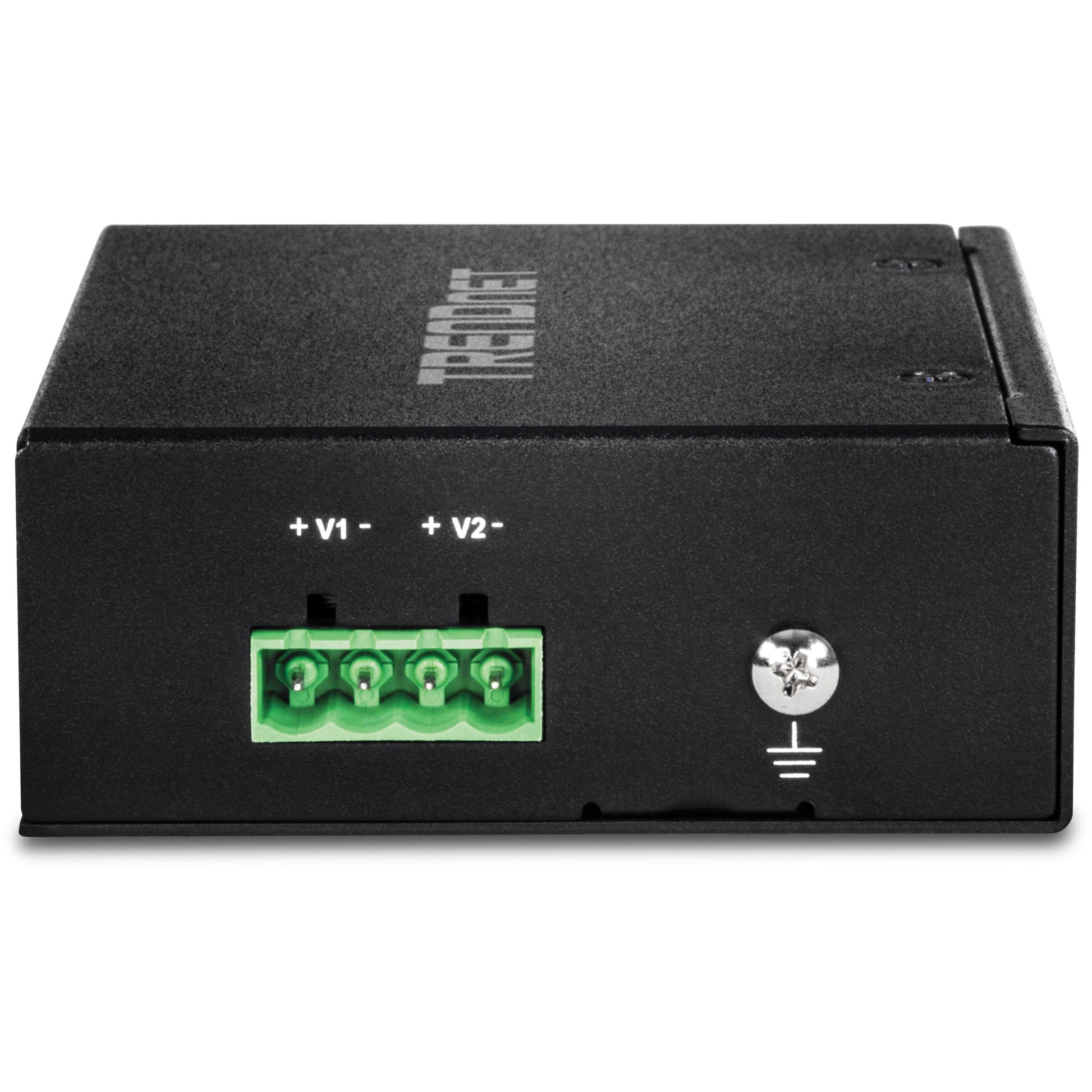

Redundant Power
Redundant power inputs with overload current protection (compatible power supply sold separately models: TI-S12048 / TI-S24048)

Switching Capacity
10Gbps switching capacity

Shock and Vibration Resistant
Rated for shock (EN 60068-2-27) freefall (EN 60068-2-32) and vibration (EN 60068-2-6)

Grounding Point
Grounding point on the industrial switch protects equipment from external electrical surges


PACKAGE CONTENTS
TI-PG50
Quick Installation Guide
Removable terminal block
DIN-Rail and wall mount kit

More from the Manufacturer

• 5-Port Industrial Gigabit PoE+ DIN-Rail Switch
• Quick Installation Guide
• Removable Terminal Block
• DIN-Rail and Wall Mount Kit
