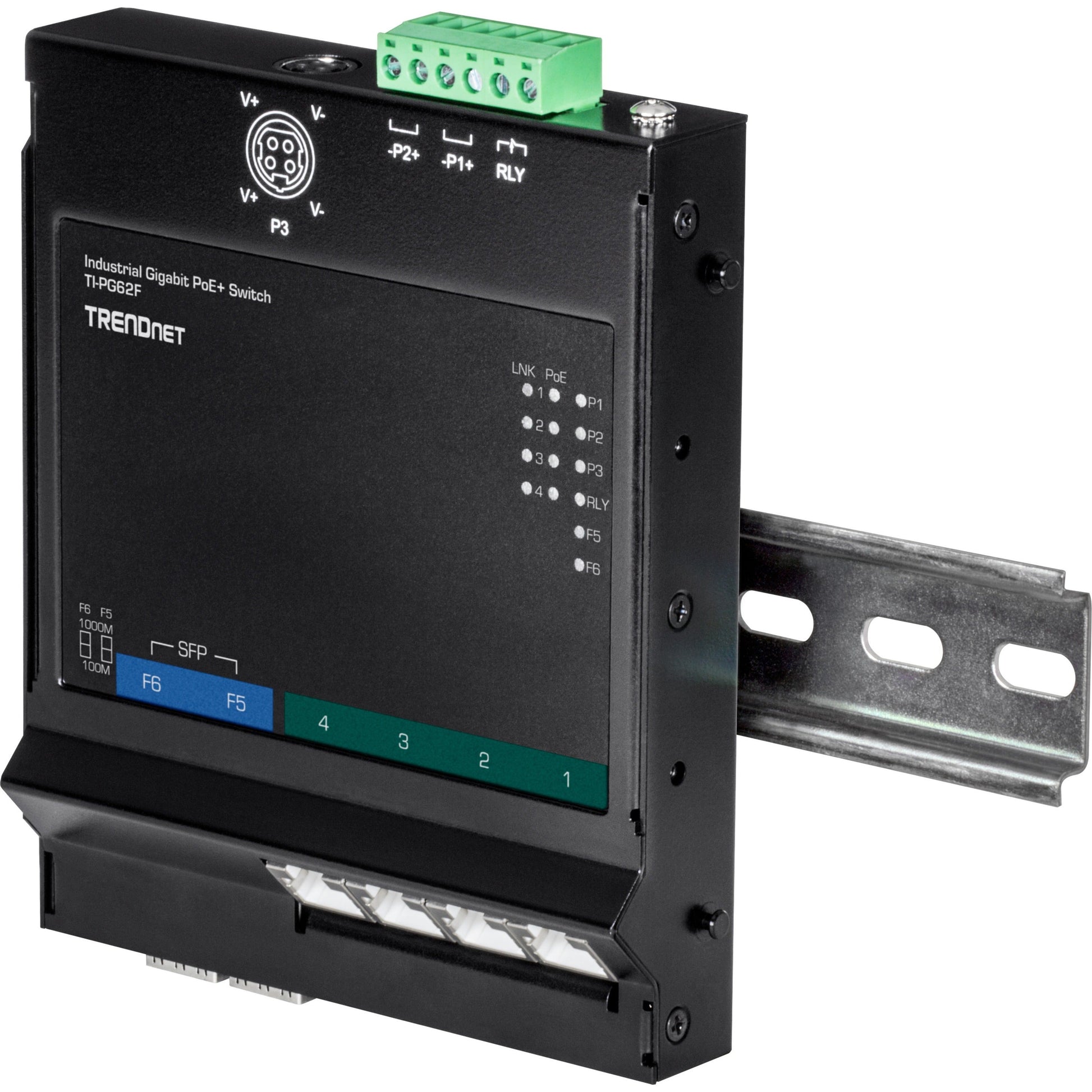

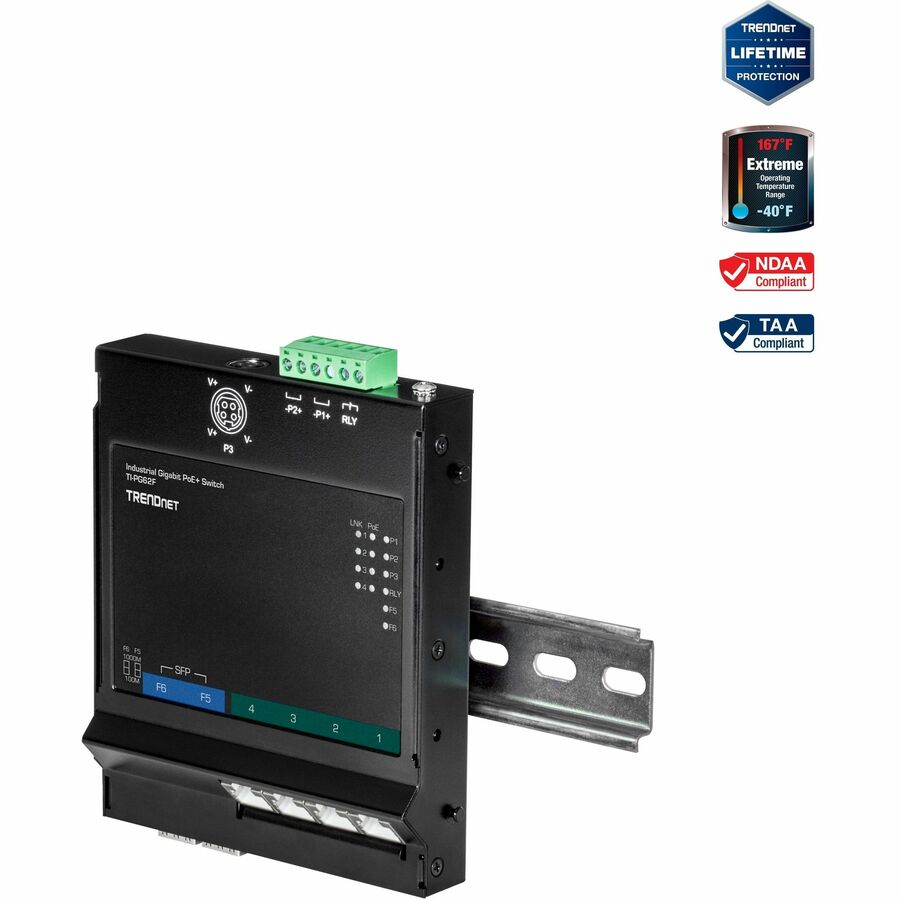

TRENDnet 6-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch TI-PG62F 4 x Gigabit PoE+ Ports 2 x Gigabit SFP Slots DIN-Rail Wall Mount Brackets Included IP30 120W PoE Budget

TRENDnet 6-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch TI-PG62F 4 x Gigabit PoE+ Ports 2 x Gigabit SFP Slots DIN-Rail Wall Mount Brackets Included IP30 120W PoE Budget

SKU: 1063675812      MFR: TRENDnet

GTIN: 710931161793

Product Description

TRENDnet 6-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch TI-PG62F 4 x Gigabit PoE+ Ports 2 x Gigabit SFP Slots DIN-Rail Wall Mount Brackets Included IP30 120W PoE Budget - 6-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch

Manufacturer : TRENDnet

Manufacturer Part No : TI-PG62F

Features

  • 4 x Gigabit PoE+ ports
  • 2 x Gigabit SFP slots
  • 120W PoE power budget
  • 12Gbps switching capacity
  • Forwarding rate: 8.9Mpps (64-byte packet size)
  • Supports jumbo frames up to 10KB
  • Hardened IP30 rated metal housing
  • Includes DIN-Rail bracket and magnetic wall mount kit
  • Operating temperature range of -40° - 75° C (-40° - 167° F)
  • Redundant power inputs with overload current protection

Product Details

Product TypeEthernet Switch
ManageableNo
Ethernet TechnologyGigabit Ethernet
Number of Total Expansion Slots2
Network (RJ-45)Yes
Number of SFP Slots2
ModularYes
Media Type SupportedOptical Fiber
Total Number of Network Ports6
PoE (RJ-45) PortYes
Port/Expansion Slot Details4 x Gigabit Ethernet PoE+
PoE Budget120 W
Networking StandardsIEEE 802.3
Height5.7"
Width5.9"
Depth1.1"
Expansion Slot TypeSFP (mini-GBIC)
Brand NameTRENDnet
Plug/Connector TypeTerminal Block
Form FactorDIN Rail Mountable
Frequency50 Hz
Frequency60 Hz
ManufacturerTRENDnet
Product ModelTI-PG62F
Product Name6-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch
Network Technology1000Base-T
Power Consumption7.20 W
Input Voltage120 V AC
Input Voltage230 V AC
Input Voltage48 V DC
Input Voltage56 V DC
Manufacturer Part NumberTI-PG62F
Manufacturer Website Addresshttp://www.trendnet.com
Marketing InformationTRENDnet's Industrial Gigabit PoE+ Wall-Mounted Front Access Switch Series is well suited for IP surveillance IoT and automation networks for homes and businesses. These hardened industrial gigabit flat switches provide front access to ports and power interfaces for easier installation. The flat and compact size make them ideal for cabinet installations where space is limited. Each hardened industrial front access switch features gigabit PoE+ ports for connecting devices such as wireless access points IP cameras and IoT appliances. These hardened front access switches come equipped with an IP30 rated metal enclosure designed to withstand a high degree of vibration and shock while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments.

Wall-Mounted Front Access Switch

The wall mountable flat switch provides front access to ports and power interfaces for easier installation. It's flat and compact size make it ideal for cabinet installations where space is limited.

PoE+ Power

A 120W PoE power budget supplies PoE power from the hardened industrial front access switch to up to eight Power over Ethernet devices.

Hardened Industrial Design

Equipped with an IP30 rated metal enclosure this front access switch is designed to withstand a high degree of vibration and shock while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments.

Network Ports

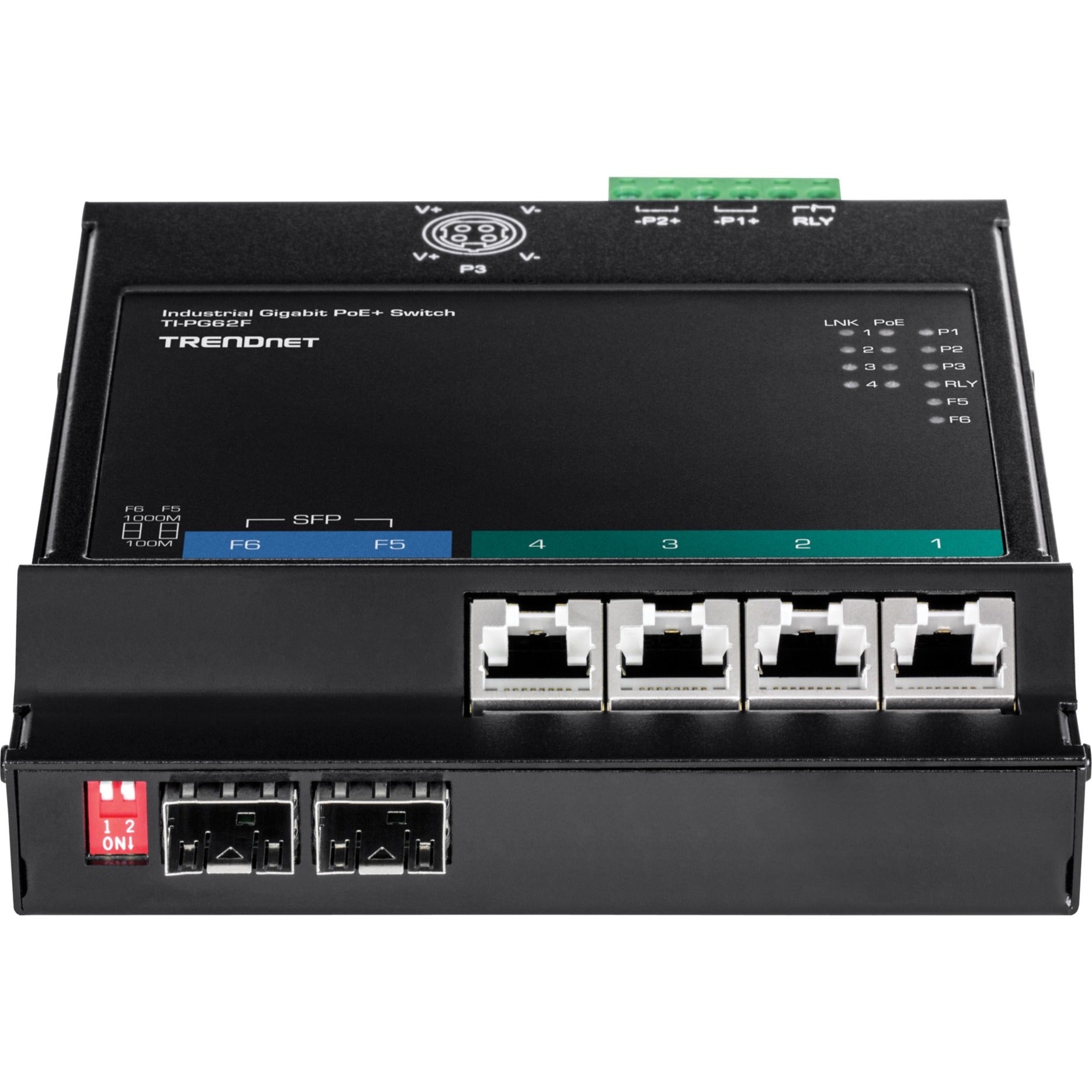

4 x Gigabit PoE+ ports and 2 x Gigabit SFP Slots

PoE Power

Supplies up to 30W of PoE+ power per port with a 120W power budget

Hardware Design

Wall mountable hardware design provides front access to ports and power interfaces for easier installation

Compact

The flat and compact size is ideal for cabinet installations where space is limited

Mounting Hardware

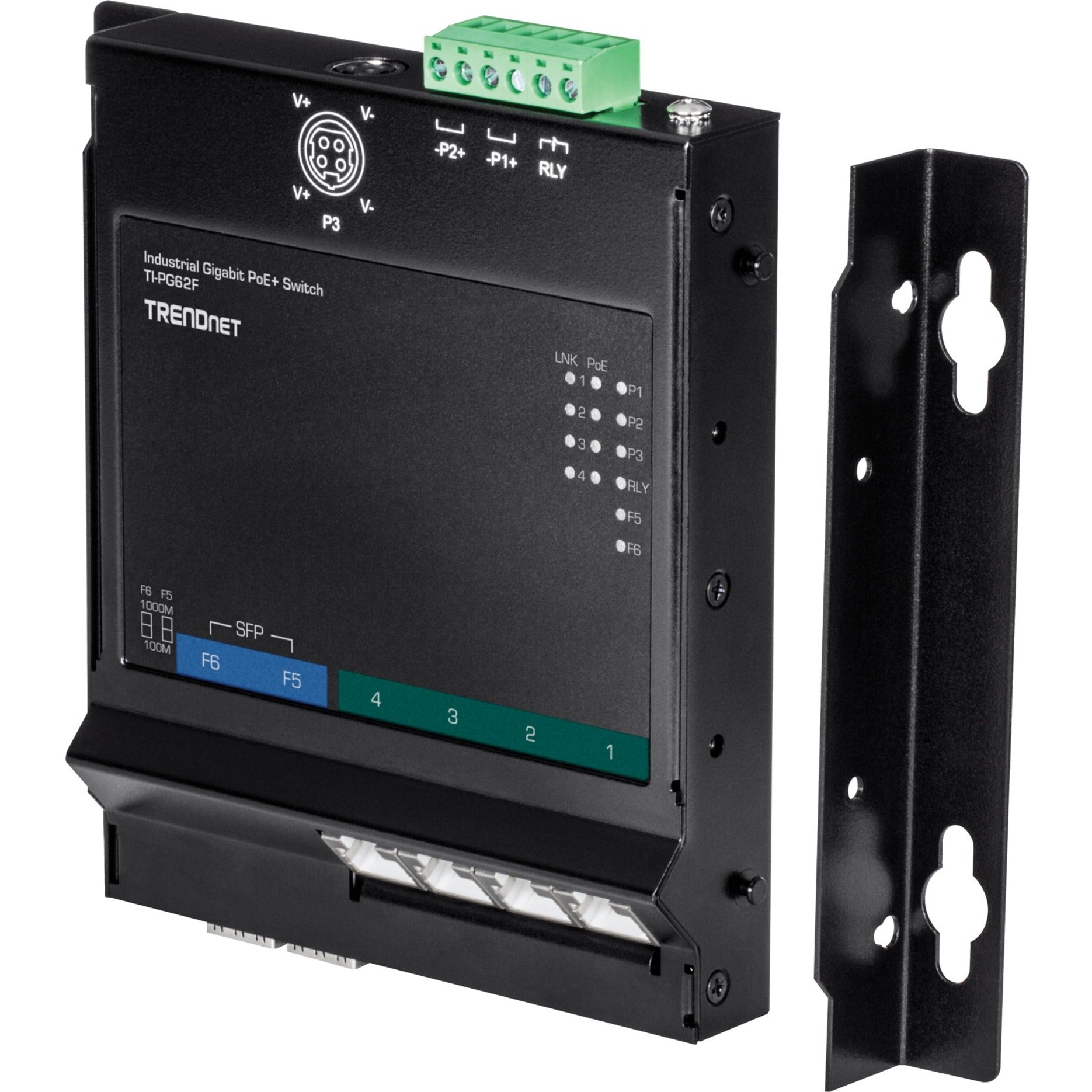

Includes DIN-Rail bracket and magnetic wall mount kit

Switching Capacity

12Gbps switching capacity

Redundant Power

Dual power inputs provide redundant power with overload current protection and an output alarm relay to indicate input power failure. (Power supply sold separately models: TI-S12048 TI-S24048 and 48VDC3000)

Alarm Relay

Alarm relay output triggered by power failure of primary or secondary power inputs

Jumbo Frames

Sends larger packets or jumbo frames (up to 10KB) for increased performance

Wide Temperature Range

Hardened industrial housing offers a wide operating temperature range of -40° - 75° C (-40° - 167° F) allowing for installations in extreme hot and cold environments

Shock and Vibration Resistant

Hardened design rated for shock (EN 60068-2-27) freefall (EN 60068-2-32) and vibration (EN 60068-2-6) for industrial settings

More from the Manufacturer
Power SourceAC/DC
Package Contents
  • 6-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch
  • Quick Installation Guide
  • Removable Terminal Block
  • DIN-Rail Wall and Magnet Mount Kit
MaterialMetal
Limited Warranty3 Year
Layer Supported2
Weight (Approximate)1.28 lb
Media Type SupportedTwisted Pair
