• 8 x Gigabit PoE+ ports
• PoE power budget 120W@24V - 200W@48V
• 16Gbps switching capacity
• Power supply sold separately (models: TI-S24048 TI-S12024)
• Hardened IP30 rated metal switch
• Includes DIN-Rail and wall mounts
• Operating temperature range of -40° - 75° C (-40° - 167° F)
• Dual 24 - 56V DC power inputs for redundancy

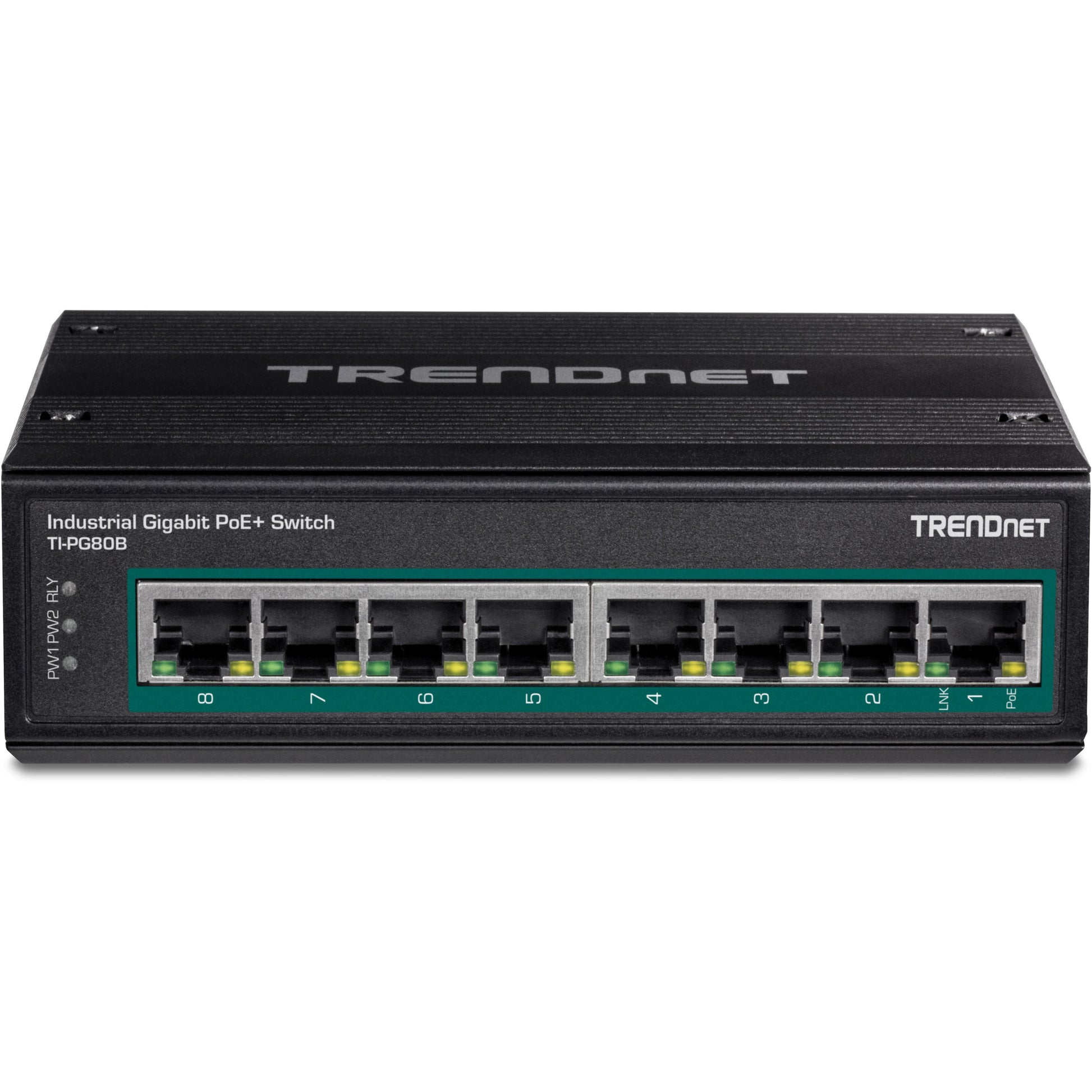

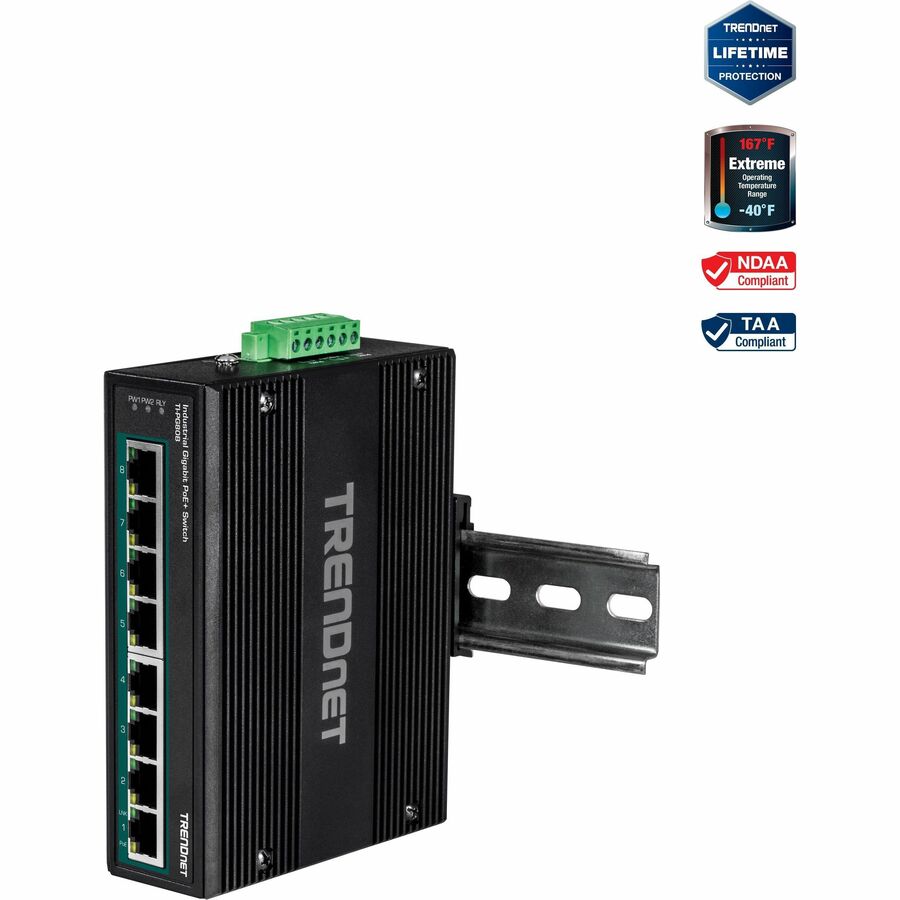

TRENDnet's 8-Port Industrial Gigabit PoE+ DIN-Rail Switch model TI-PG80B is an industrial variable voltage switch with eight gigabit PoE+ ports and a 200W PoE power budget. Users are able to connect eight PoE+ devices to this industrial variable voltage PoE+ switch for high-speed connectivity to the network. The industrial variable voltage PoE+ switch is equipped with a rugged IP30 rated metal enclosure and designed to withstand a high degree of vibration and shock while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments. Dual 24 - 56V DC power inputs on the industrial variable voltage switch provide redundancy with power failure alarm relay. PoE Power The industrial variable voltage PoE switch features a 200W PoE+ power budget and supplies up to eight Power over Ethernet devices with PoE+ power. Fault Tolerance The industrial variable voltage PoE switch features dual 24V - 56V DC power inputs for redundancy with overload current protection. Industrial Design Equipped with a rugged IP30 rated housing resistant to a high degree of vibration and shock and operates within a wide temperature range of -40° - 75° C (-40° - 167° F). PACKAGE CONTENTS TI-PG80B Quick Installation Guide Removable terminal block DIN-Rail and wall mount kit

More from the Manufacturer

• 8-Port Industrial Gigabit PoE+ DIN-Rail Switch
• Quick Installation Guide

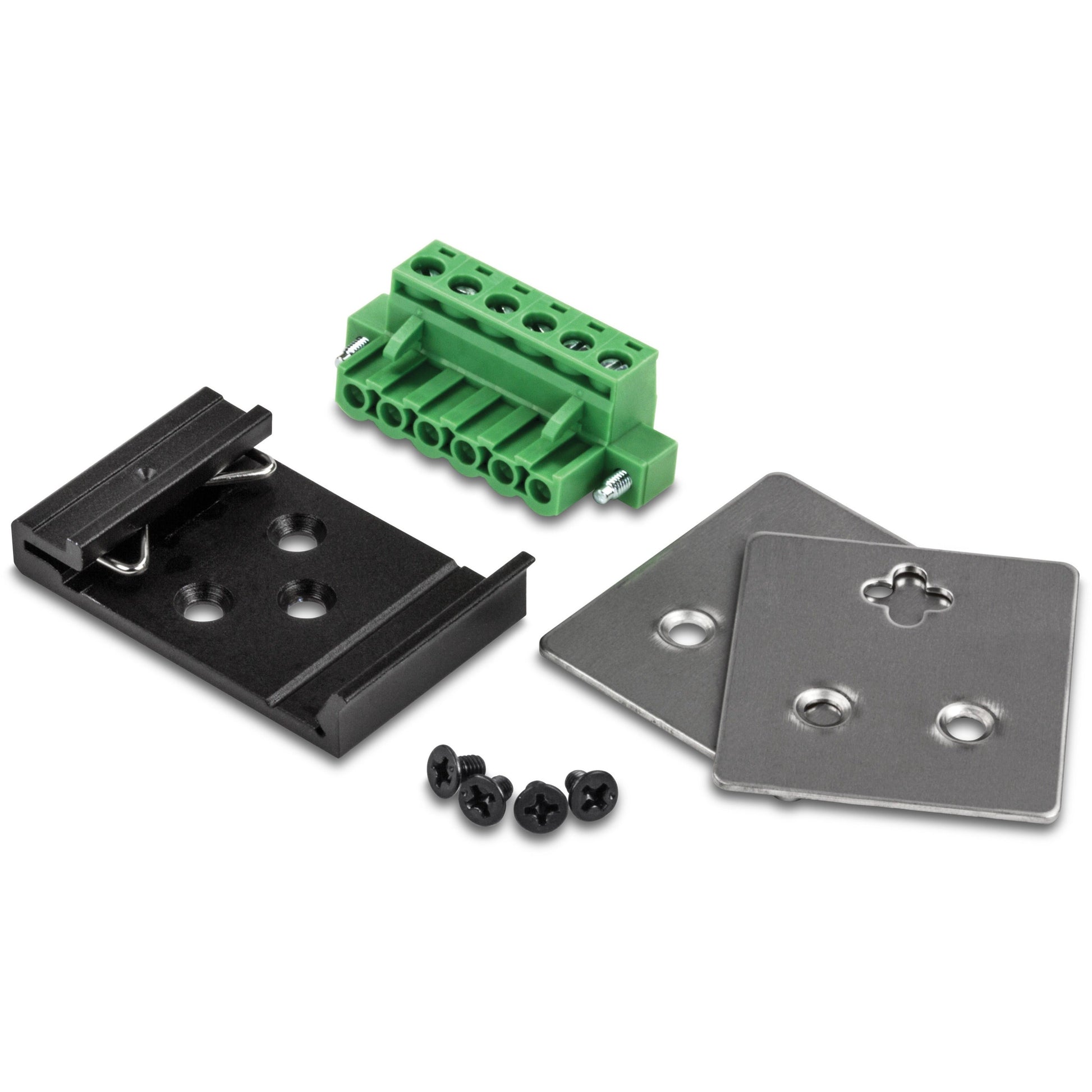

• Removable Terminal Block
• DIN-Rail and Wall Mount Kit
