• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3bt compatible

• CE
• FCC
• IEC EN60950-1
• Shock (IEC 60068-2-27)
• Freefall (IEC 60068-2-32)
• Vibration (IEC 60068-2-6)

• Power a non-PoE device up to 100m (328 ft.) away from PSE
• Splits a gigabit PoE signal into separate power and data sources
• A single Ultra PoE source can power up to two devices
• Adjustable voltage output supports 12V 16V 24V or 48V devices
• For best performance pair with UPoE switches or injectors
• Save on installation and equipment cost
• Full Duplex Gigabit speeds
• IEEE 802.3bt compatible

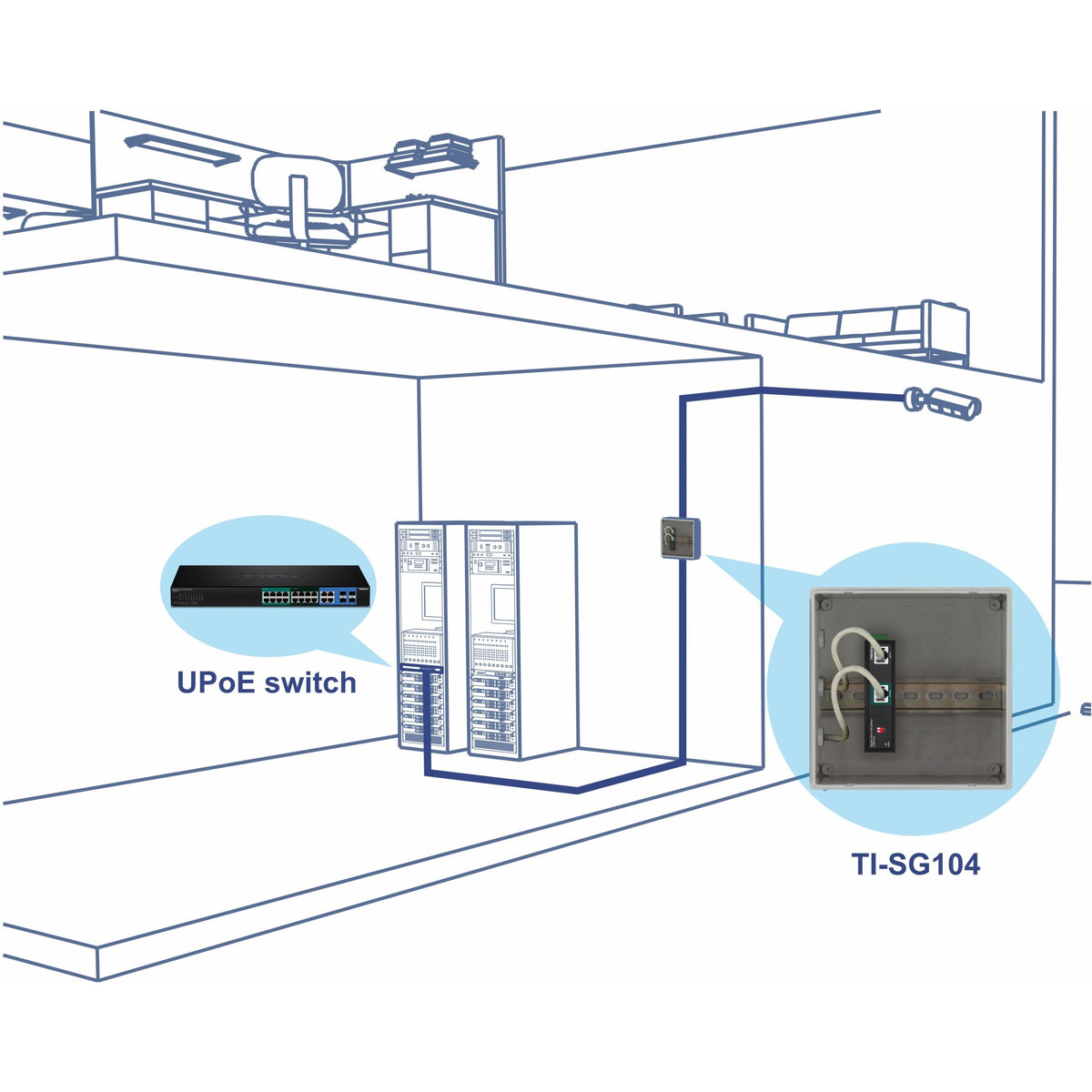

TRENDnet's Industrial Gigabit UPoE Splitter model TI-SG104 networks a non-PoE device by using a Gigabit Ultra PoE connection and splitting it into separate power and gigabit data sources. The industrial gigabit UPoE splitter can power to up to two devices from a single UPoE source. A convenient DIP switch adjusts output power to 12V 16V 24V or 48V in order to match power requirements for non-PoE devices. The UPoE splitter's dual DC power output provides greater device compatibility

UPoE Powered
No power adapter necessary; the UPoE splitter takes a UPoE network connection and splits power and data into separate connections to network a non-PoE device with power up to 100m (328ft.).

Adjustable Voltage Output
Convenient DIP switch adjusts voltage output to 12V (2.3A) 16V (2.3A) 24V (2.3A) or 48V (1.25A) to match non-PoE device power requirements.

Wall Mountable
The UPoE splitter's wall mountable design accommodates most installation scenarios.

PACKAGE CONTENTS
TI-SG104
Quick Installation Guide
Removable terminal block
DIN-rail and wall mount kit
