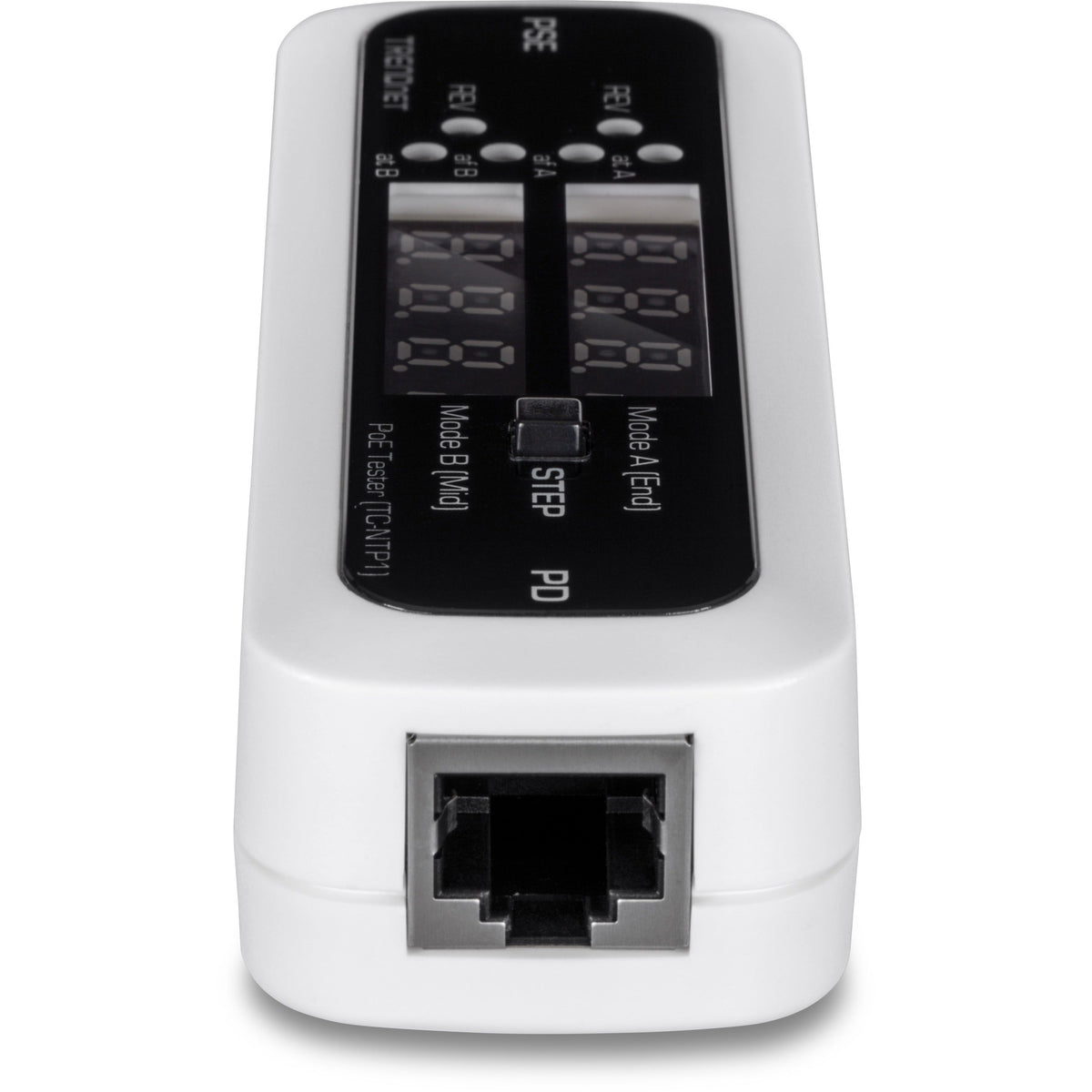

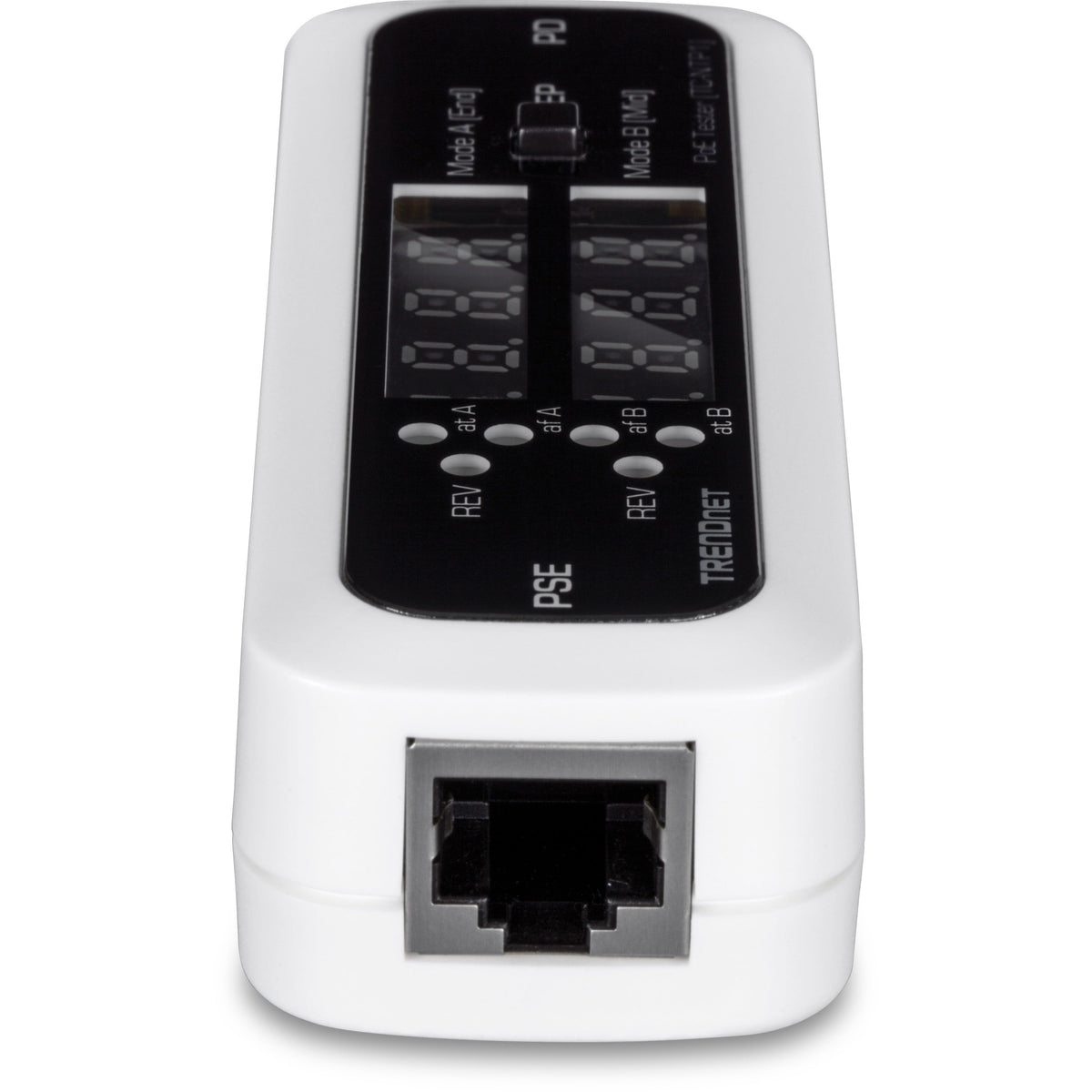

• PORTS: This Inline PoE tester is equipped with 1 x Gigabit port for PSE connection and 1 x Gigabit port for PoE Device connection
• TESTING MODES: The TC-NTP1 supports three testing functions. T-mode allows you to test your PSE device to determine the PoE switch's or injector's supported PoE standards as well as voltage output. N-mode is used for non-standard passive PoE devices. I-mode is used for PoE inline testing which displays the voltage amperage and wattage of the connected PD
• USER FRIENDLY: The TC-NTP1 PoE cable tester provides battery-free operation and is ready for use right out of the box; just plug-in to start testing
• COMPATABILITY: The PoE cable tester is compatible with IEEE 802.3af/at/bt PoE devices up to 100W and non-standard passive PoE devices from 11V - 60V.
• STEP BUTTON: The convenient step button on the PoE cable tester allows users to cycle through voltage amperage and wattage readouts. It also allows users to lock the display to a specific readout (e.g. wattage) for real-time monitoring.
• TROUBLESHOOT IN REAL TIME: Troubleshoot PoE issues in real-time on-the-go and accurately test 4PPoE PoE+ PoE and passive PoE technologies with this compact and lightweight PoE testing tool.

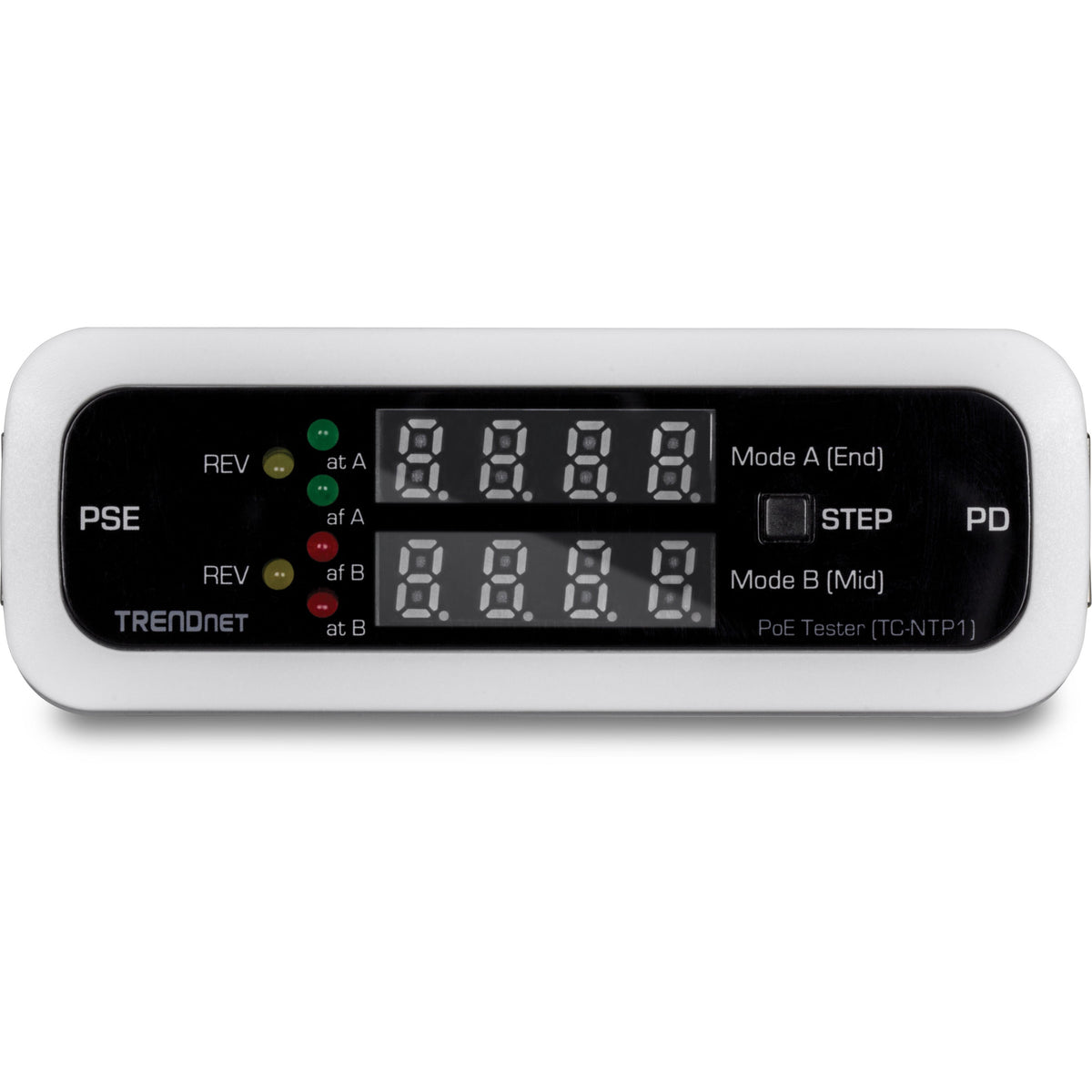

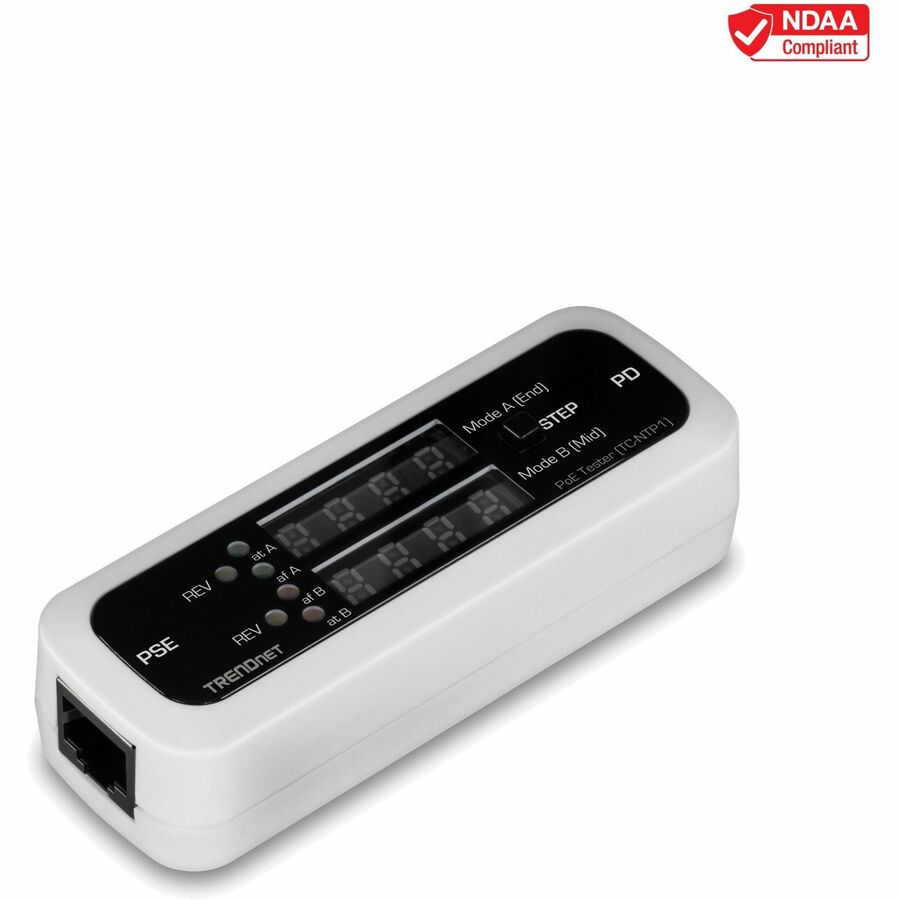

TRENDnet's Inline PoE Tester model TC-NTP1 is a comprehensive PoE cable tester for network professionals. This compact tool accurately tests PoE++ PoE+ PoE and passive PoE technologies. The TC-NTP1 PoE cable tester works on active connections and is designed to sit inline between the PoE source and PoE device. The PoE cable tester then displays real-time PoE information such as wattage voltage and amperage for that connection.

Testing Modes

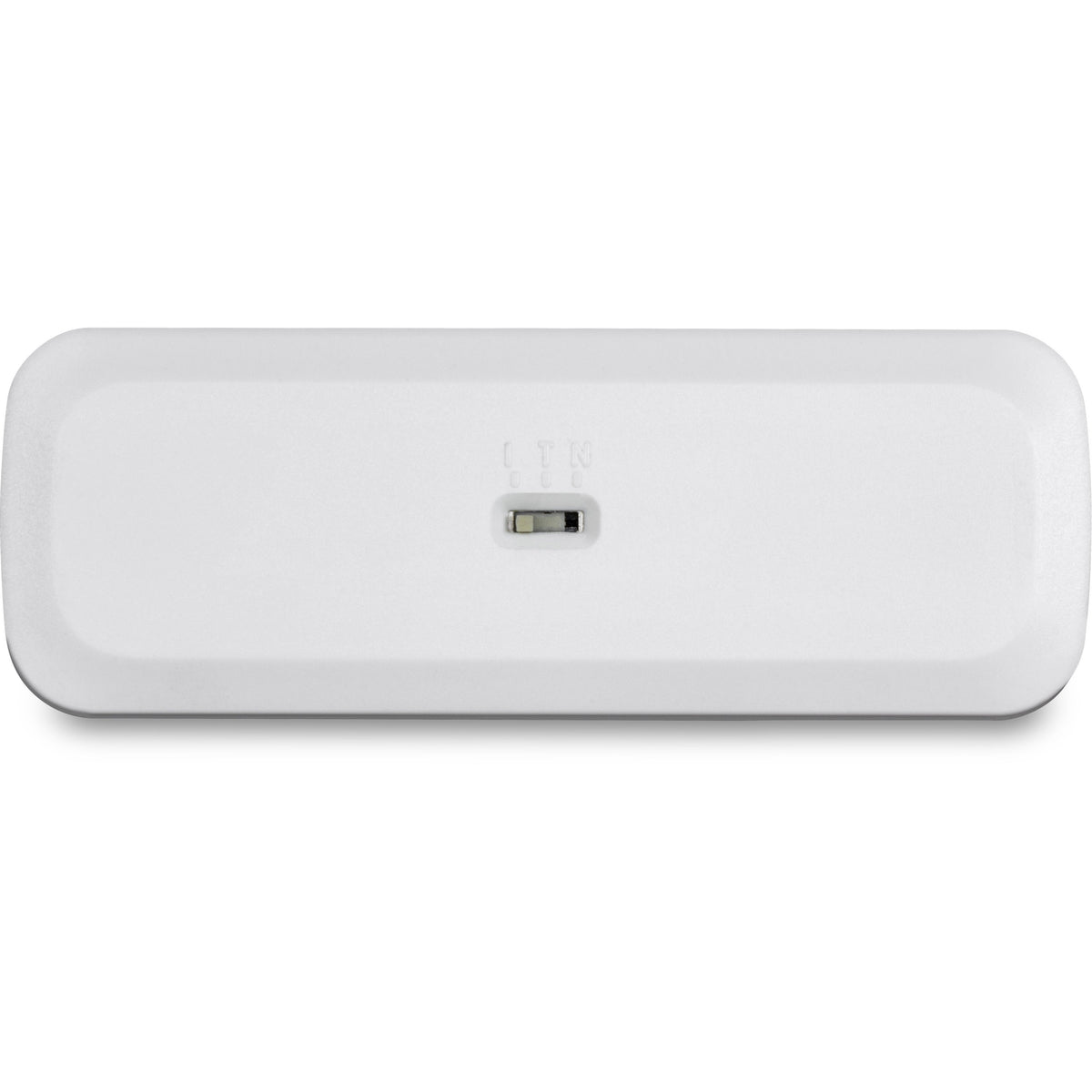

The TC-NTP1 has three testing functions: T-mode (for testing ports on your PSE device to determine the PoE switch's or injector's PoE type and voltage output); N-mode (for non-standard passive PoE devices); and I-mode (for PoE inline testing displaying voltage amperage and wattage of the connected PD).

Step Button

The convenient step button on the PoE cable tester allows users to cycle through voltage amperage and wattage readouts. It also allows users to lock the display to a specific readout (e.g. wattage) for real-time monitoring.

Compatibility

The PoE cable tester is compatible with IEEE 802.3af/at/bt PoE devices up to 100W and non-standard passive PoE devices from 11V - 60V.

PACKAGE CONTENTS

• TC-NTP1
• Quick Installation Guide

• Inline PoE Tester
• Quick Installation Guide
