Access All Your Serial and Network Devices from Anywhere in the World at Any Time

This USB console server provides secure in-band (primary network) and out-of-band (alternate channel) remote access to serial- and network-connected routers network switches firewalls PBX systems UPS systems PDUs and other devices. It offers reliable network connectivity with dual Gigabit primary and failover Ethernet ports and dual power supplies. You can use it in a wide variety of applications including wiring closets branch offices kiosks point-of-sale and other remote sites where a quick identification and resolution of network issues is imperative.

Simple and Flexible Accessibility

The 48 RJ45 console ports are configured to use standard Cat5e/6 patch cable when connecting to Cisco devices. They integrate with industry-standard directory servers using TACACS+ RADIUS LDAP and Kerberos authentication. Provides 4 Gb of internal NAND flash memory which can be used for log storage and file storage.

Connect an External Modem for Out-of-Band Access

Connect one of the 48 RJ45 ports to an external Multitech MT9234MU-CDC-XR or US Robotics USR5637 USB modem (not included) to receive out-of-band (alternate channel) access when remote sites experience a network outage.

Router/Gateway

Each gateway can port forward to an unlimited number of locally networked hosts (computers routers). This rack console also includes a built-in stateful firewall and embedded DHCP server to host a separate management LAN for critical traffic.

The Utmost in Security to Keep Your Sensitive Data Private

The USB console server supports the following security features and standards: PCI DSS 3.2 FIPS 140-2 SSL and SSH stateful firewall OpenVPN and IPSec VPN support. The embedded FIPS 140-2 OpenSSL cryptographic module is validated to meet FIPS 140-2 standards and has received Certificate #2473.

PowerMan PDU and UPS Support

This 48-port serial console server uses PowerMan for PDU and RPC management and Network UPS Tools for UPS system monitoring and management. It provides support for Tripp Lite and other power products so you can remotely manage power to your connected equipment.

USB Console

Two USB 2.0 console ports allow connection to newer devices with USB console ports such as Tripp Lite's wide variety of PDUs and UPS systems with WEBCARDLX or other LX Platform remote management cards.

Compact Design for Convenient Mounting

The heavy-duty steel housing comes with mounting brackets for 1U installation in an EIA-standard 19-inch rack. Its fanless form factor also allows desktop deployment on included rubber feet that help prevent the unit from sliding.

TAA-Compliant for GSA Schedule Purchases

The B097-048 is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

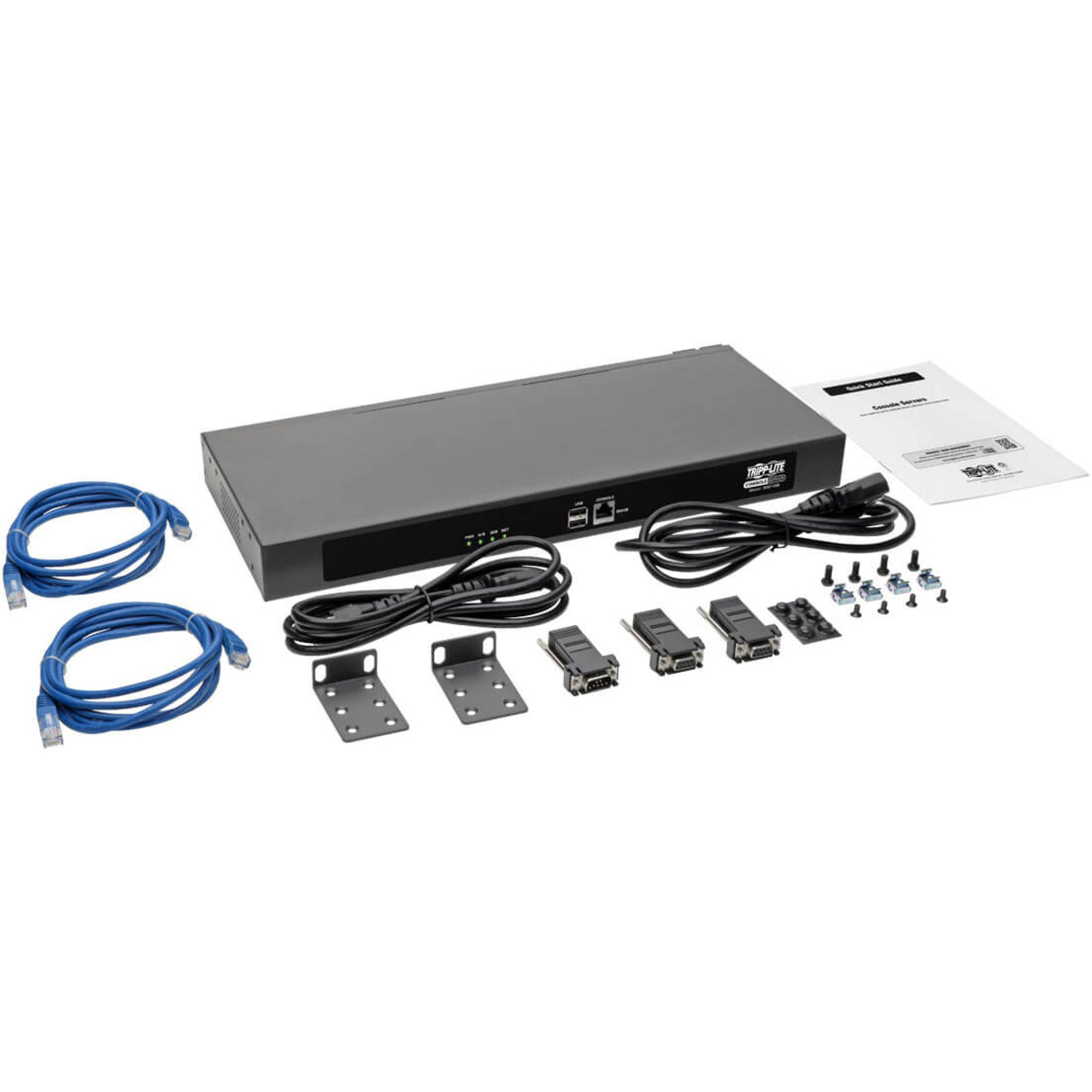

• B097-048 48-Port Serial Console Server
• 2 x C13 to NEMA 5-15P Power Cords 6 ft.
• 2 x Cat5e Patch Cables 6 ft.
• Straight-through Serial Adapter DB9 to RJ45 (F/F)
• Crossover Serial Adapter DB9 to RJ45 (F/F)
• Modular Serial Adapter DB9 to RJ45 (M/F)
• Rack-mounting Hardware
• 6 x Rubber Feet
• Quick Start Guide

• Side A - Connector 1: 1 x RJ45 (Female)
• Side A - Connector 2: 2 x USB A (Female)
• Side B - Connector 1: 48 x RJ45 (Female)
• Side B - Connector 2: 2 x RJ45 (Female)
