Features

HDMI Extender Kit Ideal for Digital Signage in Schools Restaurants and Lecture Halls
This complete transmitter and transceiver system is recommended for video presentations in conference rooms schools trade shows meeting facilities houses of worship retail settings hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow. The B127A-111-BHTH extends 4K signals from an HDMI source device to an HDMI display up to 230 feet away via user-supplied Cat6 cabling. IR remote control lets you operate the source from the display end of the installation.

Transmits Crystal-Clear 4K Video with Multi-Channel Audio HDR and 4:4:4 Color
The B127A-111-BHTH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz as specified by HDMI 2.0 with full rich uncompressed DTS-HD Dolby TrueHD and 7.1-channel digital audio. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This extender kit also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Built-in equalization allows you to fine-tune the image quality at the remote display.

Local HDMI Port on Transmitter Supports 4K @ 60 Hz Resolution
To monitor the video signal being extended to the transceiver connect a 4K display to the transmitter's local HDMI port with a user-supplied HDMI cable. This port does not support multi-resolution capabilities so the connected monitor must also support 4K/60 Hz to function properly.

Built-In PoC Technology Provides Transceiver Power to Avoid Bulky External Power Bricks
Power over Cable (PoC) technology powers the transceiver over Cat6 cable. LEDs on both the transmitter and transceiver will light up to indicate the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the transceiver where needed without worrying about finding a nearby AC outlet.

Create a Daisy Chain to Achieve Even More Distance
This extender kit is capable of forming daisy-chain installations up to 920 feet from the transmitter by connecting additional B127A-110-BH transceivers (sold separately). Up to four total B127A-110-BH transceivers can be chained together each capable of extending a 4K/60 Hz signal up to 230 feet per unit. The transceiver is also compatible with Tripp Lite's B127A-010-H signal booster (sold separately) which allows the signal to be boosted up to 400 feet total between the transmitter and transceiver. When used in a daisy-chain installation this brings the total extension distance up to 1090 ft. Note: B127A-010-H will only work when used in the first link of the daisy-chain installation.

Plug-and-Play Operation for Quick Setup and Immediate Use
The included transmitter and transceiver units work right out of the box with no software required. Mounting hardware is included for installing the transmitter on a wall pole or 19-inch rack. Connect the transmitter to the source with a user-supplied HDMI cable (such as Tripp Lite's P568- or P569-Series). Then connect the transceiver to the display with another user-supplied HDMI cable. Finally connect the two units with user-supplied Cat6 patch cable (such as Tripp Lite N202-Series cable).

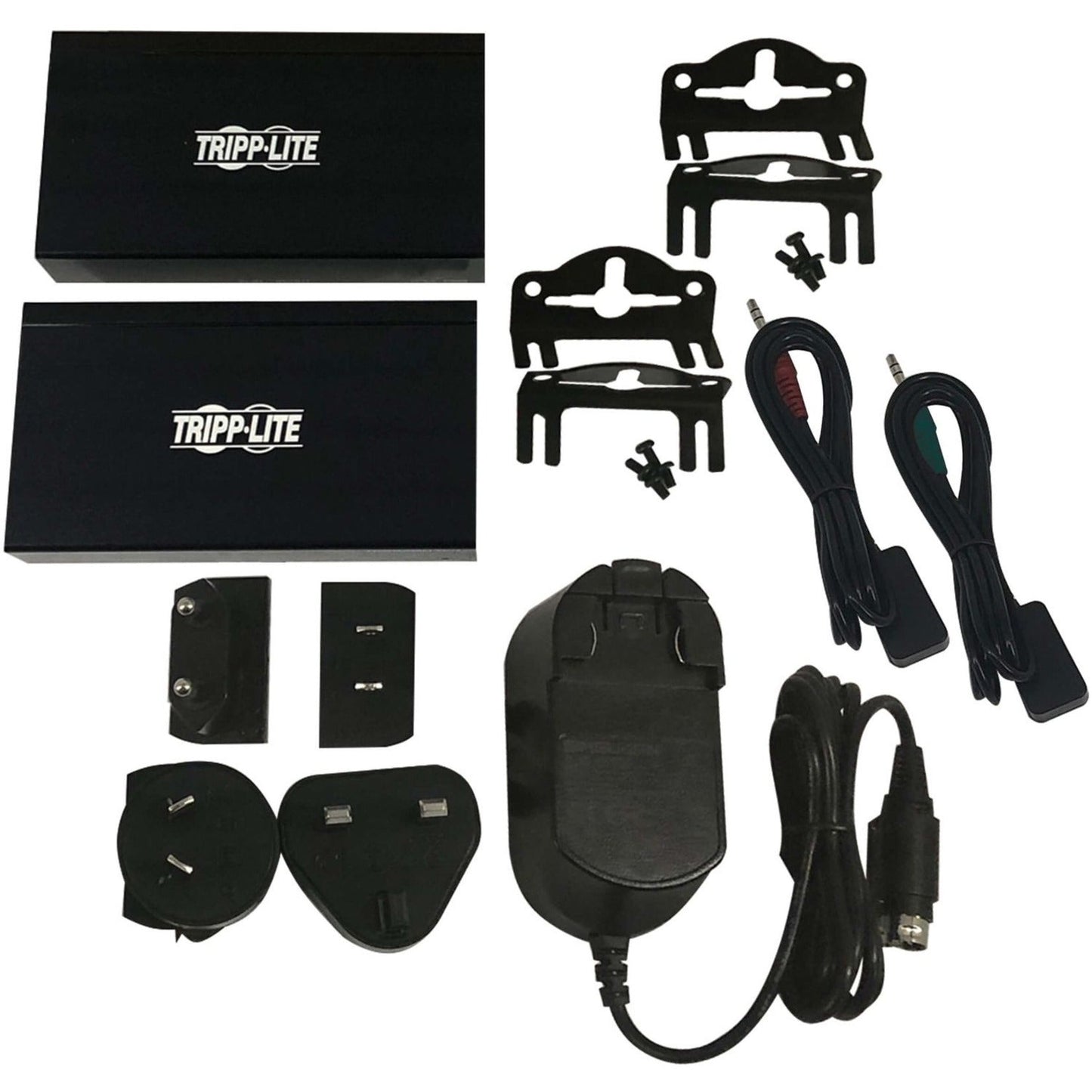

• 1 x Transmitter
• 1 x Transceiver
• External power supply (Input: 100-240V 50/60 Hz 0.6A; Output: 24V 1A)
• 4 x International plug adapters (North America Europe U.K. and Australia)
• IR-In cable
• IR-Out cable
• Mounting Hardware
• Owner's Manual
