Tripp Lite PDU Metered ATS 208V / 240V 30A 16 C13; 2 C19; 1 L6-30R 2URM
Tripp Lite PDU Metered ATS 208V / 240V 30A 16 C13; 2 C19; 1 L6-30R 2URM
SKU: 1020456269 MFR: Tripp Lite by Eaton
GTIN: 037332159212
Product Description
Tripp Lite PDU Metered ATS 208V / 240V 30A 16 C13; 2 C19; 1 L6-30R 2URM - 2UHorizontal Rackmount
Manufacturer : Tripp Lite by Eaton
Manufacturer Part No : PDUMH30HVAT
Features
- Single phase 30A 208V Auto Transfer Switch / ATS Metered PDU with Solid State Switching
- Enables redundant-power configurations for single-corded network devices
- Separate primary & secondary inputs connect to any two compatible power sources
- 2U horizontal rackmount; 2 L6-30P inputs; 19 outlets (16 C13 2 C19 1 L6-30R)
Product Details
Tripp Lite Metered ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether the ATS will switch over to the secondary power source until the primary input is restored and stable. Highly reliable solid-state switching between primary and secondary inputs occurs in 1-5 milliseconds. ATS functionality is supported by any two compatible AC power sources regardless of phase angle to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability.
- Metered PDUMH30HVAT 19-Outlets PDU
- Rackmount Installation Brackets
- Installable Plug-retention Shelves
- Cable Ties
Dropship
Update
Couldn't load pickup availability
![Tripp Lite PDU Metered ATS 208V / 240V 30A 16 C13; 2 C19; 1 L6-30R 2URM](http://tekmentum.com/cdn/shop/files/1020456269_8a70433d-2539-44f6-a802-51d36453f394.jpg?v=1698364304&width=1445)
![Tripp Lite PDU Metered ATS 208V / 240V 30A 16 C13; 2 C19; 1 L6-30R 2URM](http://tekmentum.com/cdn/shop/files/1020456269_abf0e492-a5bc-4888-86d5-f2a54ec652b5.jpg?v=1698364304&width=1445)
![Tripp Lite PDU Metered ATS 208V / 240V 30A 16 C13; 2 C19; 1 L6-30R 2URM](http://tekmentum.com/cdn/shop/files/1020456269_6495c5df-686b-4c23-9bfb-508cddc1ae8c.jpg?v=1698364304&width=1445)
![Tripp Lite PDU Metered ATS 208V / 240V 30A 16 C13; 2 C19; 1 L6-30R 2URM](http://tekmentum.com/cdn/shop/files/1020456269_4ae37aa0-7f0b-4216-95ea-2b3252849f99.jpg?v=1698364304&width=1445)
![Tripp Lite PDU Metered ATS 208V / 240V 30A 16 C13; 2 C19; 1 L6-30R 2URM](http://tekmentum.com/cdn/shop/files/1020456269_10c65bcb-9c90-4a69-a52a-f24e6efe1dba.jpg?v=1698364304&width=1445)
![Tripp Lite PDU Metered ATS 208V / 240V 30A 16 C13; 2 C19; 1 L6-30R 2URM](http://tekmentum.com/cdn/shop/files/1020456269_f1c9abf9-5fd2-4941-88f6-7de475778e65.jpg?v=1698364304&width=1445)
![Tripp Lite PDU Metered ATS 208V / 240V 30A 16 C13; 2 C19; 1 L6-30R 2URM](http://tekmentum.com/cdn/shop/files/1020456269_a81abfd8-da78-44b7-86c0-3b8d25a4aca7.jpg?v=1698364304&width=1445)
![Tripp Lite PDU Metered ATS 208V / 240V 30A 16 C13; 2 C19; 1 L6-30R 2URM](http://tekmentum.com/cdn/shop/files/1020456269_d298edf7-afc1-4855-886d-661c7d993fa8.jpg?v=1698364304&width=1445)
![Tripp Lite PDU Metered ATS 208V / 240V 30A 16 C13; 2 C19; 1 L6-30R 2URM](http://tekmentum.com/cdn/shop/files/1020456269_85425fef-c821-4234-9db4-8c5537b73076.jpg?v=1698364304&width=1445)
![Tripp Lite PDU Metered ATS 208V / 240V 30A 16 C13; 2 C19; 1 L6-30R 2URM](http://tekmentum.com/cdn/shop/files/1020456269_298def66-6770-4734-a0f4-5e00e9df3644.jpg?v=1698364304&width=1445)
![Tripp Lite PDU Metered ATS 208V / 240V 30A 16 C13; 2 C19; 1 L6-30R 2URM](http://tekmentum.com/cdn/shop/files/1020456269_0e7af910-fe4b-48a6-9dfc-d4ad75cc28ad.jpg?v=1698364304&width=1445)
![Tripp Lite PDU Metered ATS 208V / 240V 30A 16 C13; 2 C19; 1 L6-30R 2URM](http://tekmentum.com/cdn/shop/files/1020456269_1597f529-77ad-4c2e-9bd8-e19e1b4f1e7e.jpg?v=1698364304&width=1445)
![Tripp Lite PDU Metered ATS 208V / 240V 30A 16 C13; 2 C19; 1 L6-30R 2URM](http://tekmentum.com/cdn/shop/files/1020456269_59280654-685b-4628-a9e2-d0f31aca30af.jpg?v=1698364304&width=1445)
![Tripp Lite PDU Metered ATS 208V / 240V 30A 16 C13; 2 C19; 1 L6-30R 2URM](http://tekmentum.com/cdn/shop/files/1020456269_69b0c62e-eb58-4dad-ad67-bb578c768343.jpg?v=1698364304&width=1445)
Tripp Lite PDU Metered ATS 208V / 240V 30A 16 C13; 2 C19; 1 L6-30R 2URM - 2UHorizontal Rackmount
Manufacturer : Tripp Lite by Eaton
Manufacturer Part No : PDUMH30HVAT
Features
- Single phase 30A 208V Auto Transfer Switch / ATS Metered PDU with Solid State Switching
- Enables redundant-power configurations for single-corded network devices
- Separate primary & secondary inputs connect to any two compatible power sources
- 2U horizontal rackmount; 2 L6-30P inputs; 19 outlets (16 C13 2 C19 1 L6-30R)
Product Details
Tripp Lite Metered ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether the ATS will switch over to the secondary power source until the primary input is restored and stable. Highly reliable solid-state switching between primary and secondary inputs occurs in 1-5 milliseconds. ATS functionality is supported by any two compatible AC power sources regardless of phase angle to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability.

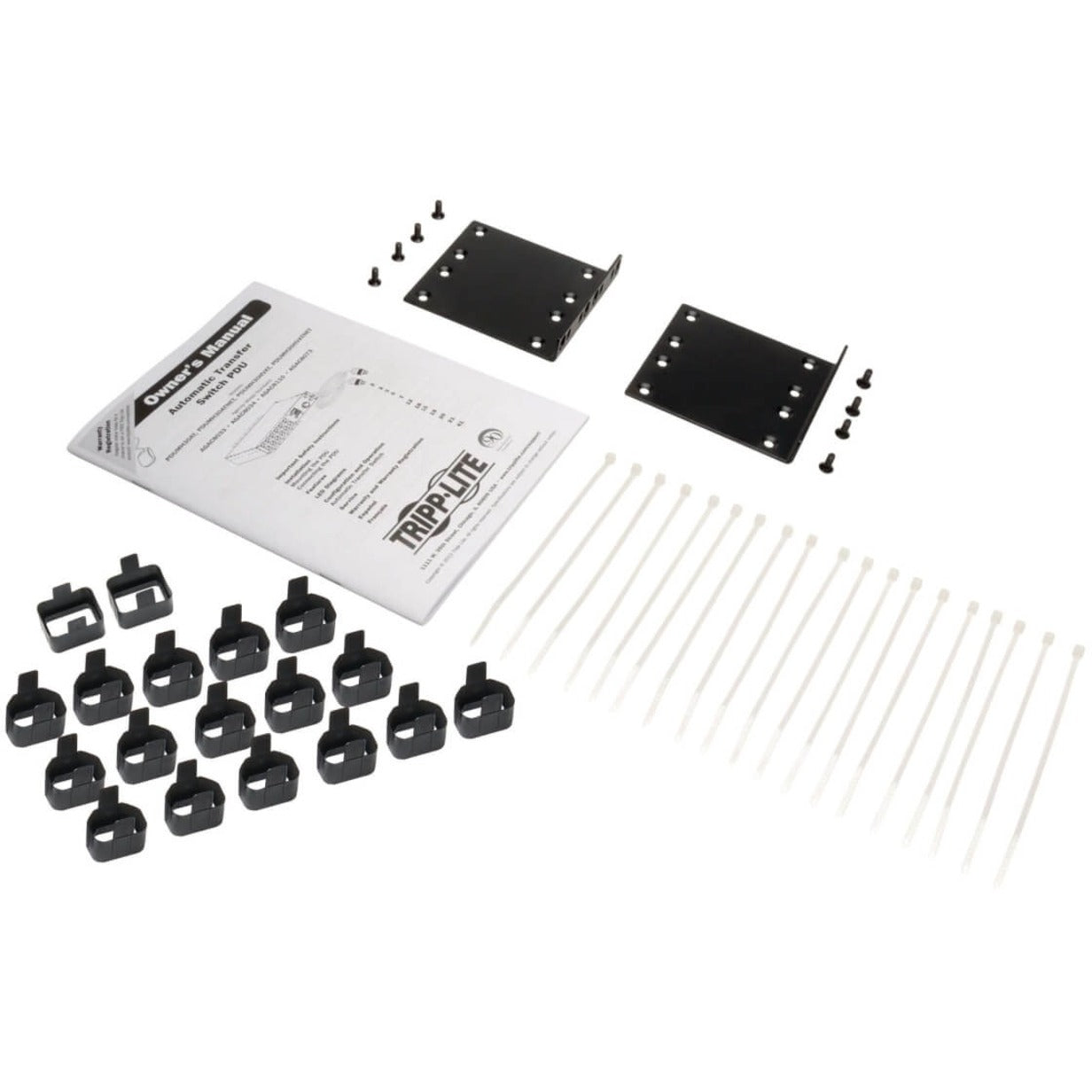

- Metered PDUMH30HVAT 19-Outlets PDU
- Rackmount Installation Brackets
- Installable Plug-retention Shelves
- Cable Ties
