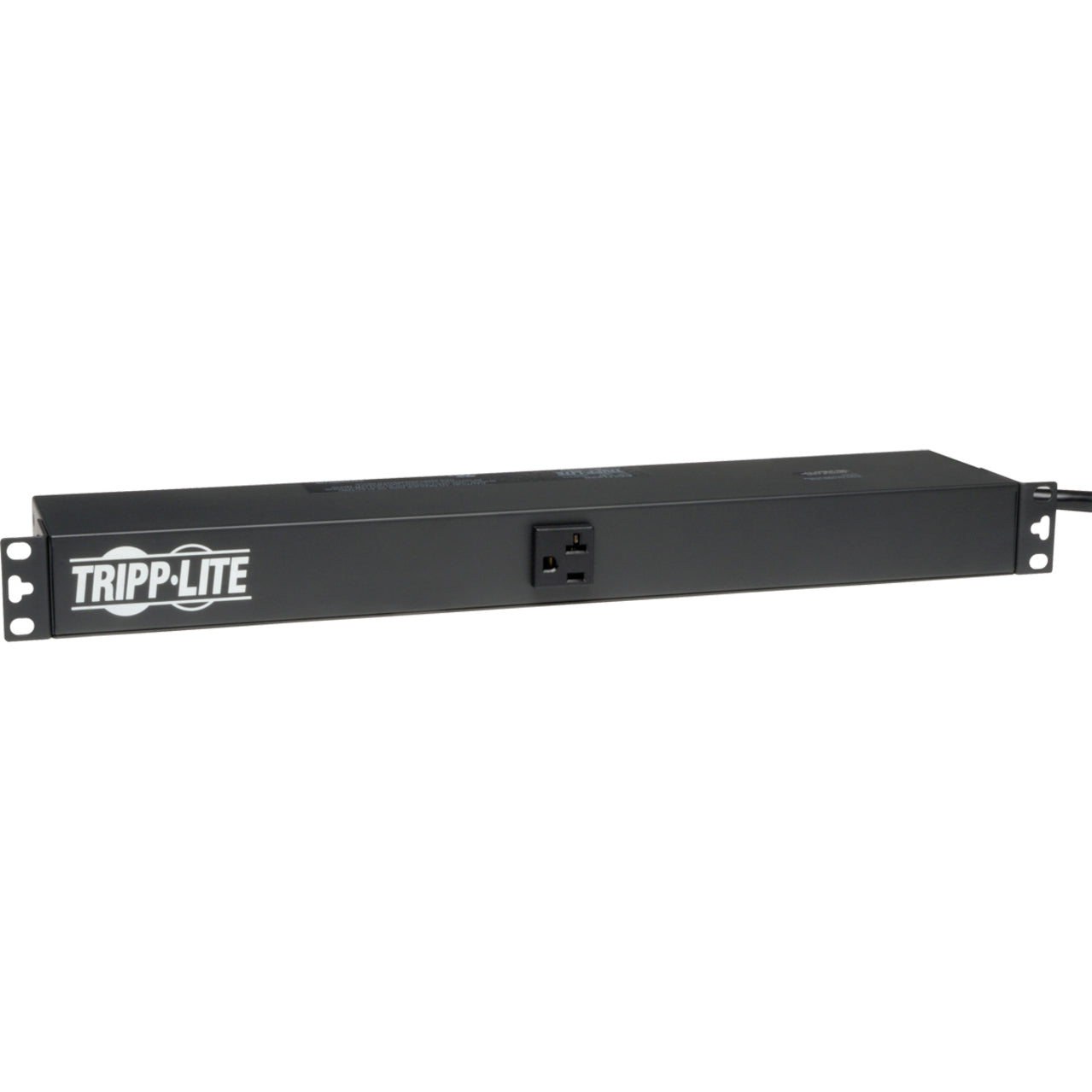

Tripp Lite PDU Single Phase Basic Horizontal 120V 2.4kw 13 5-15/20R 20A 1U
Tripp Lite PDU Single Phase Basic Horizontal 120V 2.4kw 13 5-15/20R 20A 1U
SKU: 10140055 MFR: Tripp Lite by Eaton
GTIN: 37332119148
Product Description
Tripp Lite PDU Single Phase Basic Horizontal 120V 2.4kw 13 5-15/20R 20A 1U - 13 x NEMA 5-20R - 20 - 1U 19" Rack-mountable
Manufacturer : Tripp Lite by Eaton
Manufacturer Part No : PDU1220T
Features
- Basic single phase 20A 120V PDU
- 1U horizontal rackmount installation
- NEMA L5-20P locking input; 15 ft. / 4.5m line cord
- 13 NEMA 5-15/20R outlets (1 front / 12 rear)
Product Details
- PDU1220T PDU Basic 120V 20A L5-20P 13 Outlet
- PDU1220T Rackmount Power Strip
- Instruction manual and warranty information
- Corded AC power distribution unit with 20 amp capacity and 13 AC receptacles - Versatile all-metal cabinet with detachable mounting flanges allows wallmount under-counter and 19 inch rackmount mounting in both 1U or zero-U formats - Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes including zero-U rackmount capability in the cable management area or other available space within a rack enclosure - Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment - When placed in traditional 1U rackmount installation attractive all-metal housing offers the appearance of a 1U blanking panel to the front protecting the 12 rear-facing output receptacles - 13 NEMA5-15/20R output receptacles accept common NEMA5-15 and 5-20 equipment plugs - 15 foot AC cord NEMAL5-20P twist-lock plug connection - Switch-free design prevents the potential for accidental shutoff of connected loads - 20 amp electrical capacity with circuit breaker - 120V AC 50/60Hz electrical compatibility
Tripp Lite's PDU1220T AC power distribution unit offers 20 amp 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19 inch rack with the potential for 0U mounting in the cable management area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with 12 rear-facing outlets and one front-facing measures only 4.5 inches in depth. Unfiltered electrical pass-through without a power switch makes PDU1220T ideal for distributing alternate waveform UPS or generator power in rack enclosures network closets and more. Includes 12 rear-facing NEMA5-20R outlets 1 front-facing NEMA5-20R outlet NEMAL5-20P twist lock plug 15 ft. AC power cord 20 amp circuit breaker grounding lug and rugged all-metal case design. PLUG/OUTLETS - Input: NEMA L5-20P/Output: 13 NEMA5-20R (12 rear-facing one front-facing)ELECTRICAL - 120V AC 50/60Hz 20A (Requires NEMA L5-20R wall receptacle)FORMAT - Supports 19 in. rackmount (1U/0U) wallmount under-counter and more
Dropship
Update
Couldn't load pickup availability
![Tripp Lite PDU Single Phase Basic Horizontal 120V 2.4kw 13 5-15/20R 20A 1U](http://tekmentum.com/cdn/shop/files/10140055_1c4559be-a25f-43b1-9617-56c811e77b21.jpg?v=1698353069&width=1445)
![Tripp Lite PDU Single Phase Basic Horizontal 120V 2.4kw 13 5-15/20R 20A 1U](http://tekmentum.com/cdn/shop/files/10140055_817e8f55-42ee-4e6c-8701-0443aa410fbd.jpg?v=1698353069&width=1445)
![Tripp Lite PDU Single Phase Basic Horizontal 120V 2.4kw 13 5-15/20R 20A 1U](http://tekmentum.com/cdn/shop/files/10140055_1c28c0e2-c415-44a6-9cc1-797a324462f2.jpg?v=1698353069&width=1445)
![Tripp Lite PDU Single Phase Basic Horizontal 120V 2.4kw 13 5-15/20R 20A 1U](http://tekmentum.com/cdn/shop/files/10140055_89c1015f-8631-4822-9e93-98fc398c0ba9.jpg?v=1698353069&width=1445)
![Tripp Lite PDU Single Phase Basic Horizontal 120V 2.4kw 13 5-15/20R 20A 1U](http://tekmentum.com/cdn/shop/files/10140055_7f56c0c6-f8a2-4f52-809b-7d203ef7a59f.jpg?v=1698353069&width=1445)
![Tripp Lite PDU Single Phase Basic Horizontal 120V 2.4kw 13 5-15/20R 20A 1U](http://tekmentum.com/cdn/shop/files/10140055_b96c8b0c-1ed3-4b5f-b810-496c3593a03a.jpg?v=1698353069&width=1445)
Tripp Lite PDU Single Phase Basic Horizontal 120V 2.4kw 13 5-15/20R 20A 1U - 13 x NEMA 5-20R - 20 - 1U 19" Rack-mountable
Manufacturer : Tripp Lite by Eaton
Manufacturer Part No : PDU1220T
Features
- Basic single phase 20A 120V PDU
- 1U horizontal rackmount installation
- NEMA L5-20P locking input; 15 ft. / 4.5m line cord
- 13 NEMA 5-15/20R outlets (1 front / 12 rear)
Product Details
- PDU1220T PDU Basic 120V 20A L5-20P 13 Outlet
- PDU1220T Rackmount Power Strip
- Instruction manual and warranty information
- Corded AC power distribution unit with 20 amp capacity and 13 AC receptacles - Versatile all-metal cabinet with detachable mounting flanges allows wallmount under-counter and 19 inch rackmount mounting in both 1U or zero-U formats - Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes including zero-U rackmount capability in the cable management area or other available space within a rack enclosure - Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment - When placed in traditional 1U rackmount installation attractive all-metal housing offers the appearance of a 1U blanking panel to the front protecting the 12 rear-facing output receptacles - 13 NEMA5-15/20R output receptacles accept common NEMA5-15 and 5-20 equipment plugs - 15 foot AC cord NEMAL5-20P twist-lock plug connection - Switch-free design prevents the potential for accidental shutoff of connected loads - 20 amp electrical capacity with circuit breaker - 120V AC 50/60Hz electrical compatibility
Tripp Lite's PDU1220T AC power distribution unit offers 20 amp 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19 inch rack with the potential for 0U mounting in the cable management area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with 12 rear-facing outlets and one front-facing measures only 4.5 inches in depth. Unfiltered electrical pass-through without a power switch makes PDU1220T ideal for distributing alternate waveform UPS or generator power in rack enclosures network closets and more. Includes 12 rear-facing NEMA5-20R outlets 1 front-facing NEMA5-20R outlet NEMAL5-20P twist lock plug 15 ft. AC power cord 20 amp circuit breaker grounding lug and rugged all-metal case design. PLUG/OUTLETS - Input: NEMA L5-20P/Output: 13 NEMA5-20R (12 rear-facing one front-facing)ELECTRICAL - 120V AC 50/60Hz 20A (Requires NEMA L5-20R wall receptacle)FORMAT - Supports 19 in. rackmount (1U/0U) wallmount under-counter and more
