Output Receptacles:

• 4 x C19
• 16 x C13

• PDU1230 PDU Basic 208V / 240V 30A 20 Outlet
• Instruction Manual with Warranty Information

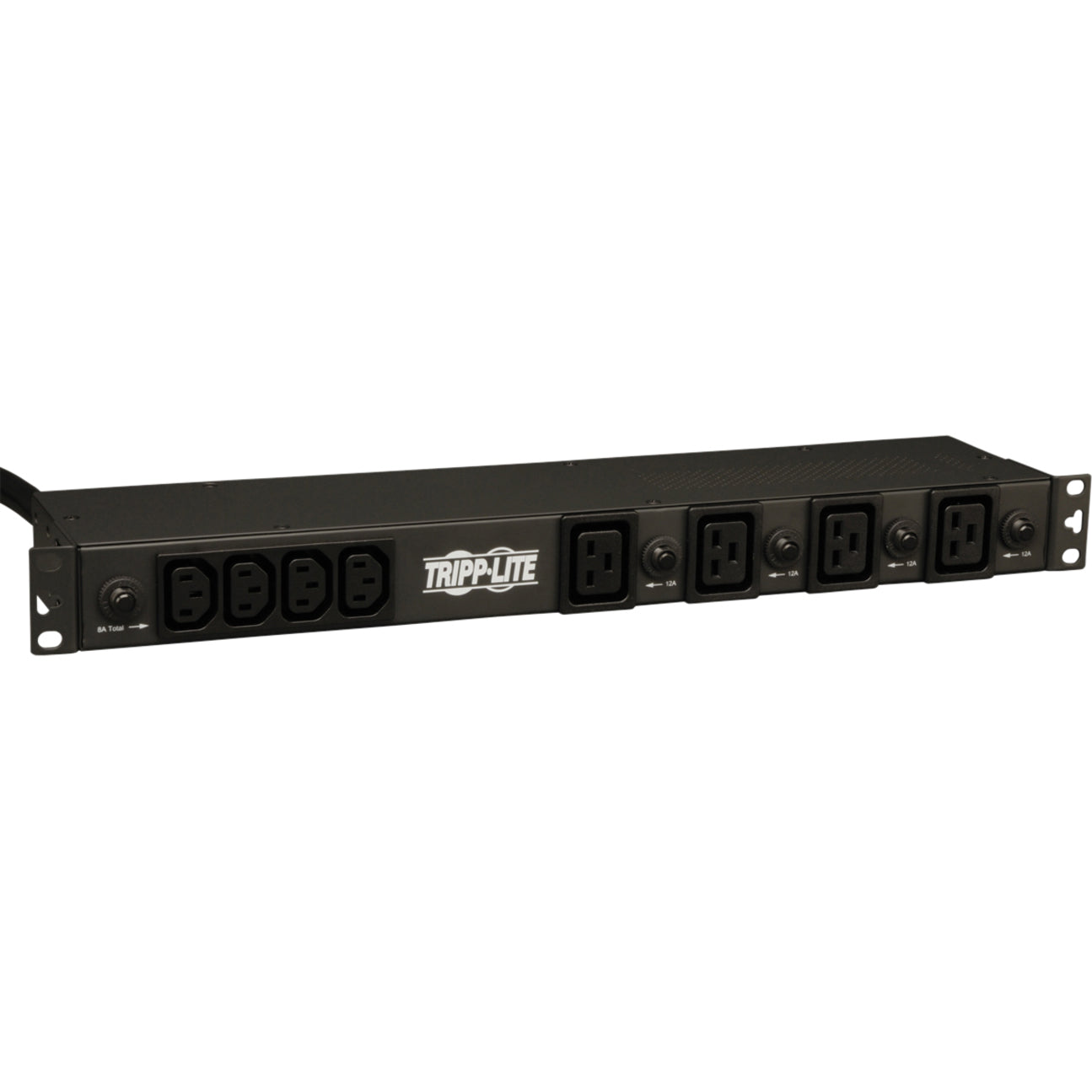

Tripp Lite's PDU1230 offers 208/240V power distribution with L6-30P input plug 15-foot cord and 20 total output receptacles. Features 4 front-panel C19 outlets each protected by separate 15A circuit breakers 4 front-panel C13 outlets and 12 rear-panel C13 outlets protected in banks of 4 by 4 separate 10A circuit breakers. Detachable mounting flanges are configurable for wallmount under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19-inch rack with the potential for 0U vertical mounting in the cable area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with 8 front-facing and 12 rear-facing outlets measures only 5.2 inches in depth. Unfiltered electrical pass-through without a power switch makes the PDU1230 ideal for distributing alternate waveform UPS or generator power in rack enclosures.
