Tripp Lite PDU Switched ATS 120V 30A 24 5-15/20R; 1 L5-30R 2 L5-30P 2URM
Tripp Lite PDU Switched ATS 120V 30A 24 5-15/20R; 1 L5-30R 2 L5-30P 2URM
SKU: 1020434294 MFR: Tripp Lite by Eaton
GTIN: 37332157294
Product Description
Tripp Lite PDU Switched ATS 120V 30A 24 5-15/20R; 1 L5-30R 2 L5-30P 2URM - 24 x NEMA 5-15/20R 1 x NEMA L5-30R - 2UHorizontal Rackmount
Manufacturer : Tripp Lite by Eaton
Manufacturer Part No : PDUMH30ATNET
Features
- Single phase 30A 120V Auto Transfer Switch / ATS PDU; Highly reliable Solid State Switching
- Enables redundant A/B power option for non-redundant network devices
- Built-in LX Platform Network Interface
- 2U rackmount 2 L5-30P inputs 25 switched outlets (24 5-15/20R 1 L5-30R)
- Individually switched outlets and built-in network interface enables remote control and monitoring

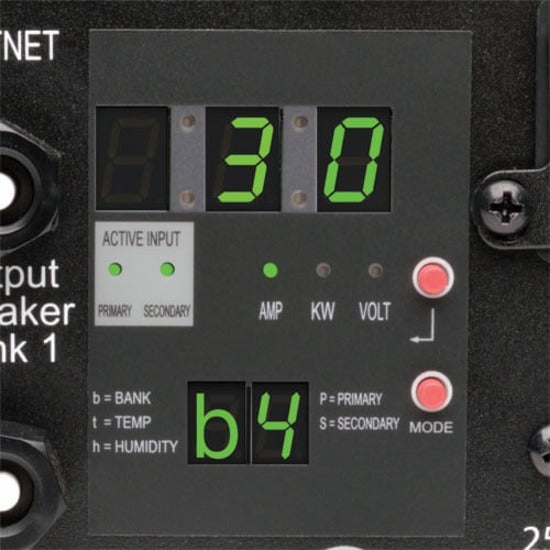

- Digital meter reports voltage kW load level and output amperage in 4 load segments
- TAA Compliant
Product Details
Protocols:
- FTP
- SSH
- NTP
- DHCP
- HTTP
- SMTP
- Telnet
- HTTPS
- BOOTP
- SNMPv1
- SNMPv2
Tripp Lite Switched ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether the ATS will switch over to the secondary power source until the primary input is restored and stable. Highly reliable solid-state switching between primary and secondary inputs occurs in 1-5 milliseconds. Switched PDU features include individually controllable output receptacles and built-in network interface. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources regardless of phase angle to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability. Built-in LX Platform network management interface card. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP and NTP.
- Switched PDUMH30ATNET 25-Outlets PDU
- Rackmount Installation Brackets
- Cable Retention Plates
- 24 Cable Ties
- User Manual
Dropship
Update
Couldn't load pickup availability
![Tripp Lite PDU Switched ATS 120V 30A 24 5-15/20R; 1 L5-30R 2 L5-30P 2URM](http://tekmentum.com/cdn/shop/files/1020434294_60e788a9-84f1-4004-bd0d-4166d7d14232.jpg?v=1698364313&width=1445)
![Tripp Lite PDU Switched ATS 120V 30A 24 5-15/20R; 1 L5-30R 2 L5-30P 2URM](http://tekmentum.com/cdn/shop/files/1020434294_89846740-4263-454e-a624-630b10b370b2.jpg?v=1698364313&width=1445)
![Tripp Lite PDU Switched ATS 120V 30A 24 5-15/20R; 1 L5-30R 2 L5-30P 2URM](http://tekmentum.com/cdn/shop/files/1020434294_96520862-bbf8-40e4-84fa-2c302abdd6af.jpg?v=1698364313&width=1445)
![Tripp Lite PDU Switched ATS 120V 30A 24 5-15/20R; 1 L5-30R 2 L5-30P 2URM](http://tekmentum.com/cdn/shop/files/1020434294_4ea2bac7-0574-4f4c-bfcd-384a6513dc62.jpg?v=1698364313&width=1445)
![Tripp Lite PDU Switched ATS 120V 30A 24 5-15/20R; 1 L5-30R 2 L5-30P 2URM](http://tekmentum.com/cdn/shop/files/1020434294_83293719-3938-428e-abaa-d3836bd0b292.jpg?v=1698364313&width=1445)
![Tripp Lite PDU Switched ATS 120V 30A 24 5-15/20R; 1 L5-30R 2 L5-30P 2URM](http://tekmentum.com/cdn/shop/files/1020434294_b4cc5293-8b7f-4b15-8f05-e6ddffedd537.jpg?v=1698364313&width=1445)
![Tripp Lite PDU Switched ATS 120V 30A 24 5-15/20R; 1 L5-30R 2 L5-30P 2URM](http://tekmentum.com/cdn/shop/files/1020434294_b1586c18-1231-49fc-9975-b96b7124811d.jpg?v=1698364313&width=1445)
![Tripp Lite PDU Switched ATS 120V 30A 24 5-15/20R; 1 L5-30R 2 L5-30P 2URM](http://tekmentum.com/cdn/shop/files/1020434294_6ac7cb34-8bda-4bef-80fd-8dcc547b1985.jpg?v=1698364313&width=1445)
![Tripp Lite PDU Switched ATS 120V 30A 24 5-15/20R; 1 L5-30R 2 L5-30P 2URM](http://tekmentum.com/cdn/shop/files/1020434294_a72a13f7-e91e-4fdb-8c89-e3ebfb88bec8.jpg?v=1698364313&width=1445)
![Tripp Lite PDU Switched ATS 120V 30A 24 5-15/20R; 1 L5-30R 2 L5-30P 2URM](http://tekmentum.com/cdn/shop/files/1020434294_0baf3223-4ff3-4b9a-ac2c-556e8af90f82.jpg?v=1698364313&width=1445)
![Tripp Lite PDU Switched ATS 120V 30A 24 5-15/20R; 1 L5-30R 2 L5-30P 2URM](http://tekmentum.com/cdn/shop/files/1020434294_99a12dfc-92bb-4611-b93b-0b28e0518ab0.jpg?v=1698364313&width=1445)
![Tripp Lite PDU Switched ATS 120V 30A 24 5-15/20R; 1 L5-30R 2 L5-30P 2URM](http://tekmentum.com/cdn/shop/files/1020434294_0747f107-23ab-4384-b23e-56454ea38465.jpg?v=1698364313&width=1445)
![Tripp Lite PDU Switched ATS 120V 30A 24 5-15/20R; 1 L5-30R 2 L5-30P 2URM](http://tekmentum.com/cdn/shop/files/1020434294_5cc7e666-b27b-4c86-b1c3-fe7ddf59e55d.jpg?v=1698364313&width=1445)
![Tripp Lite PDU Switched ATS 120V 30A 24 5-15/20R; 1 L5-30R 2 L5-30P 2URM](http://tekmentum.com/cdn/shop/files/1020434294_03453d51-7a55-4b9a-849e-0b941c8c021c.jpg?v=1698364313&width=1445)
Tripp Lite PDU Switched ATS 120V 30A 24 5-15/20R; 1 L5-30R 2 L5-30P 2URM - 24 x NEMA 5-15/20R 1 x NEMA L5-30R - 2UHorizontal Rackmount
Manufacturer : Tripp Lite by Eaton
Manufacturer Part No : PDUMH30ATNET
Features
- Single phase 30A 120V Auto Transfer Switch / ATS PDU; Highly reliable Solid State Switching
- Enables redundant A/B power option for non-redundant network devices
- Built-in LX Platform Network Interface
- 2U rackmount 2 L5-30P inputs 25 switched outlets (24 5-15/20R 1 L5-30R)
- Individually switched outlets and built-in network interface enables remote control and monitoring
- Digital meter reports voltage kW load level and output amperage in 4 load segments
- TAA Compliant
Product Details
Protocols:
- FTP
- SSH
- NTP
- DHCP
- HTTP
- SMTP
- Telnet
- HTTPS
- BOOTP
- SNMPv1
- SNMPv2
Tripp Lite Switched ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether the ATS will switch over to the secondary power source until the primary input is restored and stable. Highly reliable solid-state switching between primary and secondary inputs occurs in 1-5 milliseconds. Switched PDU features include individually controllable output receptacles and built-in network interface. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources regardless of phase angle to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability. Built-in LX Platform network management interface card. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP and NTP.
- Switched PDUMH30ATNET 25-Outlets PDU
- Rackmount Installation Brackets
- Cable Retention Plates
- 24 Cable Ties
- User Manual
