• FCC Class B
• EN55022 Class B
• UL1950
• CSA 22.2
• TUV EN60950

• Battery Systems
• Vehicle Applications
• Wireless Access Points
• Client Devices
• IP Phone
• Security Camera Systems

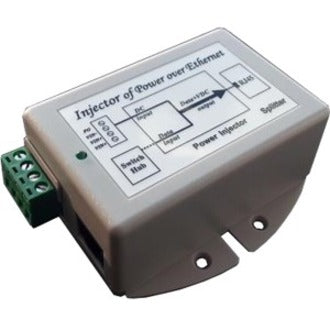

The TP-DCDCGigabit Seriesof DC to DC converters offered by Tycon Power Systems are a low cost and high efficiency solution for those requiring IEEE802.3af and IEEE802.3at or Passive Power over Ethernet from a 12VDC or 24VDC or 48VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the power and data output to the CAT5 Ethernet cable. The output voltage is regulated and protected. They have two isolated inputs for connecting 2 power sources like a primary and backup power source. A metal enclosure model is available for industrial applications.
They accept gigabit data-into a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 45(V+) and 78(V-). They have various protections for surge short circuit and overload. The units have power outputs up to 35W.
