• Tycon Power POE 5 Port Switch

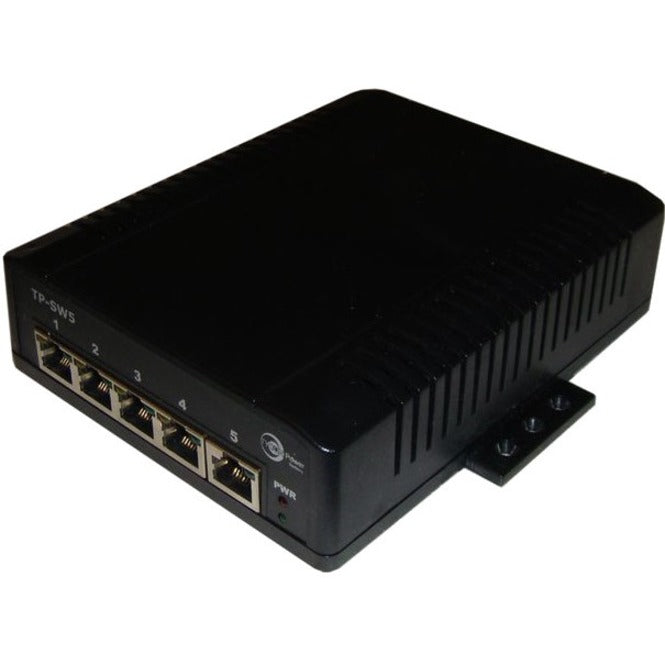

    Tycon Power POE 5 Port Switch
1 1

Tycon Power POE 5 Port Switch

Tycon Power POE 5 Port Switch

SKU: 1029274085      MFR: Tycon Power Systems

GTIN: 10679065633545

Product Description

Tycon Power POE 5 Port Switch - 5 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-TX - 2 Layer Supported - Twisted Pair - Rail-mountable - 2 Year Limited Warranty

Manufacturer : Tycon Power Systems

Manufacturer Part No : TP-SW5G-D

Features

  • Create your own LAN and connect your PC laptop printer and other peripherals with the help of 5 ports
  • Cascade to other network devices through the uplink port to expand your local area network
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
  • Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
  • With leading Layer 2 support experience enhanced convenience secure business operations and a borderless network experience
  • Managed switch provides a reliable foundation for your network
  • Rail mounting is ideal for factory areas in vehicles and marine applications

Product Details

Product TypeEthernet Switch
ManageableYes
Ethernet TechnologyGigabit Ethernet
Product FamilyTP-SW5
Stack PortNo
Media Type SupportedTwisted Pair
Total Number of Network Ports5
Redundant Power Supply SupportedNo
Brand NameTycon Power
Form FactorRail-mountable
Layer Supported2
ModularNo
Uplink PortYes
Port/Expansion Slot Details5 x Gigabit Ethernet Network
Height1.6"
Width6.3"
Depth4.6"
Product SeriesTP-SW5
ManufacturerTycon Power Systems
Product ModelTP-SW5G-D
Product NamePOE 5 Port Switch
Network Technology10/100/1000Base-TX
Manufacturer Part NumberTP-SW5G-D
Manufacturer Website Addresshttp://www.tyconpower.com
Marketing Information

The SW5 Series Power Over Ethernet (POE) switches offered by Tycon Power Systems are fully automatic high speed 5 port Ethernet switches with up to 2A of POE power per port. The switch comes in 4 models:

TP-SW5G-D: IEEE802.3af/at Compliant 48VDC 10/100/1000MB POE Switch. Switch accepts 48VDC power via a wire terminal connector on the back of the Switch or via 48VDC POE into the 802.3af/at compliant uplink port (90W max). 35W per port.

TP-SW5G-24: IEEE802.3af/at Compliant 48VDC 10/100/1000MB POE Switch. Switch accepts 12-36VDC power via a wire terminal connector on the back of the Switch or via 48VDC POE into the 802.3af/at compliant uplink port (90W max). Perfect for remote solar/battery systems. 35W per port.

TP-SW5G-NC: Universal Voltage 10/100/1000MB POE Switch. Switch accepts universal voltage (12-57VDC) via the wire terminal connector on the back of the switch. Also accepts 12-57VDC (1A max) Passive POE input on port 5. 1A per port.

TP-SSW5-NC: Universal Voltage 10/100 POE Switch. Switch accepts universal voltage (12-57VDC) via the wire terminal connector on the back of the Switch. This model is very compact at only 4"x5"x1.5". 2A per port.

On the universal voltage models ("-NC") the POE output voltage = the input voltage so it is universal in its application. The Ethernet spec supports distances up to 100m (328 feet) between the POE switch and the remote device. The Switches accept connections for up to two power supplies if additional power is required or if a backup power source is desired.

Tycon Power Systems sells a variety of power supplies in 60W 120W and 180W sizes. 18VDC 24VDC and 48VDC are available. All the Switches have DIN Rail mounts included for convenient DIN rail mounting.
Package Contents
  • POE 5 Port Switch
  • DIN Rail Mounting
Limited Warranty2 Year
Weight (Approximate)11.22 oz
View full details
$222.99 USD
$222.99
Sale Sold out

Back Order

Get it by Tue, Aug 04 - Sun, Aug 09


Update


Shipping calculated at checkout.

Tycon Power POE 5 Port Switch - 5 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-TX - 2 Layer Supported - Twisted Pair - Rail-mountable - 2 Year Limited Warranty

Manufacturer : Tycon Power Systems

Manufacturer Part No : TP-SW5G-D

Features

  • Create your own LAN and connect your PC laptop printer and other peripherals with the help of 5 ports
  • Cascade to other network devices through the uplink port to expand your local area network
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
  • Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
  • With leading Layer 2 support experience enhanced convenience secure business operations and a borderless network experience
  • Managed switch provides a reliable foundation for your network
  • Rail mounting is ideal for factory areas in vehicles and marine applications

Product Details

Product TypeEthernet Switch
ManageableYes
Ethernet TechnologyGigabit Ethernet
Product FamilyTP-SW5
Stack PortNo
Media Type SupportedTwisted Pair
Total Number of Network Ports5
Redundant Power Supply SupportedNo
Brand NameTycon Power
Form FactorRail-mountable
Layer Supported2
ModularNo
Uplink PortYes
Port/Expansion Slot Details5 x Gigabit Ethernet Network
Height1.6"
Width6.3"
Depth4.6"
Product SeriesTP-SW5
ManufacturerTycon Power Systems
Product ModelTP-SW5G-D
Product NamePOE 5 Port Switch
Network Technology10/100/1000Base-TX
Manufacturer Part NumberTP-SW5G-D
Manufacturer Website Addresshttp://www.tyconpower.com
Marketing Information

The SW5 Series Power Over Ethernet (POE) switches offered by Tycon Power Systems are fully automatic high speed 5 port Ethernet switches with up to 2A of POE power per port. The switch comes in 4 models:

TP-SW5G-D: IEEE802.3af/at Compliant 48VDC 10/100/1000MB POE Switch. Switch accepts 48VDC power via a wire terminal connector on the back of the Switch or via 48VDC POE into the 802.3af/at compliant uplink port (90W max). 35W per port.

TP-SW5G-24: IEEE802.3af/at Compliant 48VDC 10/100/1000MB POE Switch. Switch accepts 12-36VDC power via a wire terminal connector on the back of the Switch or via 48VDC POE into the 802.3af/at compliant uplink port (90W max). Perfect for remote solar/battery systems. 35W per port.

TP-SW5G-NC: Universal Voltage 10/100/1000MB POE Switch. Switch accepts universal voltage (12-57VDC) via the wire terminal connector on the back of the switch. Also accepts 12-57VDC (1A max) Passive POE input on port 5. 1A per port.

TP-SSW5-NC: Universal Voltage 10/100 POE Switch. Switch accepts universal voltage (12-57VDC) via the wire terminal connector on the back of the Switch. This model is very compact at only 4"x5"x1.5". 2A per port.

On the universal voltage models ("-NC") the POE output voltage = the input voltage so it is universal in its application. The Ethernet spec supports distances up to 100m (328 feet) between the POE switch and the remote device. The Switches accept connections for up to two power supplies if additional power is required or if a backup power source is desired.

Tycon Power Systems sells a variety of power supplies in 60W 120W and 180W sizes. 18VDC 24VDC and 48VDC are available. All the Switches have DIN Rail mounts included for convenient DIN rail mounting.
Package Contents
  • POE 5 Port Switch
  • DIN Rail Mounting
Limited Warranty2 Year
Weight (Approximate)11.22 oz
