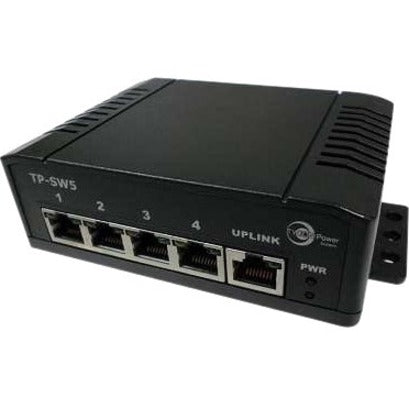

Tycon Power POE 5 Port Switch

Tycon Power POE 5 Port Switch

SKU: 1025046568      MFR: Tycon Power Systems

GTIN: 633090397615

Product Description

Tycon Power POE 5 Port Switch - 5 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-TX - 2 Layer Supported - AC Adapter - Twisted Pair - Rail-mountable Desktop - 2 Year Limited Warranty

Manufacturer : Tycon Power Systems

Manufacturer Part No : TP-SW5G-NC

Features

  • Create your own LAN and connect your PC laptop printer and other peripherals with the help of 5 ports
  • Cascade to other network devices through the uplink port to expand your local area network
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
  • Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
  • With leading Layer 2 support experience enhanced convenience secure business operations and a borderless network experience
  • Management capability provides control over setup and configuration of your network
  • No need to deal with power supply issues the switch comes with a separate AC adapter to power up the unit
  • The switch is rail mountable you can easily install it in racks with concrete stability

Product Details

Product TypeEthernet Switch
ManageableYes
Ethernet TechnologyGigabit Ethernet
ModularNo
Uplink PortYes
Stack PortNo
Media Type SupportedTwisted Pair
Total Number of Network Ports5
Port/Expansion Slot Details5 x Gigabit Ethernet Network
Redundant Power Supply SupportedNo
Height1.6"
Width6.3"
Depth4.6"
Product SeriesTP-SW5
Brand NameTycon Power
Form FactorRail-mountable
ManufacturerTycon Power Systems
Product ModelTP-SW5G-NC
Product NamePOE 5 Port Switch
Network Technology10/100/1000Base-TX
Manufacturer Part NumberTP-SW5G-NC
Manufacturer Website Addresshttp://www.tyconpower.com
Marketing Information

Tycon Power Systems

TP-SW5G-NC: Universal Voltage 10/100/1000MB PoE Switch. Switch accepts a voltage from 12-56VDC and outputs the same voltage to 4 PoE ports. 1A per port.

The unit supplies PoE power to the remote device on Ethernet pins 45(V+) and 78(V-). The Ethernet spec supports distances up to 100m (328 feet) between the PoE switch and the remote device.

The switch accepts DC power from any power supply. The PoE output voltage equals the DC voltage of the power supply used from 12V to 56VDC. The switch also includes an unpoowered uplink port. The switch can be powered through this uplink port with 12V to 56VDC so it can be used as a repeater/extender in a remote location.
Power SourceAC Adapter
Package Contents
  • POE 5 Port Switch
  • DIN Rail Mountable Kit
Limited Warranty2 Year
Layer Supported2
Weight (Approximate)1.10 lb
Product FamilyTP-SW5
View full details
$214.99 USD
$214.99
Sale Sold out

Back Order

Get it by Tue, Aug 04 - Sun, Aug 09
