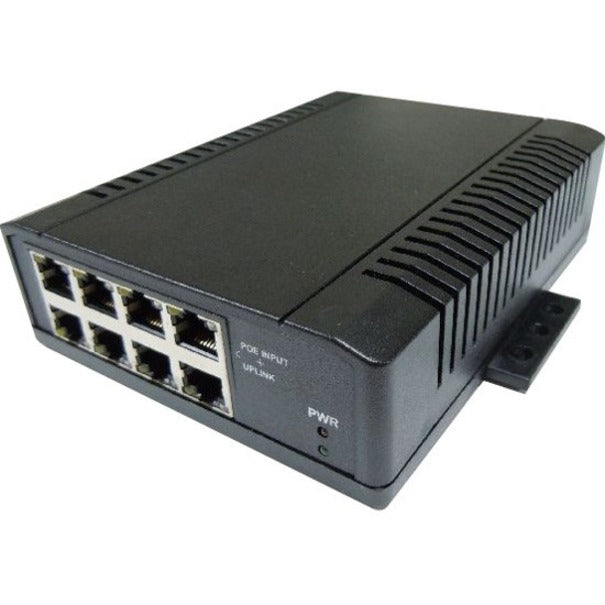

• Tycon Power PoE 8 Port Switch
    Tycon Power PoE 8 Port Switch
1 1

Tycon Power PoE 8 Port Switch

Tycon Power PoE 8 Port Switch

SKU: 1029274086      MFR: Tycon Power Systems

GTIN: 10679065633590

Product Description

Tycon Power PoE 8 Port Switch - 8 Ports - Manageable - Fast Ethernet - 10/100Base-T - 2 Layer Supported - Power Supply - Twisted Pair - Rail-mountable - 1 Year Limited Warranty

Manufacturer : Tycon Power Systems

Manufacturer Part No : TP-SW8-D

Features

  • Features 8 networking ports to easily establish a local network or expand your existing one
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
  • Fast Ethernet technology gives ideal solution for extending network connections to conference rooms labs lobbies and department workgroups
  • Layer 2 switch provides a complete lineup of features including IGMP snooping port mirroring and spanning tree
  • Managed switch provides a reliable foundation for your network
  • Built-in power supply to ensure all components are being supplied with accurate voltage
  • The switch is rail mountable you can easily install it in racks with concrete stability

Product Details

Product TypeEthernet Switch
ManageableYes
Ethernet TechnologyFast Ethernet
Product FamilyTP-SW8
Stack PortNo
Media Type SupportedTwisted Pair
Total Number of Network Ports8
Redundant Power Supply SupportedYes
Brand NameTycon Power
Form FactorRail-mountable
Power SourcePower Supply
Layer Supported2
ModularNo
Uplink PortNo
Port/Expansion Slot Details8 x Fast Ethernet Network
Height1.6"
Width6.3"
Depth4.6"
Product SeriesTP-SW8
ManufacturerTycon Power Systems
Product ModelTP-SW8-D
Product NamePoE 8 Port Switch
Network Technology10/100Base-T
Manufacturer Part NumberTP-SW8-D
Manufacturer Website Addresshttp://www.tyconpower.com
Marketing Information

The TP-SW8-D Power Over Ethernet 802.3af/at (PoE) 10/100Mb switch offered by Tycon Power Systems is a fully automatic high speed 8 port Ethernet switch. The -NC version is a passive PoE model for devices which are not 802.3af/at compliant. On the -NC version the PoE output voltage = the input voltage so it is universal in its application. The DC input power range can be from 12V to 57V. The units can be powered via 2 or 4 pair PoE to port 8 (2A max). Both models supply power to the remote device on the unused Ethernet pins 45(V+) and 78(V-). The Ethernet spec supports distances up to 100m (328 feet) between the PoE switch and the remote device.

18V 24V and 48V 60W 120W and 180W power supplies are available. There are 2 power inputs for attachment of primary and backup power sources.
Package Contents
  • PoE 8 Port Switch
  • DIN rail Adapters
Limited Warranty1 Year
Weight (Approximate)1.10 lb
