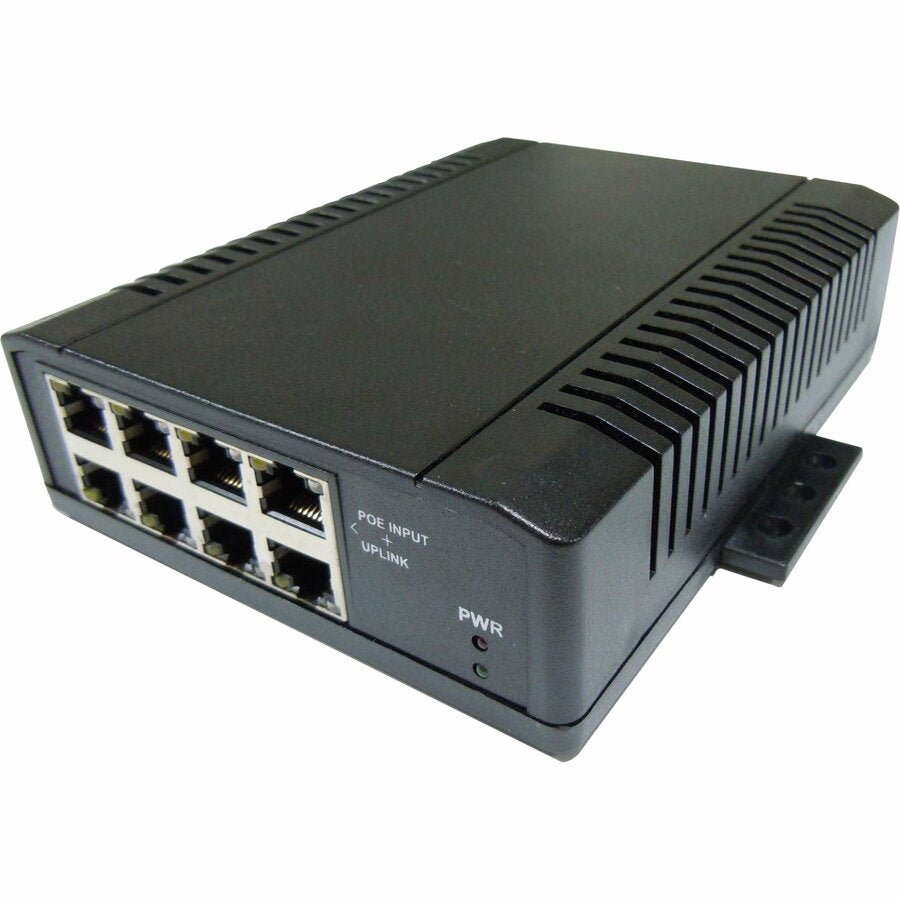

• Tycon Power PoE 8 Port Switch
    Tycon Power PoE 8 Port Switch
1 1

Tycon Power PoE 8 Port Switch

Tycon Power PoE 8 Port Switch

SKU: 1025046571      MFR: Tycon Power Systems

GTIN: 633090397660

Product Description

Tycon Power PoE 8 Port Switch - 8 Ports - Fast Ethernet - 10/100Base-TX - 2 Layer Supported - PoE - Twisted Pair - PoE Ports - Rail-mountable - 1 Year Limited Warranty

Manufacturer : Tycon Power Systems

Manufacturer Part No : TP-SW8-NC

Features

  • Expand your network capacity with the help of 8 networking ports and transfer your data quickly and easily
  • Cascade to other network devices through the uplink port to expand your local area network
  • Electrical power is transmitted along with data in a single cable to devices such as Access Points IP cameras or IP phones
  • Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
  • Layer 2 switch provides a complete lineup of features including IGMP snooping port mirroring and spanning tree
  • The unmanaged switch provides a quick easy and cost-saving way to add wired networking to your home office or small business; no intervention needed
  • No need for power lines and outlets the switch is capable of obtaining power from the PoE source
  • The switch is rail mountable you can easily install it in racks with concrete stability

Product Details

Product TypeEthernet Switch
ManageableNo
Twisted Pair Cable StandardCategory 5
Token Ring PortNo
LRE PortNo
Ethernet TechnologyFast Ethernet
USBNo
ModularNo
Management PortNo
Uplink PortYes
Number of PoE (RJ-45) Ports8
Stack PortNo
Media Type SupportedTwisted Pair
BypassNo
Total Number of Network Ports8
PoE (RJ-45) PortYes
Port/Expansion Slot Details7 x Fast Ethernet Network
Height1.6"
Width4.6"
Depth6.3"
Certifications & Standards
  • CE
  • FCC
IEEE standards:
  • 802.3
  • 802.3af
  • 802.3at
  • 802.3u
  • 802.3x
Product SeriesTP-SW8
Brand NameTycon Power
Form FactorRail-mountable
ManufacturerTycon Power Systems
Product ModelTP-SW8-NC
Product NamePoE 8 Port Switch
Network Technology10/100Base-TX
Input Voltage57 V DC
Manufacturer Part NumberTP-SW8-NC
Manufacturer Website Addresshttp://www.tyconpower.com
Marketing InformationThe TP-SW8-D Power Over Ethernet 802.3af/at (PoE) 10/100Mb switch offered by Tycon Power Systems is a fully automatic high speed 8 port Ethernet switch. The -NC version is a non compliant model for devices which are not 802.3af/at compliant. On the -NC version the PoE output voltage = the input voltage so it is universal in its application. The DC input power range can be from 12V to 57V. The units can be powered via PoE to port 8 (2A max). Both models supply power to the remote device on the unused Ethernet pins 45(V+) and 78(V-). The Ethernet spec supports distances up to 100m (328 feet) between the PoE switch and the remote device.

18V 24V and 48V 60W 120W and 180W power supplies are available. There are 2 power inputs for attachment of primary and backup power sources.
Power SourcePoE
Package Contents
  • PoE 8 Port Switch
  • DIN Rail Mounts
Limited Warranty1 Year
Layer Supported2
Weight (Approximate)15.87 oz
Product FamilyTP-SW8
