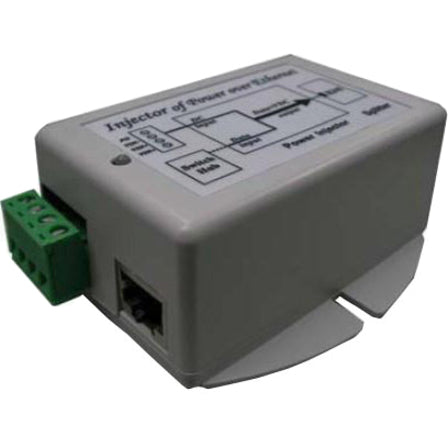

Tycon Power TP-DCDC-1248GD Power over Ethernet Injector

Tycon Power TP-DCDC-1248GD Power over Ethernet Injector

SKU: 1024670782      MFR: Tycon Power Systems

GTIN: 633090397035

Product Description

Tycon Power TP-DCDC-1248GD Power over Ethernet Injector - 12 V DC 24 V DC Input - 48 V DC 350 mA Output - 10/100/1000Base-T Input Port(s) - 10/100/1000Base-T Output Port(s) - 17 W

Manufacturer : Tycon Power Systems

Manufacturer Part No : TP-DCDC-1248GD

Product Details

Product TypePoE Injector
Maximum Output Current350 mA
Maximum Output Power17 W
Maximum Output Voltage48 V DC
Height1.4"
Width3"
Certifications & Standards
  • IEEE802.3af
  • IEEE802.3at
  • FCC Class B
  • EN55022 Class B
  • UL1950
  • CSA 22.2
  • TUV EN60950
Product SeriesTP-DCDC
Brand NameTycon Power
Input Ports10/100/1000Base-T
Output Ports10/100/1000Base-T
Compatibility
  • 12V / 24V / 48V Battery Systems
  • Wireless Access Points
  • Client Devices
  • IP Phone
  • Security Camera Systems
Length3.3"
ManufacturerTycon Power Systems
Product ModelTP-DCDC-1248GD
Product NameTP-DCDC-1248GD Power over Ethernet Injector
Input Voltage12 V DC
Input Voltage24 V DC
Manufacturer Part NumberTP-DCDC-1248GD
Manufacturer Website Addresshttp://www.tyconpower.com
Marketing InformationThe TP-DCDC Gigabit Series of DC to DC converters offered by Tycon Power Systems are a low cost and high efficiency solution for those requiring IEEE802.3af and IEEE802.3at Power Over Ethernet from a 12VDC or 24VDC or
48VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the 802.3af or 802.3at output to the CAT5 Ethernet cable. The output voltage is regulated 48VDC-56VDC. They have two isolated inputs for connecting 2 power sources like a primary and backup power source. A metal enclosure model is available for industrial applications.

They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and POE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 45(V+) and 78(V-). They have various protections for surge short circuit and overload. The units have power outputs up to 35W.

If the remote device does not support 802.3af or 802.3at power over Ethernet a TP-POE-1224 802.3xx converter is available to change the POE output to passive POE with 12V or 24VDC POE output.
Limited Warranty1 Year
Weight (Approximate)4.73 oz
View full details
$74.99 USD
$74.99
Sale Sold out

Dropship


Update


Shipping calculated at checkout.
