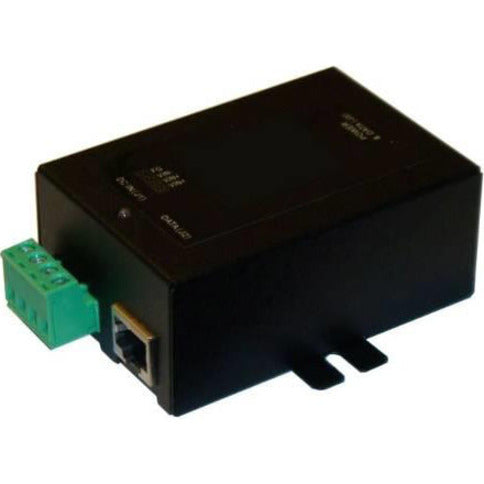

Tycon Power TP-DCDC-1248M Power over Ethernet Injector

Tycon Power TP-DCDC-1248M Power over Ethernet Injector

SKU: 1024670781      MFR: Tycon Power Systems

GTIN: 633090397011

Product Description

Tycon Power TP-DCDC-1248M Power over Ethernet Injector - 12 V DC 24 V DC Input - 48 V DC 500 mA Output - 10/100/1000Base-T Input Port(s) - 10/100/1000Base-T Output Port(s) - 24 W

Manufacturer : Tycon Power Systems

Manufacturer Part No : TP-DCDC-1248-M

Product Details

Product TypePoE Injector
Maximum Output Current500 mA
Maximum Output Power24 W
Maximum Output Voltage48 V DC
Height1.4"
Width3"
Certifications & Standards
  • IEEE802.3af
  • FCC Class B
  • NE55022 Class B
  • UL1950
  • CSA 22.2
  • TUV EN60950
Product SeriesTP-DCDC
Brand NameTycon Power
Input Ports10/100/1000Base-T
Output Ports10/100/1000Base-T
Compatibility
  • 12V / 24V Battery Systems
  • Wireless Access Points
  • Client Devices
  • IP Phone
  • Security Camera Systems
Length3.3"
ManufacturerTycon Power Systems
Product ModelTP-DCDC-1248-M
Product NameTP-DCDC-1248M Power over Ethernet Injector
Input Voltage12 V DC
Input Voltage24 V DC
Manufacturer Part NumberTP-DCDC-1248-M
Manufacturer Website Addresshttp://www.tyconpower.com
Marketing InformationThe TP-DCDC Series of DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 18V to 48VDC Power Over Ethernet voltage from a 12 or 24V battery system. They have an integrated POE injector to apply the 48VDC to the CAT5 Ethernet cable. The output is regulated 18V 24V or 48VDC from an input voltage between 9VDC and 36VDC. They have two isolated inputs for connecting 2 power sources like a primary and backup power source. A metal enclosure model is available for industrial applications.

They accept data-in to a shielded RJ45 Jack and provide data-out and POE power on the shielded RJ45 output jack.
They work by supplying power on the unused Ethernet pins 45(V+) and 78(V-). An IEEE 802.3af compliant model is
available for those applications requiring 802.3af handshake.

They have various protections for surge short circuit and overload. The units have power output up to 24W.


Limited Warranty1 Year
Weight (Approximate)4.73 oz
View full details
$93.99 USD
$93.99
Sale Sold out

Dropship


Update


Shipping calculated at checkout.
