• Tycon Power TP-DCDC-4848D-HP PoE Injector

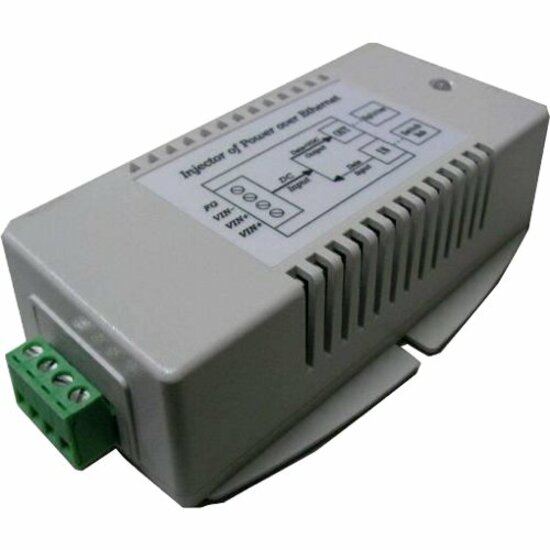

    Tycon Power TP-DCDC-4848D-HP PoE Injector
1 1

Tycon Power TP-DCDC-4848D-HP PoE Injector

Tycon Power TP-DCDC-4848D-HP PoE Injector

SKU: 1025046563      MFR: Tycon Power Systems

GTIN: 633090397127

Product Description

Tycon Power TP-DCDC-4848D-HP PoE Injector - 48 V DC Input - 56 V DC 625 mA Output - 10/100/1000Base-T Input Port(s) - 10/100/1000Base-T Output Port(s) - 35 W

Manufacturer : Tycon Power Systems

Manufacturer Part No : TP-DCDC-4848D-HP

Product Details

Product TypePoE Injector
Maximum Output Current625 mA
Maximum Output Power35 W
Maximum Output Voltage56 V DC
Height1.5"
Width3"
Certifications & Standards
  • IEEE802.3at
  • FCC Class B
  • EN55022 Class B
  • UL1950
  • CSA 22.2
  • TUV EN60950
Product SeriesTP-DCDC
Brand NameTycon Power
Input Ports10/100/1000Base-T
Output Ports10/100/1000Base-T
Compatibility
  • 12V / 24V / 48V Battery Systems
  • Wireless Access Points
  • Client Devices
  • IP Phone
  • Security Camera Systems
Length4.9"
ManufacturerTycon Power Systems
Product ModelTP-DCDC-4848D-HP
Product NameTP-DCDC-4848D-HP PoE Injector
Input Voltage48 V DC
Manufacturer Part NumberTP-DCDC-4848D-HP
Manufacturer Website Addresshttp://www.tyconpower.com
Marketing InformationThe TP-DCDC-HP Series of DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 56VDC Power Over Ethernet voltage from a 24V or 48V battery system. They have an
integrated POE injector to apply the 24VDC or 56VDC to the CAT5 Ethernet cable. Passive POE and 802.3at models are available. They have two isolated inputs for connecting 2 power sources like a primary and backup power source.

They accept data-in to a shielded RJ45 Jack and provide data-out and POE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 45(V+) and 78(V-). They have various protections for surge short circuit and overload. The units have a power output of up to 35W. The input and output are isolated so the units can accept minus voltage on input and can be wired for positive voltage on the output for those systems which are negative voltage based.

If the remote device does not support power over Ethernet splitters (POE-SPLT) are available to split the data and DC voltage at the remote device. If the remote device requires reverse voltage the POE-XOVER cable can be used.
Limited Warranty1 Year
Weight (Approximate)10.58 oz
