Ubiquiti airMAX GigaBeam Plus 60 GHz Radio

Ubiquiti airMAX GigaBeam Plus 60 GHz Radio

SKU: 1066988699      MFR: Ubiquiti Inc.

GTIN: 810010075123

Product Description

Ubiquiti airMAX GigaBeam Plus 60 GHz Radio

Manufacturer : Ubiquiti Inc.

Manufacturer Part No : GBE-PLUS-US

Product Details

Product TypeRadio Modem
Product FamilyairMAX GigaBeam Plus
Brand NameUbiquiti
Ethernet TechnologyGigabit Ethernet
Network (RJ-45)Yes
Modem Transmission Data Rate187.50 MB/s
Product MaterialPolycarbonate
Height5.4"
Certifications & Standards
  • FCC
  • IC
  • CE
ManufacturerUbiquiti Inc.
Product ModelGBE-Plus-US
Product NameairMAX GigaBeam Plus 60 GHz Radio
Product LineairMAX GigaBeam Plus
Manufacturer Part NumberGBE-PLUS-US
Manufacturer Website Addresshttp://www.ui.com
Marketing InformationHigh-gain 60 GHz radio with a Cassegrain reector that delivers 1.5+ Gbps throughput with low latency

The GigaBeam ® Plus (GBE Plus) is a 60 GHz radio that can be used as a high-throughput backhaul/edge point-topoint(PTP) solution in WISP deployments. With its integrated Cassegrain reector the GBE Plus delivers 35 dBi antenna gain and can exceed a 1.5 Gbps bidirectional throughput rate with very low latency. Designed for simple deployment and ease of use the GBE Plus can be set up in minutes and fully managed with the UISP™ web application or mobile app.
Host InterfaceRJ-45
Additional Information

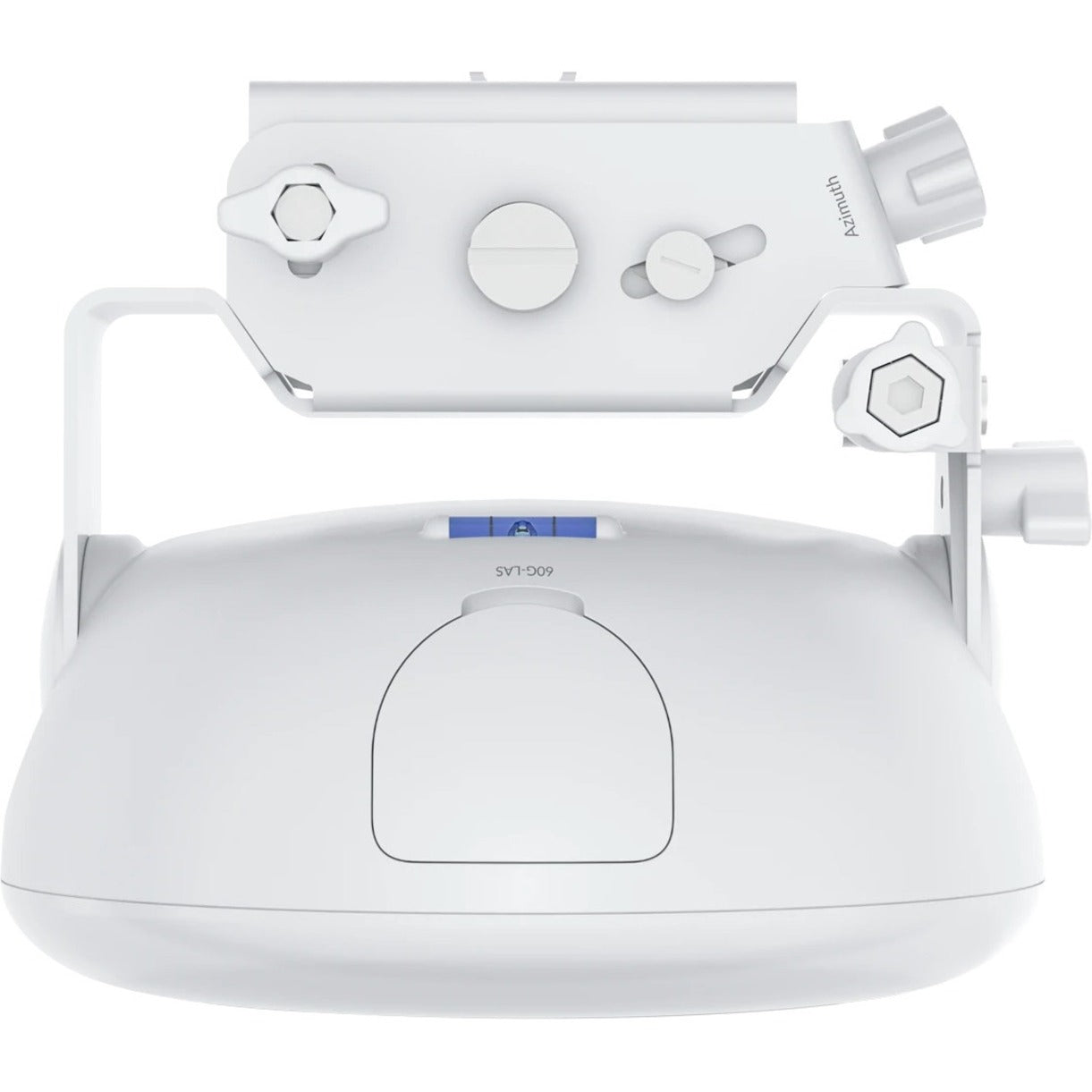

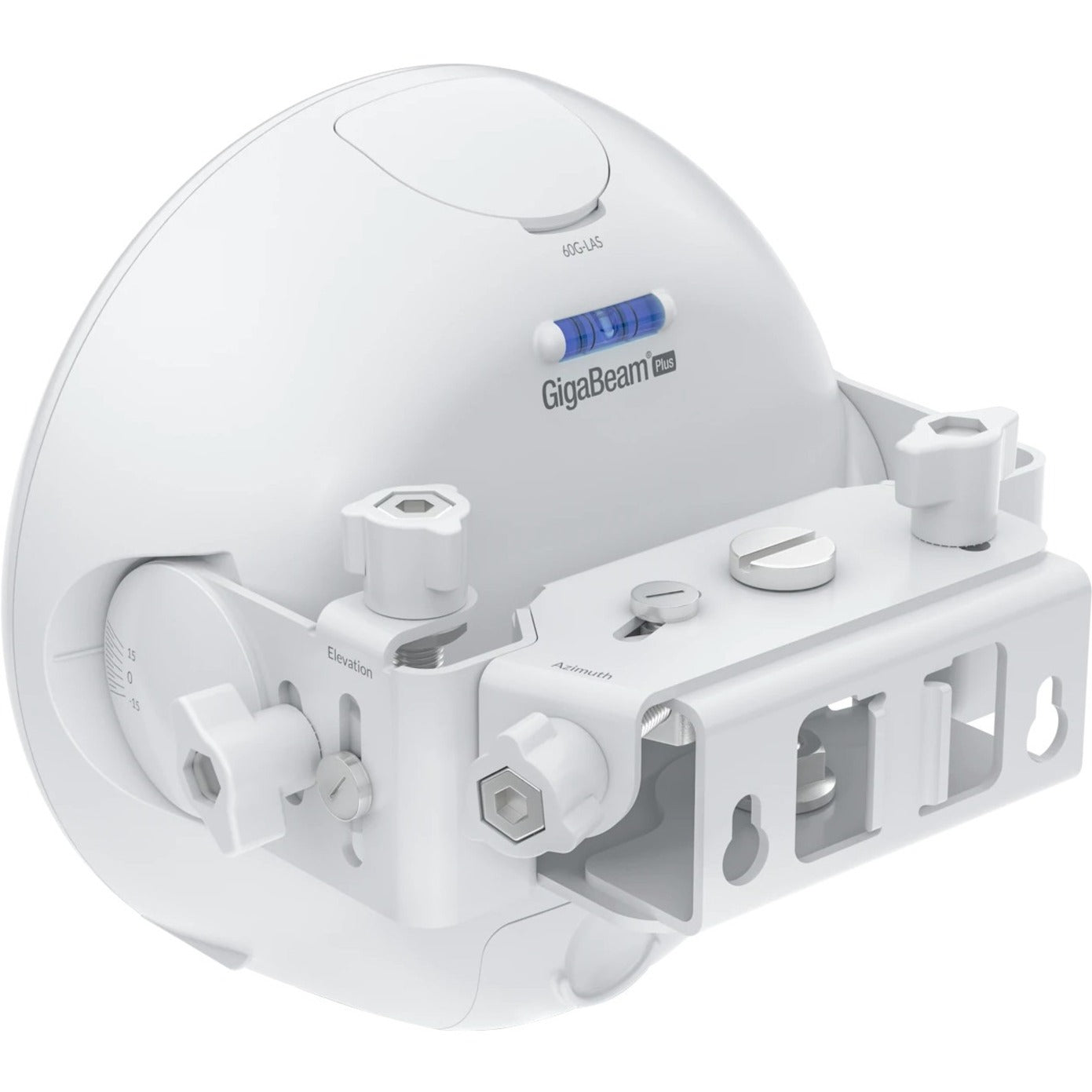

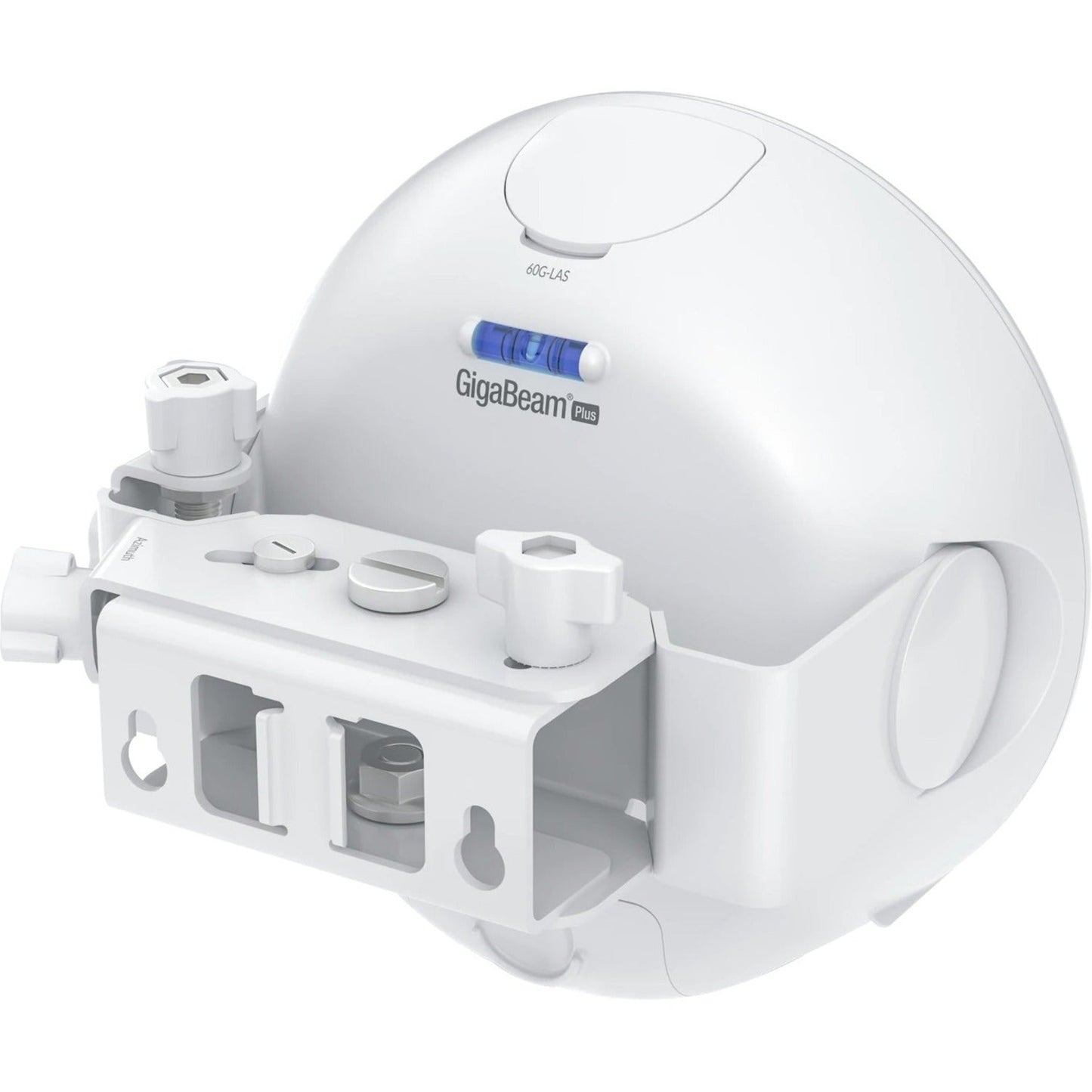

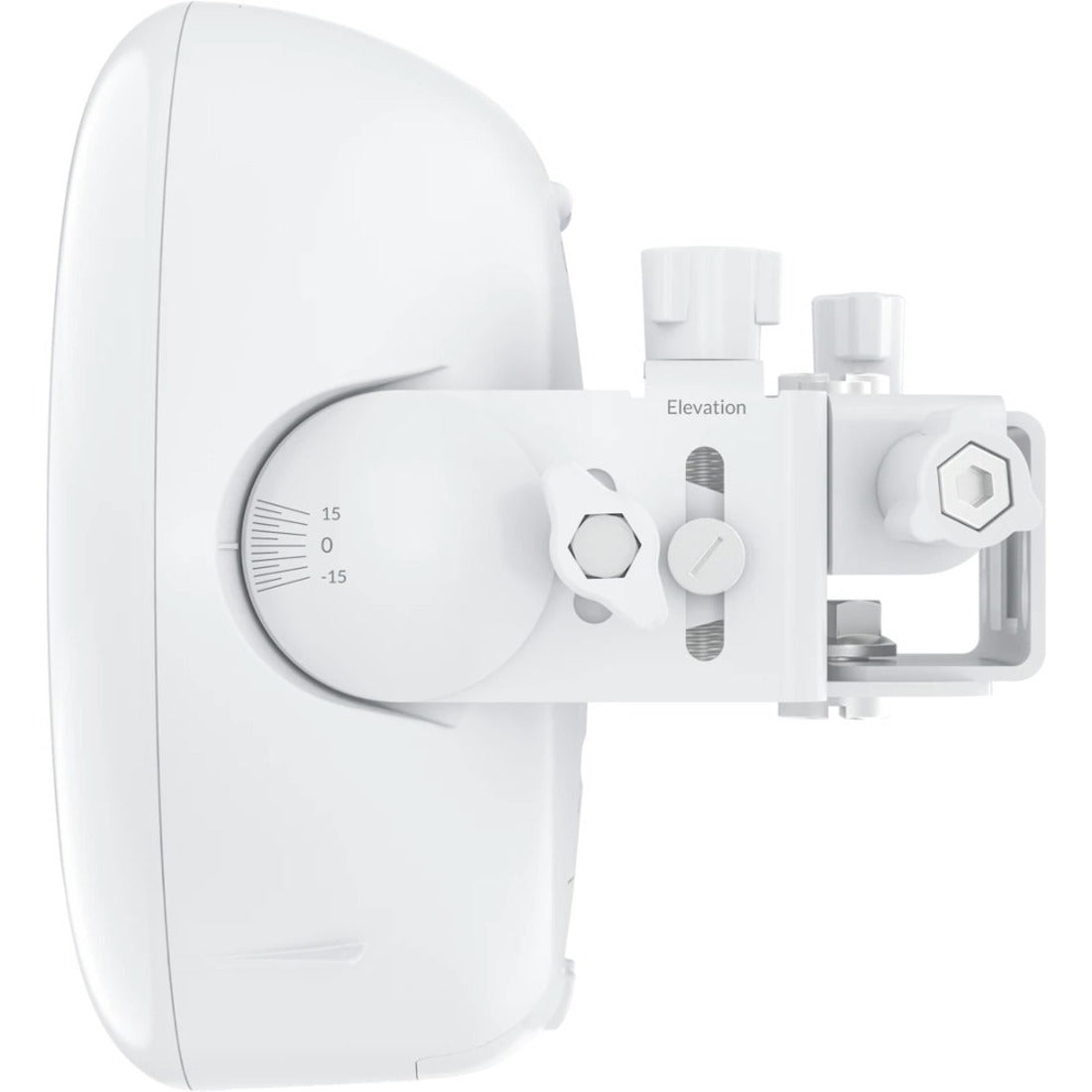

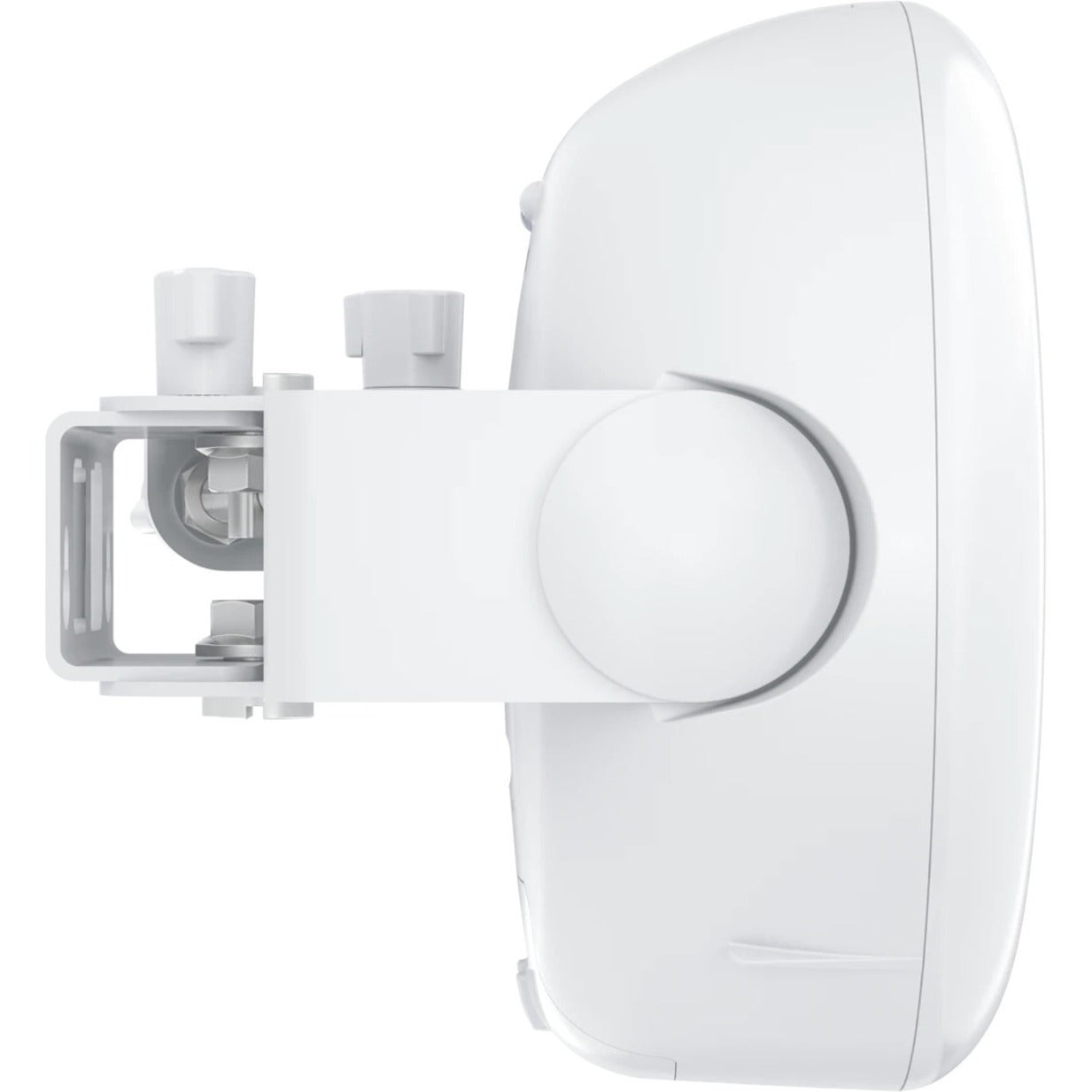

  • Mount material: Metal
  • Wind loading 50 N at 200 km/h (11.24 lbf at 125 mph)

Hardware:

  • Processor Quad-Core ARM® Cortex® A7
  • Memory 256 MB DDR3
  • RF connections Internal
  • Max. power consumption 11W
  • Power method Passive PoE (Pairs 4 5+; 7 8-)
  • Power supply 24VDC 0.5A Gigabit PoE adapter
  • Supported voltage range 22 to 26VDC
  • ESD/EMP protection Air/Contact: ± 24kV
  • Operating temperature -40 to 60° C (-40 to 140° F)
  • Operating humidity 5 to 95% noncondensing

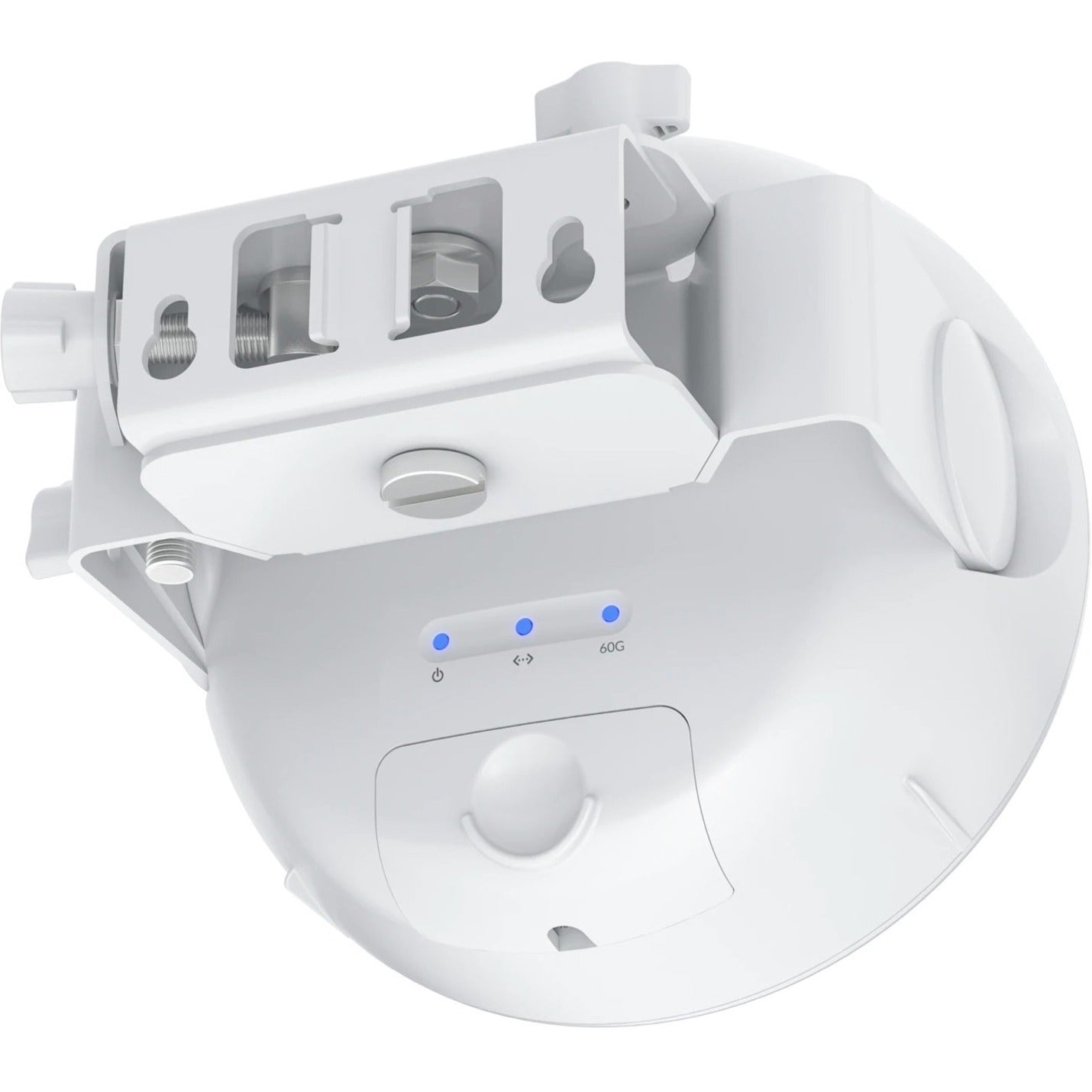

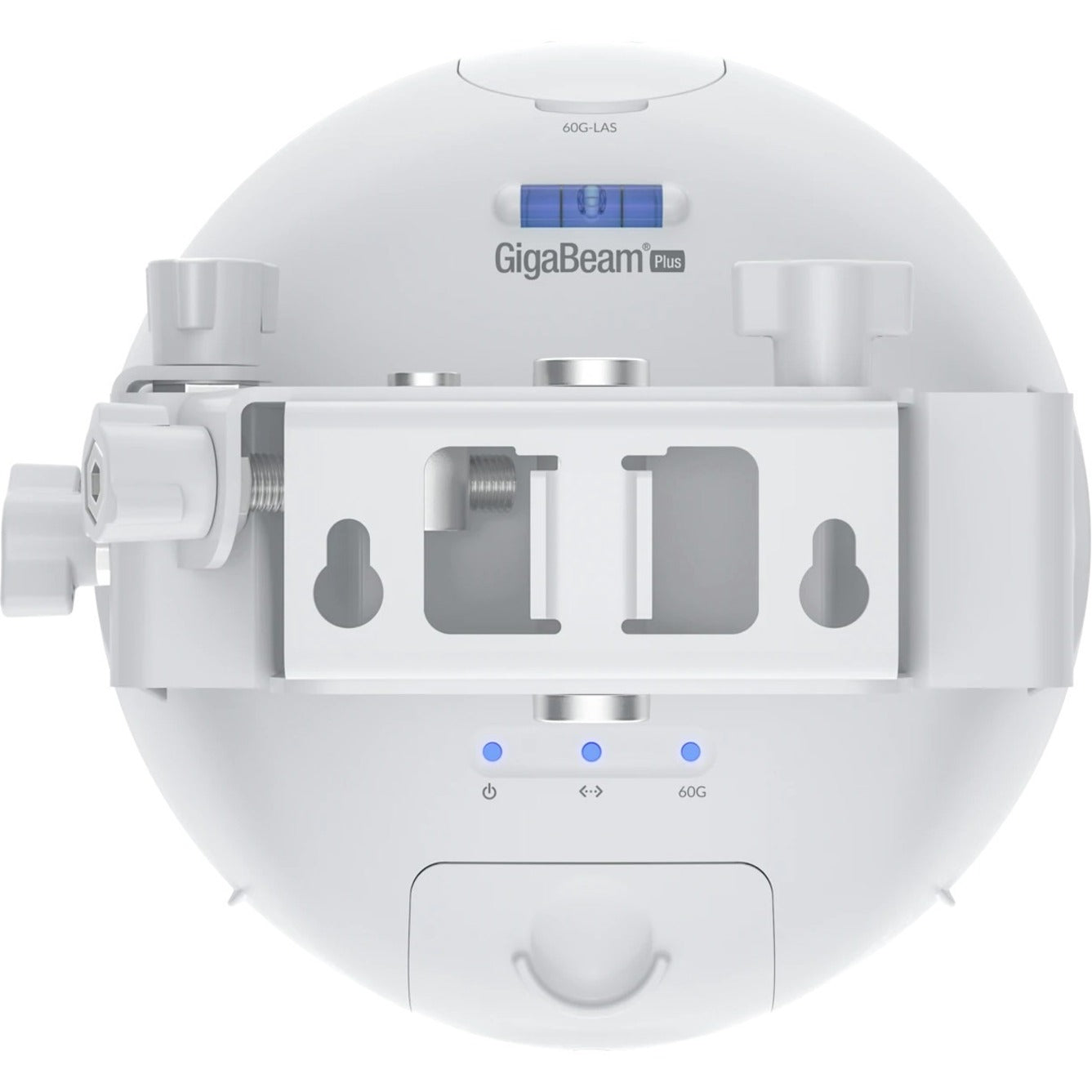

LEDs:
  • Power:
    • Flashing white: Booting up
    • White: Not connected to UISP
    • Blue: Connected to UISP

  • Ethernet:

    • Flashing blue: Ethernet traffic detected

  • 60GHz:

    • Blue: Connected

Software:
  • OS: airOS®
  • Operating modes: PtP master or station
  • Ubiquiti specific features: Integrated 60 GHz radio discovery protocol
  • Security: WPA2 AES only
  • Dashboard: Yes
  • Wireless settings: Yes
  • Network settings: Yes
  • System: Yes
  • Services: UISP ping watchdog web server SSH server NTP client system log device discovery
  • Tools: Antenna alignment discovery utility traceroute speed test
  • Management interface: UISP application (web/mobile)
  • Minimum software requirements: A modern web browser or an iOS/Android device
RF:
  • Operating frequency: 57000 - 66000 MHz (Dependent on regional regulations.)
  • Channel bandwidth: 2160 MHz
  • Operating channels: 58320 60480 62640 64800 MHz
  • Beamwidth:
    • Azimuth: 2° (-3 dB) / 3° (-6 dB)
    • Elevation: 2° (-3 dB) / 3° (-6 dB)
  • Bluetooth: 2400 - 2483.5 MHz
  • Electrical downtilt: 0°
Weight (Approximate)2.20 lb
View full details
$228.99 USD
$228.99
Sale Sold out

Dropship

Get it by Wed, Jan 08 - Mon, Jan 13


Update


Shipping calculated at checkout.
